Description
Make It Your World.

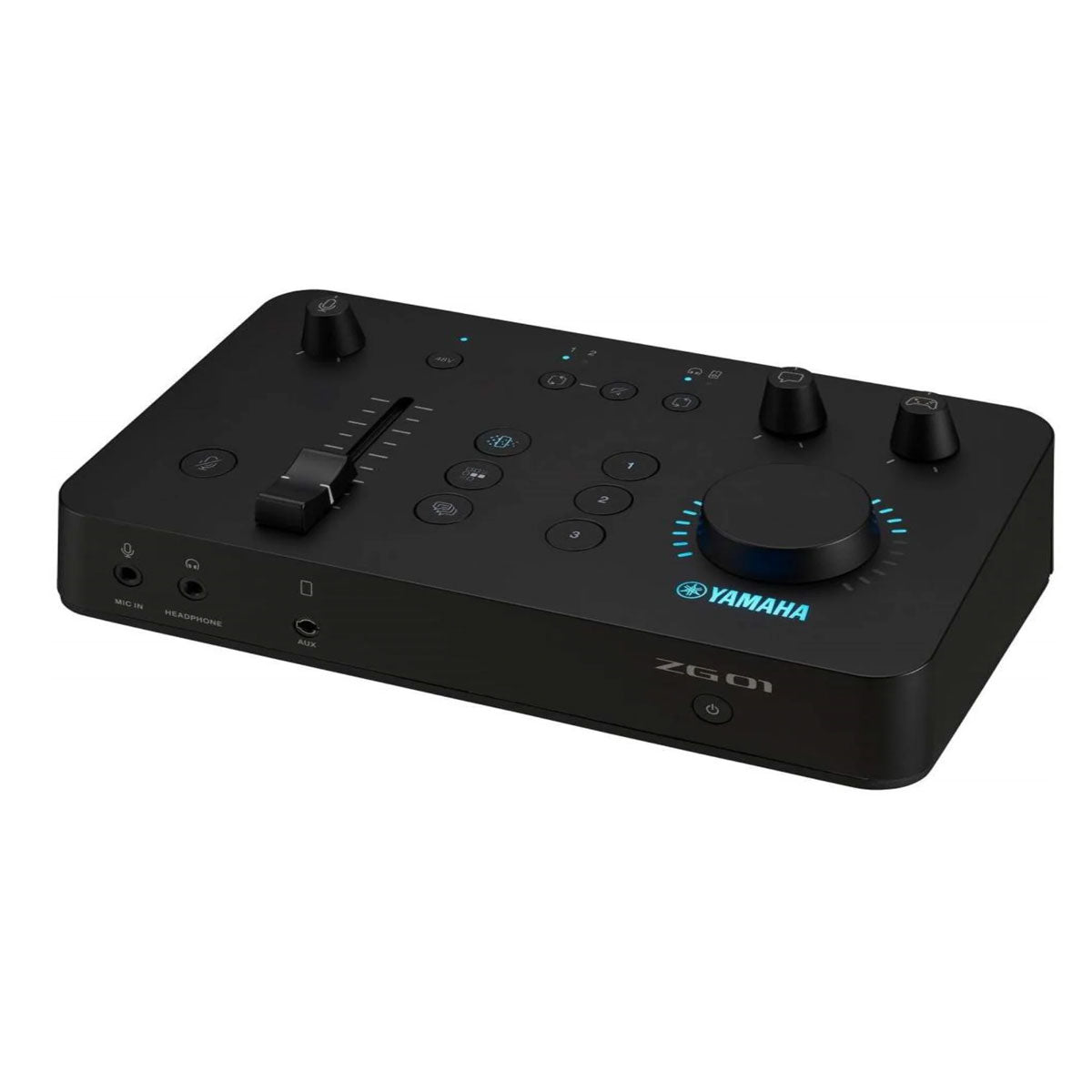

The ZG01 PACK is an all-in-one package that pairs the ZG01 multifunctional game streaming audio mixer with a YH-G01 headset for an immersive gaming setup that’ll take you deeper into your gaming world than you imagined possible.
The ZG01’s dedicated gaming functionality allows you to easily manage and enhance all the audio signals of your gaming environment, while the YH-G01 delivers studio-quality sound reproduction of your game and voice chat audio, giving you a perfect reference to ensure that your listeners enjoy the same high-resolution immersive audio experience as you.
An all-in-one package that includes the ZG01 game streaming audio mixer and YH-G01 headset for an immersive gaming experience.
ZG01 Features at a Glance:
- Intuitive volume control designed for gamer and game streamer
- High resolution (24-bit, 48 kHz) USB audio recording and playback
- Flexible volume control with dedicated drivers that are recognized by Windows/Mac as virtual multiple devices
- ZG Sound Processing (ZG SURROUND, FOCUS MODE/EQ, 3D CHAT SPACE, Voice changer, Transceiver/Radio voice effect... and more)
- Effect button x 6 (3 for voice chat effects, 3 for game sound effects)

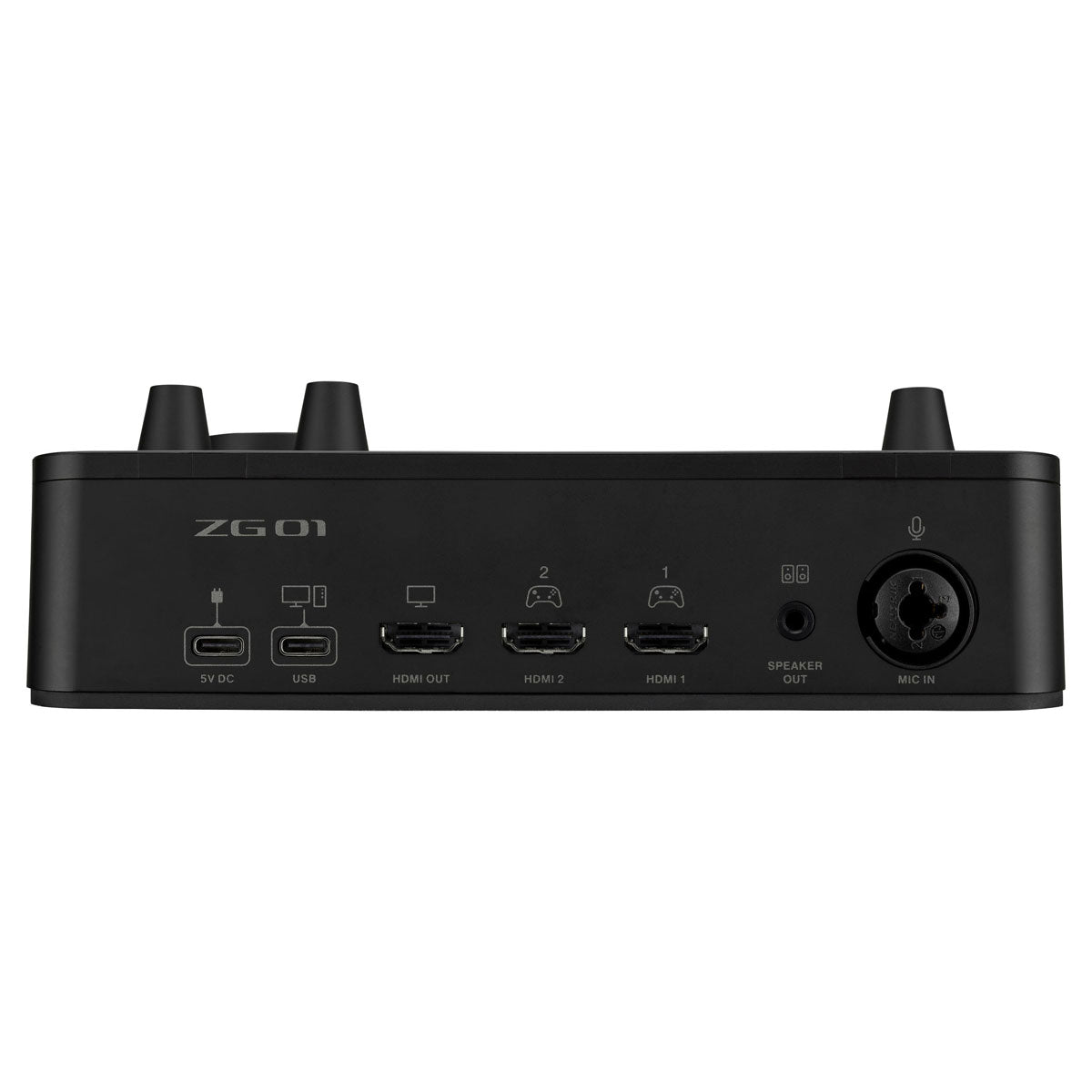

- HDMI connection port x 3 (2-in/1-out, Audio out: 2ch 24-bit/48 kHz fixed, Video signal: Pass-through)
- MIC input for condenser mics with +48 phantom power and mute button
- Independent inputs and outputs for headset/ microphone with headphones or desktop speakers
- 4-pole mini input/output (TRRS) for smartphones
- ZG Controller (Windows/Mac) for precise parameter control
- Windows/Mac support by USB-C connection
- iOS and Android supported by 4-pole mini input/output (TRRS)
- USB-C Power input (5 V DC, 1.5 A)

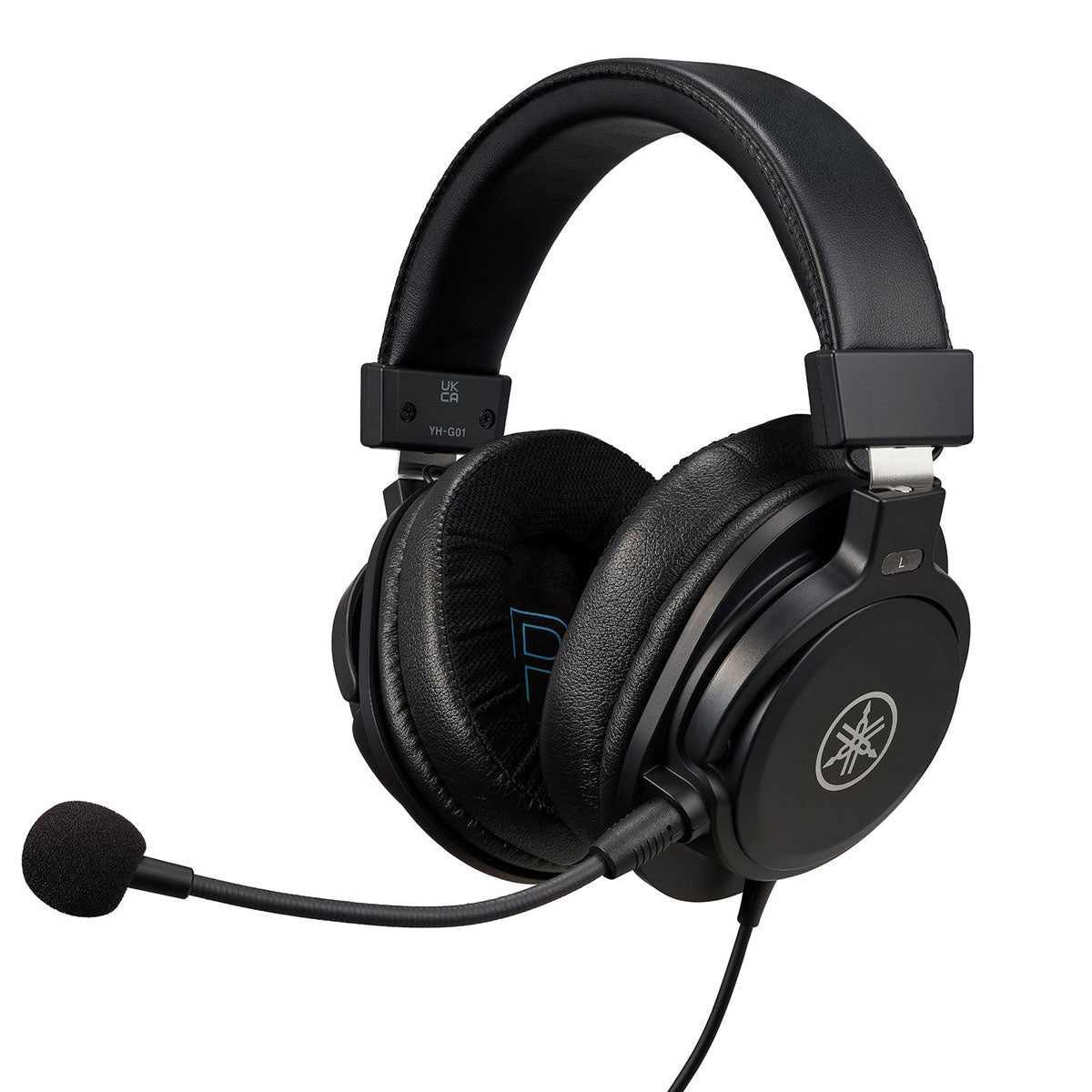

YH-G01 Features at a Glance:
- Lightweight and comfortable to wear
- Combination of lightweight construction (260 g) and high-quality sound
- Mesh earpads
- Studio-quality headphones
- High-quality condenser microphone
- A flat design that fits a variety of applications
Specifications:
| Microphone Unit | Back electret condenser type |
| Polar Pattern | Cardioid |
| Address Type | Side |
| Frequency Response | 30 Hz - 20 kHz |
| Max Input SPL | 130 dB (THD ≦ 1.0 ％ at 1 kHz) |
| Sensitivity | -37 dB ± 3 dB (0 dB=1V/Pa, at 1kHz) |
| Connector | XLR |
| Dimensions (Microphone Only) | Ø55 x 166 mm |
| Weight (Microphone Only) | 0.4 kg |
| Included Accessories | Microphone stand adaptor x 1, Microphone pouch x 1 Owner’s manual, Technical specifications |
