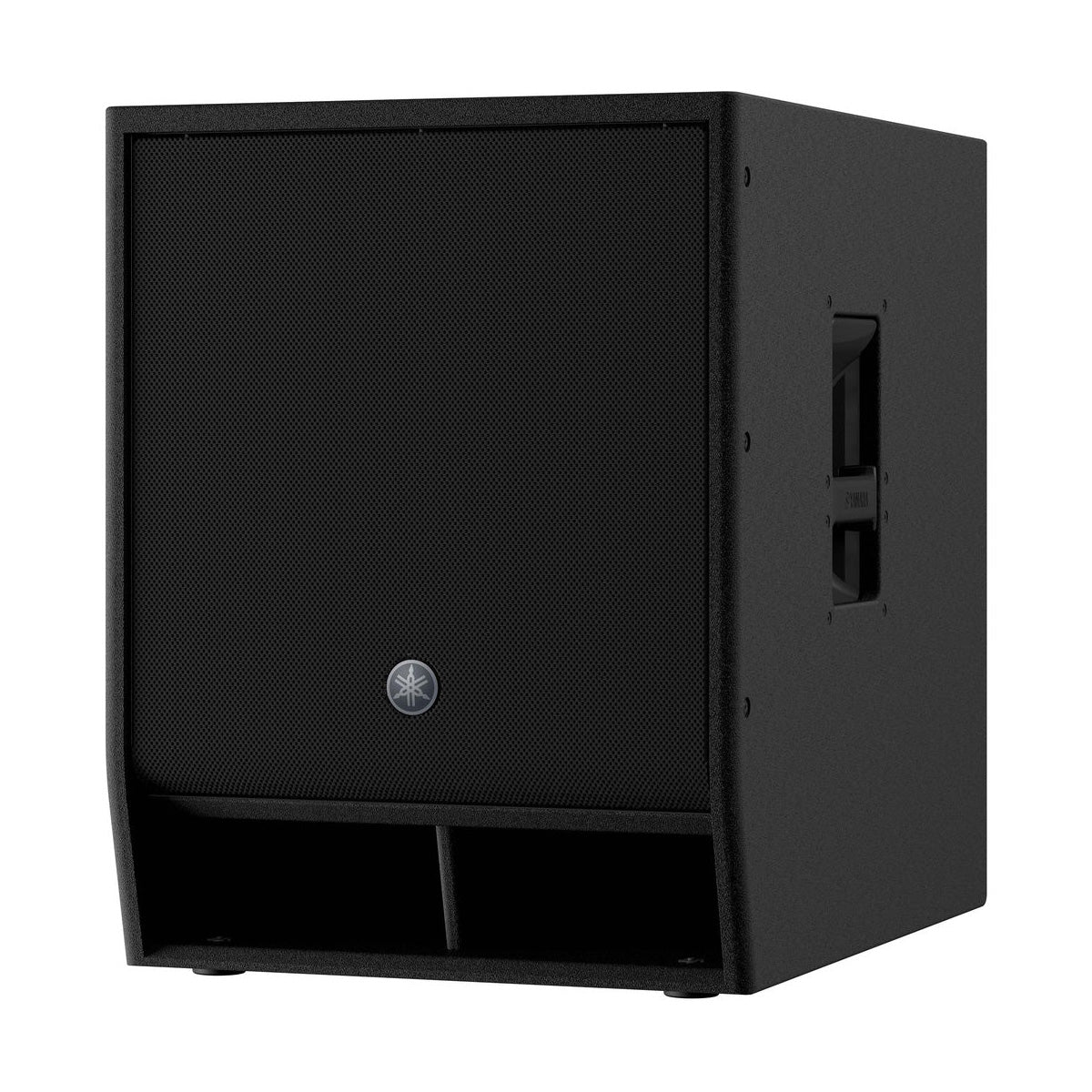

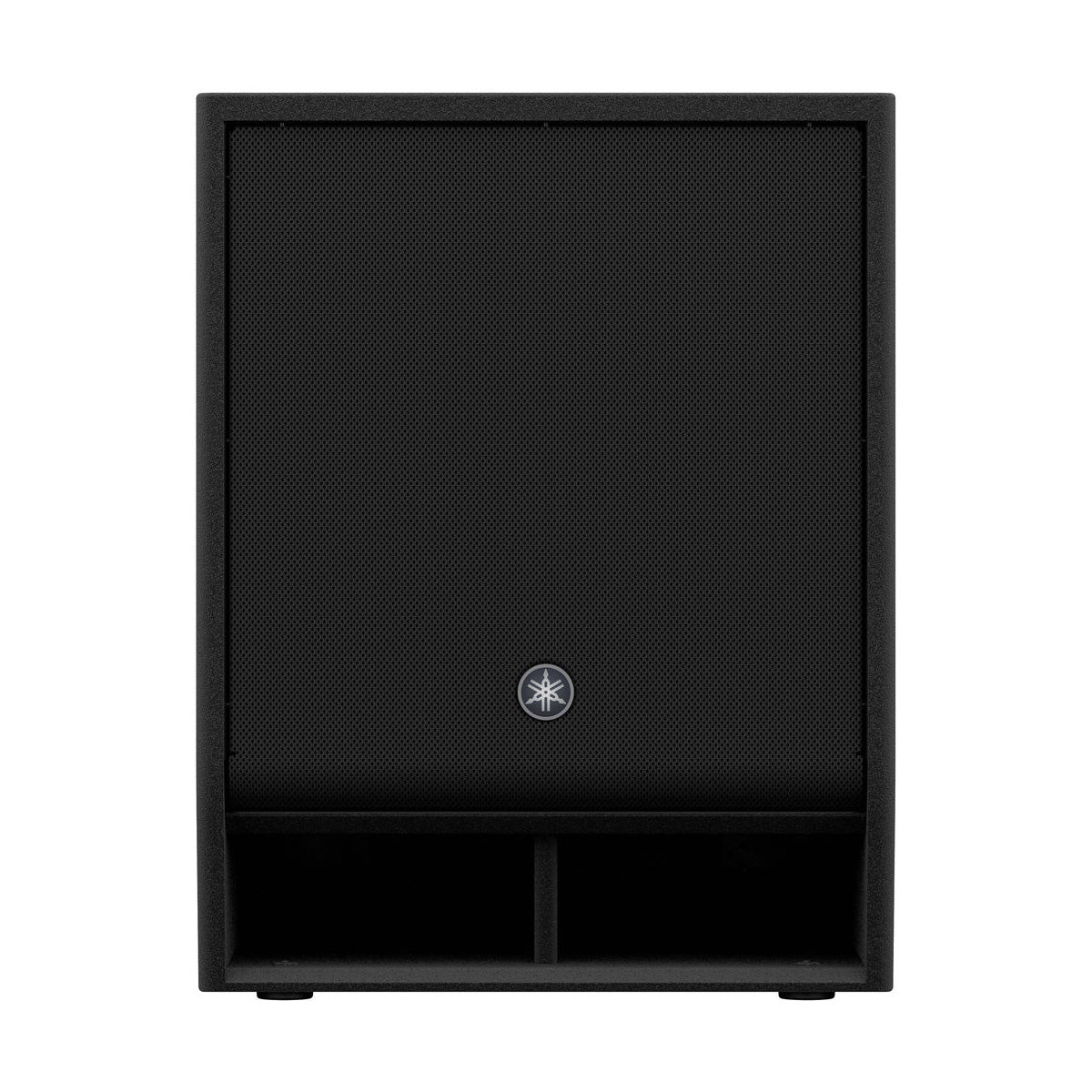

Yamaha DXS15XLF 1600W 15" Powered Subwoofer - Black

Yamaha DXS15XLF 1600W 15" Powered Subwoofer - Black

The black Yamaha DXS15XLF is a powered subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the DZR-series powered loudspeakers. The 1600W Class-D amplifier powers the 15" woofer to provide a frequency range of 33 to 150 Hz (-10 dB) with a maximum SPL of 136 dB.

The on-board D-XSUB LF 96 kHz DSP processor provides total bass management. The Normal mode is ideal for a balanced low-frequency response, while Boost mode provides a tighter and more focused bass with some extra punch. Xtended LF mode drops the low-end frequencies down even further for large bottom end. If using two or more subwoofers, the selection of Cardioid mode can effectively reduce stage volume, while increasing low-end output directed at the audience.

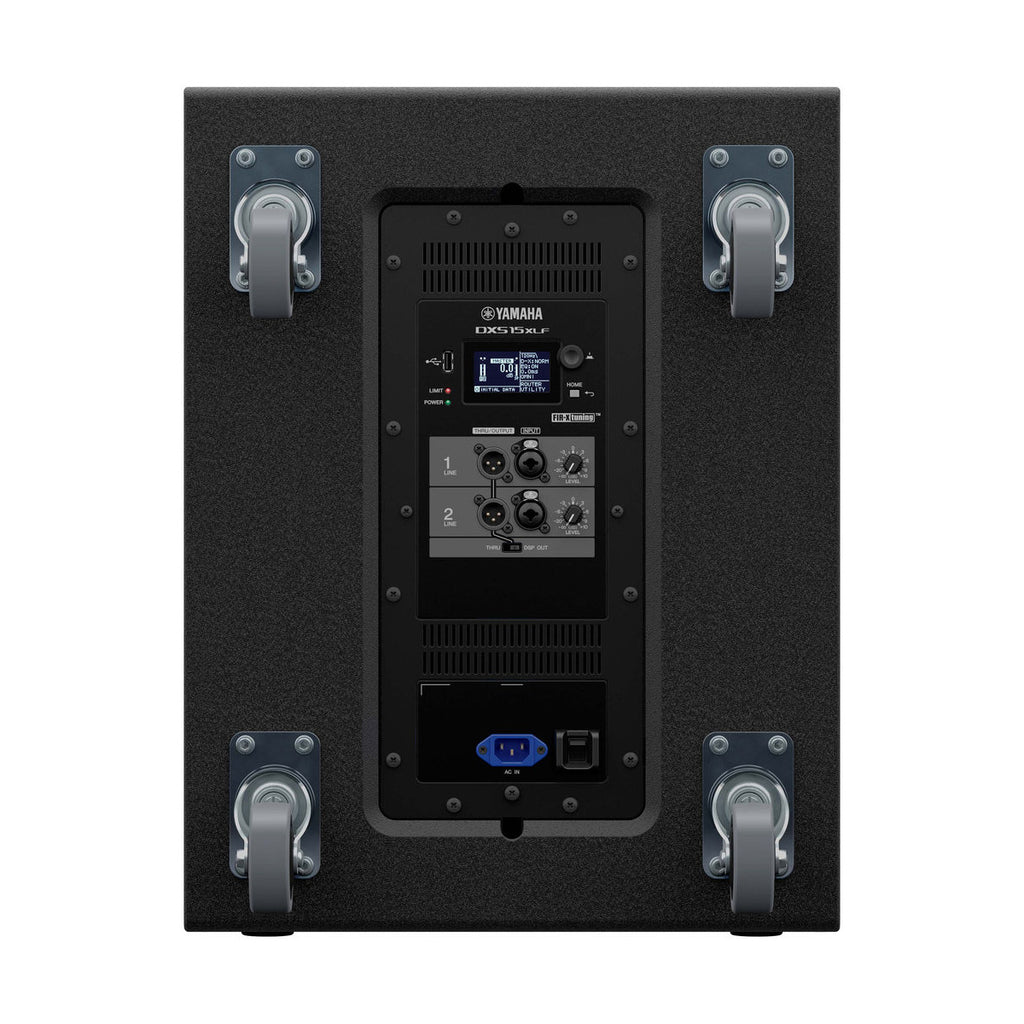

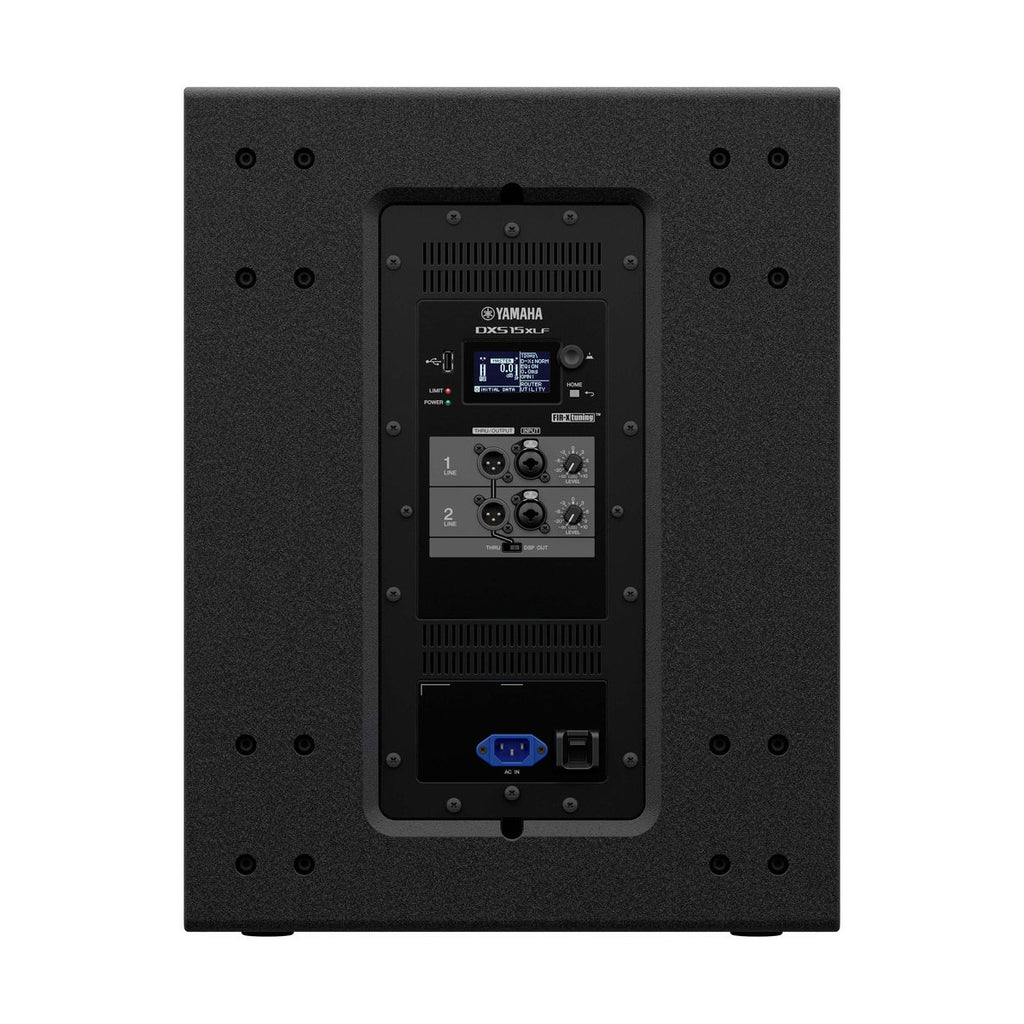

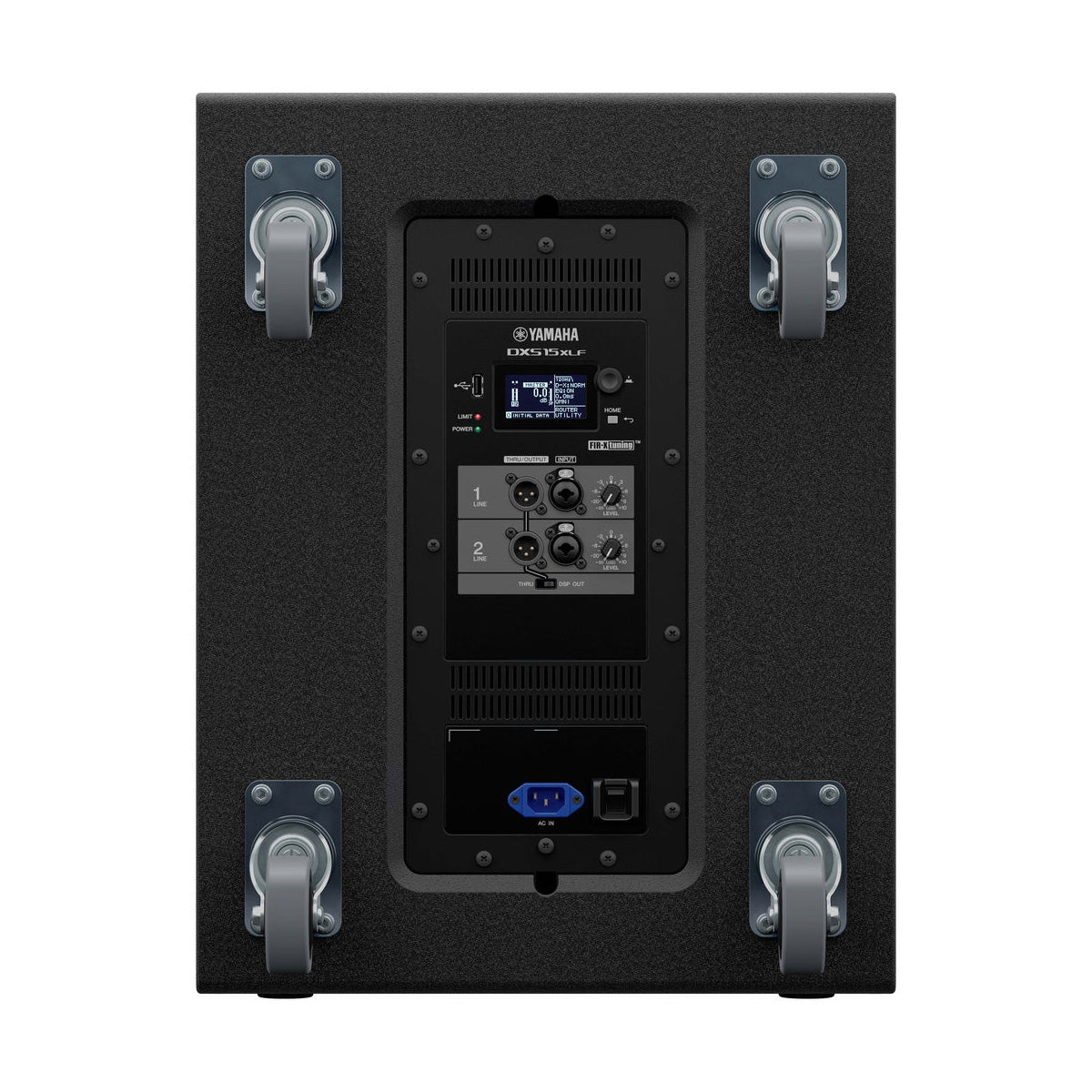

The rear panel offers two combo XLR-1/4" inputs with XLR thru/outputs and dedicated level controls. A USB port allows for system upgrades and preset configuration and backups. The Yamaha DXS15XLF ships with a standard IEC power cord.

Features at a Glance:

• For Live Stage, Theatre, DJ Setups

• Designed for Low-Frequency Extension

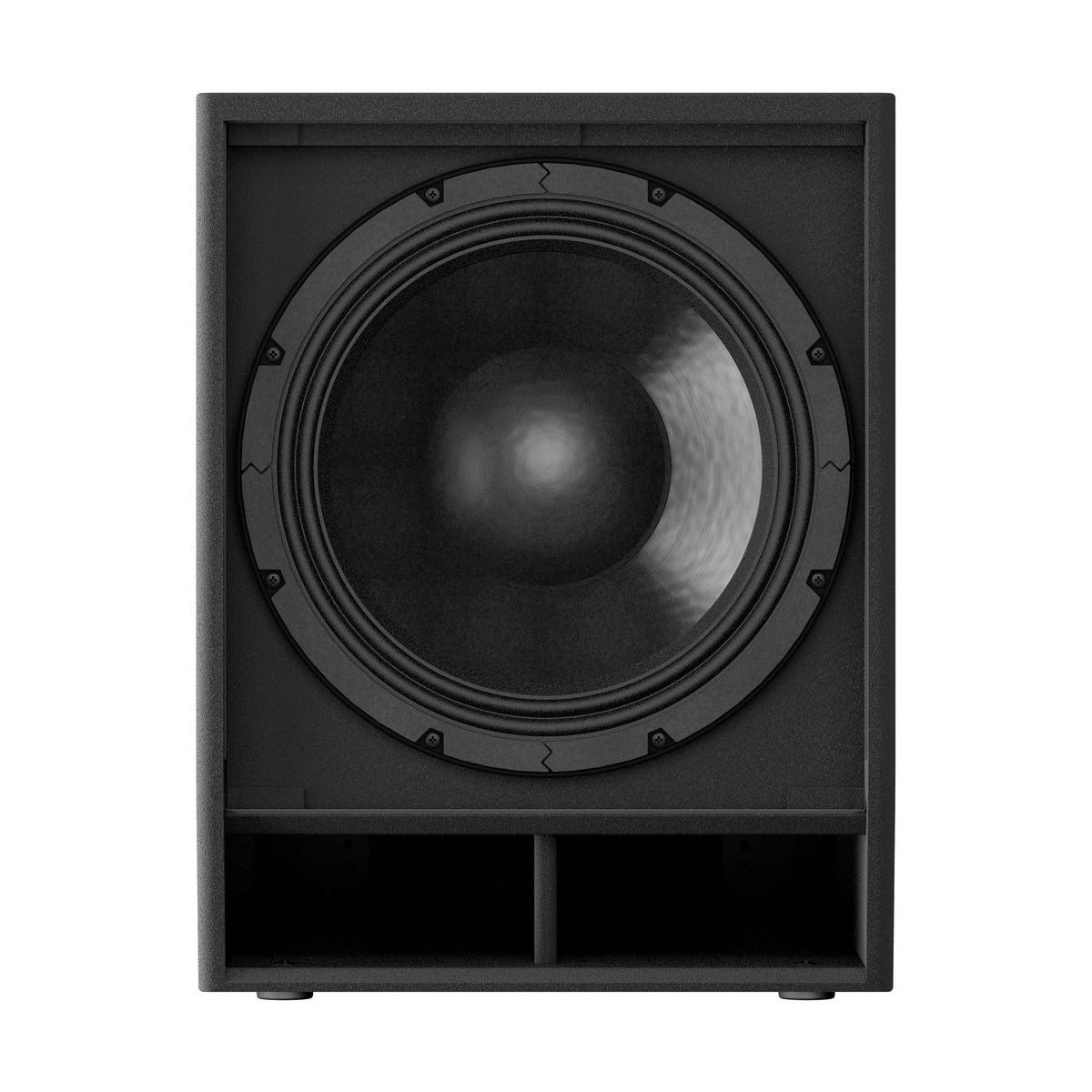

• Woofer: 15" with 4" Voice Coil

• Max SPL: 136 dB

• Frequency Range: 33 to 150 Hz (-10 dB)

• Class-D Amplifier: 1600W

• 2 x Combo XLR-1/4" Inputs + XLR Thru/Out

• D-XSUB LF Processing

• Cardioid Mode for Two or More Subs
