Description

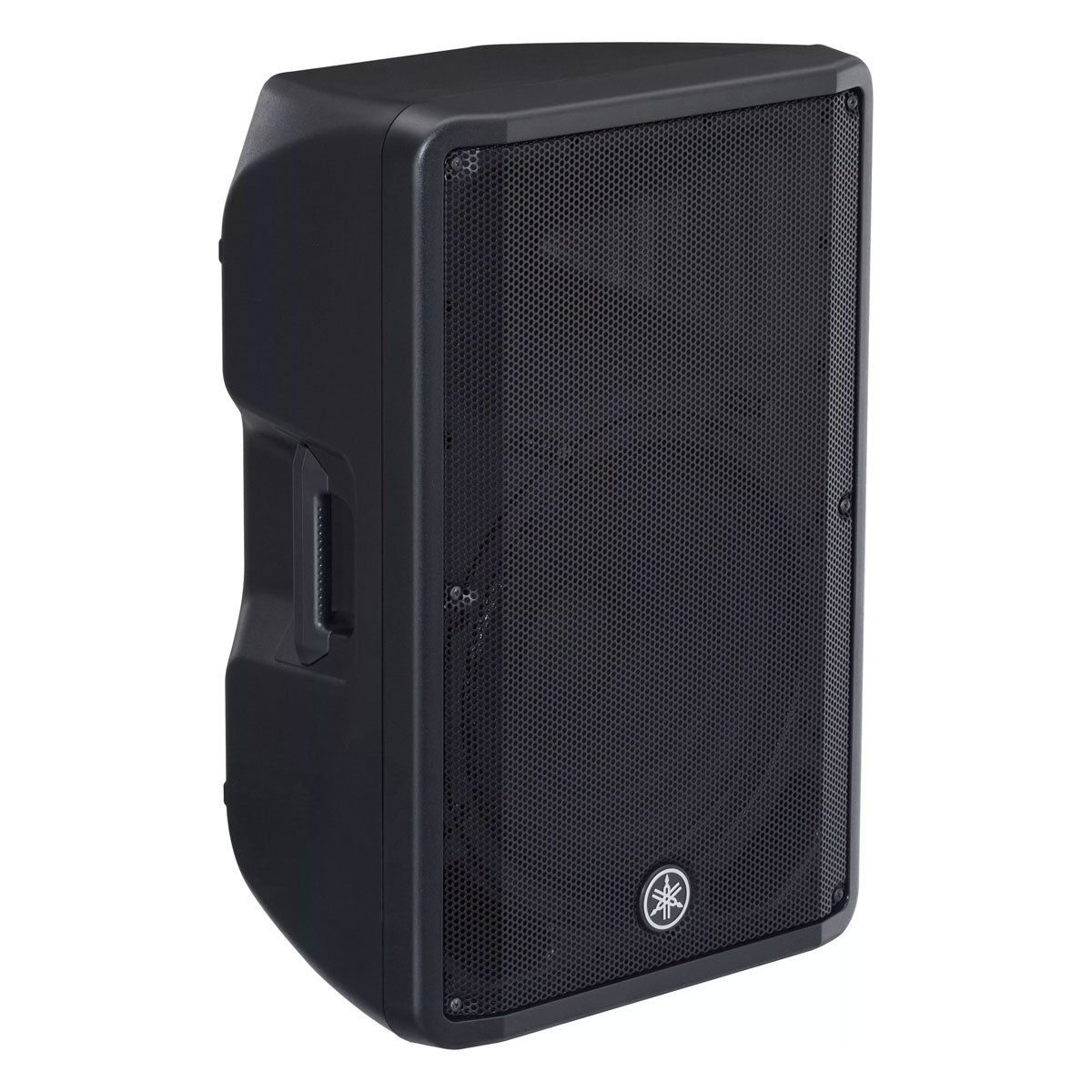

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10”, 12” and 15” models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.
High-Efficiency Class D Amplifier
The DBR15's lightweight, high performance Class-D amplifier is capable of producing up to 1000 W of power, achieving an SPL of 132 dB, delivered with clarity and dynamic characteristics
Custom Designed Transducer
The woofer delivers defined, powerful bass with minimal distortion, while the 1.25" precision compression driver produces accurate mid-range and high frequencies

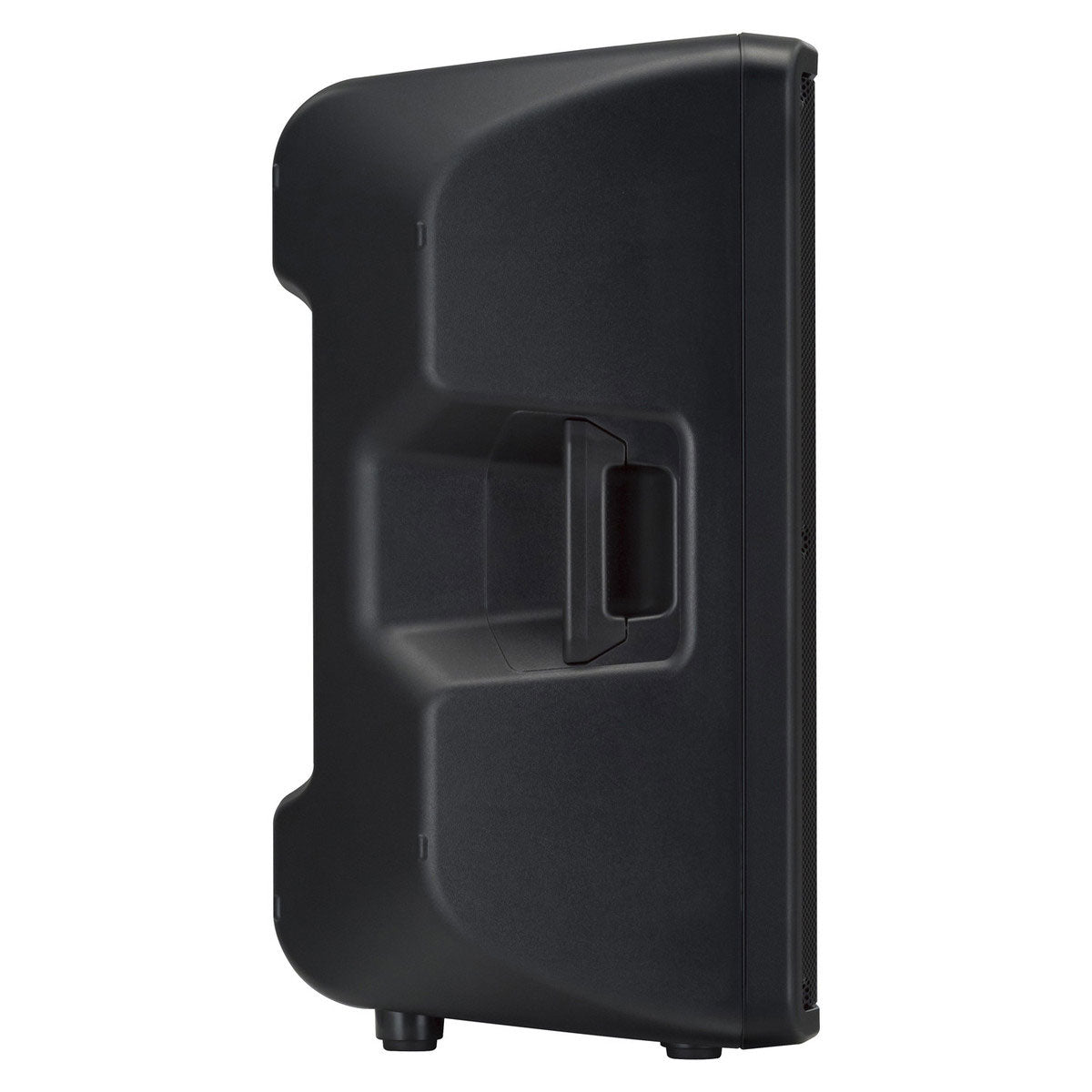

Portable Cabinet
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while an ergonomic handles provide transportation and system setup

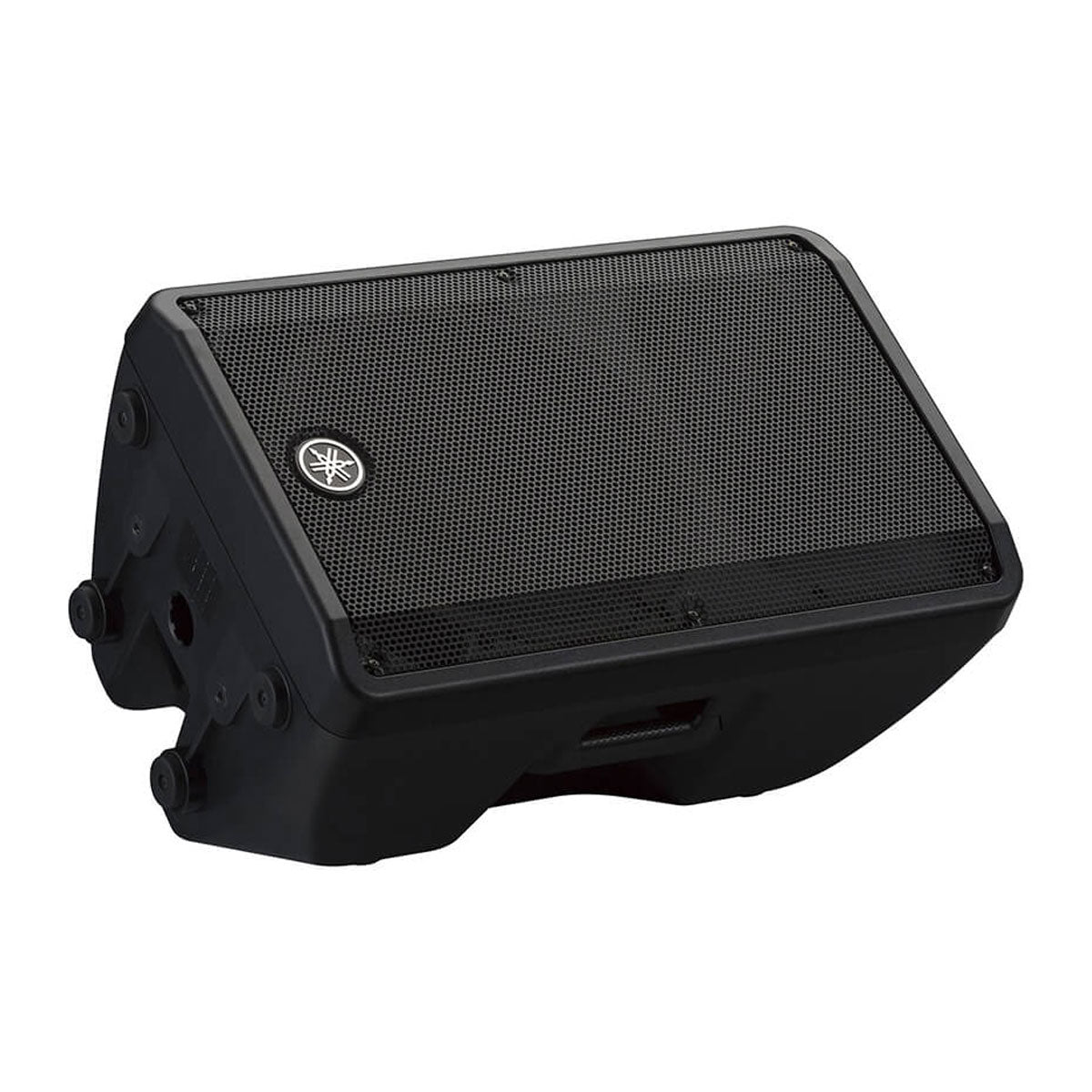

Enclosure Design for Floor Monitoring
DBR Series speakers feature an optimized 50° wedge angle for floor monitoring
On-Board 2-Channel Mixer
DBR Series speakers have two input channels. Channel 1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. Channel 2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either Channel 1 + 2 MIX to mix the signal of Channel 1 and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only
Rigging Points for Installation Applications
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts
Features at a Glance:
- 1000W Dynamic Output
- Class D Amplifier
- 15" Woofer & 1.4" HF Driver
- On-Board 2-Channel Mixer
- Floor, FOH, Rigged Applications
- Designed for Portability
- Built-In Rigging Points
Specifications:
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 1000 W Peak |
| Amplifier Power Rating | LF: HF: |
| Drivers | HF Driver |
| Frequency Range | 50 Hz to 20 kHz -10 dB |
| Maximum SPL | 132 dB SPL |
| Coverage Angle | 90° H x 60° V |
| Audio I/O | 2 x Combo XLR-1/4" TRS Input |
| Crossover | 2.1 kHz |
| AC Input Power | 100 to 120 VAC, 50 / 60 Hz |
| Power Consumption | 74 W (1/8 Power) |
| Mounting | 1 x 1.38" / 35 mm Pole Socket (Bottom) |
| Handles | 2 x Side |
| Cooling | Fan (Variable Speed) |
| Construction Material | Plastic |
| Dimensions | 455 x 700 x 378 mm |
| Weight | 19.3 kg |
