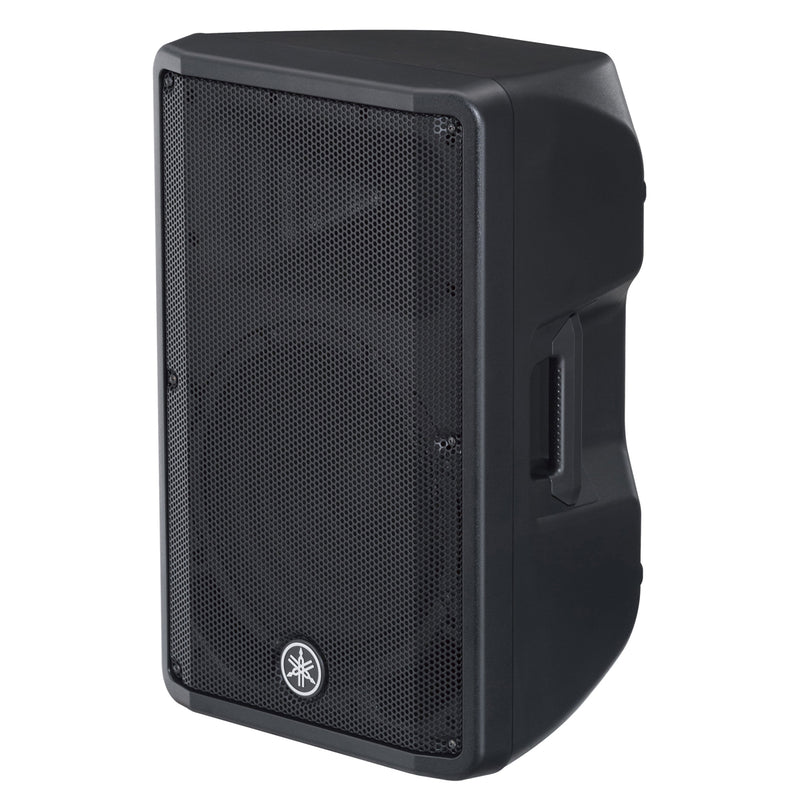

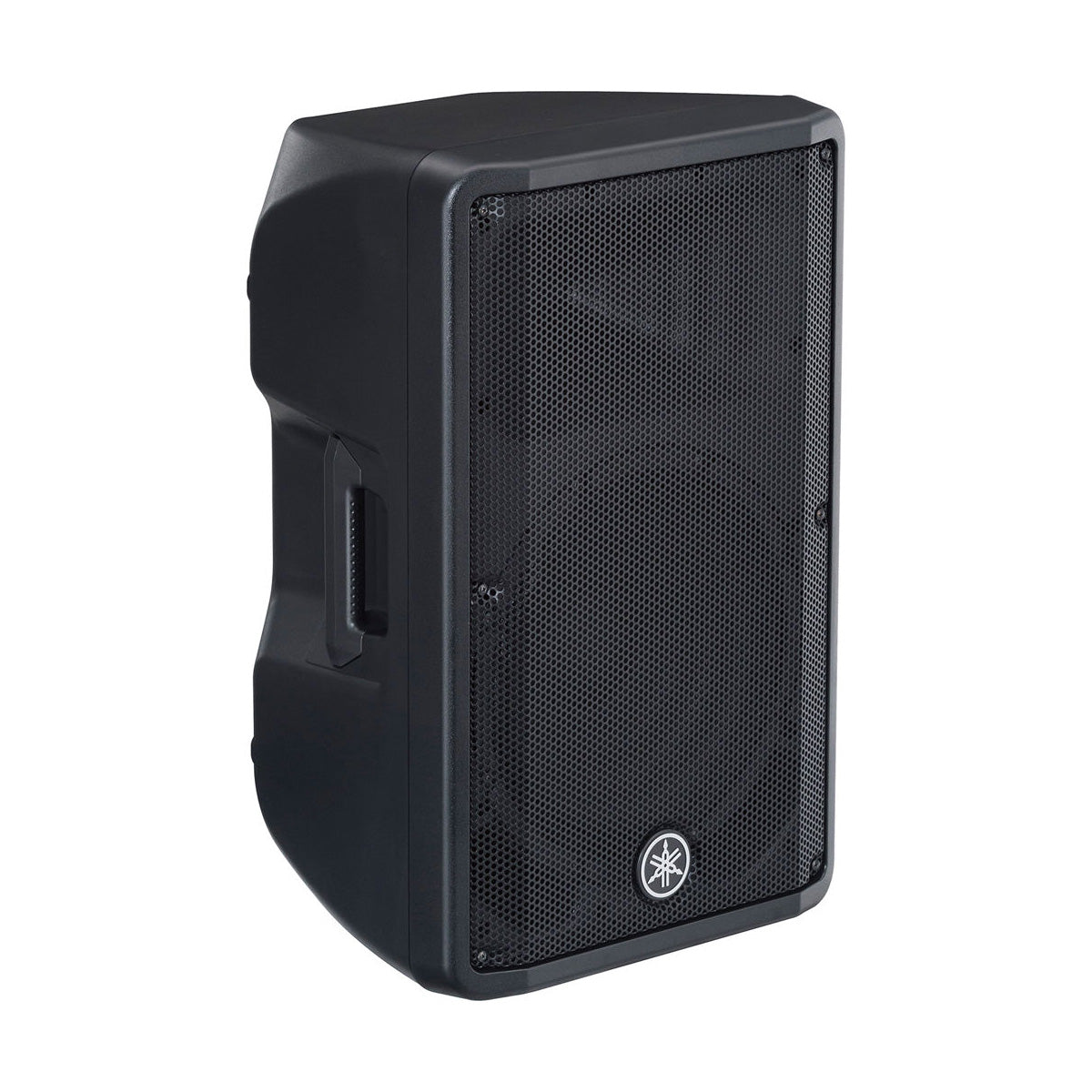

Yamaha DBR12 Powered Loudspeaker

Yamaha DBR12 Powered Loudspeaker

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR12- 12" 2-Way Powered Loudspeaker from Yamaha is capable of up to 1000W of dynamic output via its Class D amplifier. The loudspeaker features a 12" woofer and a 1.4" high-frequency driver and provides a maximum output of 131 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4", XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR12 is portable and can be easily transported.

High-Efficiency Class D Amplifier

The DBR12's lightweight, high performance Class-D amplifier is capable of producing up to 1000 W of power, achieving an SPL of 131 dB, delivered with clarity and dynamic characteristics

Custom Designed Transducer

The woofer delivers defined, powerful bass with minimal distortion, while the 1"" precision compression driver produces accurate mid-range and high frequencies

Portable Cabinet

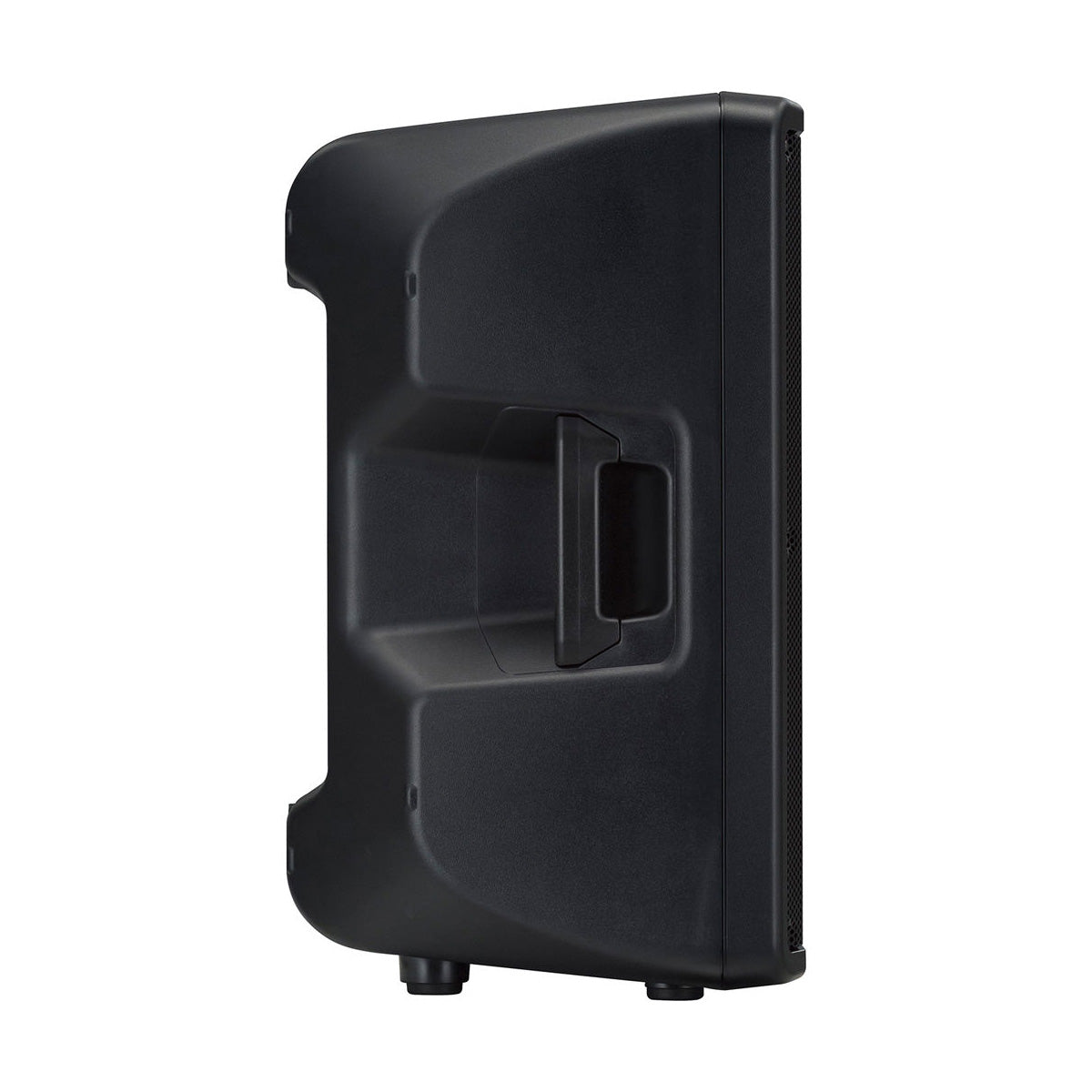

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while an ergonomic handles provide transportation and system setup

Enclosure Design for Floor Monitoring

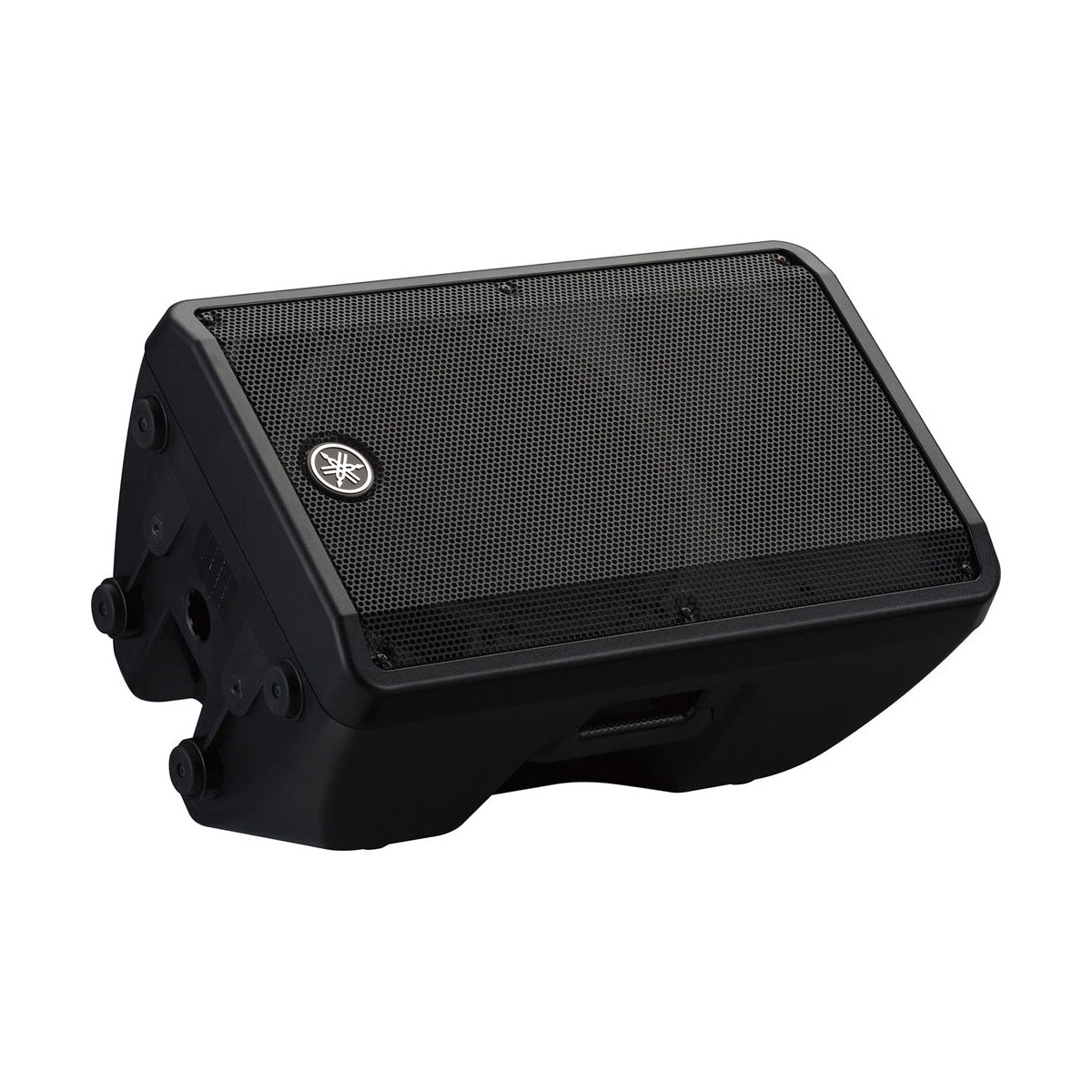

DBR Series speakers feature an optimized 50° wedge angle for floor monitoring

On-Board 2-Channel Mixer

DBR Series speakers have two input channels. Channel 1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. Channel 2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either Channel 1 + 2 MIX to mix the signal of Channel 1 and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only

Rigging Points for Installation Applications

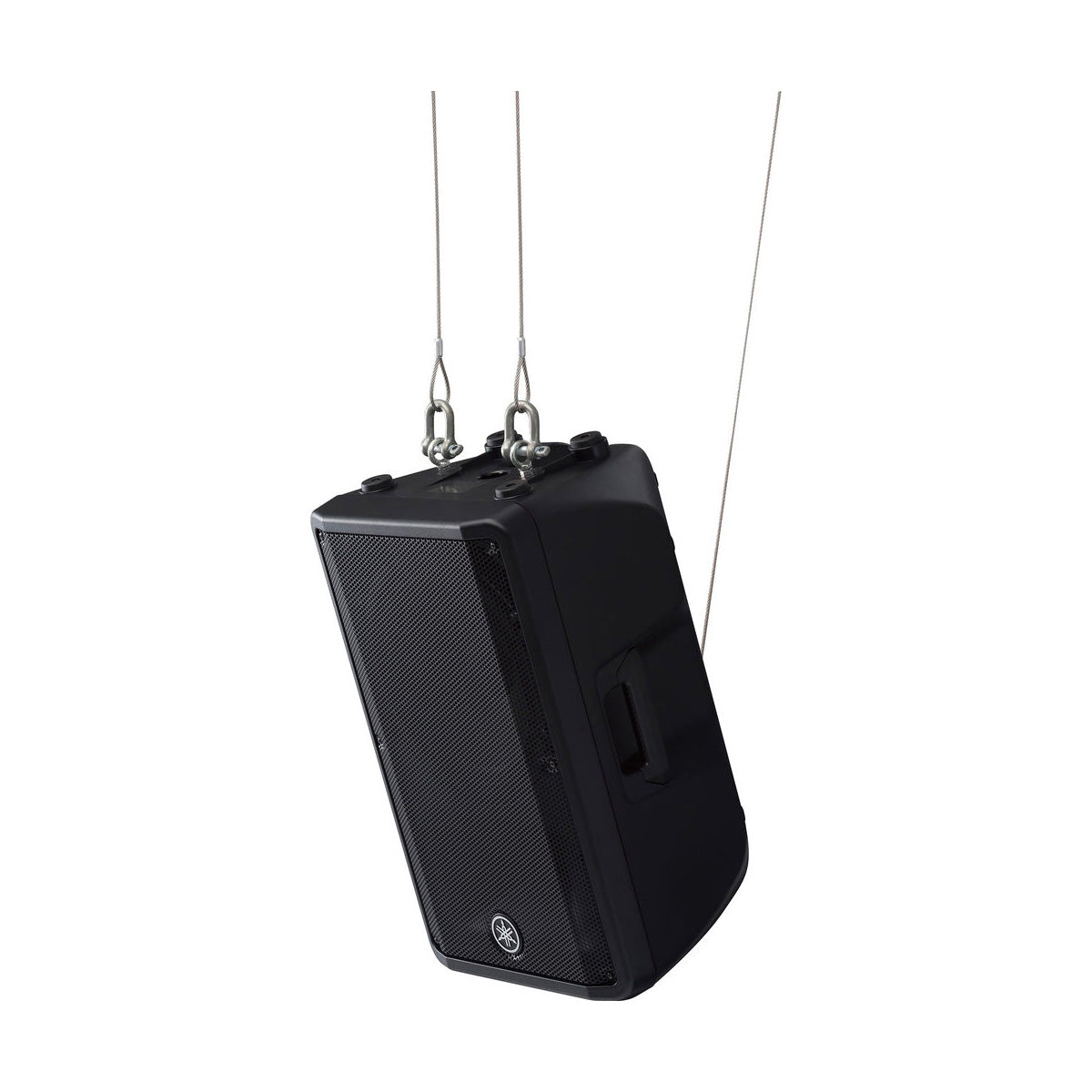

DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts



Features at a Glance:

• 1000W Dynamic Output
• Class D Amplifier
• 12"" Woofer & 1.4"" HF Driver
• On-Board 2-Channel Mixer
• Floor, FOH, Rigged Applications
• Designed for Portability
• Built-In Rigging Points



Specifications:

Configuration	Active 2-Way
Enclosure Type	Bass-Reflex Loudspeaker
Total Power Capacity	1000 W Peak 465 W RMS
Amplifier Power Rating	LF: 800 W Peak 400 W RMS HF: 200 W Peak 65 W RMS
Drivers	HF Driver 1 x 1.4" / 35.6 mm Compression Driver LF Driver 1x 12" / 30.5 cm Woofer LF Voice Coil 2" / 5.1 cm
Magnet	HF: Ferrite LF: Ferrite
Frequency Range	52 Hz to 20 kHz -10 dB
Maximum SPL	131 dB SPL
Coverage Angle	90° H x 60° V
Audio I/O	2x Combo XLR-1/4" TRS Input 1x Stereo RCA Unbalanced Line Input 1x XLR 3-Pin Output Signal Processing
Crossover	2.1 kHz
AC Input Power	100 to 120 VAC, 50 / 60 Hz
Power Consumption	74 W (1/8 Power) 18 W (Idle)

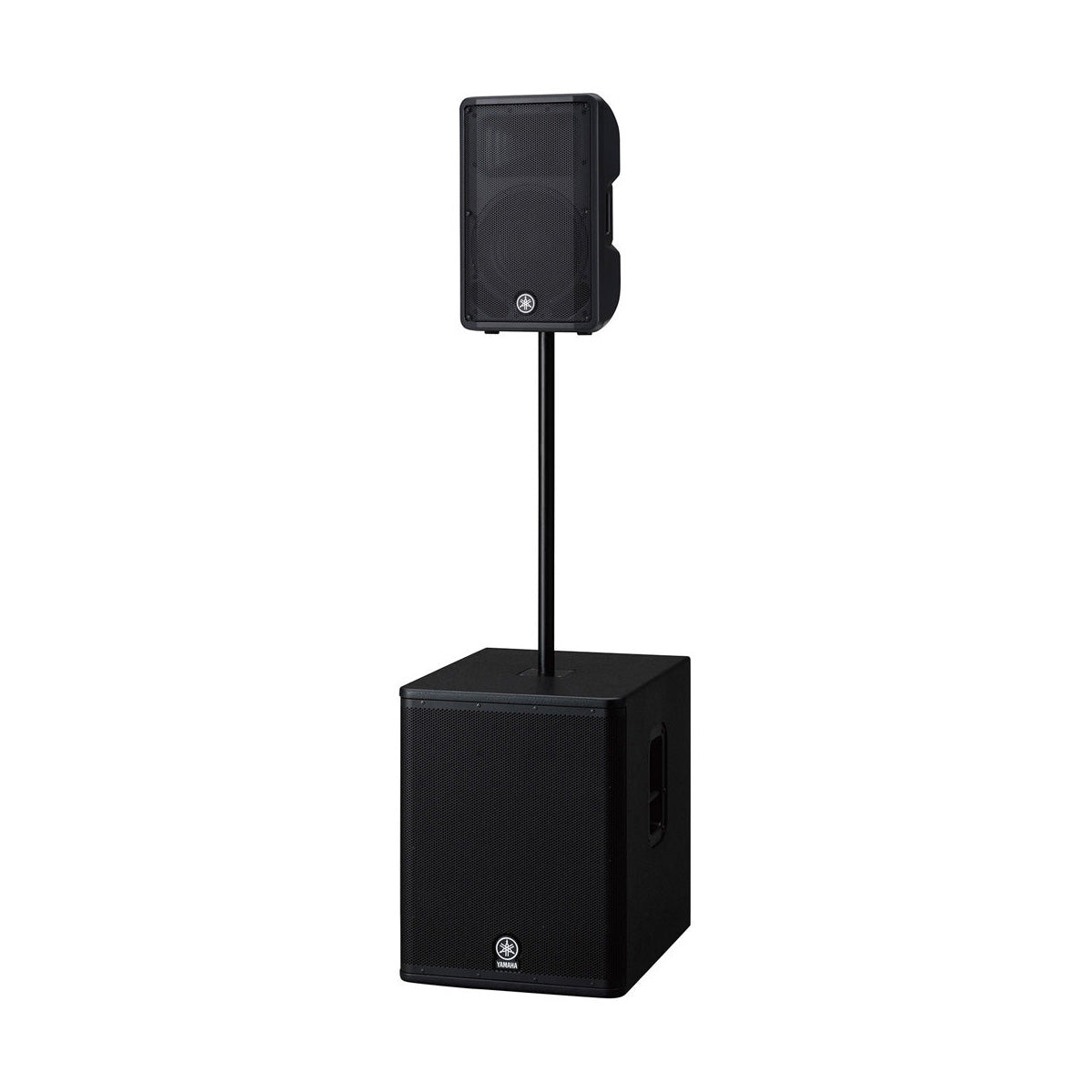

Mounting	1 x 1.38" / 35 mm Pole Socket (Bottom) 2 x M8 (Bottom) 1 x M8 (Rear) 1 x Pole Socket
Handles	2x Side
Cooling	Fan (Variable Speed)
Construction Material	Plastic
Dimensions	376 x 601 x 348 mm
Weight	15.8 kg
