Yamaha DBR10 Powered Loudspeaker

Yamaha DBR10 Powered Loudspeaker

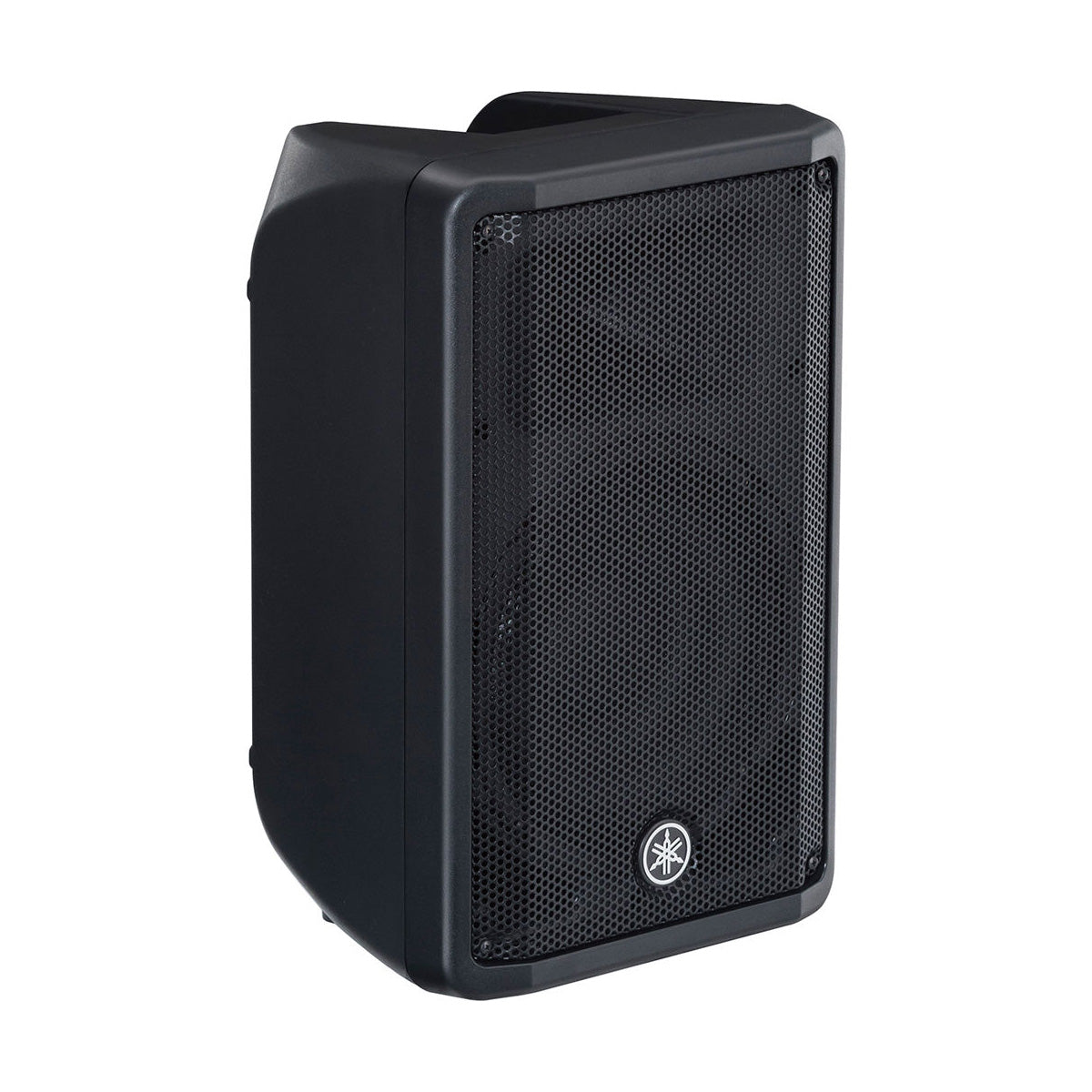

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR10- 10" 2-Way Powered Loudspeaker from Yamaha is capable of up to 700W of dynamic output via its Class D amplifier. The loudspeaker features a 10" woofer and a 1" high-frequency driver and provides a maximum output of 129 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4", XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR10 is portable and can be easily transported.

High-Efficiency Class D Amplifier

The DBR10's lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 129 dB, delivered with clarity and dynamic characteristics

Custom Designed Transducer

The woofer delivers defined, powerful bass with minimal distortion, while the 1" precision compression driver produces accurate mid-range and high frequencies

Portable Cabinet

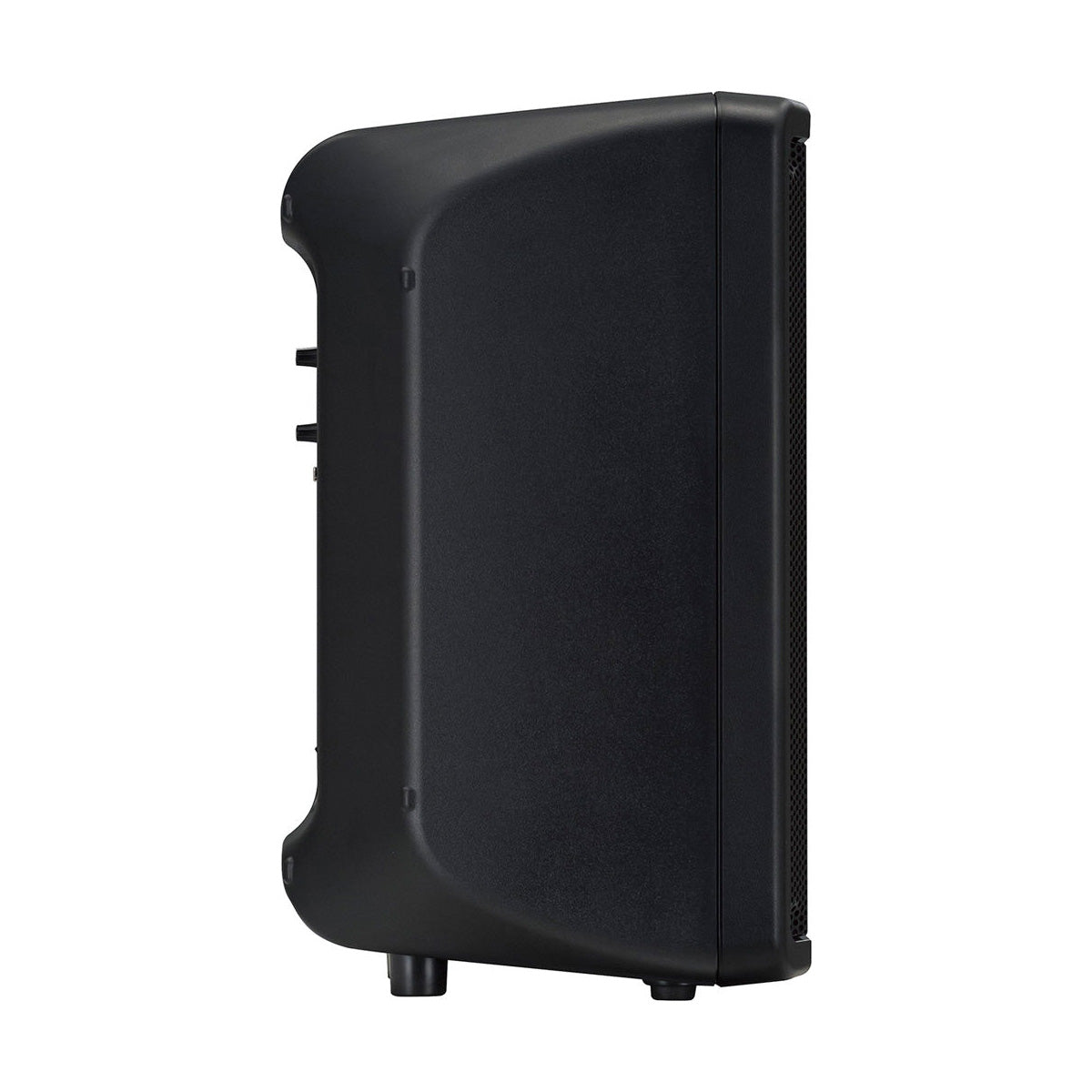

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while an ergonomic handles provide transportation and system setup

Enclosure Design for Floor Monitoring

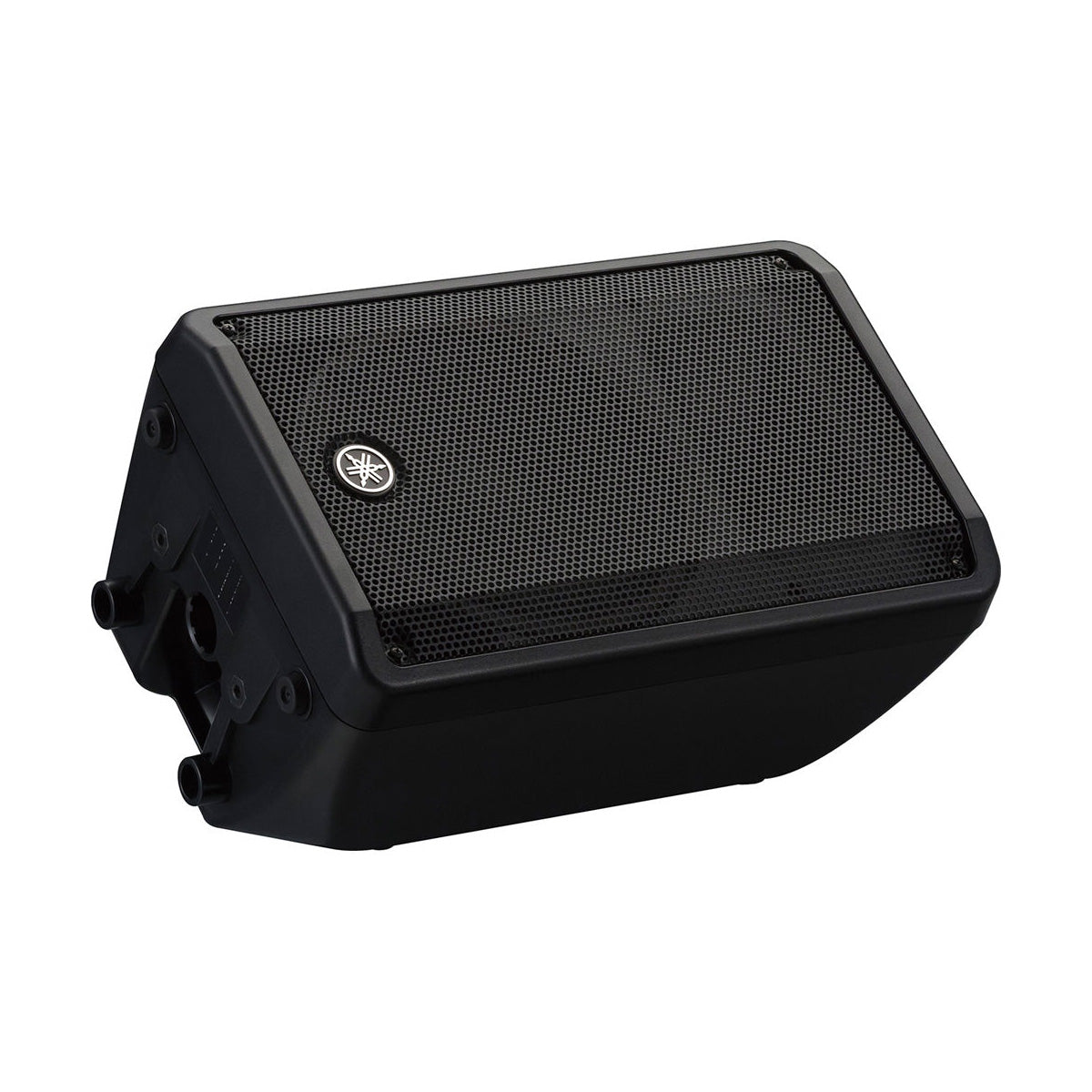

DBR Series speakers feature an optimized 50° wedge angle for floor monitoring

On-Board 2-Channel Mixer

DBR Series speakers have two input channels. Channel 1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. Channel 2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either Channel 1 + 2 MIX to mix the signal of Channel 1 and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only

Rigging Points for Installation Applications

DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts



Features at a Glance:

• 700W Dynamic Output

• Class D Amplifier

• 10" Woofer & 1" HF Driver

• On-Board 2-Channel Mixer

• Floor, FOH, Rigged Applications

• Designed for Portability

• Built-In Rigging Points



 Specifications:

Configuration	Active 2-Way
Enclosure Type	Bass-Reflex Loudspeaker
Total Power Capacity	700 W Peak 325 W RMS
Amplifier Power Rating	LF: 500 W Peak 260 W RMS HF: 200 W Peak 65 W RMS
Drivers	HF Driver 1 x 1" / 25 mm Compression Driver LF Driver 1x 10" / 25.4 cm Woofer LF Voice Coil 2" / 5.1 cm
Magnet	HF: Ferrite LF: Ferrite
Frequency Range	55 Hz to 20 kHz -10 dB
Maximum SPL	129 dB SPL
Coverage Angle	90° H x 60° V
Audio I/O	2x Combo XLR-1/4" TRS Input 1x Stereo RCA Unbalanced Line Input 1x XLR 3-Pin Output
Signal Processing
Crossover	2.1 kHz
AC Input Power	100 to 120 VAC, 50 / 60 Hz
Power Consumption	60 W (1/8 Power) 18 W (Idle)

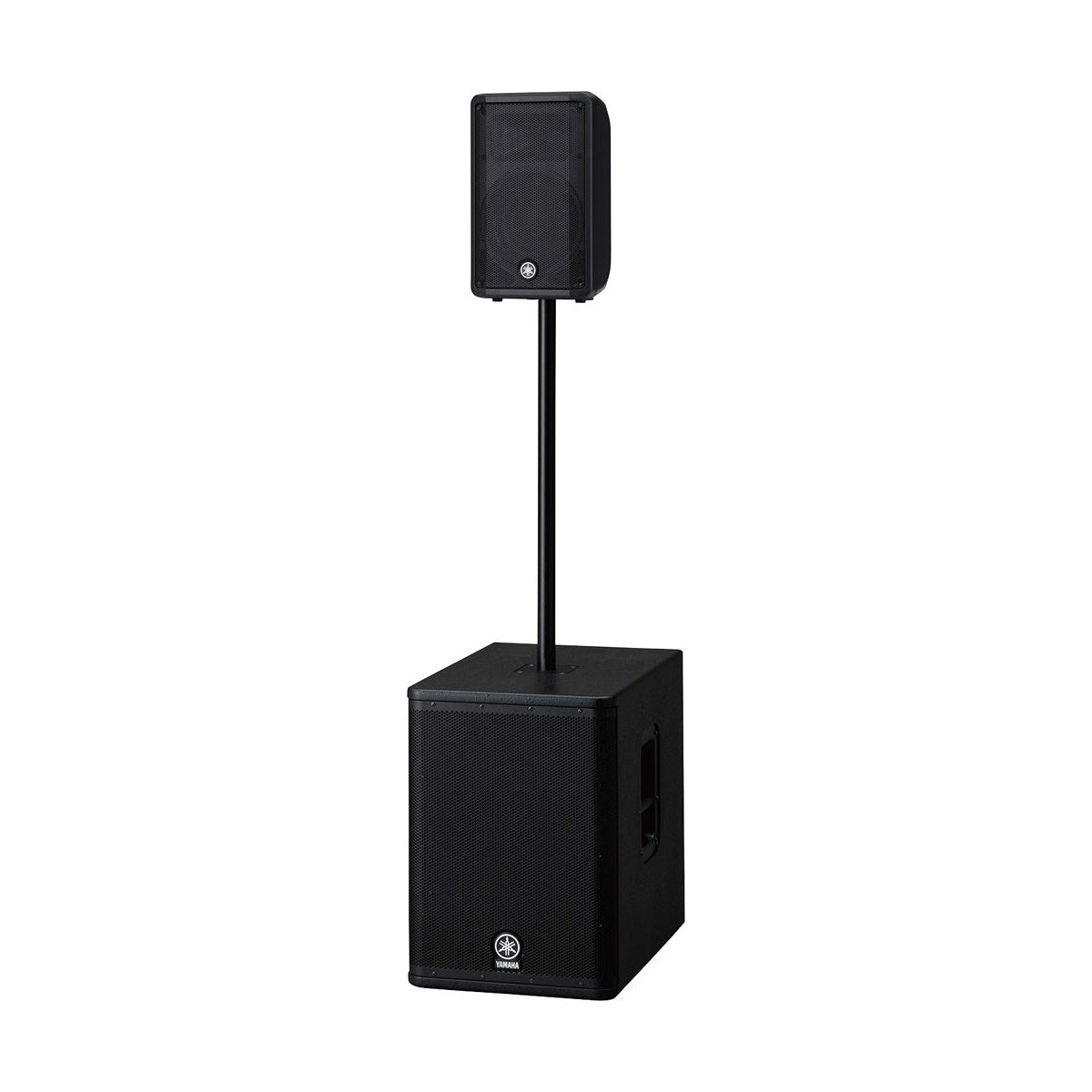

Mounting	1 x 1.38" / 35 mm Pole Socket (Bottom) 1 x Pole Socket 2 x M8 (Bottom)
Handles	1x Top
Cooling	Fan (Variable Speed)
Construction Material	Plastic
Dimensions	308 x 493 x 289 mm
Weight	10.5 kg
