Description
Imagine you’re enjoying music on your Sennheiser headphones, But then you want to join an online game. The HD 500 BAM add-on microphone lets you keep the lifelike soundstage and brilliant sound you love — while communicating with perfect clarity in-game and on calls.

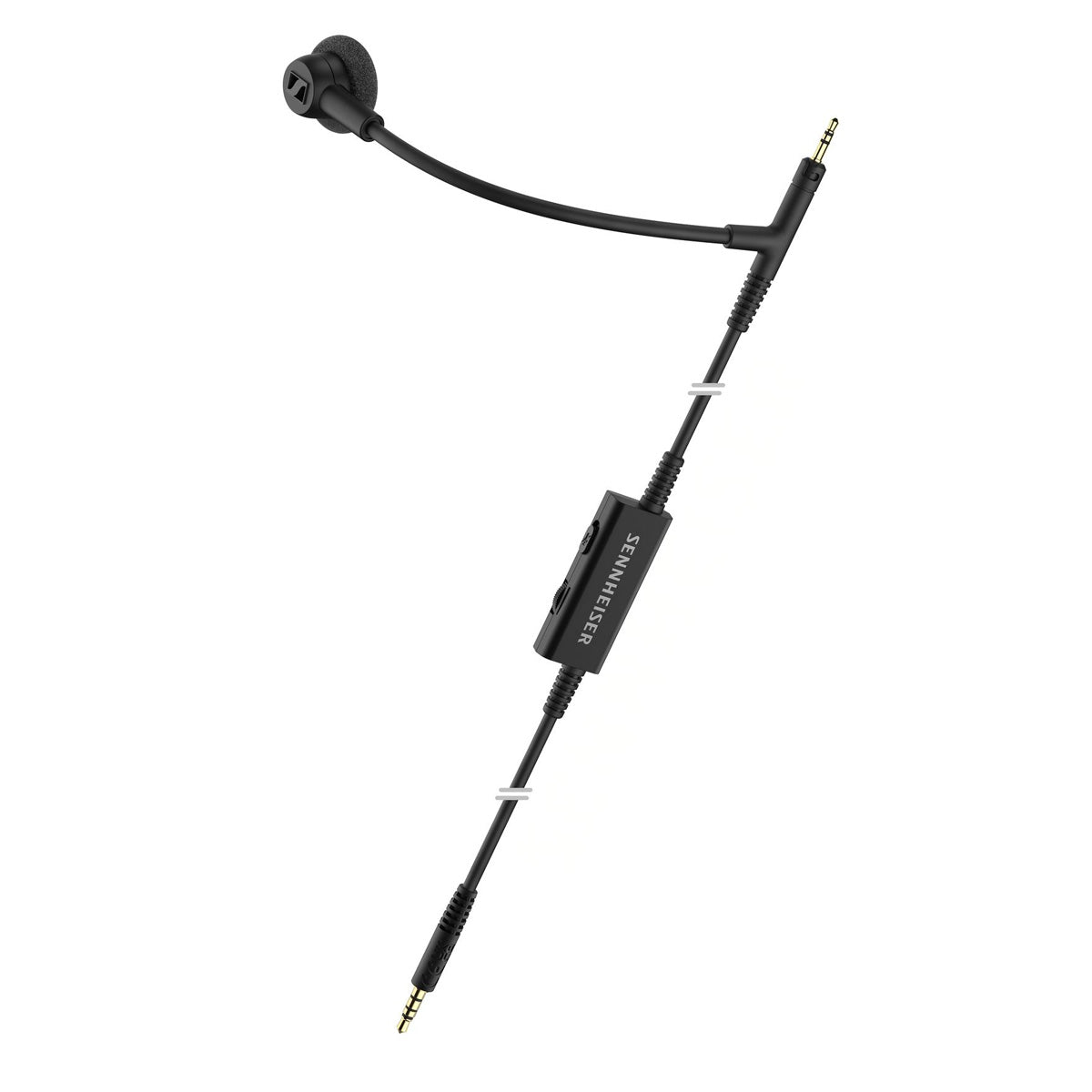

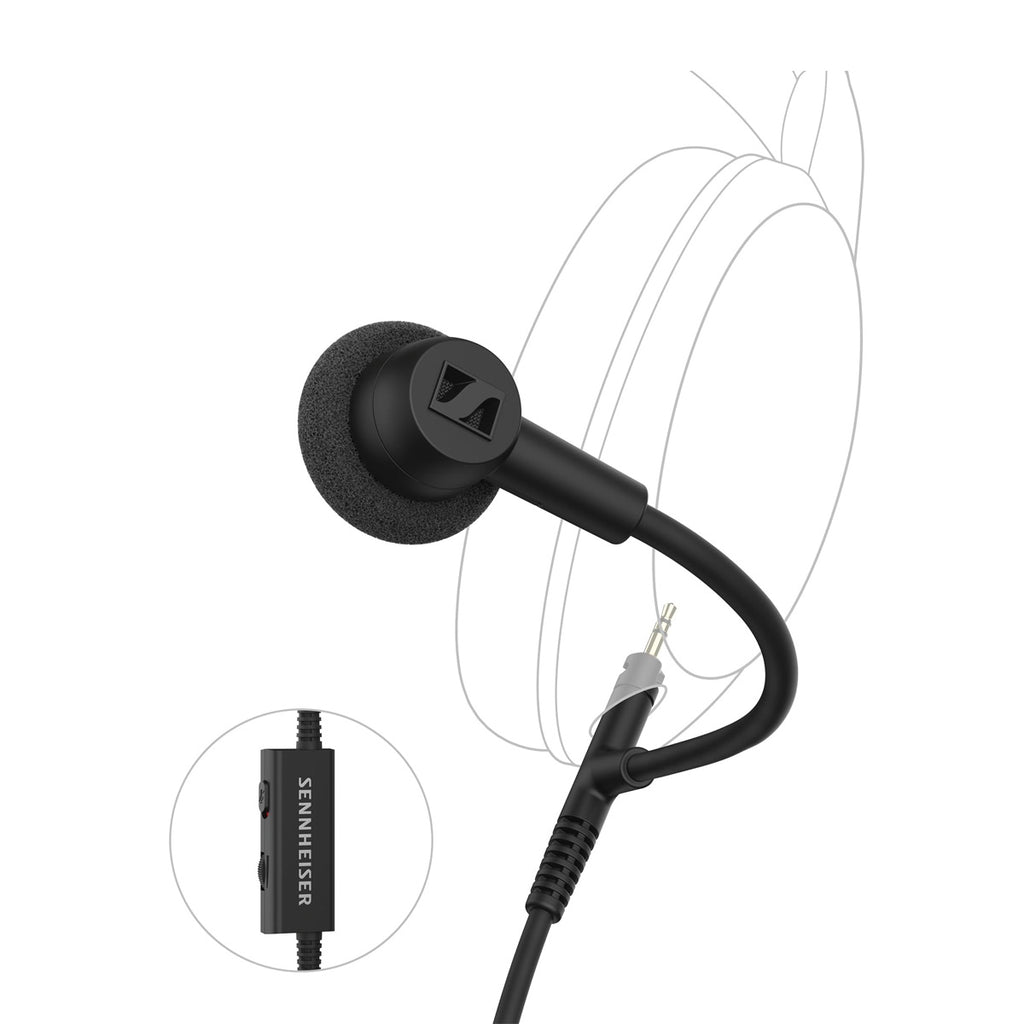

The Sennheiser HD 500 BAM Headset Add-On Boom Arm Microphone allows communication without lag during long calls or gaming sessions, ergonomically assisting the user. Designed for use with HD series headphones, the HD 500 BAM works directly with most devices that have a 3.5mm TRS port and supply plug-in power, allowing it to deliver the audio standard listeners expect from Sennheiser to computers, gaming consoles, and mobile devices.
A 10mm condenser capsule ensures clear voice transmission; its cardioid polar pattern minimizes room noise, and the replaceable foam pop screen reduces breath sounds. The included Y-adapter enables the HD 500 BAM to be used with computers that have separate 3.5mm mic and headphone ports. User control is maximized with in-line mute and volume controls.
What's in the box:

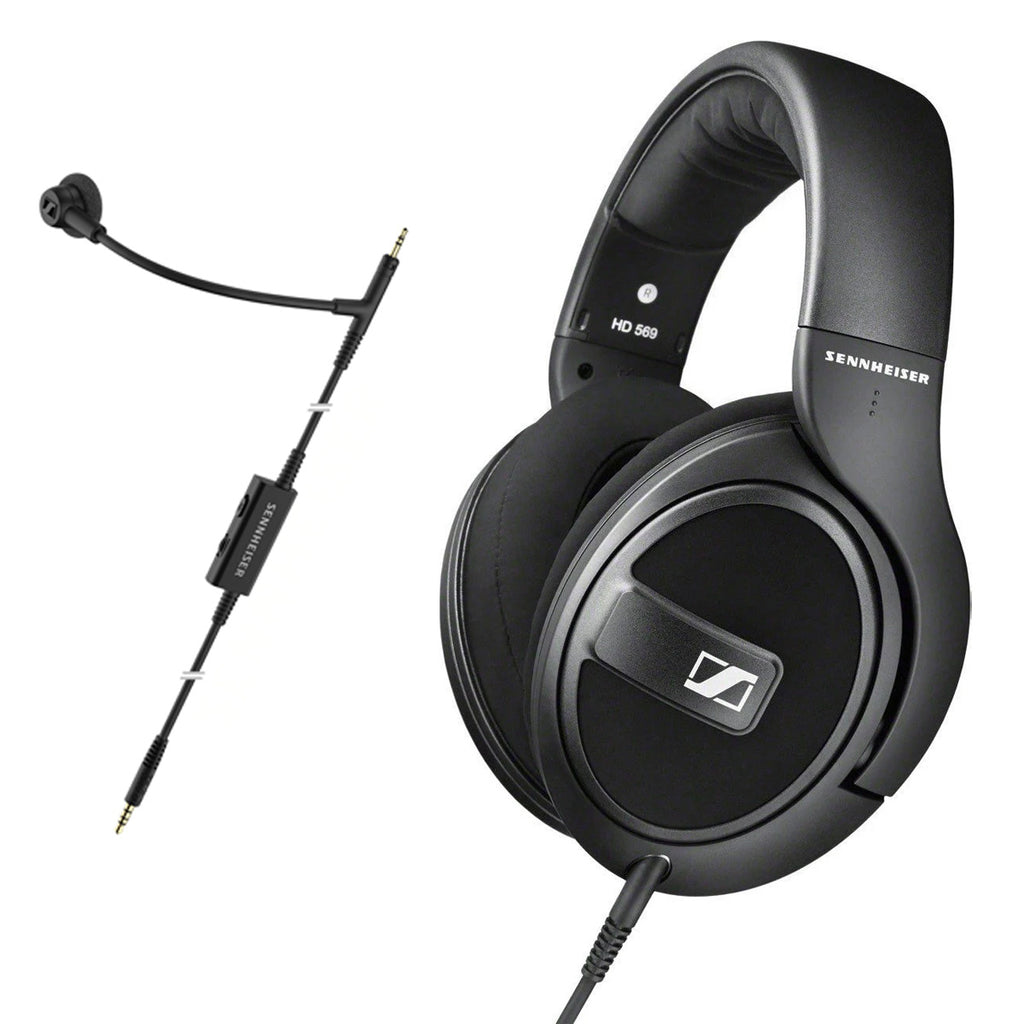

- HD 569 headset
- HD 500 BAM Add on Boom Arm Microphone
- 1.2 m cable with 1-button remote / 3.5 mm straight plug
- 3 m cable / 6.3 mm straight plug
HD 569 Features at a glance:
- E.A.R. angled driver alignment
- Closed-back earcups
- Exceptional comfort
- Detachable cable
HD 500 BAM Features at a glance:
- High-quality 10 mm condenser microphone ensures everyone hears you clearly
- Directional (cardioid) mic pattern transmits more voice and less background noise

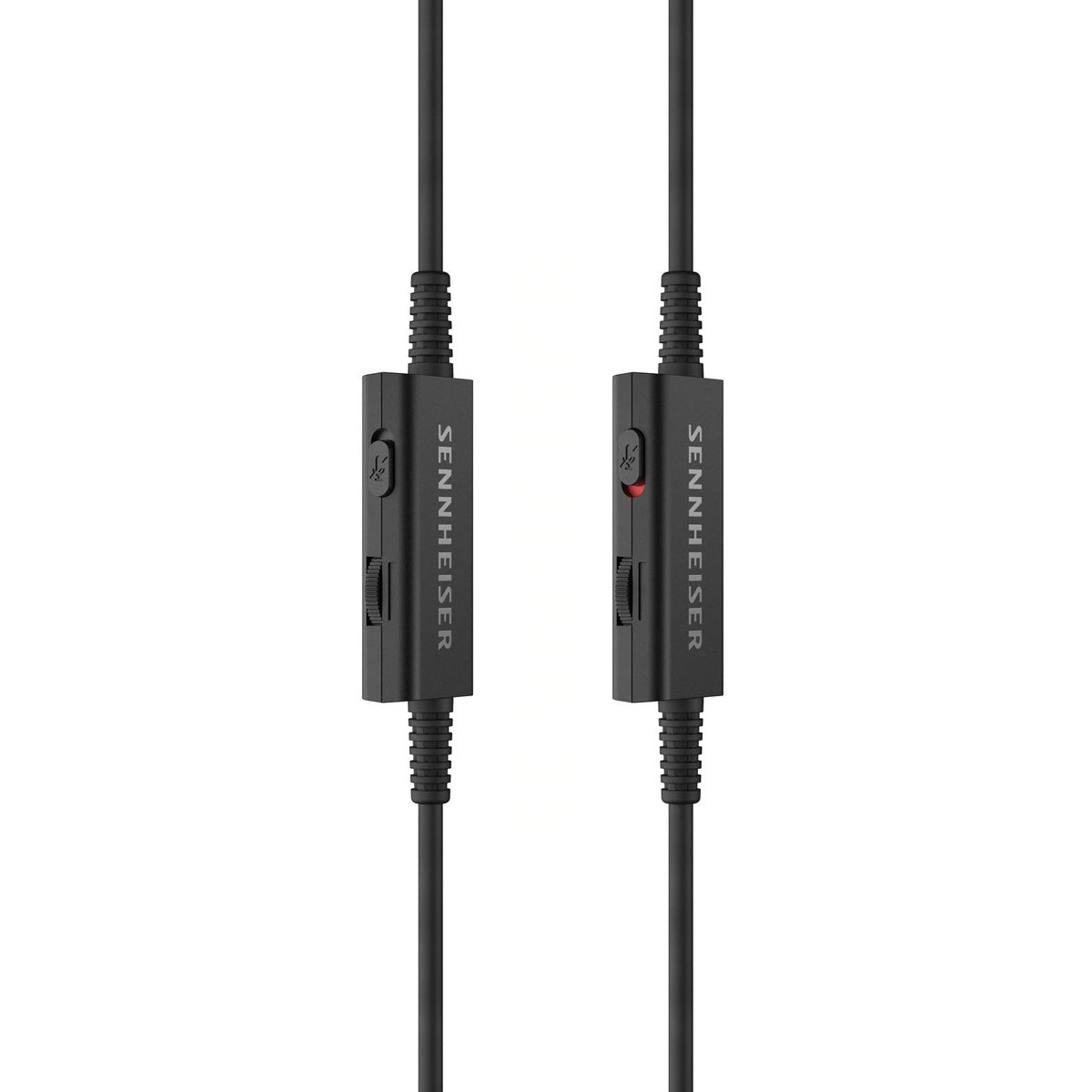

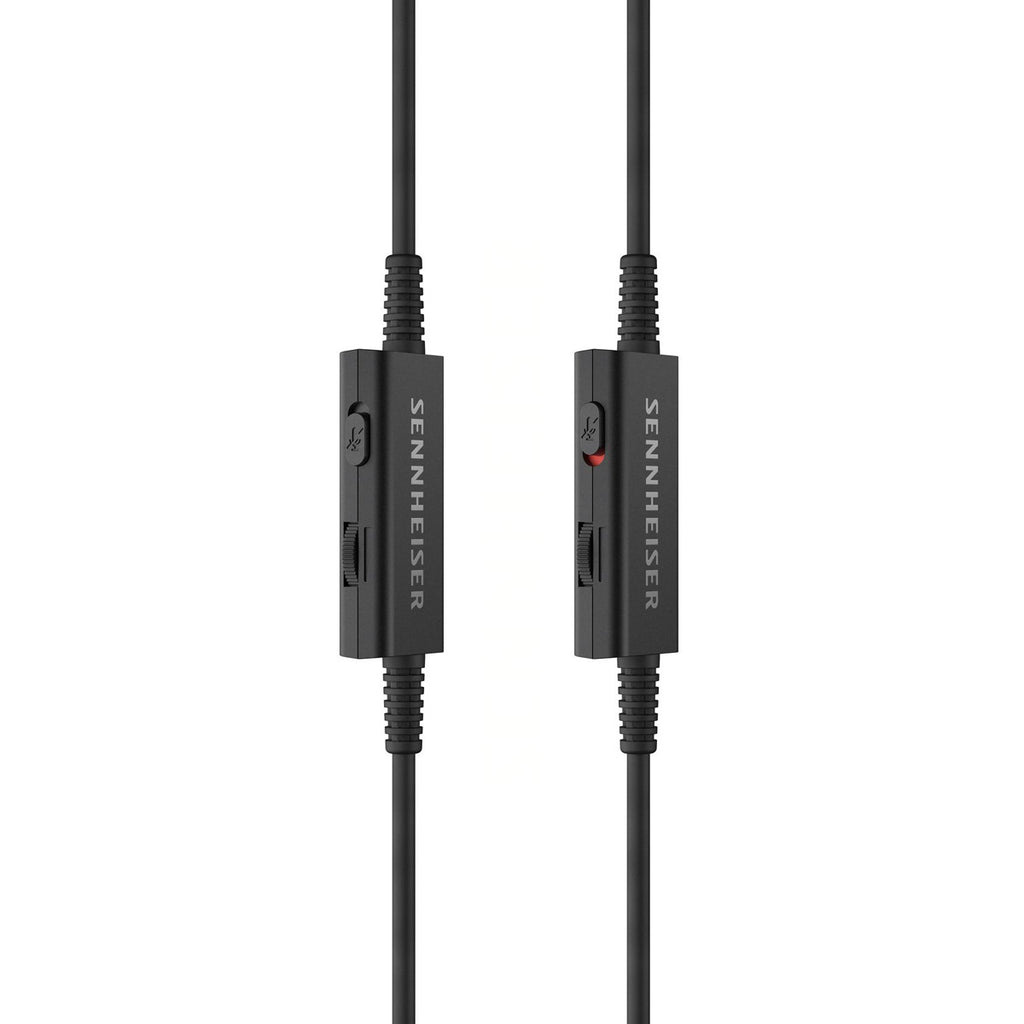

- In-line volume and mute controls
- 1.50 m cable gives you freedom to move
- Universal 3.5 mm jack plug lets you connect to nearly any device including gaming consoles, PCs, and tablets
- Includes Y-adapter for PC connection and 2 extra foam mic pop screens
HD 569 Specifications:
| Ear coupling |
Over-Ear |
| Acoustic principle |
closed |
| Adapter |
1:6.3mm 2:3.5mm detachable |
| Cable length |
1: 3m 2: 1.2m |
| Adapter |
6.3mm straight plug |
| Weight |
300 g |
| Frequency response (speaker) |
10 to 28,000 Hz |
| Impedance |
23 Ω |
| Sound pressure level (SPL) |
115 dB (1kHz, 1Vrms) |
| Total harmonic distortion (THD) |
< 0.2 % (1 kHz, 100dB) |
| Microphone pick-up pattern |
Omni-directional |
| Wearing style |
Headband |
| Transducer size |
38 mm |
| Active Noise Cancellation |
False |
HD 500 BAM Specifications:
|
Compatibility |
Sennheiser HD 505 / HD 550 / HD 560S / HD 599 / HD 599 SE / HD 620S |
| Frequency Range |
100 Hz to 16 kHz |
| THD |
< 1% |
| Noise Reduction |
-3 dB/Octave Proximity Effect Compensation |
| Sensitivity |
-37 dB/Pa |
| Maximum Sound Pressure Level (SPL) |
132 dB |
| Equivalent Noise Level |
26 dB A-Weighted |
| Operating Voltage |
1.5 - 4 V |
| Current Consumption |
0.5 mA (Maximum) |
| Connector 1 |
1x 2.5 mm Male |
| Connector 2 |
1x 1/8" / 3.5 mm Male |
| Cable Length |
1.5 m |
| Weight |
36 g |
