Sennheiser EW IEM G4-TWIN-C Evolution Wireless In-Ear Monitor Set

Sennheiser EW IEM G4-TWIN-C Evolution Wireless In-Ear Monitor Set, 2x EK IEM G4, SR IEM G4, 734-776MHz

The ew IEM G4-Twin Wireless Monitor System Kit from Sennheiser is an addition to Sennheiser's evolution family of wireless monitor systems. It includes an SR IEM G4 transmitter, two EK IEM G4 stereo receivers, two pairs of IE 4 earphones, a rod antenna, a GA 3 rackmount kit, and four AA batteries. This kit can be used as a rugged two-person, all-in-one wireless in-ear monitoring system for applications in live stage, theater, or house of worship performances.

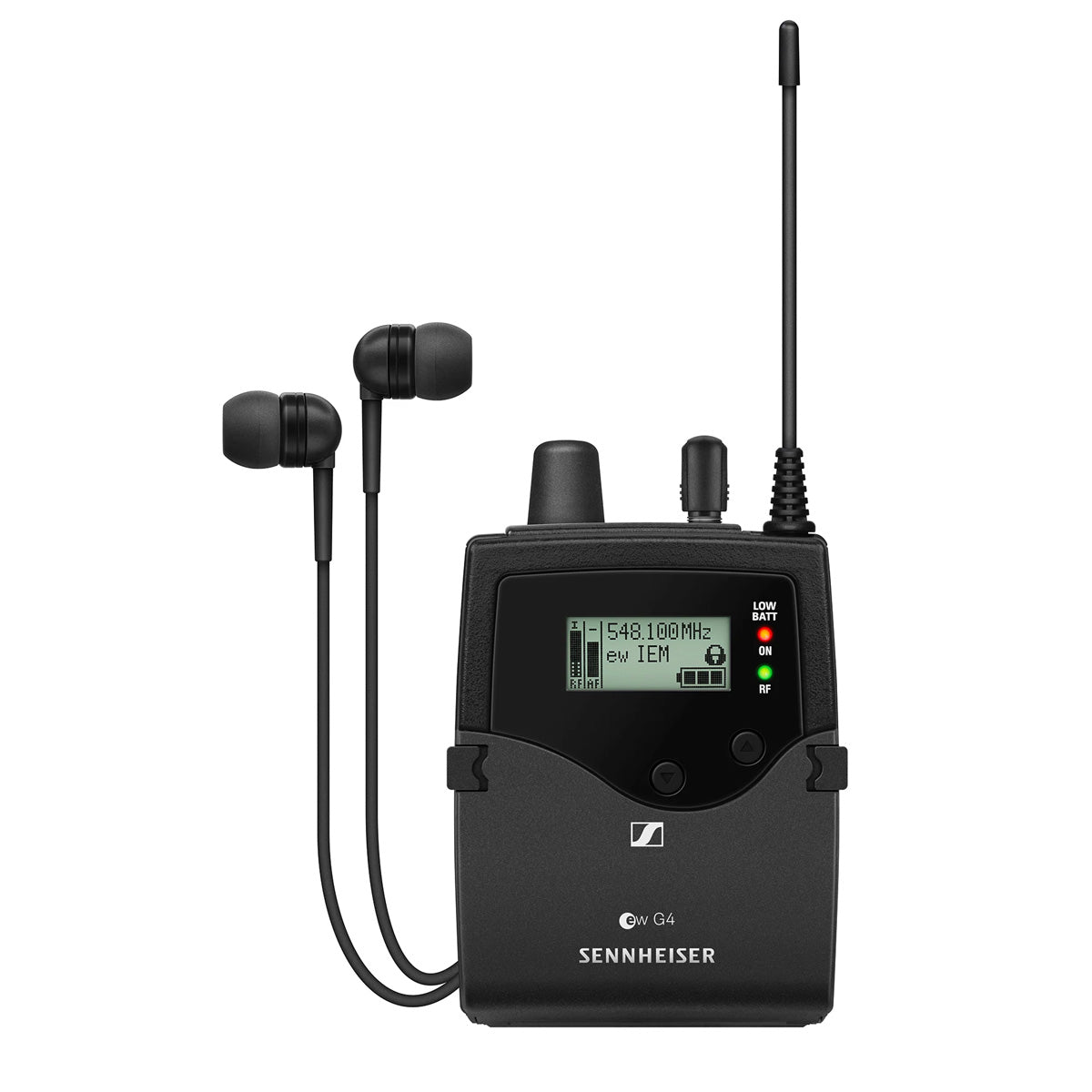

The EK IEM G4 Stereo Bodypack Receiver with IE4 Earphones from Sennheiser is an addition to their evolution series of wireless systems. It features adaptive diversity technology and can be used when paired with a companion transmitter as part of a wireless RF monitoring system for live stage, theater, and rehearsal applications.

The stereo receiver is equipped with 1680 frequencies tunable in 25 MHz steps and has 20 fixed frequency banks with up to 16 compatible frequency presets and another 6 user banks with up to 16 user-programmable frequencies. The receiver's menu-driven backlit display shows current frequency, frequency bank and channel number, metering of RF level, metering of AF level, lock status, and battery status. An auto-lock feature is provided to prevent settings from being accidentally altered.

Furthermore, this receiver includes a switchable high-boost and a multi-level limiter. The limiter is adjustable from -18 dB to -6 dB in 6 dB steps or defeatable (off). Built in a rugged metal housing, it is powered by two 1.5V AA sized batteries or by a Sennheiser BA 2015 rechargeable accupack. The earphone output uses a 3.5mm stereo jack socket.



What's in the Box:

• SR IEM G4 stereo transmitter
• 2 EK IEM G4 stereo receiver
• 2 IE 4 earphones
• 4x AA batteries
• Rod antenna

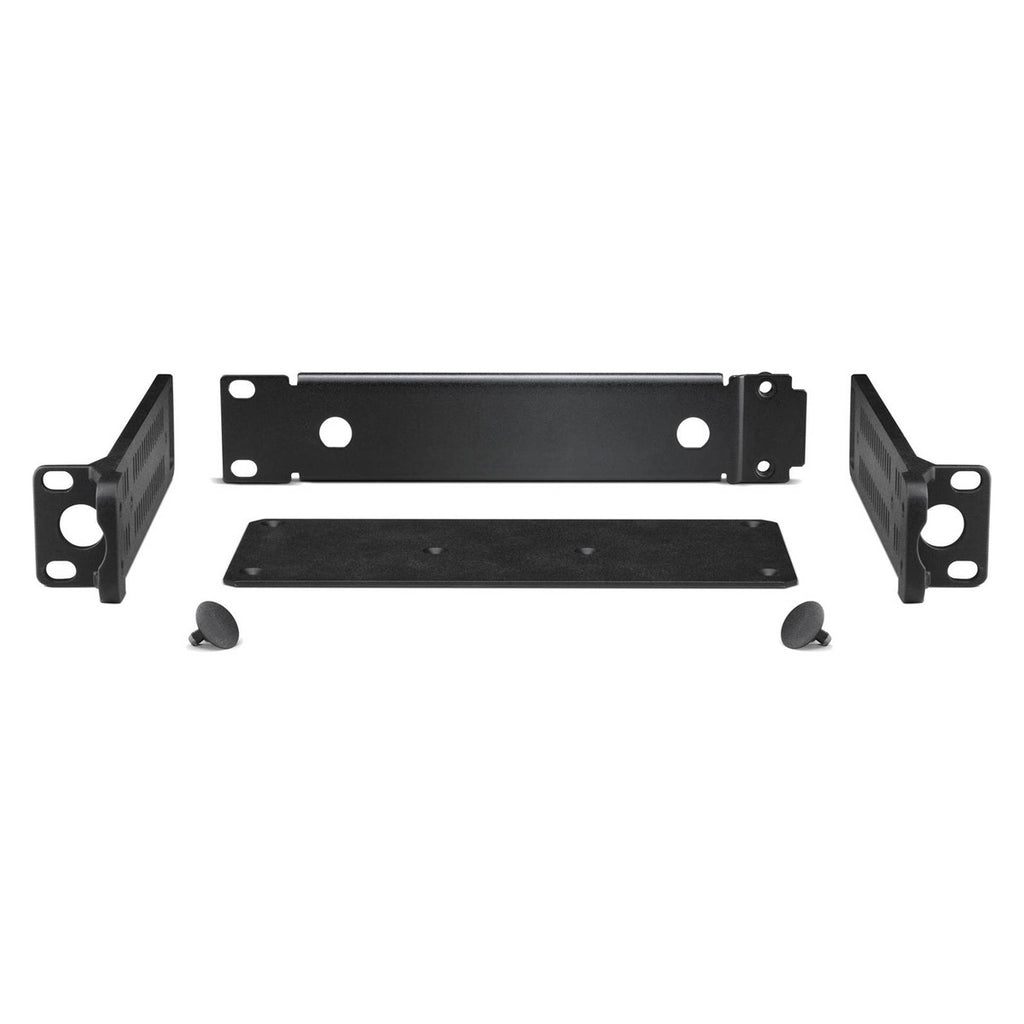

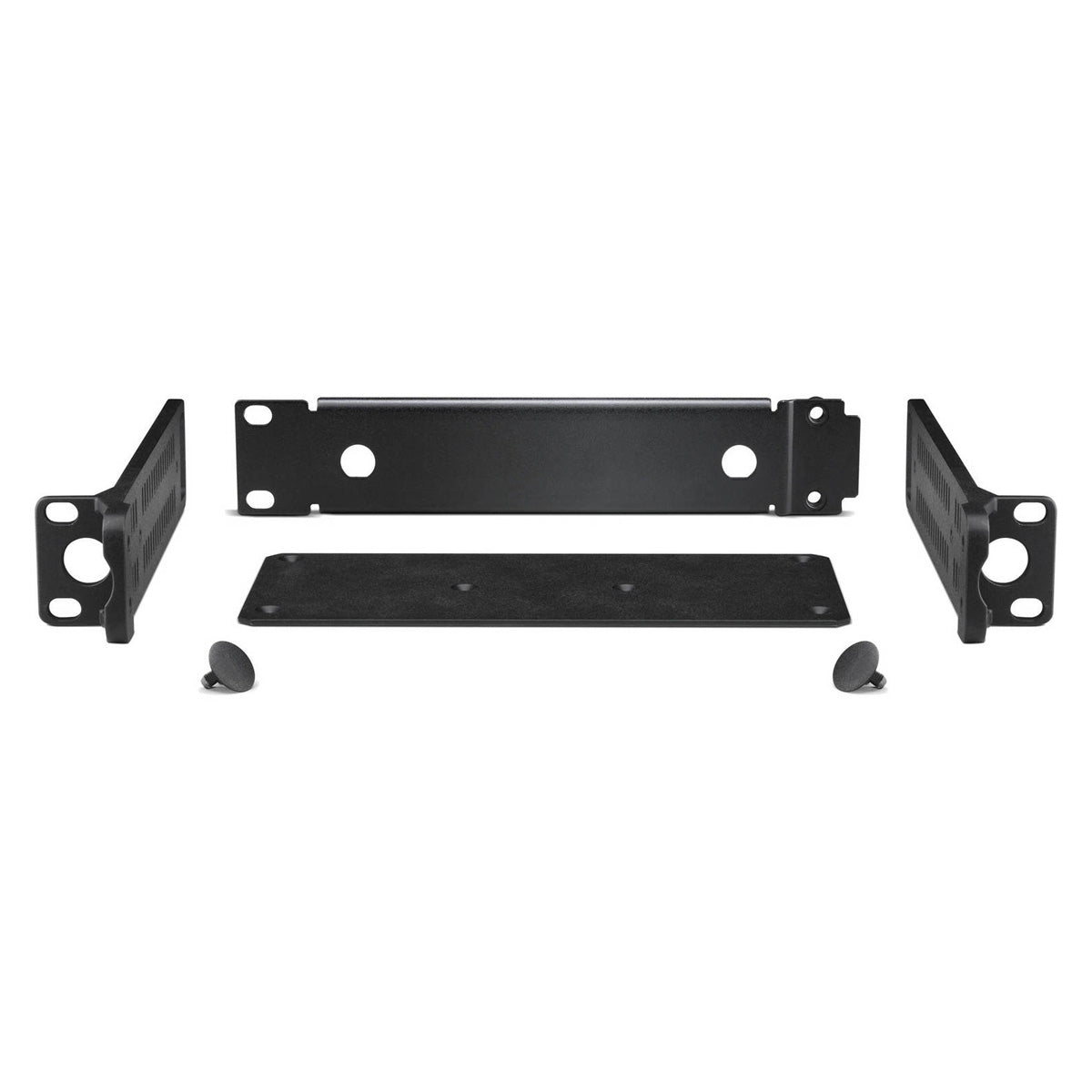

• GA 3 rackmount set
• Quick guide
• Safety guide
• Manufacturer declaration sheet
• Power supply



Features:

• Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.

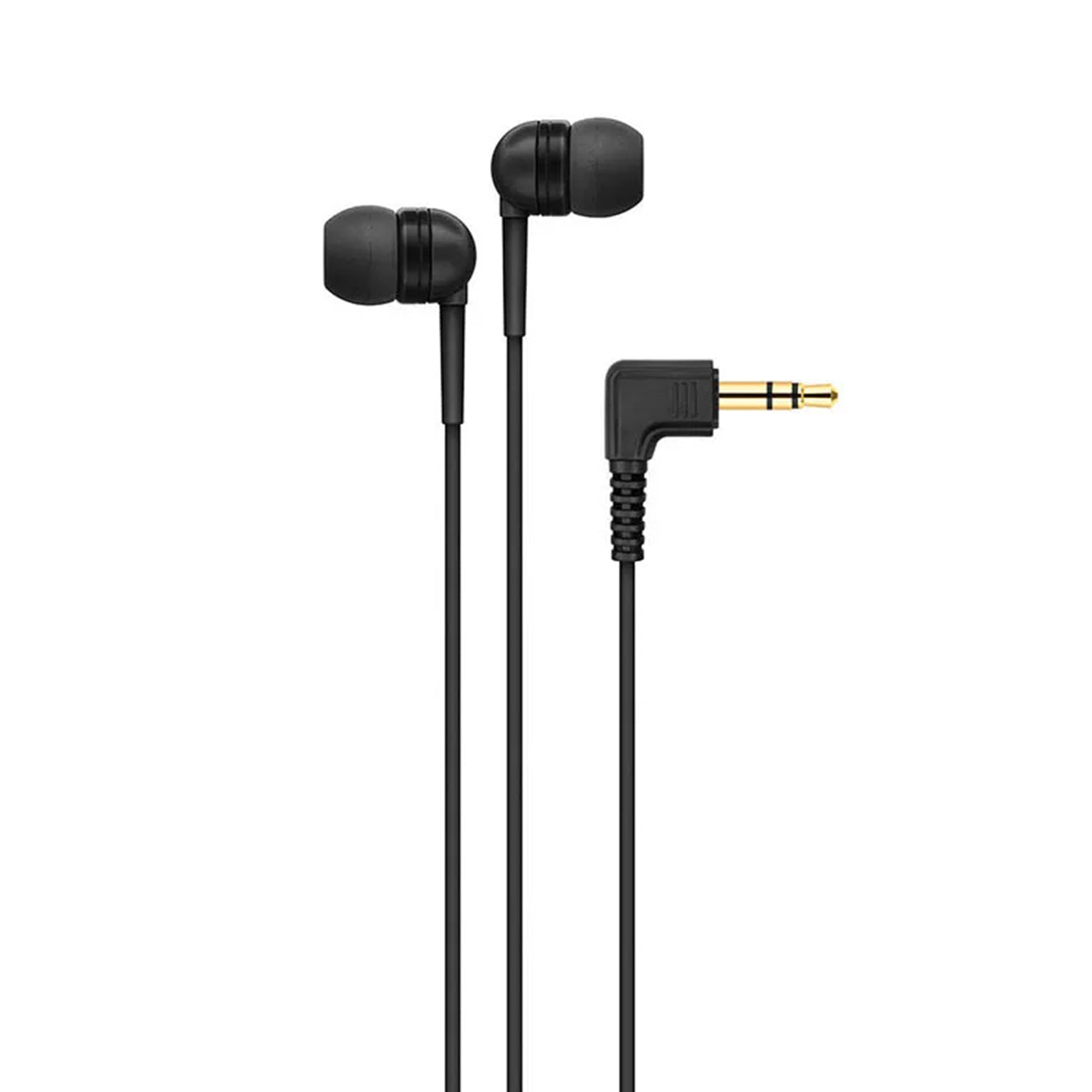

• Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage

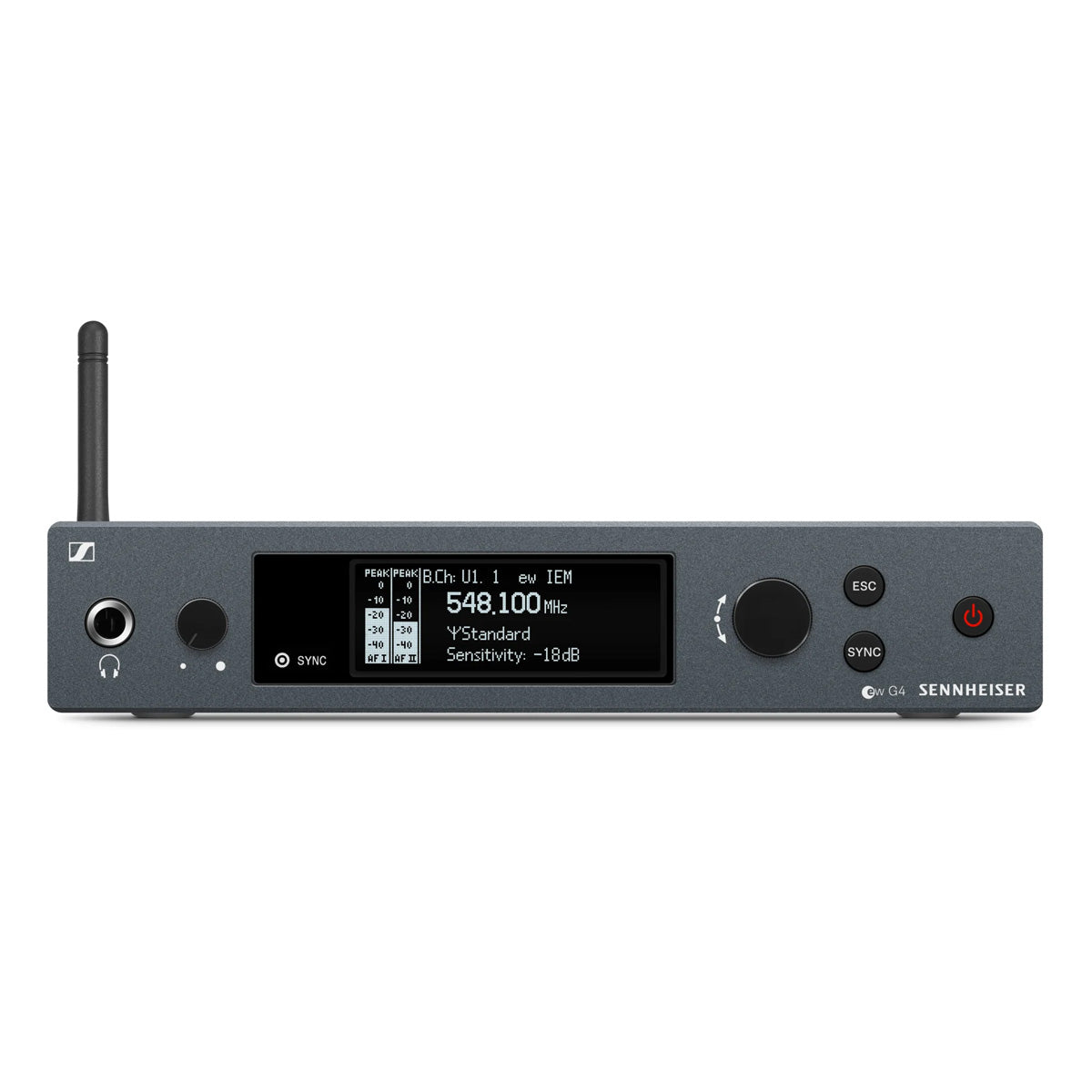

• Half-rack stereo transmitter in a full-metal housing with OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Compatible with Sennheiser WSM control software for flexible frequency allocation
• Up to 16 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 50 mW) depending on country regulations



Specifications:

Modulation	Wideband FM
Frequency Band	734 to 776Mhz
Channels and Groups	Max 1680 Receiving Frequencies, Adjustable in 25 kHz Steps 20 Frequency Banks, Each with up to 16 Factory-Preset Channels, No Intermodulation 6 Frequency Banks with up to 16 Programmable Channels Up to 42 MHz Switching Bandwidth
Nominal/Peak Deviation	±24 kHz / ±48 kHz
Diversity	Adaptive Diversity
Sensitivity	< 4 μV, Typically 1.6 μV for 52 dB
Adjacent Channel Selectivity	Typically ≥ 65 dB
Intermodulation Attenuation	Typically ≥ 70 dB
Blocking	≥ 80 dB
Squelch	5 to 25 dBμV, Adjustable in 2 dB Steps
Pilot Tone Squelch	Can Be Switched Off
Compandor System	Sennheiser HDX
Signal to Noise Ratio	Approximately 90 dBA
THD	≤ 0.9 %
Output Power	2 x 100 mW at 32 Ohms (at 2.4 V, 5% THD, Nominal Deviation)
High Boost	+8 dB at 80 kHz
Limiter	-18 dB to -6 dB in 6 dB Steps, Can Be Switched Off
Temperature	−13 to 158° F / -10 to +55° C
Receiver
Power Supply	2 AA Batteries, 1.5 V or BA 2015 Accupack
Nominal Voltage	3 V Battery 2.4 V Rechargeable Battery
Power Consumption	Typically 140 mA ≤ 25 μA (at Nominal Voltage with Transmitter Switched Off
Operating Time	Approximately 4 to 6 Hours (Depending on Volume Level)
Dimensions	82 x 64 x 24 mm
Weight	Approximately 125 g
Transmitter
Antenna Output	BNC Socket, 50 Ohms
MPX Pilot Tone	Frequency/Deviation: 19 kHz (±5 kHz)
Frequency Stability	±10 ppm
RF Output	Switchable Low: Typically 10 mW Standard: Typically 30 mW High: Typically 50 mW
Frequency Response	25 to 15,000 Hz
Input	2 x XLR/TRS Combo Socket (Electronically Balanced)
Max Input	+22 dBu
THD	≤ 0.9 %
Signal to Noise Ratio	> 90 dB
AF Output	1/4" / 6.3mm Stereo Jack (Balanced)
Power Supply	12 VDC
Power Consumption	Max: 350 mA
Dimensions	202 x 212 x 43 mm (Approximately)
Weight	980 g
Earphones
Frequency Range	40 Hz to 20 kHz
SPL Level	118 dB SPL Maximum
Impedance	32 Ohms
Nominal Impedance	16 Ohms
Cable Length	1.4 m
Connector	1/8" / 3.5 mm (Gold Plated)
