Sennheiser EW-DX MKE2/835-S SET Dual Channel Digital Wireless System

Save R 3,977.00
SennheiserSKU: SEN-509330

Price:
Sale priceR 59,620.00 Regular priceR 63,597.00

Tax included Shipping calculated at checkout

Description

Perfect for Presenters and Singers

This set consists of 2 x EW-DX SKM-S (handheld with mute switch), 2 x MMD 835 capsule (cardioid, dynamic), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries.

Focus less on the wireless and more on the audio. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. Multiple hardware and software options create networkable solutions for nearly any stage or campus, while equidistant channel spacing, auto scan, and Bluetooth® Low Energy sync automatically coordinate and set frequencies with the push of a button. Monitor your devices from a distance—even from your pocket—with tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist app. The future of wireless is here.

Truly simplified workflow

EW-DX takes the complexities out of wireless audio by employing sophisticated tools that streamline the setup and monitoring process. With the press of a button, Auto Scan automatically assigns channels using an equidistant tuning grid that allow you to pack more channels more reliably, without problematic intermodulation interference. Take control of the system from your mobile device via the Sennheiser Smart Assist app or utilize advanced software options like Wireless Systems Manager (WSM) and Sennheiser Control Cockpit for a detailed system view in complex, networked environments.

Ready to scale, ready to deliver

Evolution Wireless Digital is a system that evolves with you. Choose from multiple hardware options, including 2-channel half-rack (9,5"") or 4-channel full-rack (19") receivers to right-size your needs today, while keeping expansion open for tomorrow. Dante® network audio, Ethernet control ports, and AES-256 encryption allow EW-DX to be securely transmitted and placed on IT networks, allowing systems to be managed and flex as needs change. Activate Link Density Mode to pack even more channels in a dedicated space and take full advantage of interchangeable series components across the Evolution Wireless Digital line. A wide range of accessories to manage power and signal distribution give you the options you need to build a system you can count on.

Rock-solid digital audio throughout

Quality and reliability are standard with all Sennheiser products. With EW-DX, digital UHF transmission is augmented by wide, class-leading dynamic range and ultra-low latency. Sennheiser’s proprietary SePac audio codec and new conversion technology sum up to deliver outstanding audio transparency, from capsule input to system output. Intelligent Switching Diversity is an advancement in RF technology that enables the switching of antennas between audio frames to deliver a stable transmission without audible artifacts. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.

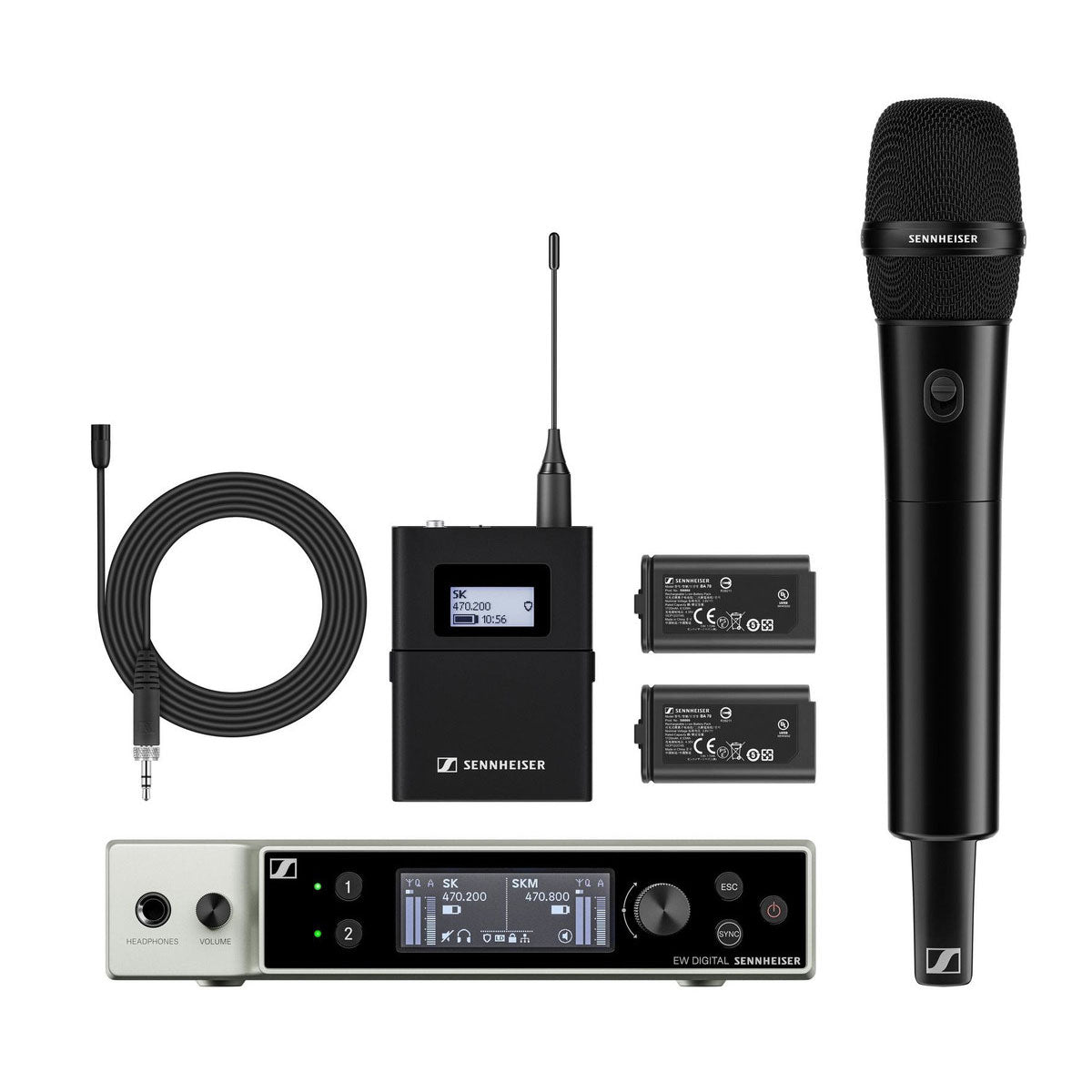

What's in the box:

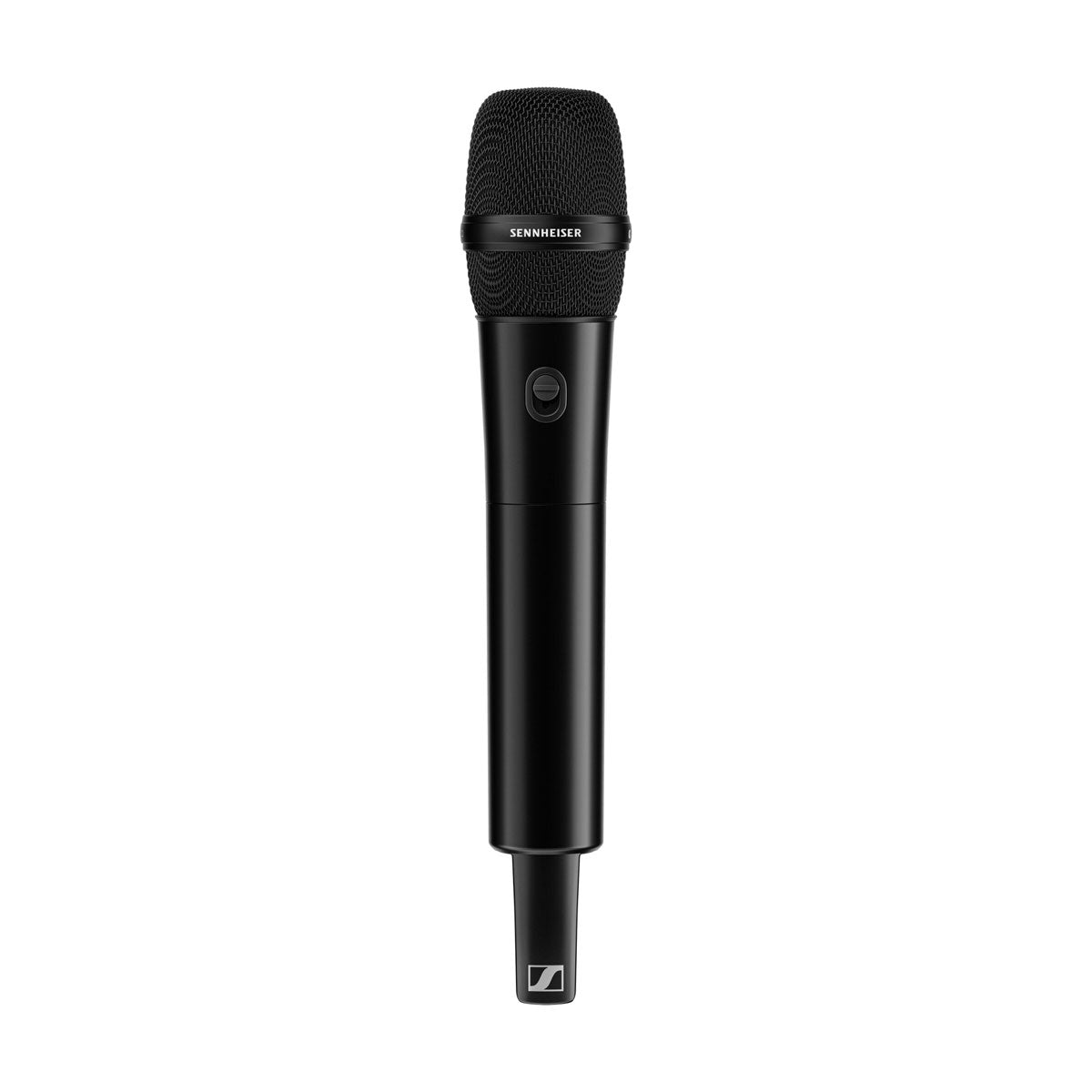

  • 1 x EW-DX SKM-S (handheld with mute switch)
  • 1 x MMD 835 capsule (cardioid, dynamic)

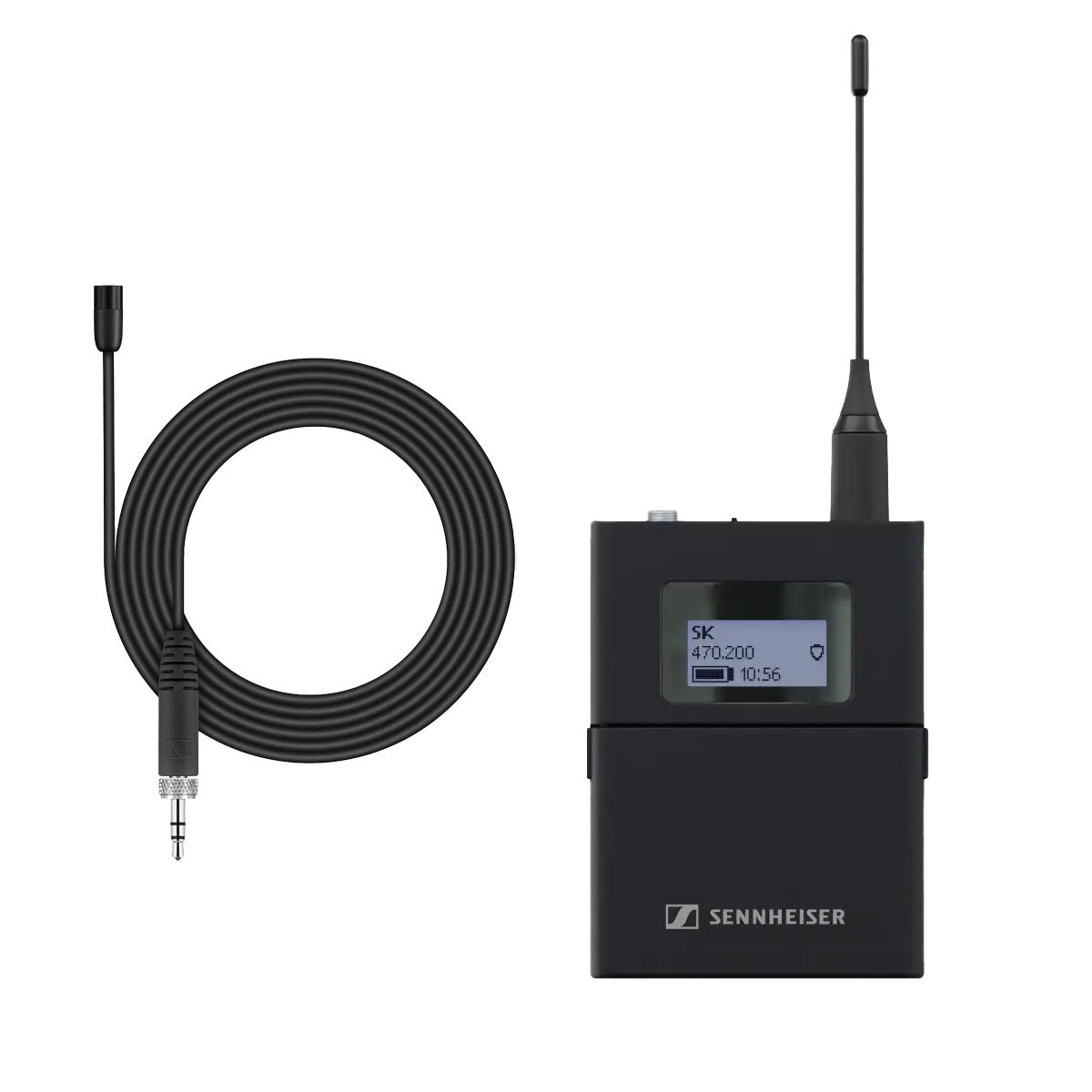

  • 1 x EW-DX SK (wireless bodypack transmitter)
  • 1 x MKE 2 (omni-directional clip-on lavalier microphone)

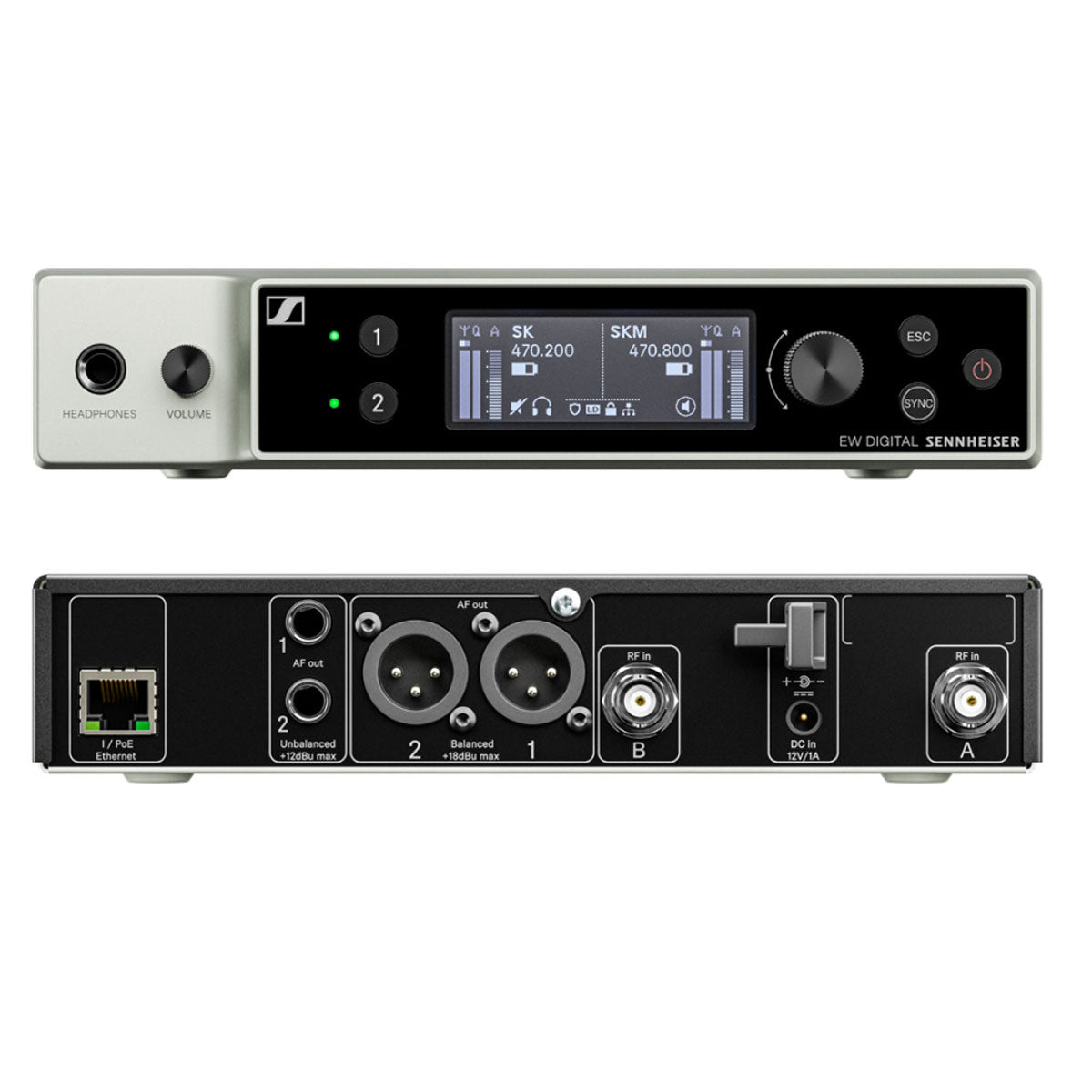

  • 1 x EW-DX EM 2 rackmout receiver (2 channels)
  • 2 x BA 70 rechargeable batteries.



Features at a Glance:

  • For Two Presenters or Performers
  • MKE 2 Omni Lav Mic/Bodypack Transmitter
  • MMD 835 Cardioid Mic/Transmitter
  • 2-Channel Diversity Receiver
  • Wide 87 MHz Bandwidth, 3480 Frequencies
  • 134 dB of Dynamic Range
  • AES-256 Encryption, RJ45 Networking
  • Set Up/Operate from Phone via Bluetooth
  • 12-Hour Rechargeable Battery / 8-Hour AA
  • Expandable to 293 Channels/330' Range



Specifications:

System

Audio link

Frequency ranges

Q1-9: 470.2 - 550 MHz



R1-9: 520 - 607.8 MHz



S1-10: 606.2 - 693.8 MHz



S2-10: 614.2 - 693.8 MHz



S4-10: 630 - 693.8 MHz



U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz



V3-4: 925.2 - 937.3 MHz



V5-7: 941.700- 951.800 & 953.050 - 956.050 & 956.650-959.650 MHz



Y1-3: 1785.2 - 1799.8 MHz

Bluetooth® Low Energy (BLE) frequency range

2402 - 2480 MHz

Audio frequency respons

20 Hz - 20 kHz (-3 dB)
@ 3 dBfs

Audio THD

≤ -60 dB for 1 kHz @ -3 dBfs input level

Dynamic range

134 dB

System latency

1.9 ms

RF technology

Intelligent Switching Diversity

Operating temperature

-10 °C - +55 °C (14 °F - 131 °F)

Relative humidity

5 - 95 % (non-condensing)

EW-DX SKM-S

(Handheld Transmitter)

Input voltage

2.0 - 4.35 V

Input current

< 300 mA

Power supply

2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack

Occupied bandwidth

200 kHz

Transmit power (radiated)

Audio link: 10 mW ERP
(Range Y1-3: 12 mW ERP)

BLE: max.

10 mW EIRP

Dimensions

(ø x l) incl. MMD 835 microphone module: 50 x 268 mm (1.97" x 10.55")



without microphone module: 40 x 200 mm (1.57" x 7.87")

Weight (without batteries)

incl. MMD 835 microphone module: approx. 304 g (0.67 lbs)



without microphone module: approx. 195 g (7.14 lbs)

EW-DX EM 2

(Rack Receiver)

Input voltage

11 - 13 V or PoE IEEE 802.3af Class 0 (CAT5e or higher)

Input current

≤ 1 A

Transmit power (radiated)

BLE: max. 10 mW EIRP

Audio output power

18 dBu max.

Headphone output

2x 70 mW @ 32 Ω

Ethernet

RJ-45 socket, IEEE802.3



100Base-TX (half+full duplex)



10Base-T (half+full duplex)



(CAT5e or higher)

Dimensions

212 x 44 x 189 mm (8.35" x 1.73" x 7.44")

Weight

approx. 1000 g (2.2 lbs) (without antennas and power supply)

MMD 835

(Microphone Module)

Transducer principle

dynamic

Sensitivity

2.1 mV/Pa

Sound pressure level

154 dB SPL

Pick-up pattern

cardioid

EW-DX EM 2

(Rack Receiver)

Input voltage range

11 - 13 V or PoE IEEE 802.3af Class 0

Input Current

≤ 1A

Transmit power (radiated)

BLE: max. 10 mW EIRP

Audio output power

18 dBu max.

Ethernet

RJ-45 socket, IEEE802.3



100Base-TX (half+full duplex)



10Base-T (half+full duplex)



(CAT5e or higher)

Dimensions

212 x 44 x 189 mm

Weight

approx. 1000 g (without antennas and power supply)

EW-DX SKM

(Handheld Transmitter)

Input voltage

2.0 - 4.35 V

Input Current

≤ 300 mA

Power supply

2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack

Occupied bandwidth

200 kHz

Transmit power (radiated)

Audio link: 10 mW ERP



(Range Y1-3) 12 mW ERP



LD mode 10 mw ERP



BLE max. 10 mW EIR

Dimensions

50 x 268 mm (incl. MMD 835 microphone module)



40 x 200 mm (without microphone module)

Weight w/o batteries

approx. 304 g (incl. MMD 835 microphone module)



approx. 195 g (without microphone module)

MMD 835

(Microphone Module)

Transducer principle

dynamic

Sensitivity

2,1 mV/Pa

Sound pressure level (SPL)

154 dB SPL

Pick-up pattern

Cardioid

EW-DX SK

(Bodypack Transmitter)

Input voltage

2.0 - 4.35 V

Input Current

≤ 300 mA

Power supply

2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack

Occupied bandwidth

200 kHz

Transmit power (radiated)

Audio link: 10 mW ERP



(Range Y1-3): 12 mW ERP



LD mode: 10 mw ERP



BLE: max. 10 mW EIRP

Dimensions

63 x 80 x 20 mm (without antenna)

Weight

approx. 120 g (without batteries)

MKE 2

(Lavalier Microphone)

Transducer principle

pre-polarized condensor microphone

Pick-up pattern

omni-directional

Sensitivity in free field, no load (1kHz)

5 mV/Pa +- 3 dB

Max. SPL at 1 kHz

142dB

Frequency response

20 to 20,000 Hz

Equivalent noise level A-weighted

26 dB

Connector

3.5 mm jack

Cable length

approx. 1.60 m (62.99")

Supply voltage

7.5 V
