Description
Portable digital UHF wireless microphone system with ME 4 cardioid lavalier for filmmakers, content creators, and broadcasters.
EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. This fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters. At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for all. Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and Smart Notifications help to troubleshoot your system when you encounter a challenge. Magnetic and stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location. Choose between the ME 2 omnidirectional lavalier which delivers clear, intelligible dialog or the ME 4 cardioid lavalier which helps to isolate your speech in nosier environments.
What's in the box:
- Sennheiser EW-DP ME 4 SET Camera-Mount Digital Wireless Cardioid Lavalier Mic System (Q1-6: 470 to 526 MHz)

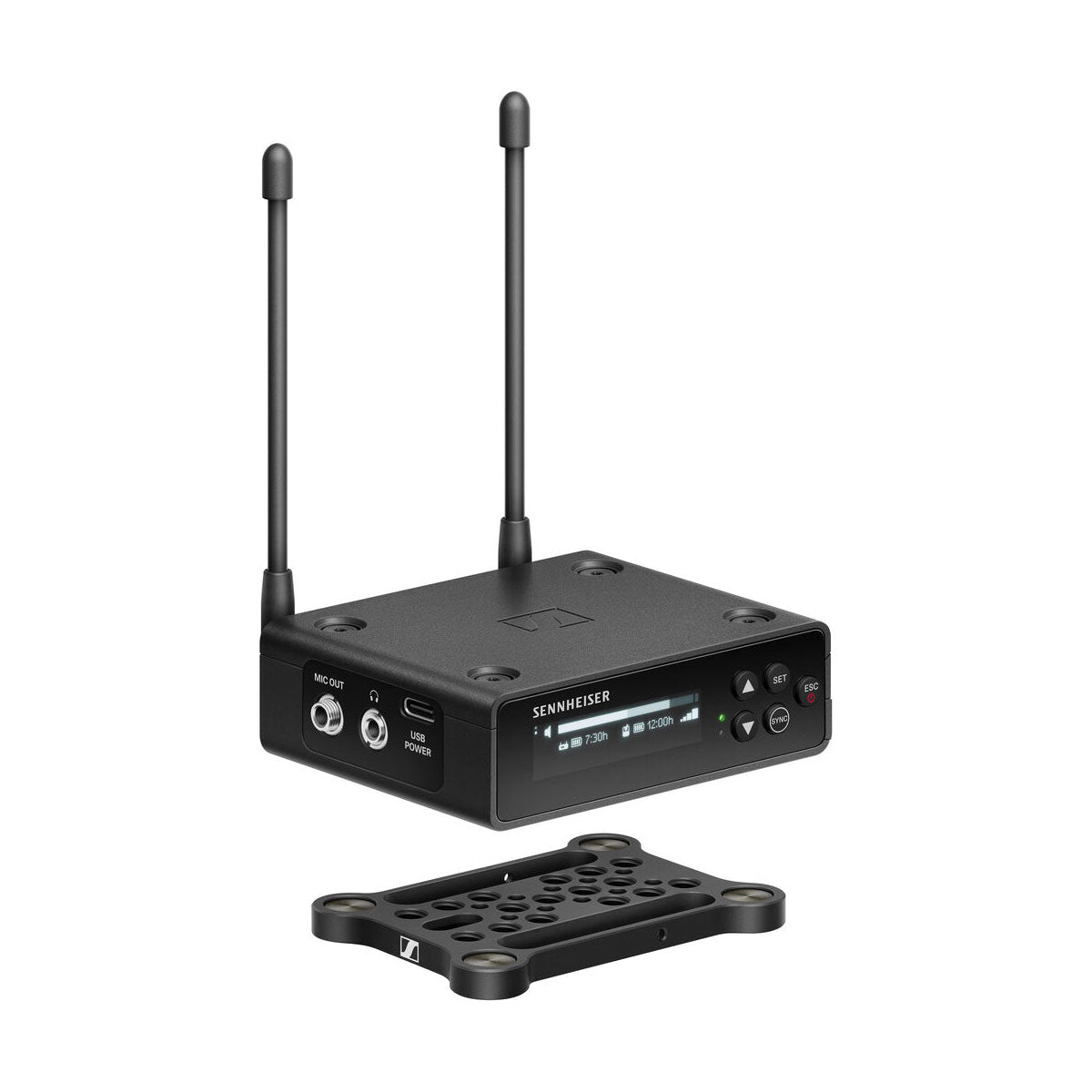

- Sennheiser EW-DP EK Camera-Mount Digital Wireless Receiver (Q1-6: 470 to 526 MHz)

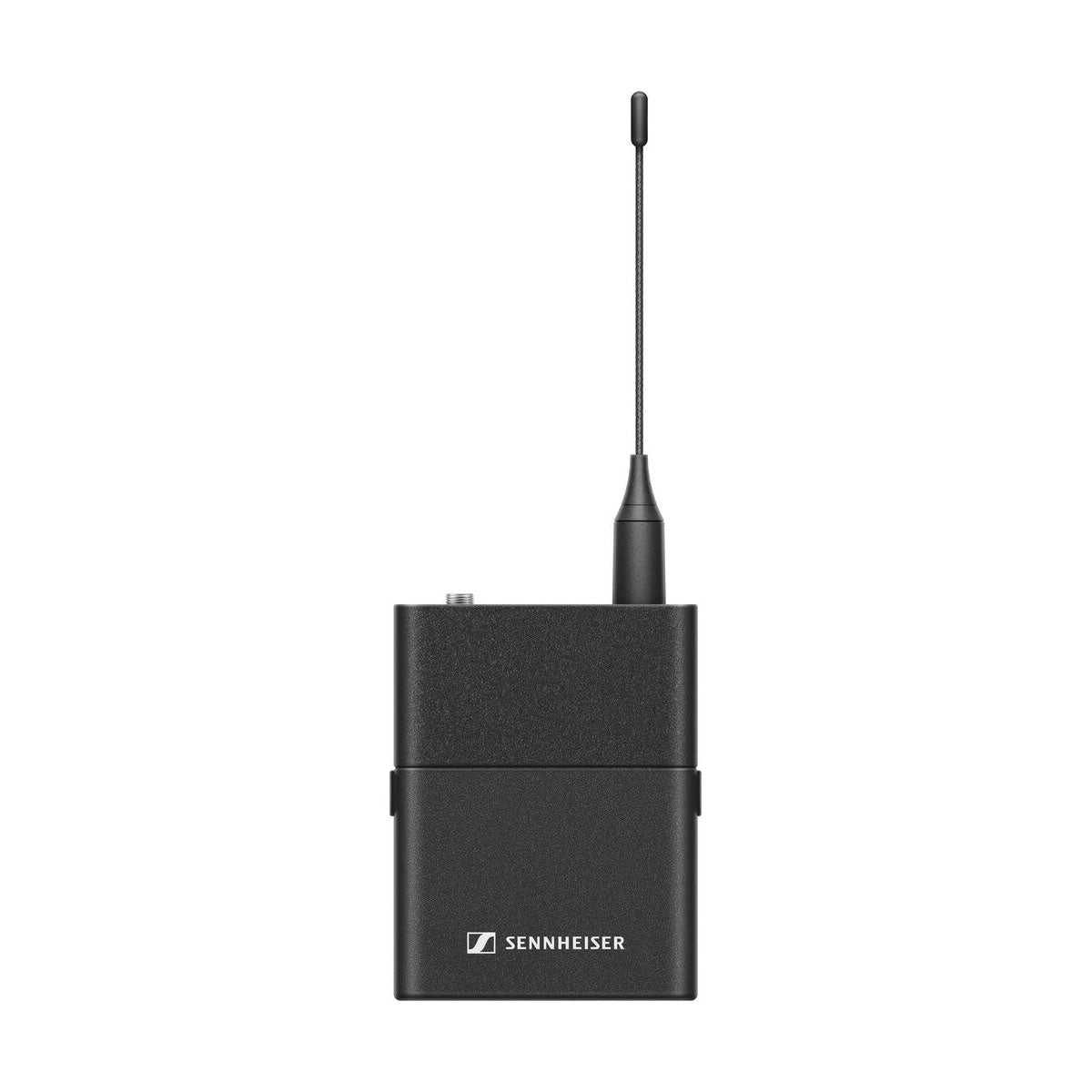

- Sennheiser EW-D SK Digital Wireless Bodypack Transmitter (Q1-6: 470 to 526 MHz)

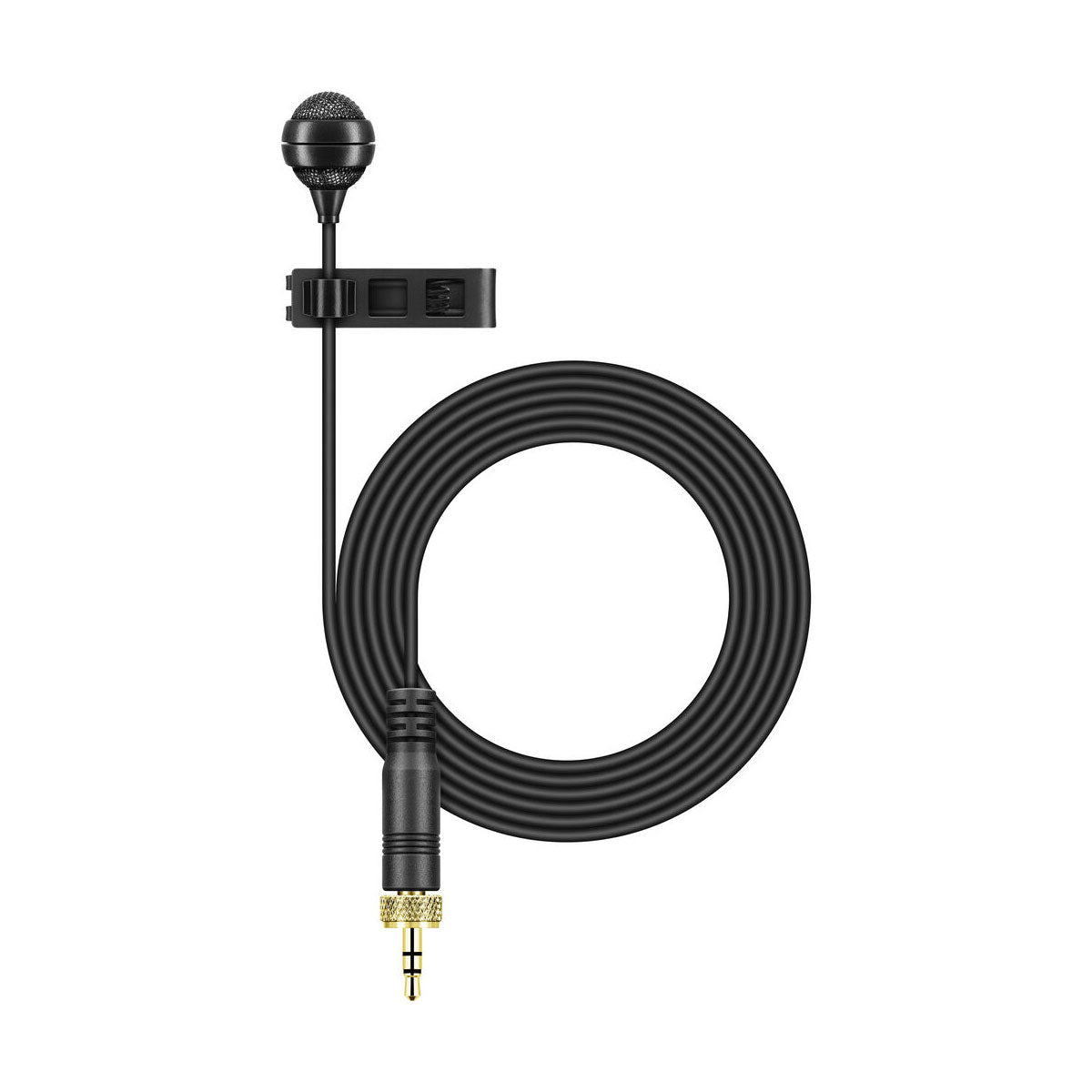

- Sennheiser ME 4 Cardioid Lavalier Microphone with Locking 3.5mm Connector (Black)
- Sennheiser CL 35 TRS Locking 3.5mm TRS to 3.5mm TRS Coiled Cable
- Sennheiser CL 35-XLR Right-Angle Locking 3.5mm TRS to XLR Male Coiled Output Cable
- USB-C Charging Cable
- Sennheiser BA 70 Rechargeable Battery Pack for EW-D Bodypack and Handheld Transmitters
- 2 x AA Battery

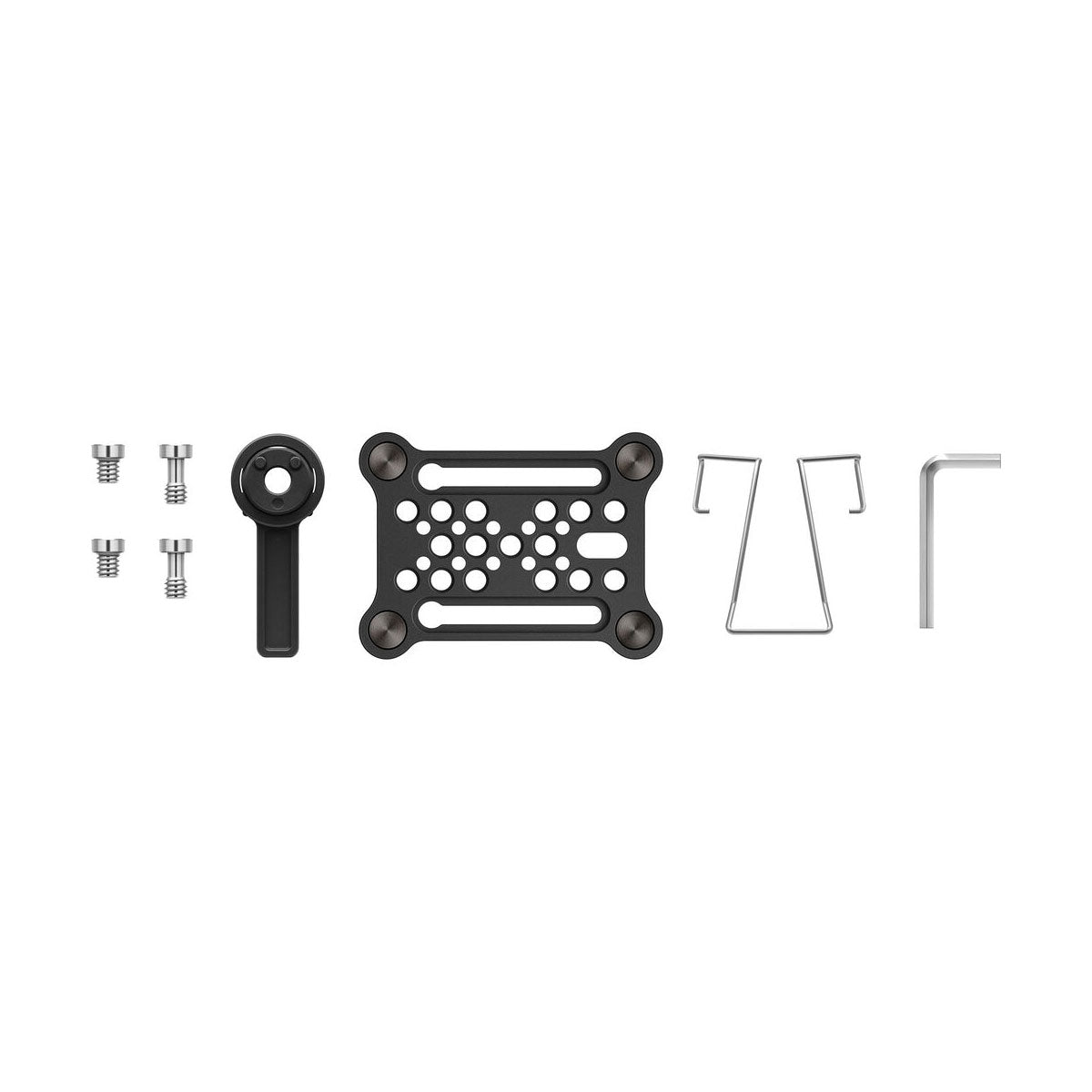

- Mounting Kit (Cheeseplate, Cold Shoe, Beltclip, Screws)
- Limited 2-Year Manufacturer Warranty
Features at a Glance:
- Fully digital UHF wireless microphone system for video applications
- EW-DP EK portable, single-channel receiver
- EW-D SK bodypack transmitter with ME 4 cardioid lavalier mic
- 56 MHz bandwidth with 2240 available frequencies for flexibility in any RF environment
- Industry leading 134 dB dynamic range for distortion-free transmission
- Exceptionally low latency (1.9 ms)
- Smart Assist app for monitor and control (iOS/Android)
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- 3.5mm headphone output on transmitter
- Intelligent battery management provides optimized operating time
- Extended battery life: up to 12 hours on transmitter, 7 hours on receiver
- External charging and powering via USB-C (receiver only)
- Magnetically stackable components for versatile mounting
Specifications:
| Wireless Technology | Digital UHF |
| Included Transmitters | 1 x Bodypack |
| Diversity | True Digital Diversity |
| Max Operating Range | 328.1' / 100 m (Line of Sight) |
| Receiver Type | Camera-Mount |
| Microphone Type | Lavalier |
| Polar Pattern | Cardioid |
