Description

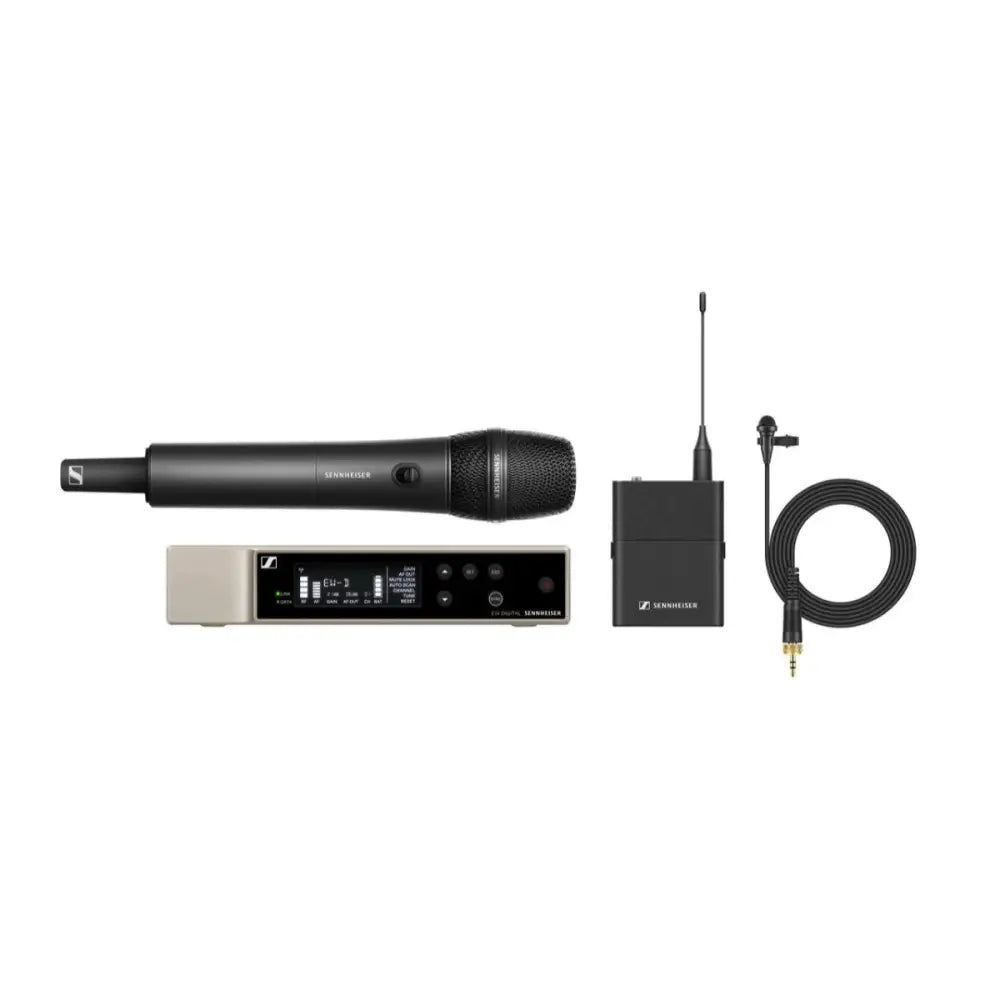

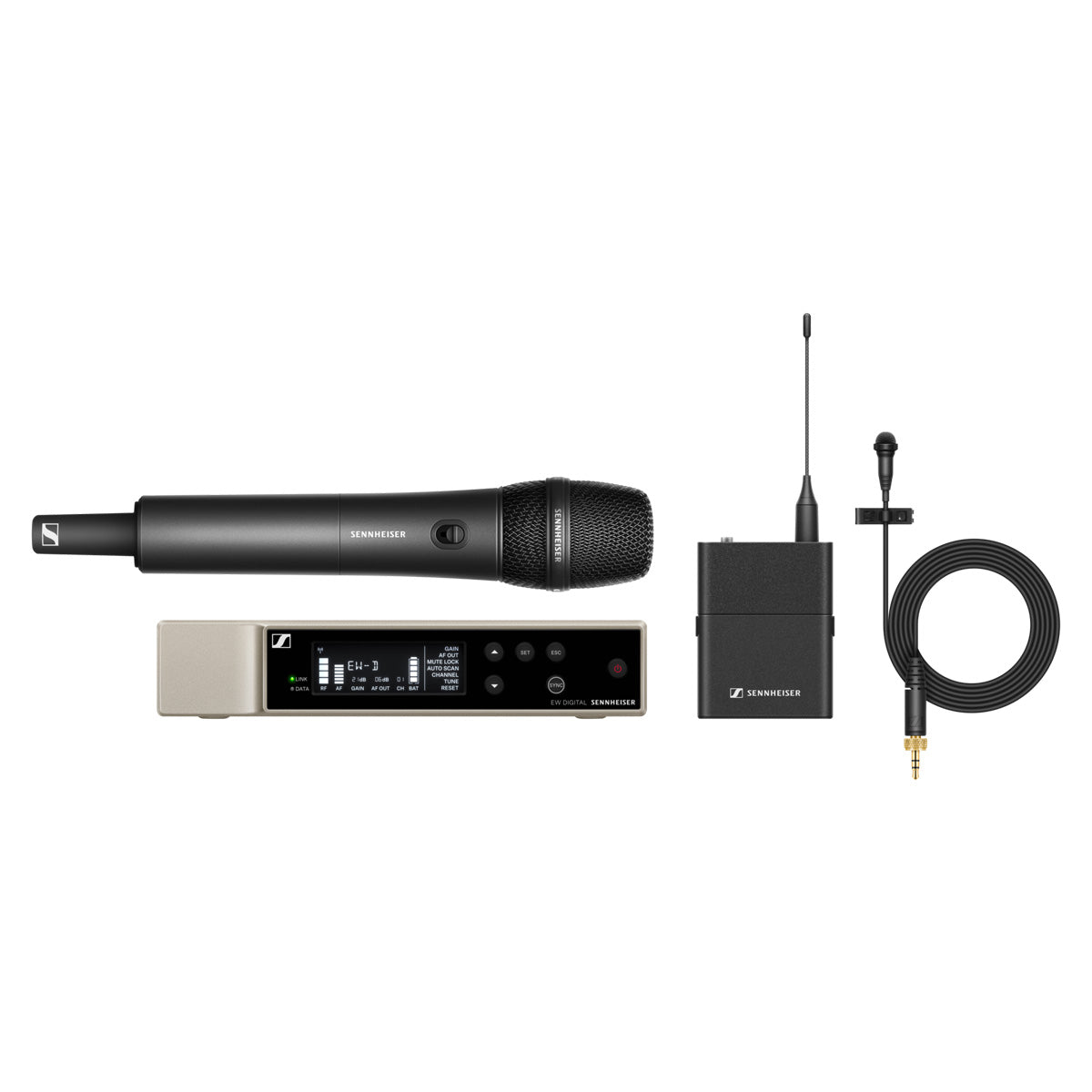

All-in-one combo set for digital wireless applications featuring stationary receiver, handheld transmitter and clip-on microphone.
Versatile and feature-rich digital wireless system for those who sing, speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.
What's in the box:

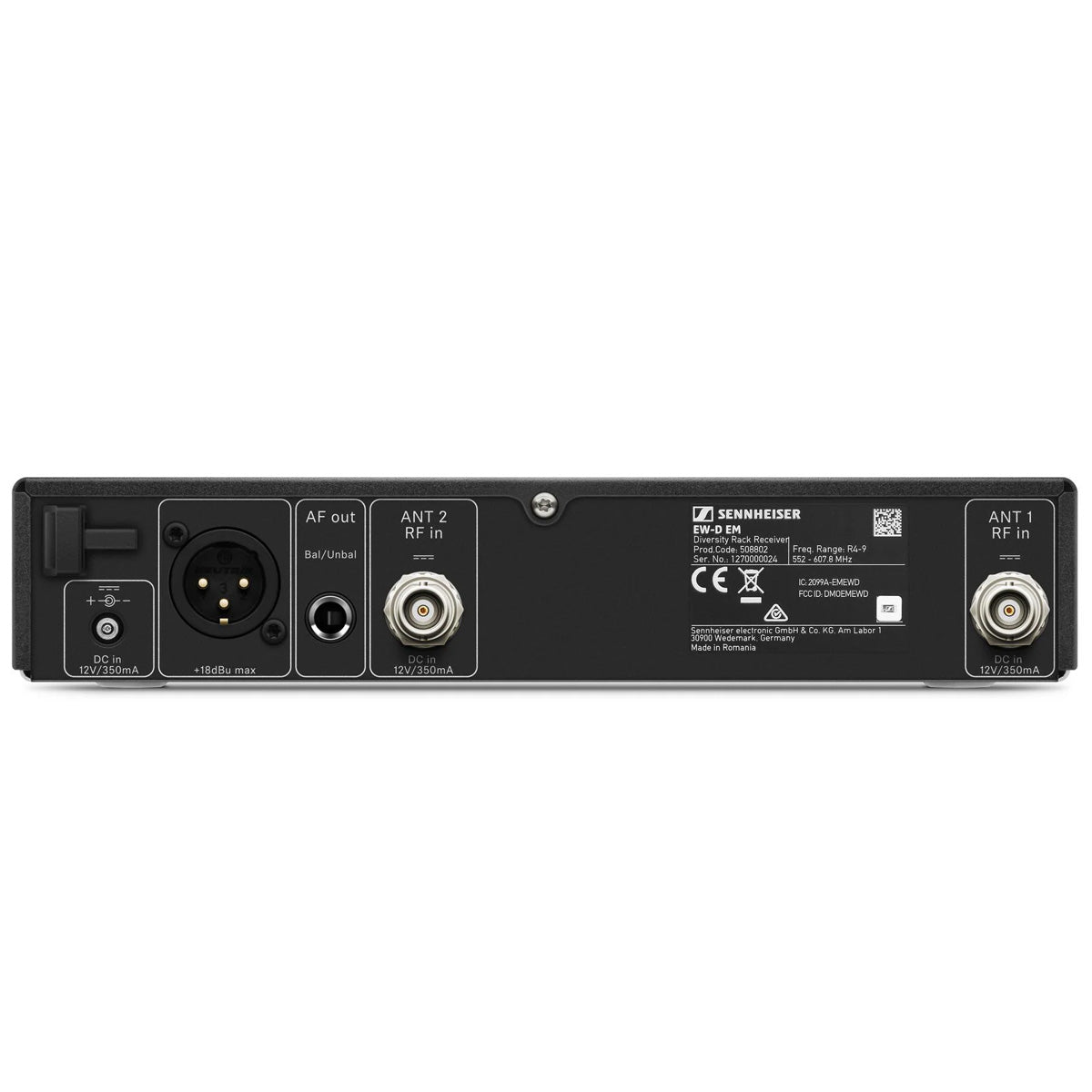

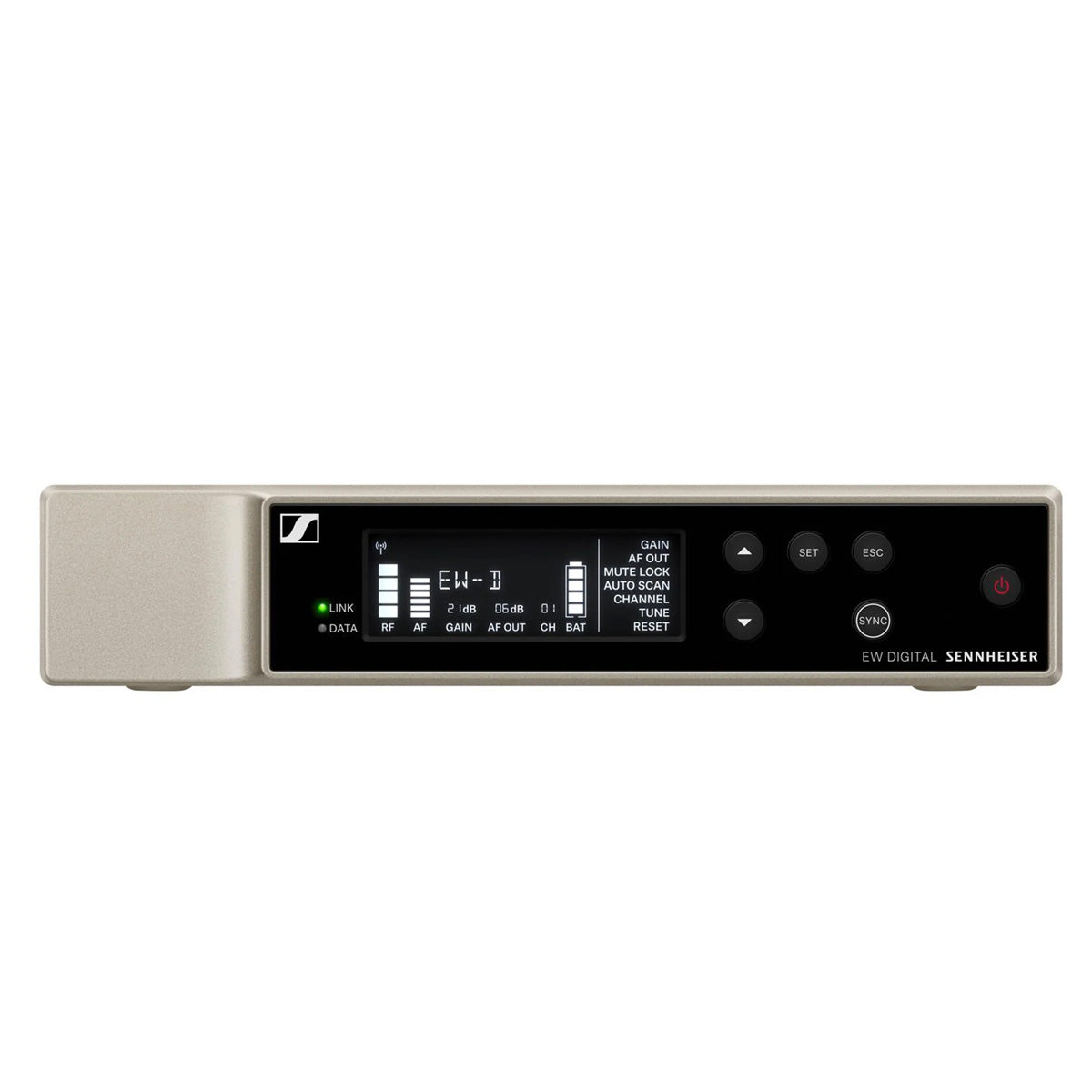

- EW-D EM Rack Receiver

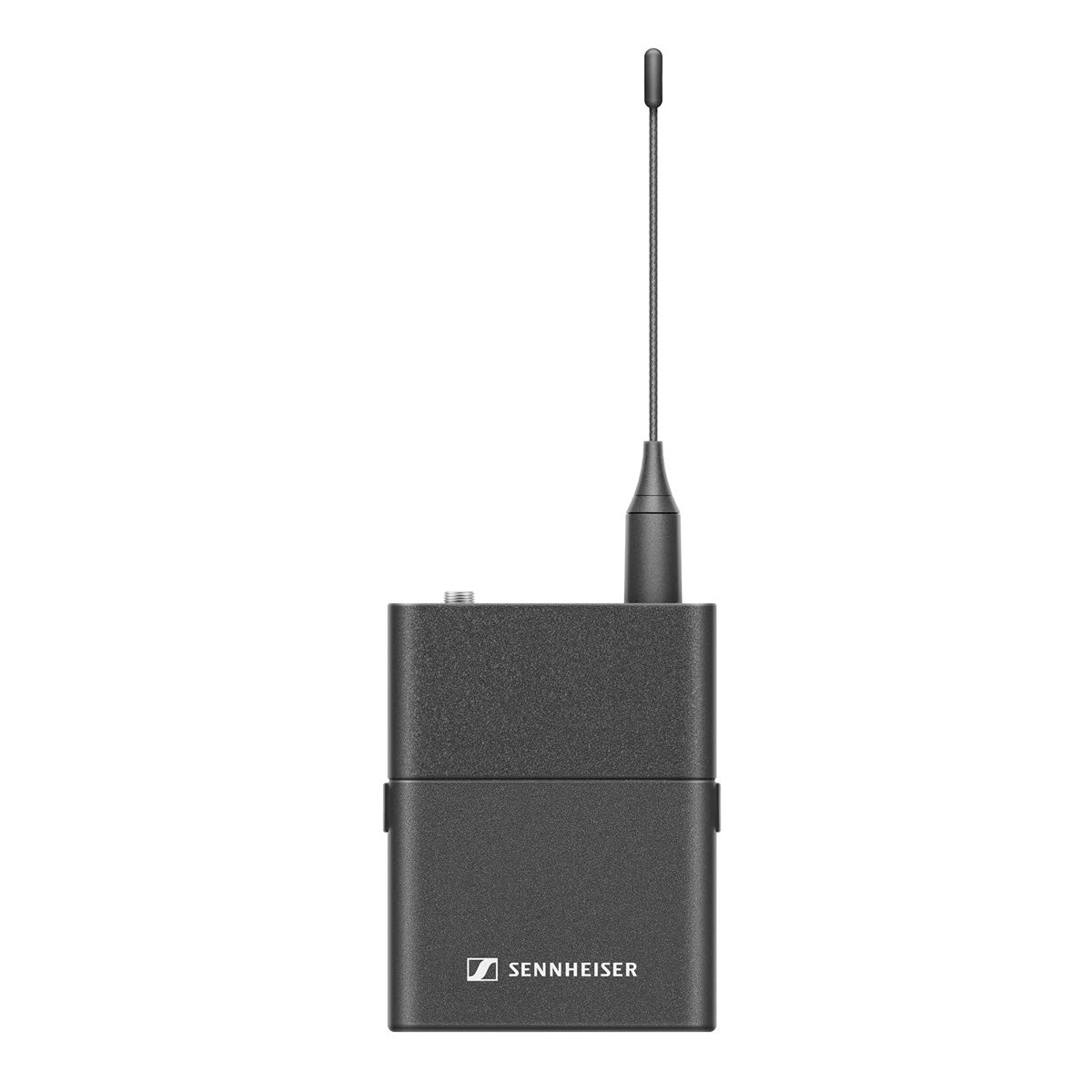

- EW-D SK Bodypack Receiver

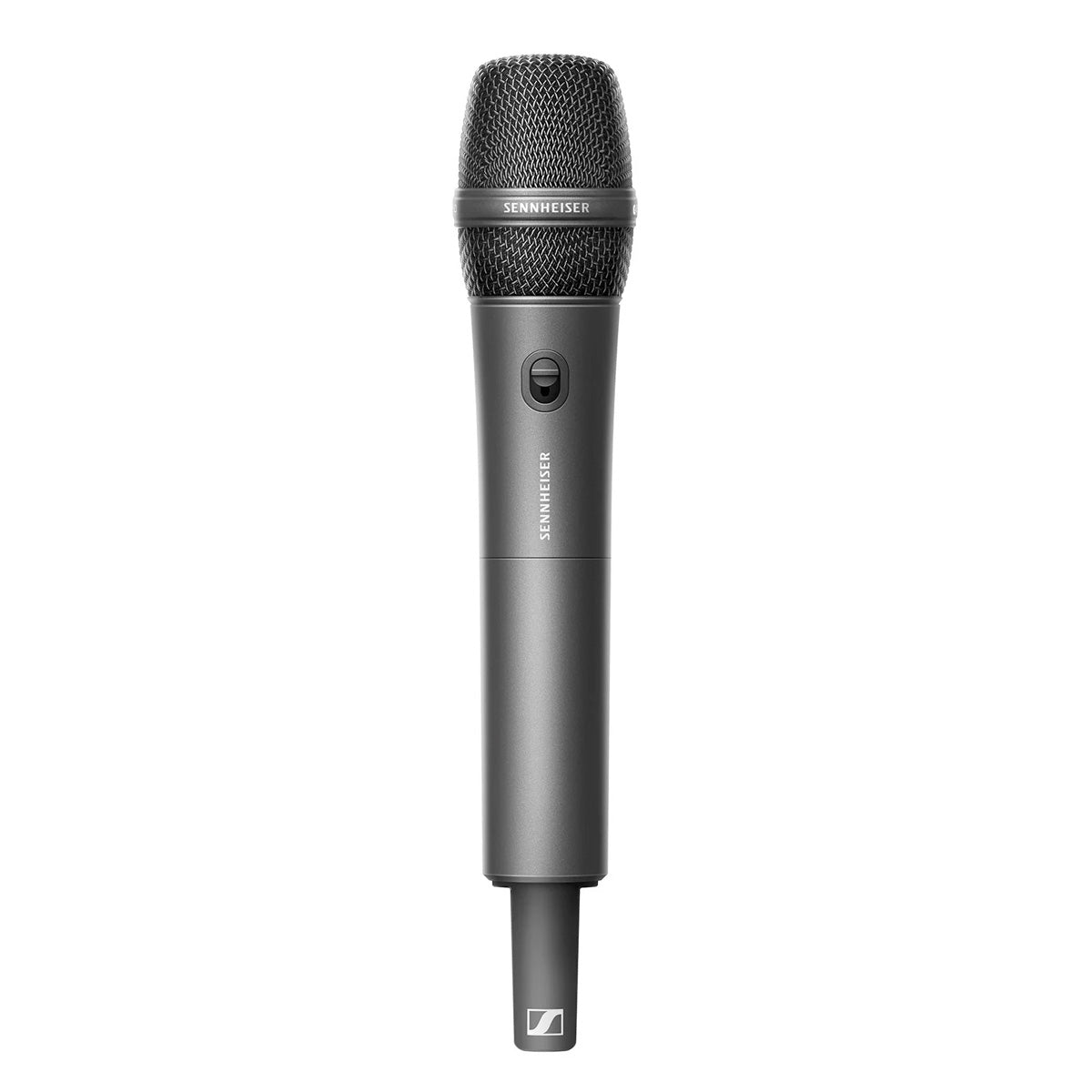

- EW-D SKM-S Handheld Transmitter

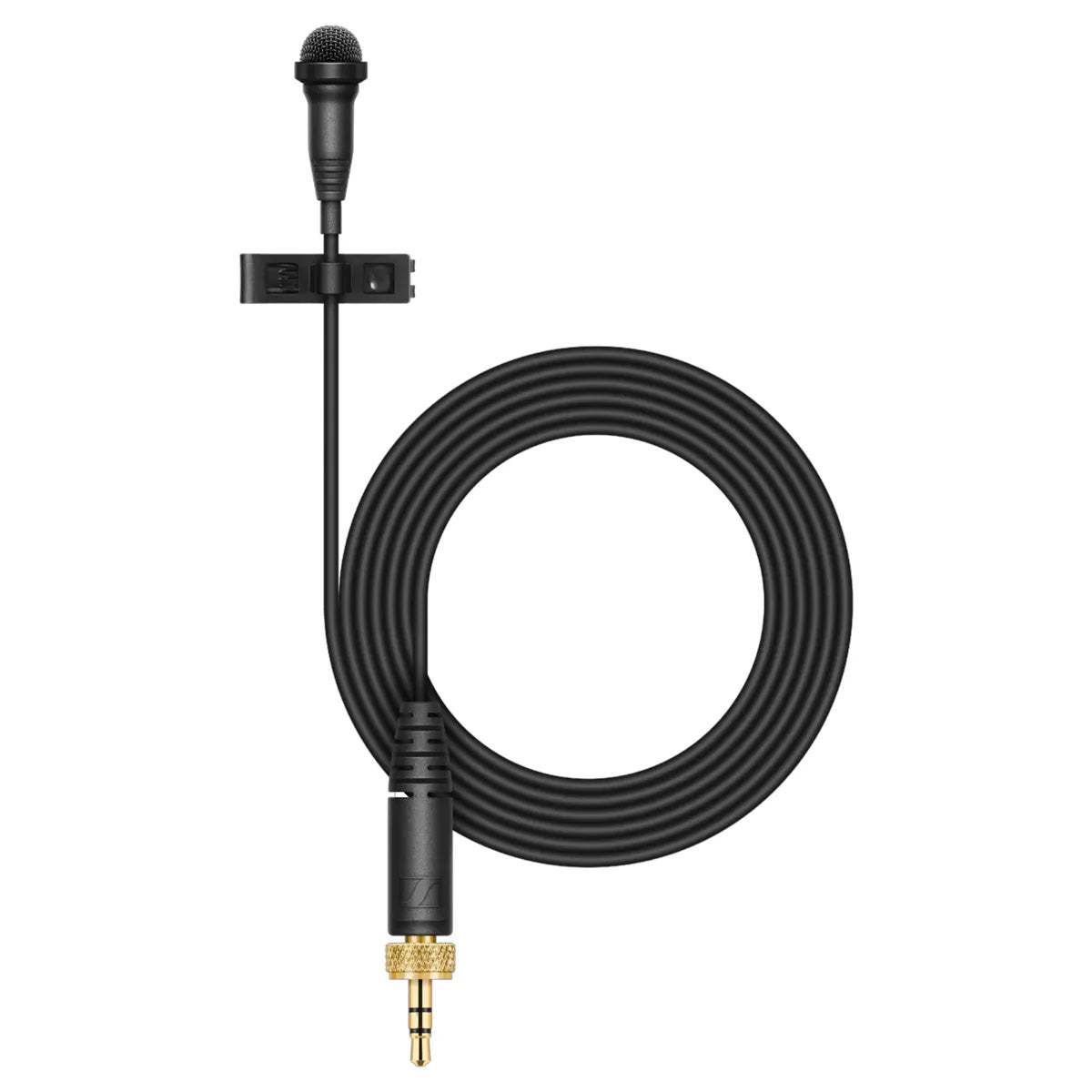

- ME 2 Lavalier Microphone
- MMD 835 Microphone Capsule
- MZQ 1 Microphone Clip
- 2x Rod Antennas
- NT 12-5 CW Power Supply with country adapters
- GA 3 Rackmount Kit
- 4x Rubber Feet
- Quick Guide
- Safety Guide
- Limited 2-Year Warranty
Features at a glance:
- Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
- Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
- Auto-scan creates reliable connections with minimal time and effort
- 134 dB audio input dynamic range eliminates the need for sensitivity adjustments and preserves every detail
- Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
- 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- 2,240 selectable frequencies allow for fine-tuning
- Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Specifications:
| Dimensions | 212 x 44 x 189 mm |
| Frequency range | 606.200 - 662.000 |
| Latency (ms) | 1.9 ms |
| Max. sound pressure level | 130 dB |
| Pickup pattern | Cardioid, Omnidirectional |
| Sensitivity | 2.1 mV/Pa |
| Transducer type | Dynamic |
| Connection | Wireless |
| Connectors | 3.5mm |
