Sennheiser ADP UHF (470-1075MHz), 470-1075MHz Passive antenna

Save R 1,115.00
SennheiserSKU: SEN-508863

Price:
Sale priceR 7,785.00 Regular priceR 8,900.00

Tax included Shipping calculated at checkout

Description

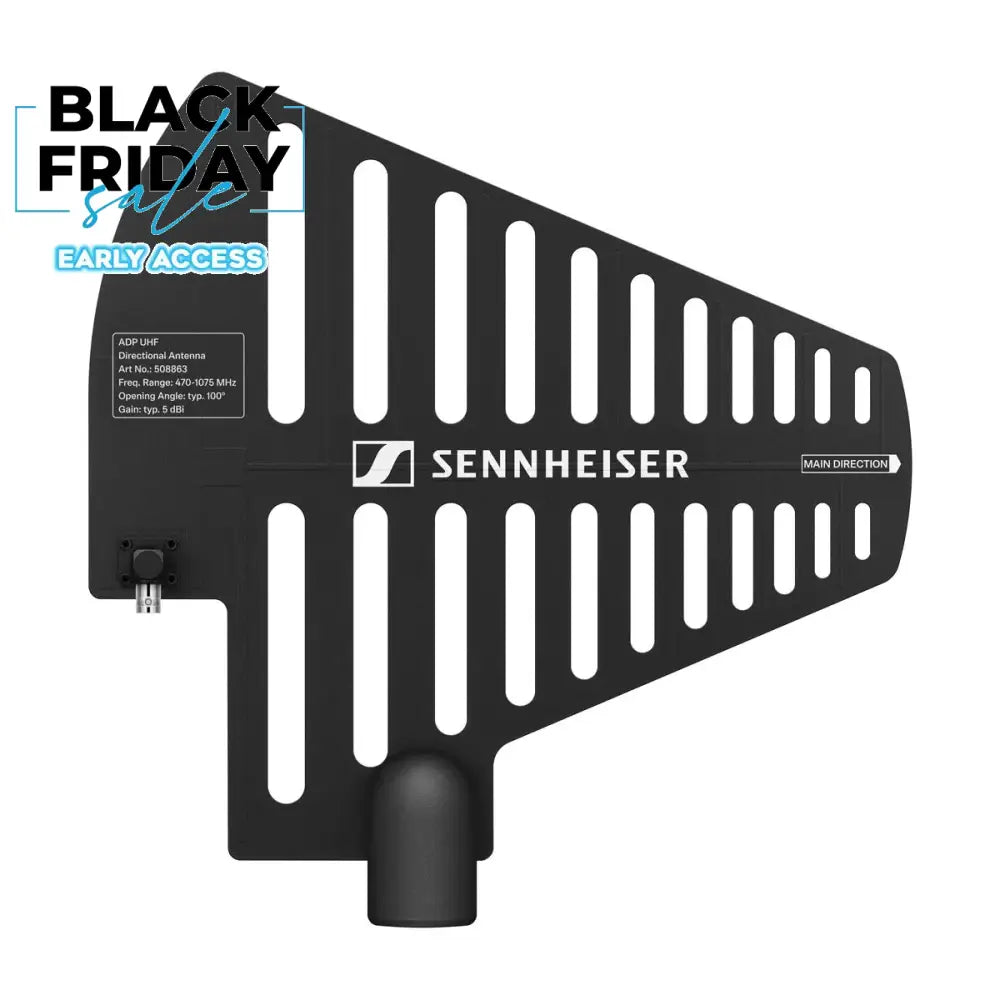

The Sennheiser ADP UHF Passive Directional Antenna is an essential component for maximizing the wireless performance of your EW-D series wireless microphone system. Positioning the antenna close to your transmitters on stage and orienting it in their direction enables you to achieve maximum coverage for professional-quality RF signal reliability with low risk of interference and virtually no dropouts.

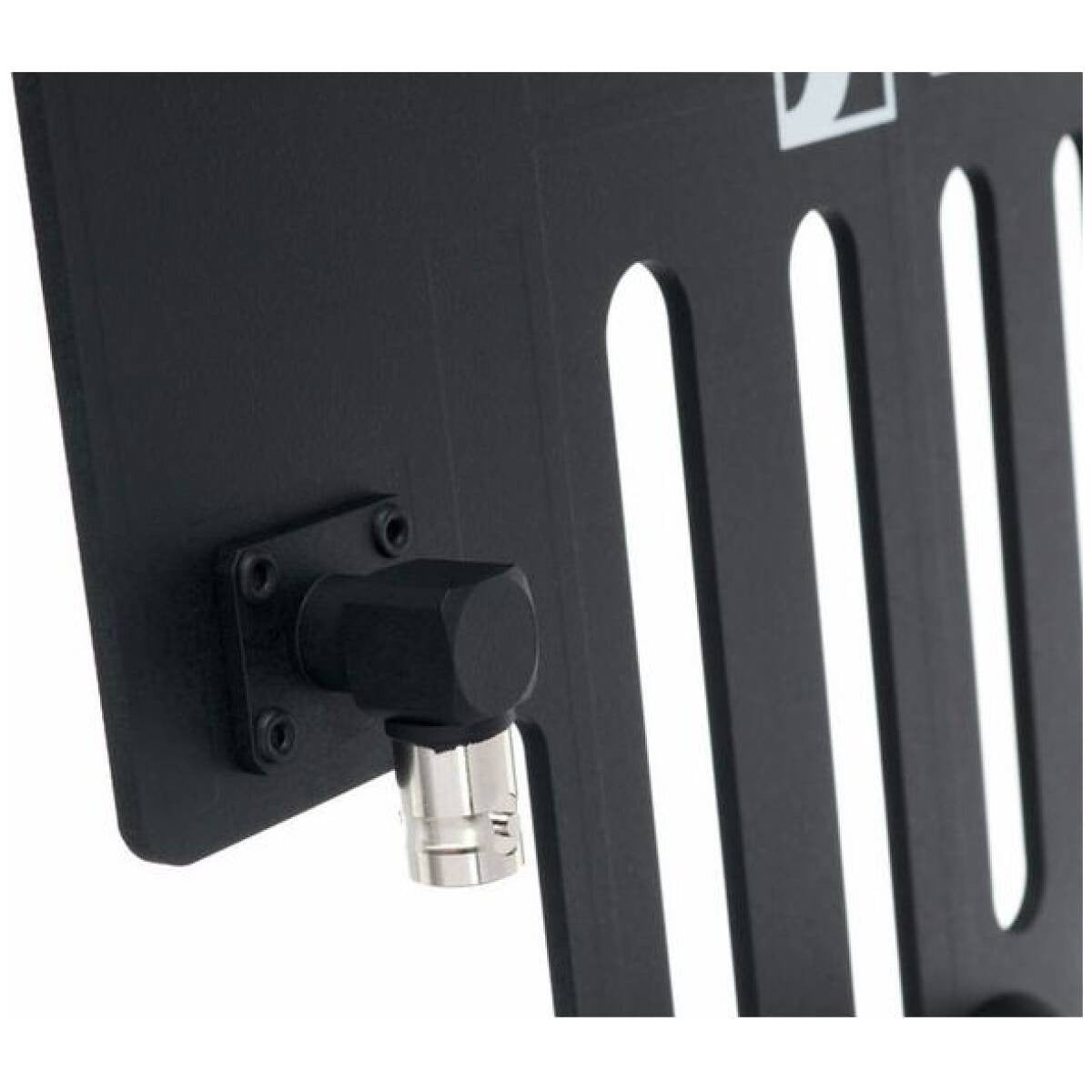

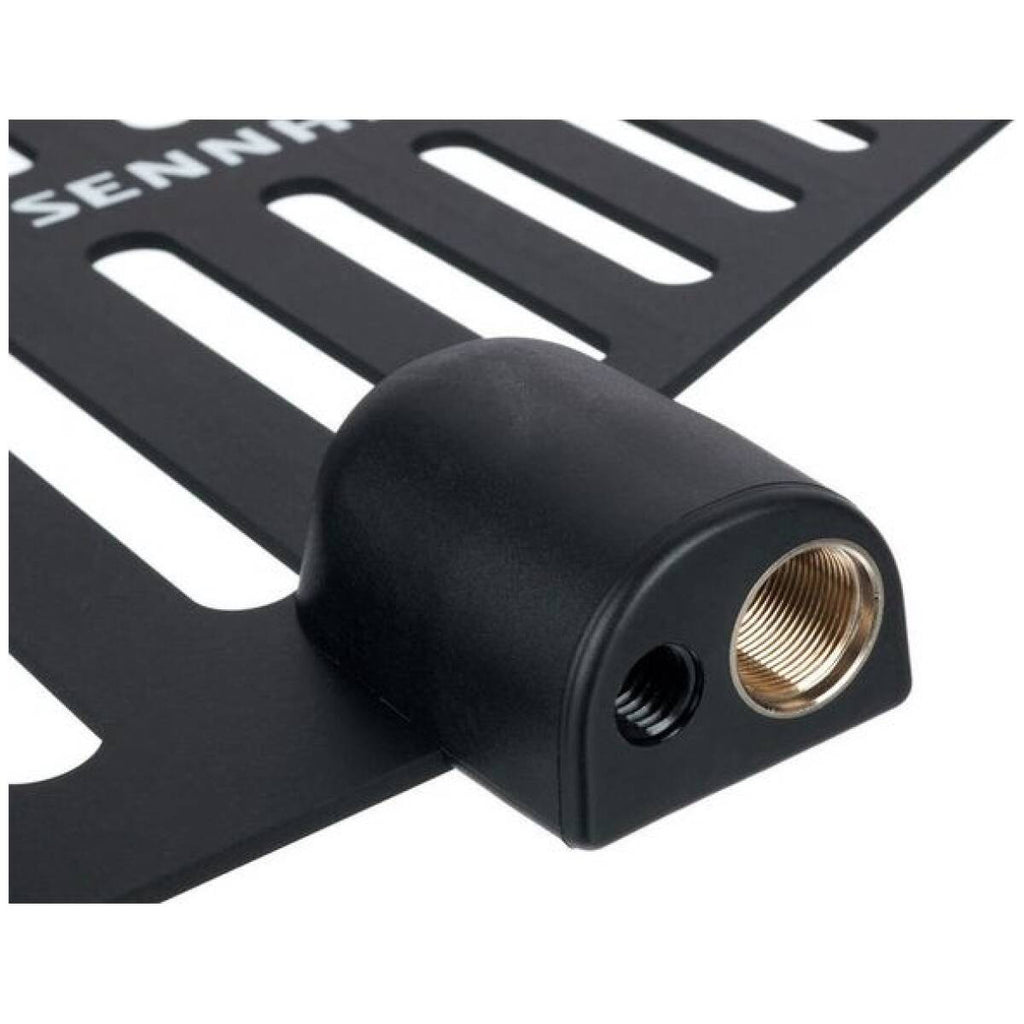

The ADP UHF is equipped with 3/8"-16 and 5/8"-27 threads for easy mounting on a mic stand. It features a 50-ohm BNC connector for connection to either an EW-D receiver, EW-D AB antenna booster, or the EW-D ASA antenna splitter via a coaxial cable (all available separately).

The unit is designed for indoor and outdoor use.



What's in the box:

  • Sennheiser ADP UHF Passive Directional Antenna for EW-D Wireless Systems (470 to 1075 MHz)



Features at a Glance:

  • For EW-D Wireless Systems
  • Enhances Wireless Reception
  • 5 dBi Gain, 100° Opening Angle
  • Mounts to Microphone Stand
  • For Indoor and Outdoor Use



 Specifications:

Frequency Range

470 to 1075 MHz

Apex Angle

Approx. 100° (-3 dB)

Front-to-Back Ratio

> 14 dB

Gain

5 dBi (Typical)

Impedance

50 Ohms

Connection

BNC Female, No DC Pat

Threads

3/8"-16 and and 5/8"-

Relative Humidity

5 to 95%

Temperature

Operating Temperature Range: 14 to 131°F / -10 to 55°C
Storage Temperature Range: -4 to 185°F / -20 to 85°C

Dimensions

319 x 310 mm

Weight

320 g
