Description

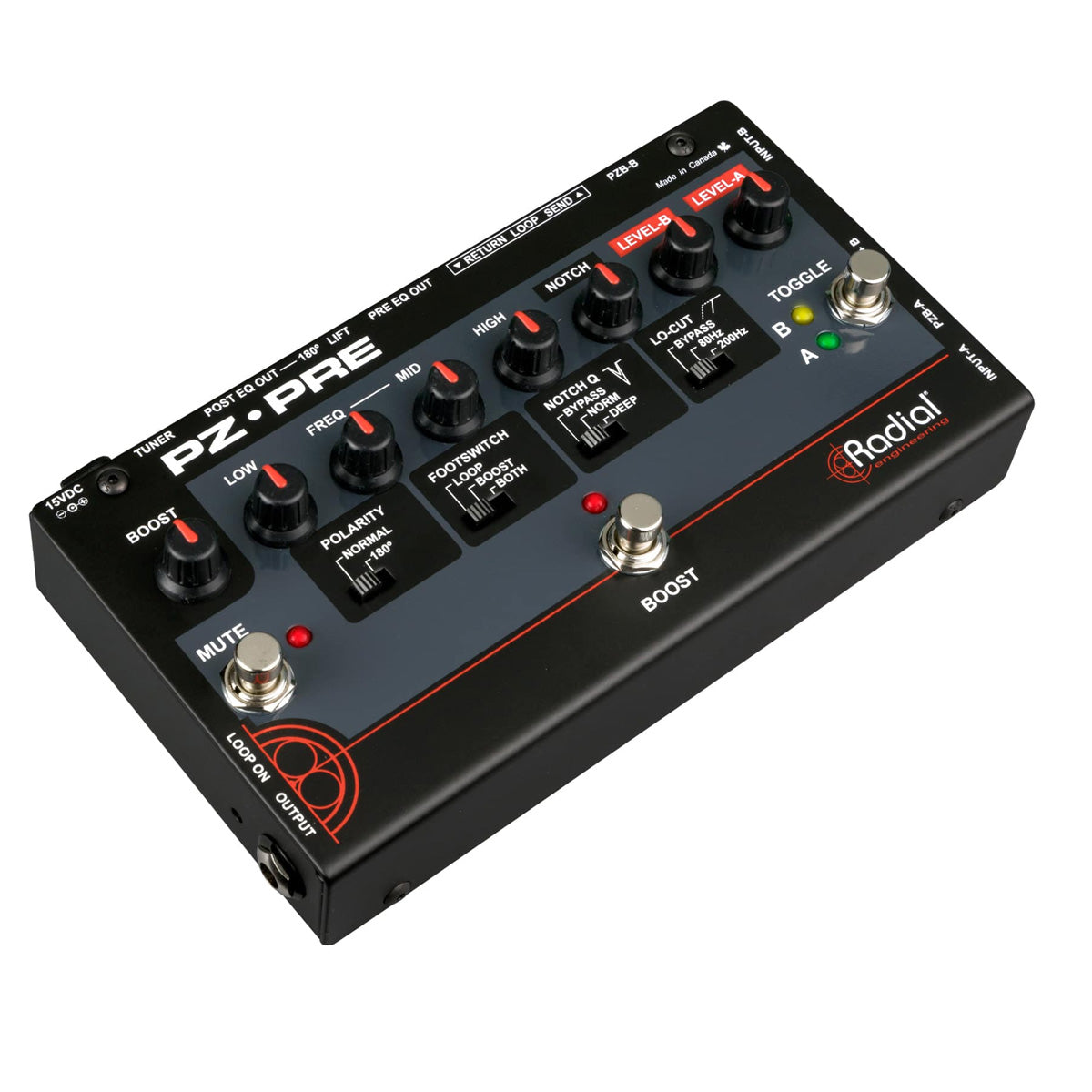

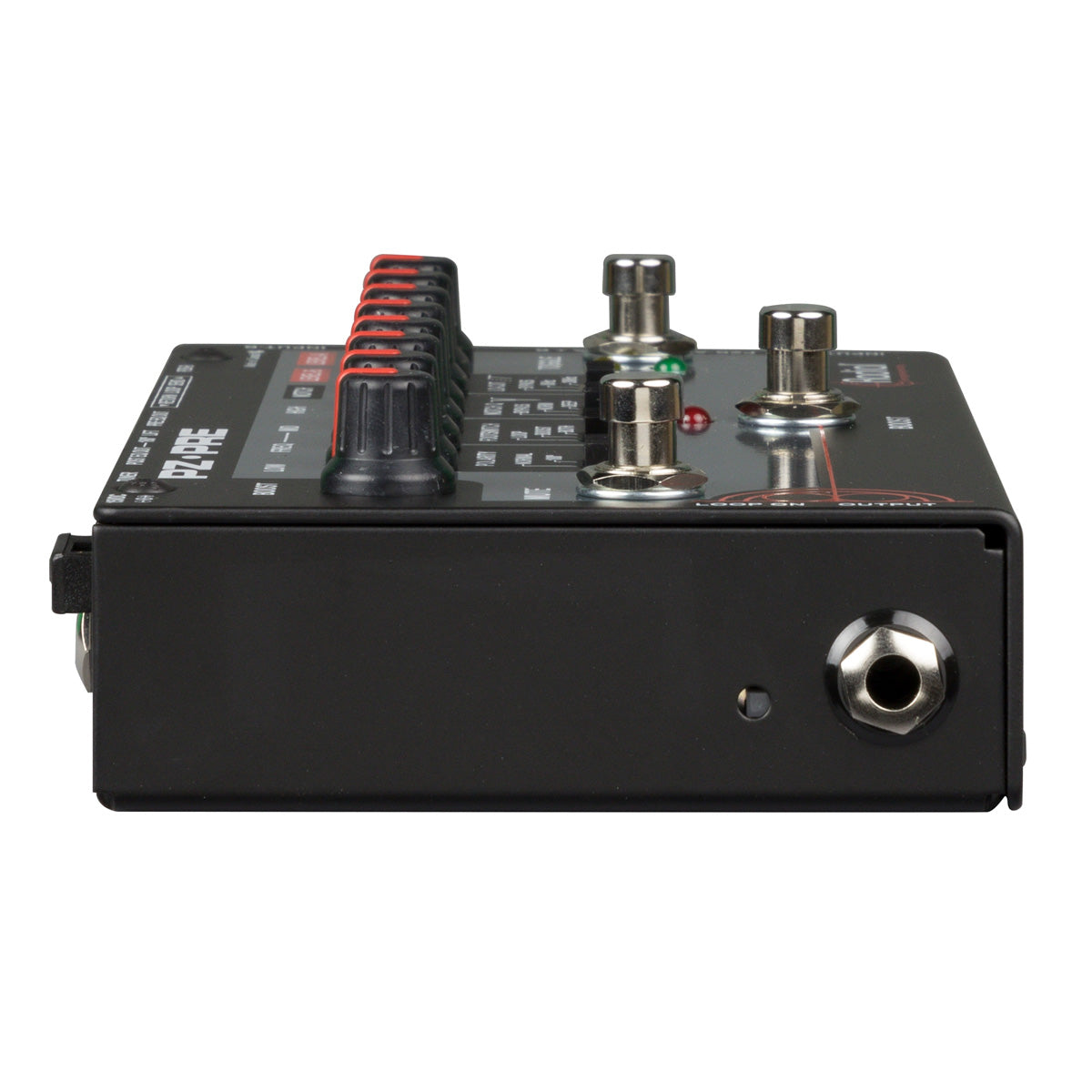

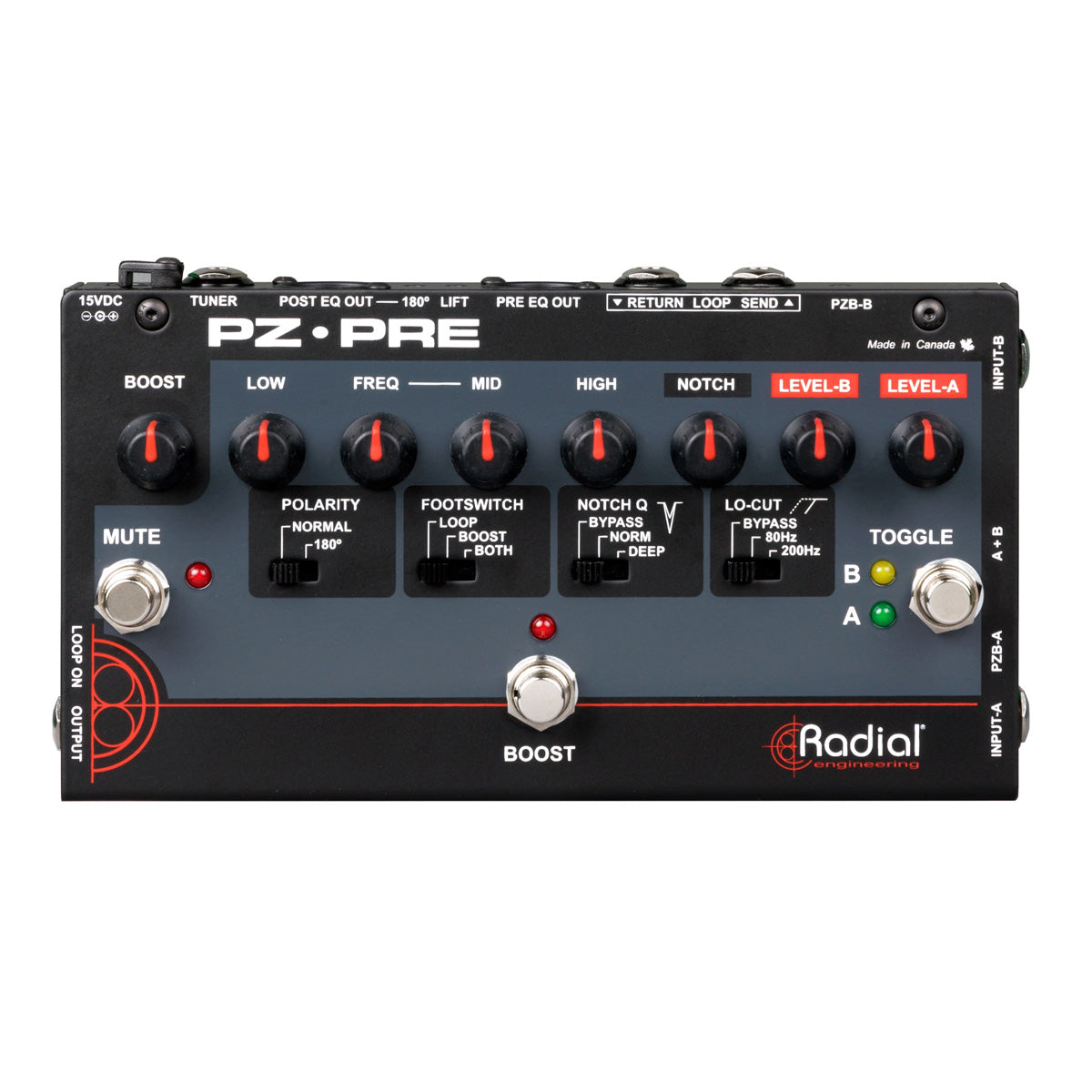

Radial PZ-Pre Acoustic instrument preamp
The PZ-Pre is a powerful acoustic instrument preamplifier with a powerful EQ and feedback control section and loads of connectivity options giving you complete control over your rig.
Powerful Control in a Box
The Radial PZ-Pre™ is a powerful acoustic instrument preamplifier. The magic lies in the combination of high performance 100% discrete class-A PZB piezo boosters, an ultra-quiet preamp circuit that will adapt to any pickup system and a host of connectivity options that will put you in total control. The PZ-Pre is equipped with two inputs for quick instrument changes on stage, or, for blending two pickups together. Powerful semi-parametric EQ and feedback eliminating controls allow the user to fine-tune their sound while eliminating troublesome frequencies. Offering both pre and post EQ direct box outputs, the PZ-Pre can be used send a dry signal to the house and performer tailored sound to monitors.
Features at a Glance:
- Two channels to switch or blend instruments
- Notch & resonance filters eliminate feedback
- Pre & Post Radial DI outputs for PA and monitors
- Power booster and mute for more control on stage
Specifications:
|
Audio circuit type |
Proprietary active circuit |
| Number of channels |
Dual Input, Amp Out, Pre and Post EQ XLR balanced Out |
| Input Impedance |
6.8k Ohm at input jack (PZB active 10meg Ohm) |
| Output Impedance |
1k Ohm |
| Features |
180° polarity reverse, Ground lift, Effects Loop, EQ Control, Boost |
| Input Connectors |
1/4" |

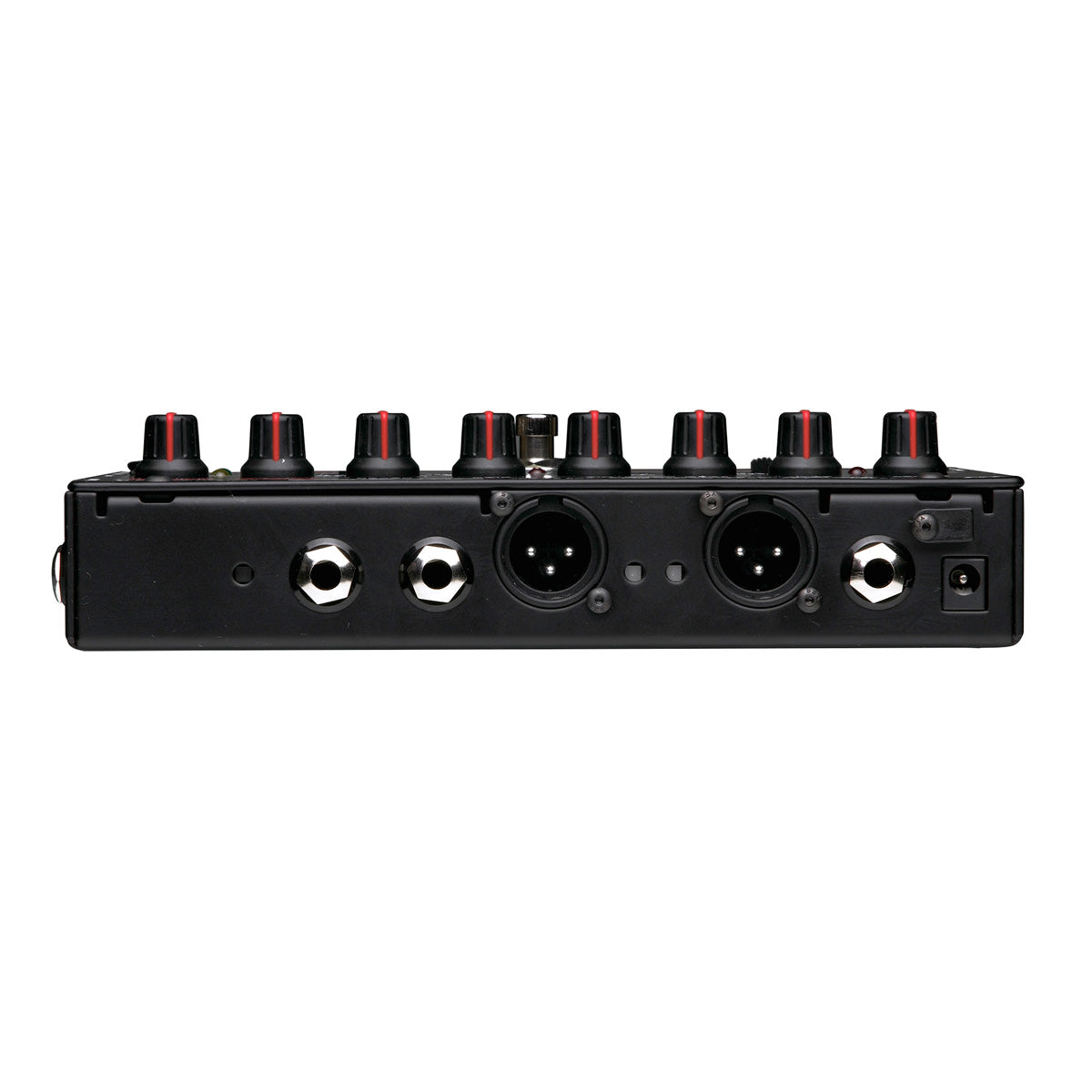

| Output Connectors |
Pre and Post EQ XLR |
| Extras |
1/4" Effects Loop, Tuner |
| Construction |
14-gauge steel |
| Size (L x W x D) |
8"w x 4 ¼"d x 2"h (205 x 110 x 51mm) |
| Weight |
2.7lbs (1.2kg |
| Power |
15VDC 400mA, center pole positive |
| Conditions |
For use in dry locations only between 5°C and 40°C |
