Description
Passive 2-way Microphone Splitter
The ProMS2™ is a balanced mic-level splitter designed to send a signal to multiple destinations simultaneously on stage, with one transformer-isolated output and two direct outputs.
Portable mic splitting for stage use

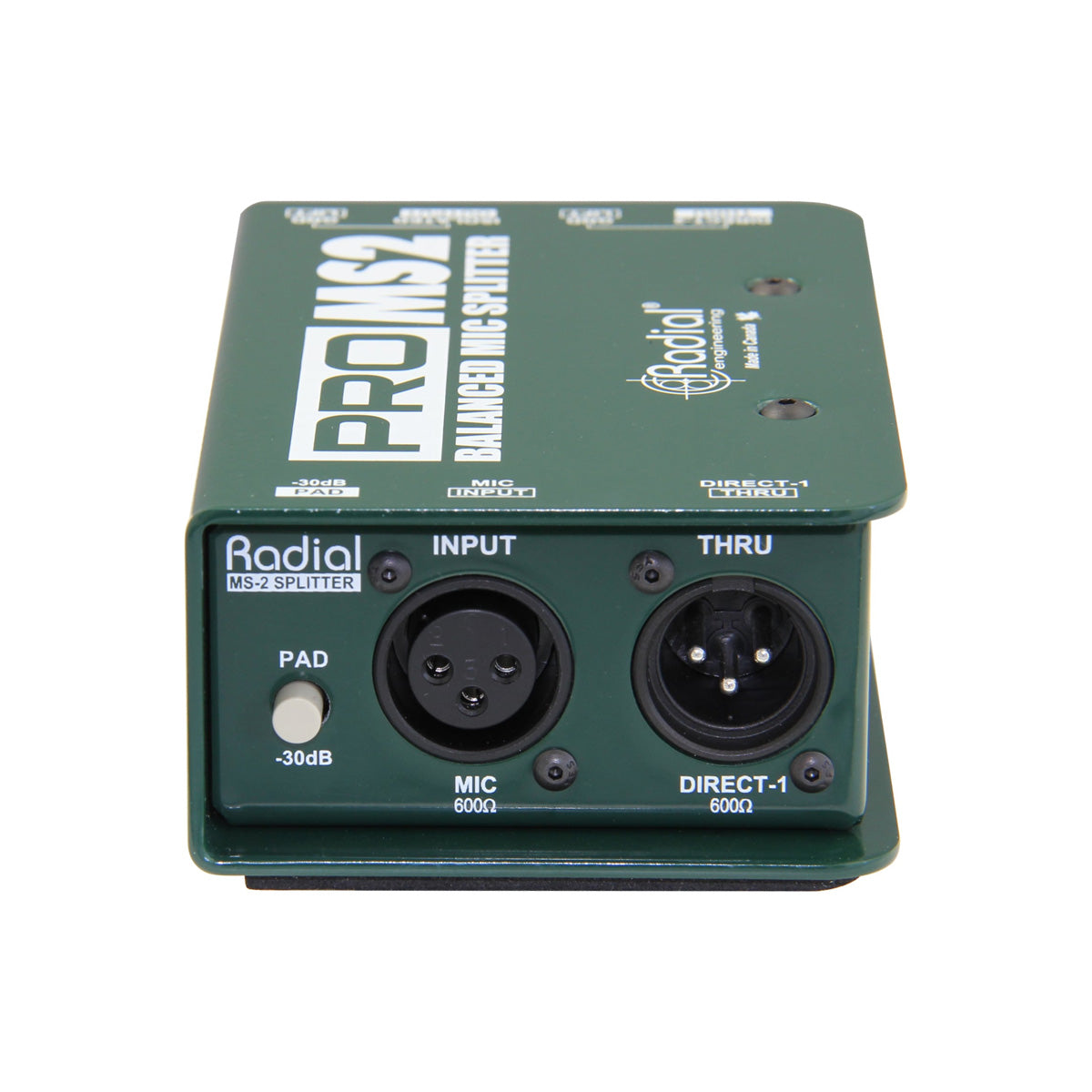

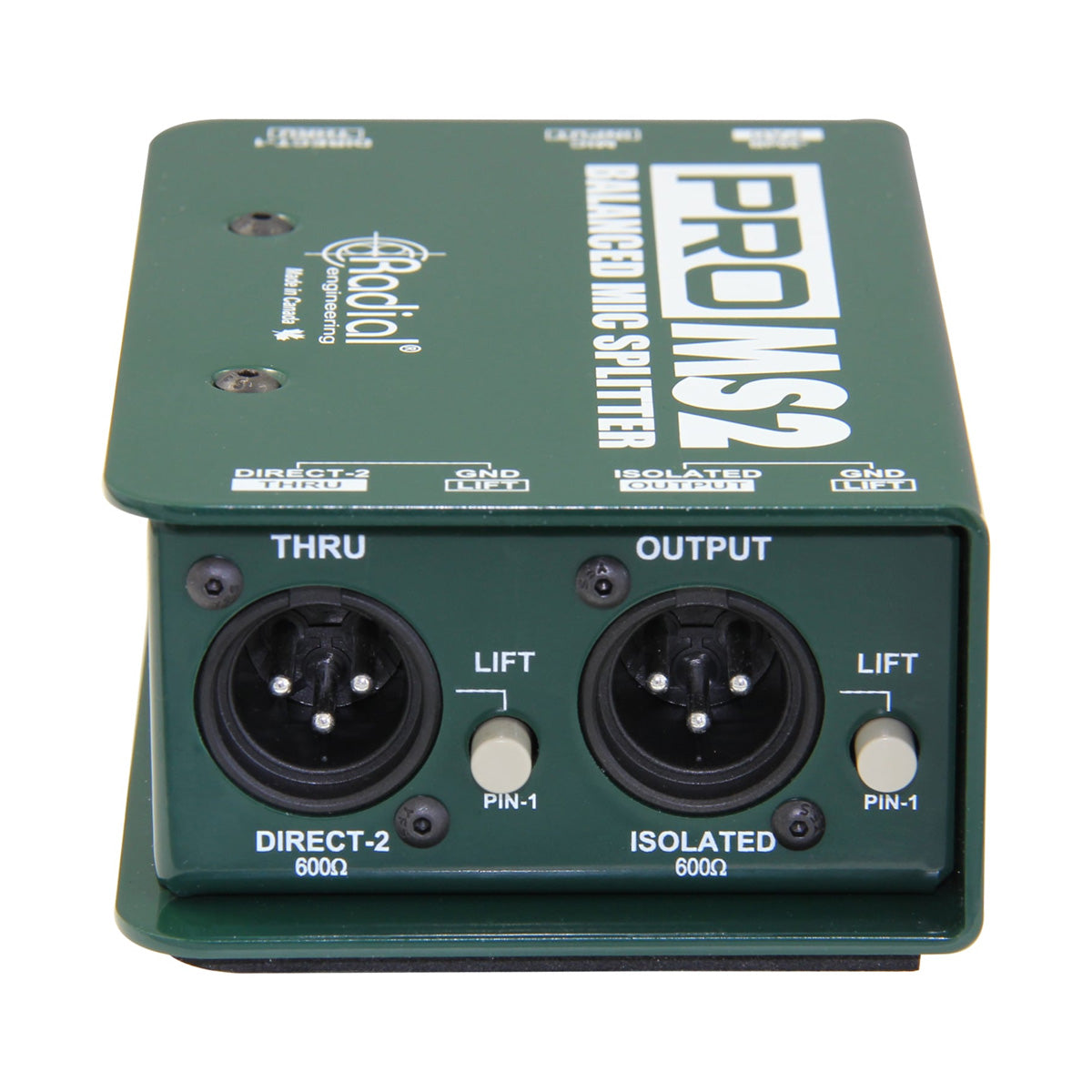

The ProMS2 is a mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A high quality Eclipse transformer inside provides galvanic isolation to eliminate hum and buzz from ground loops, while delivering a wide frequency response and low distortion. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to be connected as well. The ProMS2 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.
Features at a Glance:
- Send one microphone signal to three destinations simultaneously
- Eclipse transformer for clean & transparent audio
- Eliminates hum and buzz caused by ground loops
- Single isolated output provides optimal noise rejection
Specifications:
|
Audio circuit type |
Passive |
| Transformer |
Eclipse ET-MS10 |
| Frequency response |
20Hz ~ 20KHz (+0dB -1dB) |
| Dynamic range |
>140dB |
| Gain |
-0.5dB |
| Total harmonic distortion |
0.001% |
| Intermodulation Distortion |
0.003% |
| Phase Deviation |
1° @ 20Hz |
| Input Impedance |
Source dependent |
| Output Impedance |
Source dependent |
| Common Mode Rejection Ratio |
-115dB at 60Hz |
| Noise Floor |
-140dB |
| Maximum Input |
+26dBu |
| Input Connectors |
XLR-F |
| Output Connectors |
XLR-M |
| Construction |
14-gauge steel chassis & outer shell |
| Power |
Passive, no power required |
| Conditions |
For use in dry locations only between 5°C and 40°C |
