Description
3G SDI coaxial video cable - RG6/U - flex 0.65 mm² - 19 AWG - HighFlex™

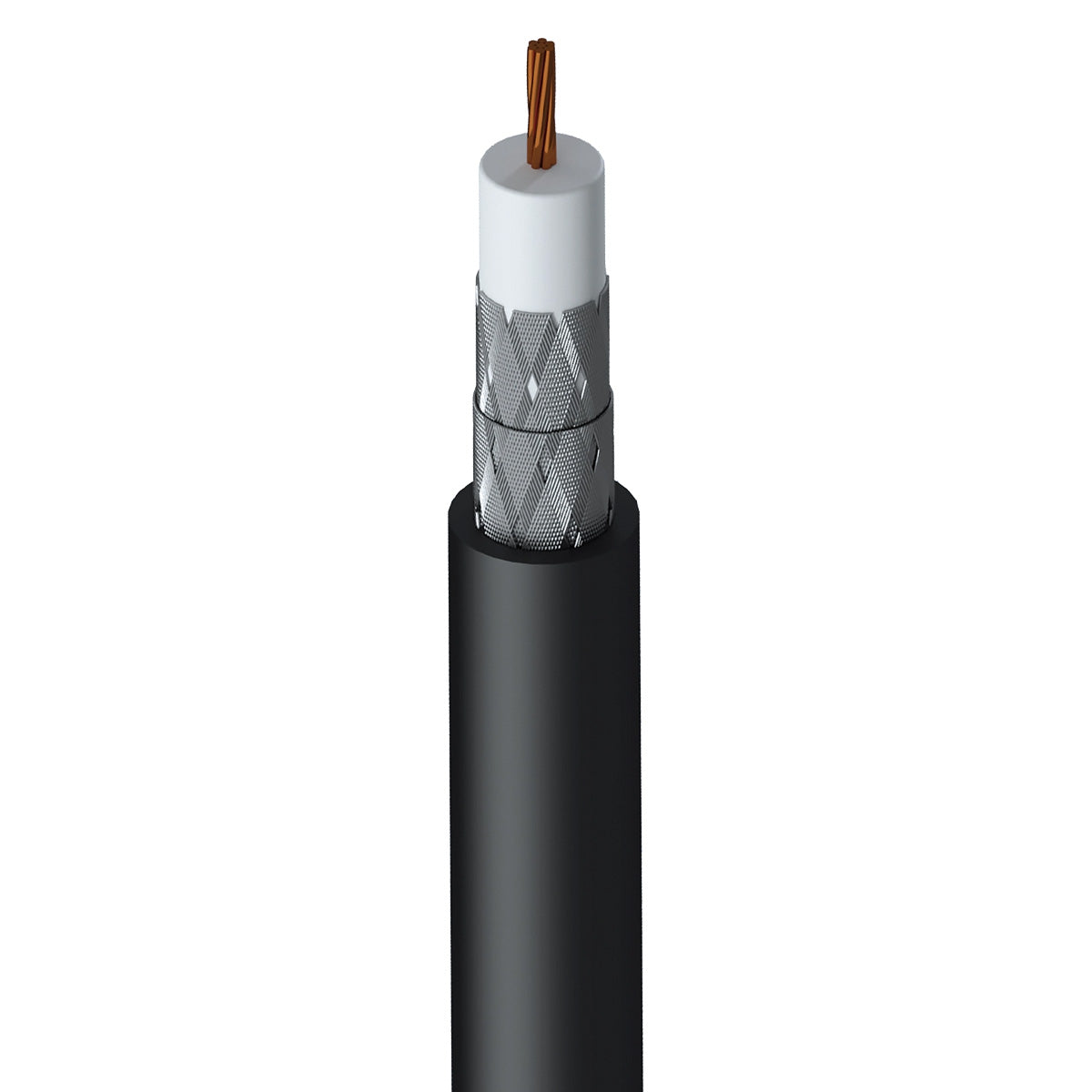

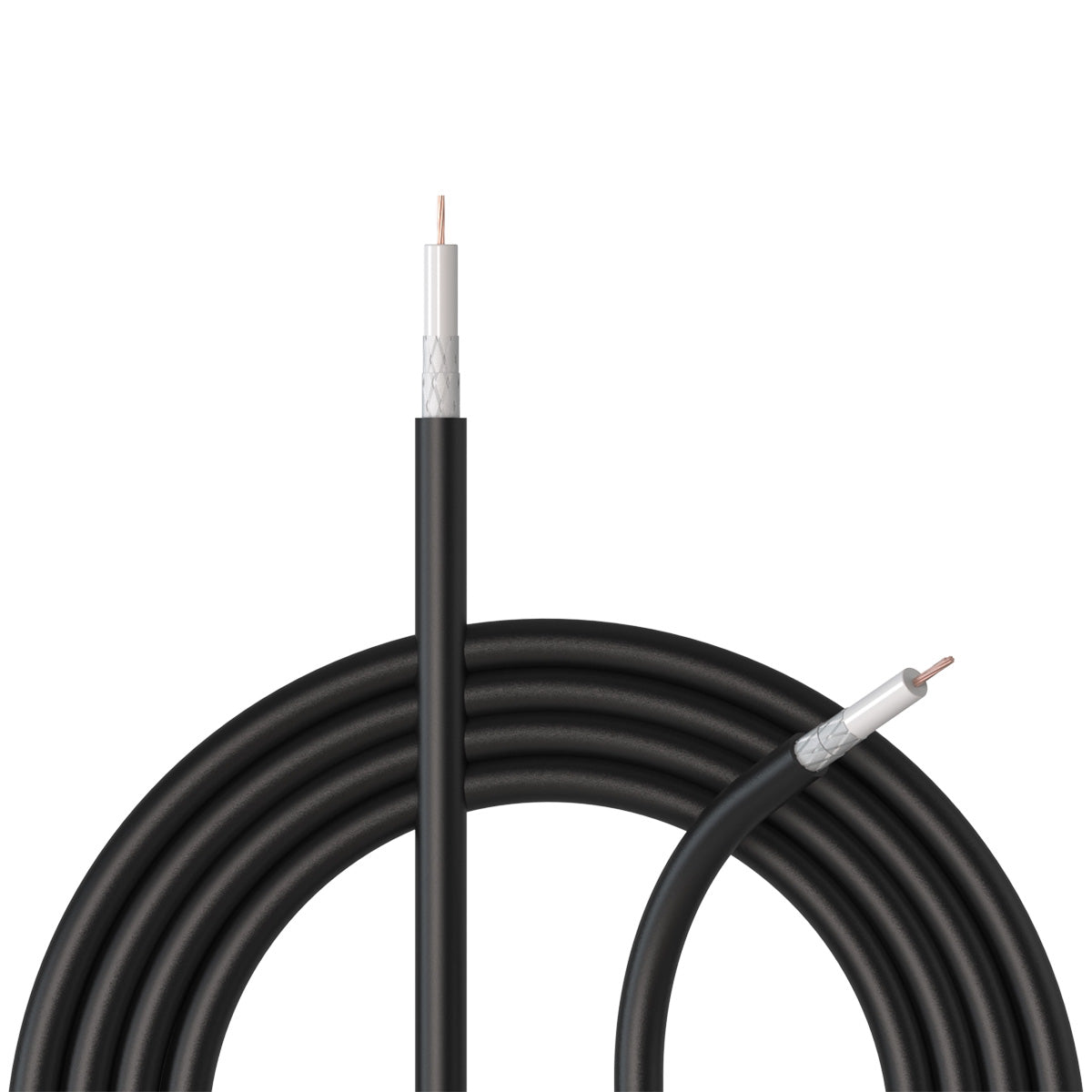

The PCX160 is an RG6/U coaxial video cable specifically designed for digital SDI, HD-SDI and 3G-SDI video transmissions in mobile applications. Its Highflex™ PVC outer jacket in combination with other high-grade materials guarantee a great flexibility, long service life span and accurate signal transmission under all circumstances. The conductor section of 19 AWG is constructed using 7 strands of high purity copper with a thickness of 0,345 mm, resulting in an overall section of 0,65 mm² surrounded by a foamed polyethylene isolator. The dual braided overall shielding consists of two individual layers with a coverage percentage of 95%, guaranteeing the best possible immunity against noise and interference. Compatible with Neutrik NBNC75BRU11.
Features at a glance:
- Highflex™ solid & flexible jacket
- HD-SDI up to 85 meter
- 3G-SDI up to 58 meter
Specifications:
| Type of cable | 75 Ω coaxial video cable |
| Inner conductor Material | BC 7 x 0.345 mm (Ø) (OFC) |
| Section | 0.65 mm² |
| Number of conductors | 1 |
| Insulation Material | FPE 4.6 mm (Ø) |
| Colours | White |
| American Wire Gauge | 19 AWG |
| Overall shielding Braiding | TC 16 x 9 x 0.12 mm (Ø) (OFC) |
| Outer jacket Material | PVC 7 mm (Ø) |
| Colours | Black |
