Description

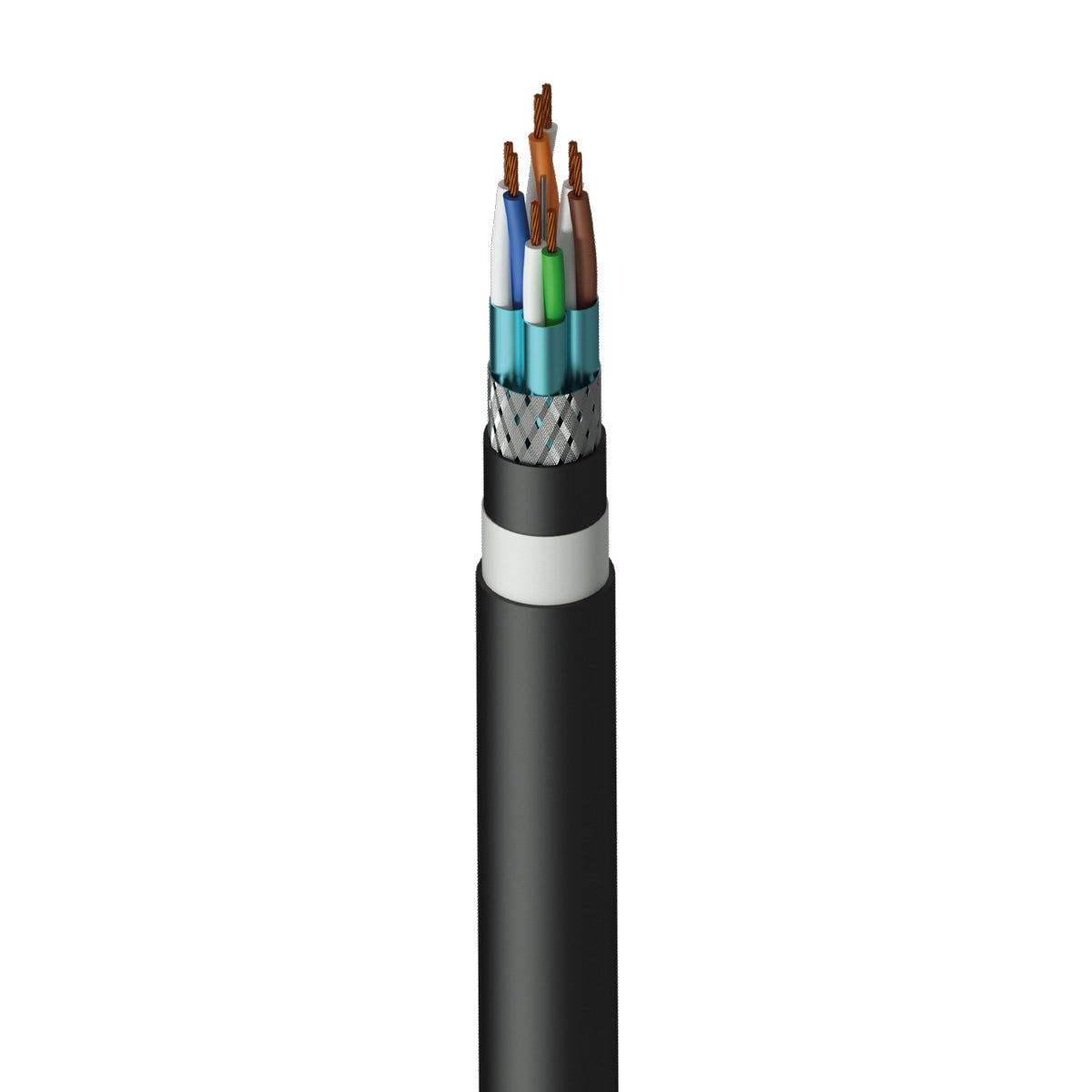

Networking cable - CAT6A - S/FTP - flex 0.22 mm² - 24 AWG HighFlex™ 300m Wooden Reel
The BCT65S is a CAT6A networking cable featuring a Highflex™ outer jacket which is specifically designed for professional use in highly demanding applications. The conductor section of the BCT65S consists of 4 pairs with solid 24 AWG conductors which are individually shielded by an aluminum foil while the entire section is surrounded by an overall braiding. Due to the double shielding, better performance in terms of crosstalk and system noise is achieved resulting in a higher bandwidth and improved immunity against noise and interference caused by external devices. The combination with hard and solid inner jacket materials and soft outer jacket materials provides great flexibility with a solid touch. Even after numerous times of winding and unwinding. Supports 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T gigabit.
Features at a glance:
- 24 AWG thin and dense stranded conductors
- Double shielding (Al-foil + Braiding)
- Highflex™ solid & flexible jacket
- 8.7 mm (Ø) outer diameter
Specifications:
| Inner conductor Insulation Material | Foamed PE 1.32 mm Ø |
| Colours | Green / White & Green ; Blue / White & Blue ; Orange / White & Orange ; Brown / White & Brown |
| Shielding | Aluminium foil Al-mylar, 100% coverage - 25% Overlap |
| Overall shielding Braiding | TC 10 x 12 x 0.08 mm (Ø) (OFC) |
| Inner jacket Material | Hard PVC |
| Outer jacket Material | Soft PVC 8.7 mm (Ø) |
| Colours | Black |
| Type of cable | S/FTP CAT6A Networking cable |
| Inner conductor Material | BC 7 x 0.20 mm (Ø) (OFC) |
| Section | 0.22 mm² |
| Separator | Non woven foil |
| Inner conductor American Wire Gauge | 24 AWG |
| Number of conductors | 8 (4 pairs) |
| Conductor twisting | Lay length ≤ 30 mm |
