Description

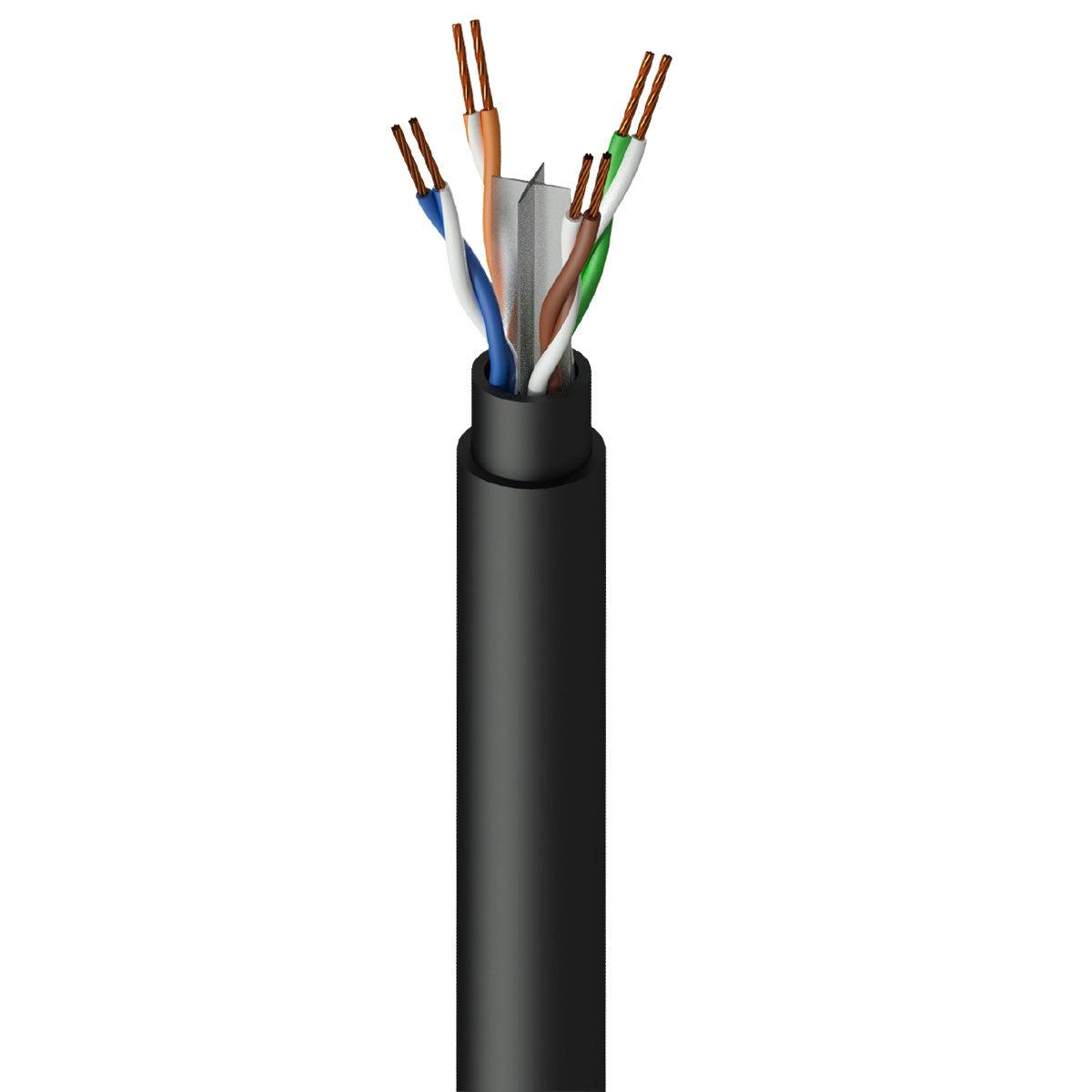

Networking cable - CAT6 - U/UTP - flex 0.22 mm² - 24 AWG - HighFlex™ 300m Wooden Reel
The BCT60U is a CAT6 networking cable featuring a Highflex™ outer jacket which is specifically designed for professional use in highly demanding applications. The conductor section of the BCT60U consists of 4 twisted pairs with stranded copper 24 AWG conductors with a polyethylene ‘+’ shaped separator in between. Thanks to this separator, better performance in terms of crosstalk and system noise can be achieved resulting in a higher bandwidth. The combination with hard and solid inner jacket materials and soft outer jacket materials provides great flexibility with a solid touch. Even after numerous times of winding and unwinding. Supports 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T gigabit.
Features at a glance:
- 24 AWG thin and dense stranded conductors
- Highflex™ solid & flexible jacket
- 8.2 mm (Ø) outer diameter
Specifications:
| Type of cable | U/UTP CAT6 Networking cable |
| Inner conductor Material | BC 7 x 0.2 mm (Ø) (OFC) |
| Section | 0.22 mm² |
| Number of conductors | 8 (4 pairs) |
| Insulation Material | HDPE 1.02 mm (Ø) |
| Audio Conductor twisting | Lay length ≤ 30 mm |
| Insulation Colours | Green / White & Green ; Blue / White & Blue ; Orange / White & Orange ; Brown / White & Brown |
| Separator | Cross web Filling (PE |
| Inner jacket Material | Durable PVC 6.6 mm (Ø) |
| Outer jacket Material | Flexible PVC 8.2 mm (Ø)Colours |
| Colour | Black |
| Inner conductor American Wire Gauge | 24 AWG |
