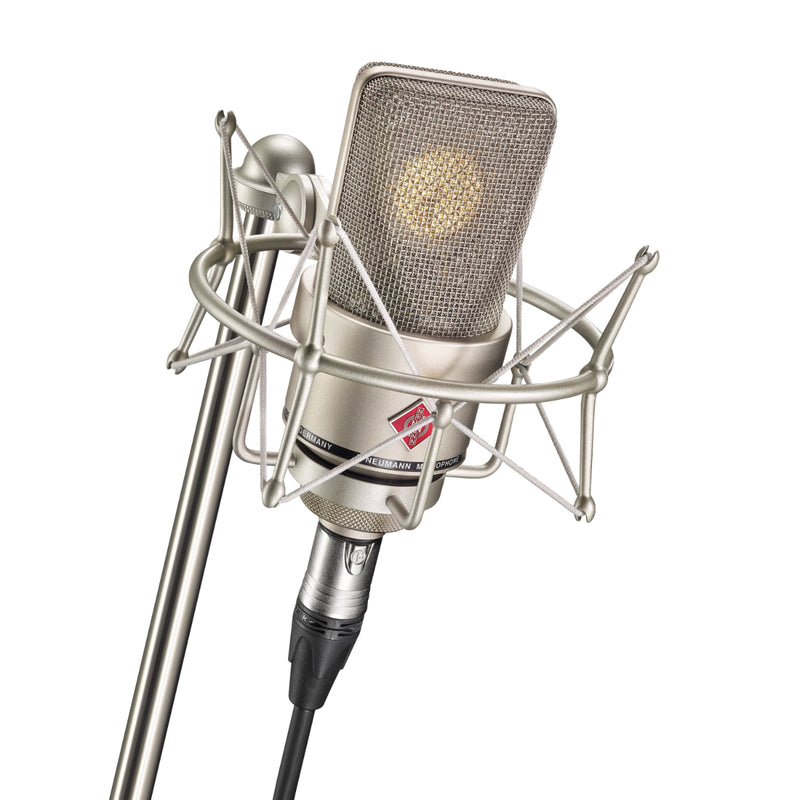

Neumann TLM 103 Studio Set Large Diaphragm Cardioid Condenser Microphone - Nickel

NeumannSKU: NEM-008545

Price:
Sale priceR 33,631.00

Tax included Shipping calculated at checkout

Enquire for availability

Description

The TLM 103 has quickly become one of the biggest successes in Neumann’s history. Its pristine, clear sound is a modern update on the classic U87. The TLM 103 is a transformerless cardioid condenser microphone with a gentle presence boost for a stunningly direct sound with breath-taking definition and ultra-low noise.

The TLM 103 was primarily designed for project studios and broadcast use, but due to its outstanding performance was soon embraced by renowned studios as a more modern-sounding alternative to the U87 e.g. for speech, vocals, drums, guitar amps, and piano. The TLM 103 is also often used as a spot mic in classical recordings e.g. for cello and double bass.

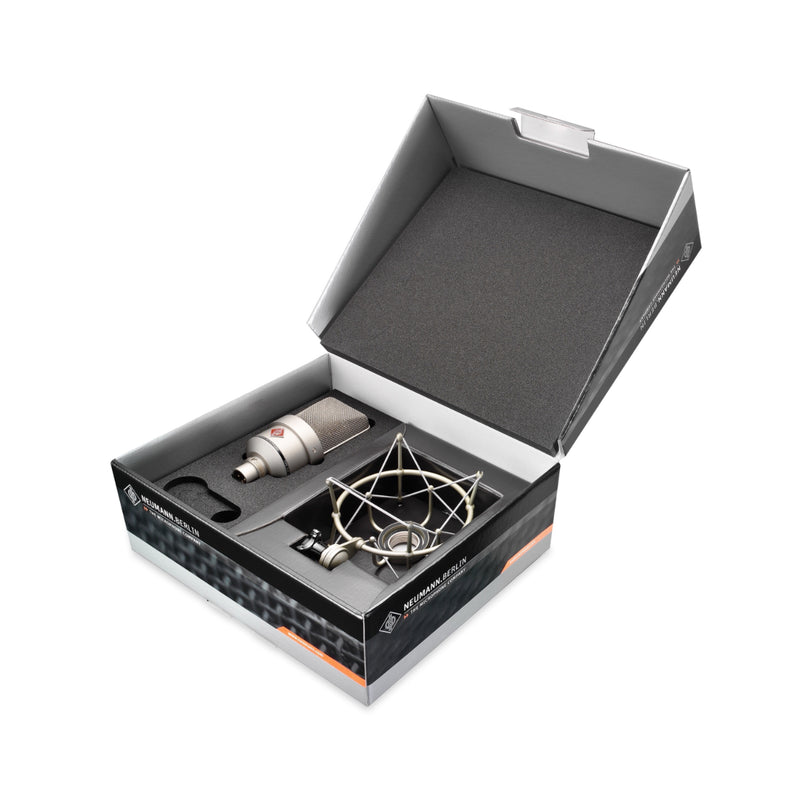

What's in the box:

  • Neumann TLM 103 Microphone - Nickel
  • Neumann EA 1 Shock Mount



Features at a Glance:

  • Large diaphragm capsule derived from the classic U 87 microphone
  • Balanced sound with enhanced presence
  • Cardioid pattern
  • Transformerless circuitry with high SPL capability
  • Extremely low self-noise: only 7 dB-A



Specifications:

Acoustical operating principle

Pressure gradient transducer

Directional Pattern

Cardioid

Frequency Range

20 Hz ... 20 kHz

Sensitivity at 1 kHz into 1 kohm

23 mV/Pa ≙ –32.5 dBV ± 1 dB

Rated Impedance

50 ohms

Rated load impedance

1 kohms

Equivalent noise level, CCIR¹⁾

17.5 dB

Equivalent noise level, A-weighted¹⁾

7 dB-A

Maximum SPL for THD 0.5%²⁾

138 dB

Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾

76.5 dB

Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾

87 dB

Maximum output voltage

13 dBu

Supply voltage (P48, IEC 61938)

48 V ± 4 V

Current consumption (P48, IEC 61938)

3 mA

Matching connector

XLR 3 F

Weight approx.

450 g

Diameter

60 mm

Length

132 mm
