Neumann MCM 114 Stereo Set Piano, Miniature Clip Mic System

NeumannSKU: NEM-008712

Price:
Sale priceR 29,575.00

Tax included Shipping calculated at checkout

Description

The New Reference In Close Miking

The Miniature Clip Mic MCM System raises the bar of electret capsules. And as a true Neumann, picks the typical sound from all acoustic instruments in live applications. It redefines the standard in natural sound, practicality, reliable mounting, and longevity. The system includes nine instrument-specific mounting clips for a wide variety of acoustic instruments. The modular construction allows for easy replacements and guarantees a superior low cost of ownership.

The Capsule: 8 Parts Of Perfection

A new level of tonal balance, more body, especially in the bass and mid-range, and transparency in the treble: The newly developed capsules KK 13 (omni) and KK 14 cardioid capsule overcome former limitations of the electret principles and catches the signature sound of a wide range of acoustic sources. To achieve this, Neumann developed a layer-based design. Each of the capsulesʼ eight key components are designed for optimal performance, manufactured independently, and assembled by hand later on. The strict quality control also guarantees an unheard level of tonal consistency. Each capsule sounds exactly the same and delivers the neutral Neumann-style sound, saving time during setup and EQ tuning especially when running multiple microphones simultaneously.

With ultra-low self-noise of 23 dBA and an extremely high maximum sound level of 153 dB SPL, the KK 14 delivers perfect results from both very quiet and very loud instruments.

The titanium housing is road tough and protects the more sensitive parts for years to come.

Connectivity

The MCM System includes interchangeable cable options with 3.5 mm jack, Lemo, 4-pin mini-XLR, and MicroDot connectors – no adapter needed. The microphone can also work with a wired connection using the MCM 100 high-end output stage and the 3.5 mm jack cable.

Mounting Options

A fundamental part of the MCM System is an exhaustive palette of mounting options that allow for simple and reliable microphone positioning on any instrument. Their mechanics are gentle to even the most sensitive surfaces and make mounting a matter of seconds, requiring only one hand for most instruments. The gooseneck holder rotates along one or two axes and locks in 45° increments to allow for precise adjustment.

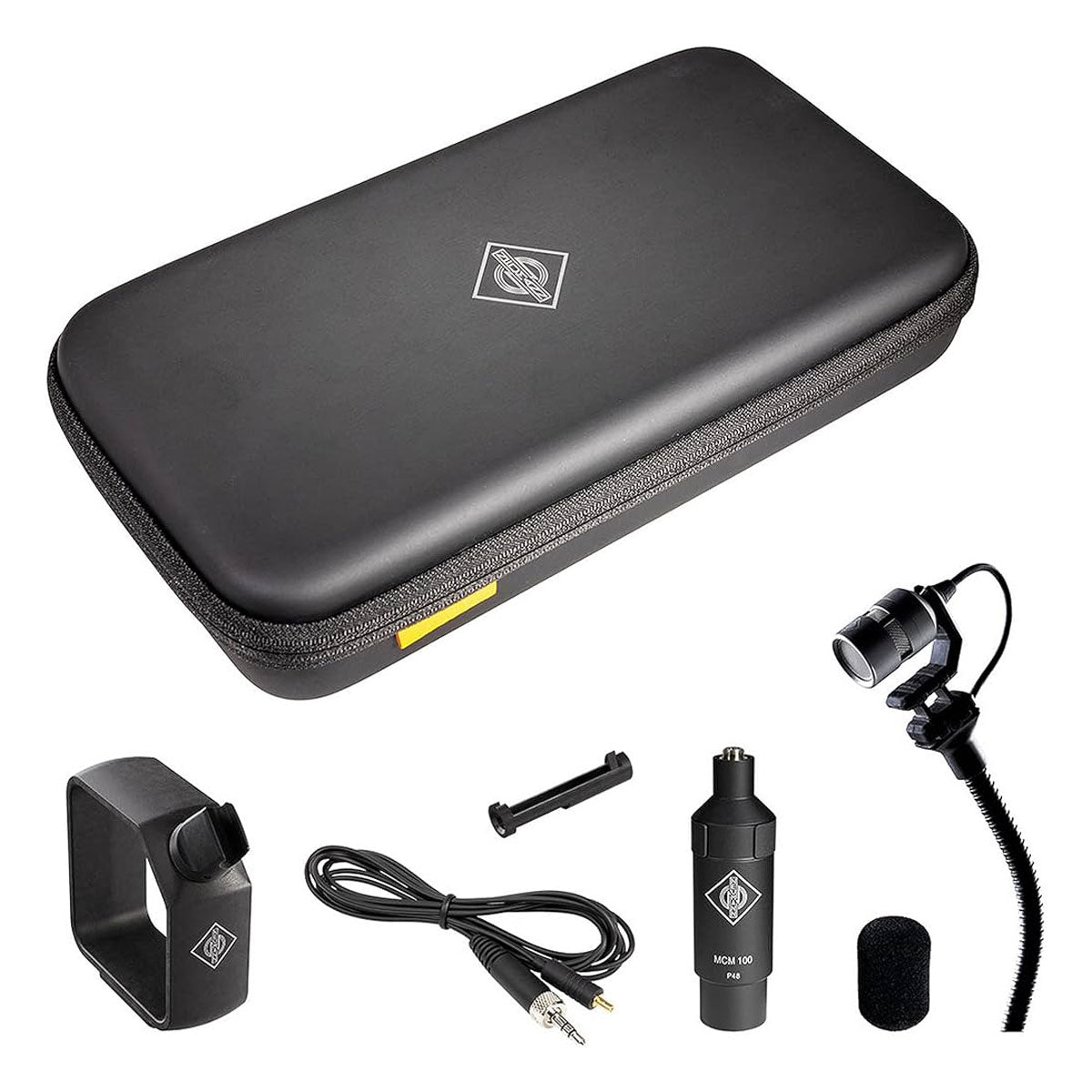

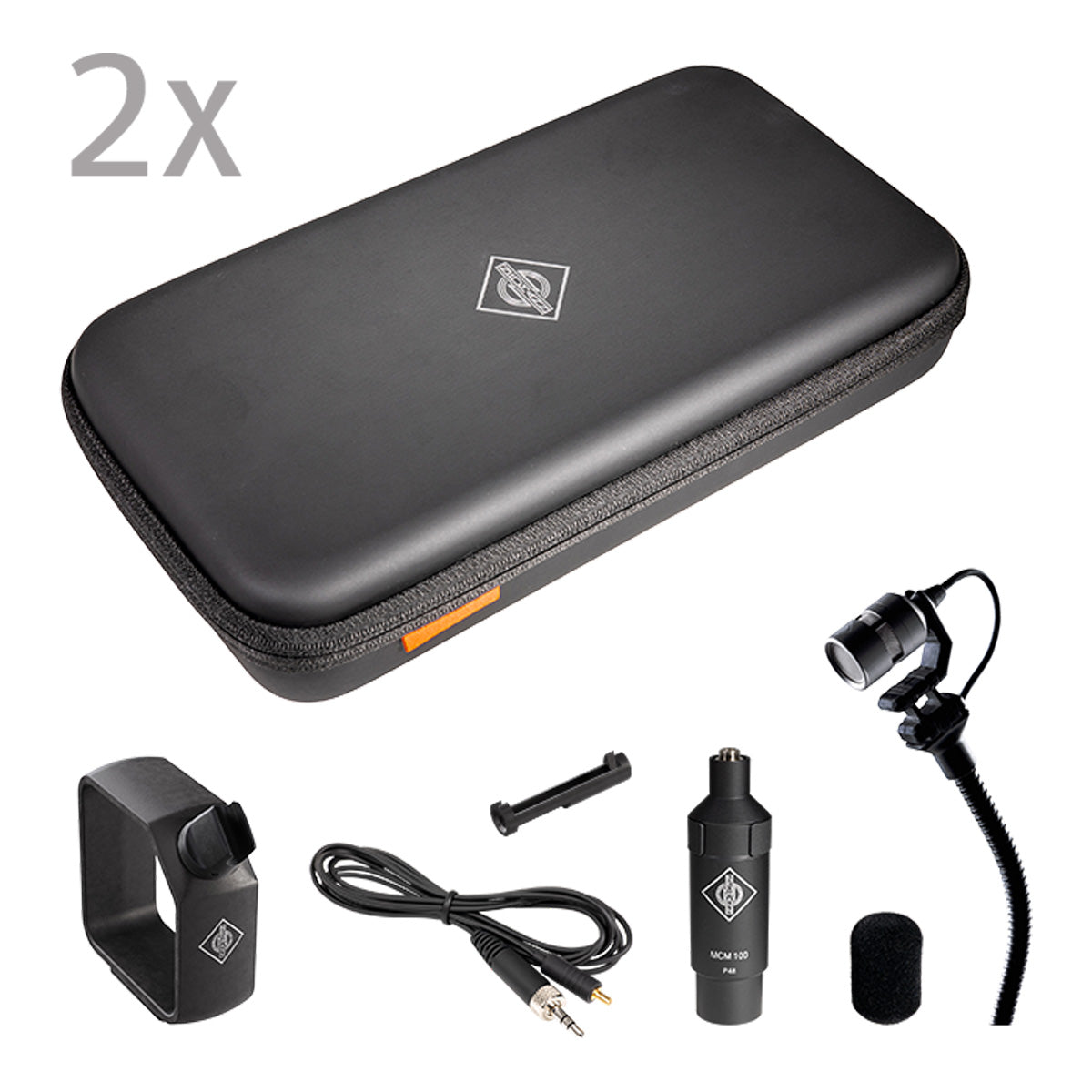

What's in the box:

  • 2x KK 14 Capsule Head
  • 2x SH 150 Gooseneck
  • 2x AC 31 (1.8 m) Connection Cable
  • 2x WS 110 Windscreen

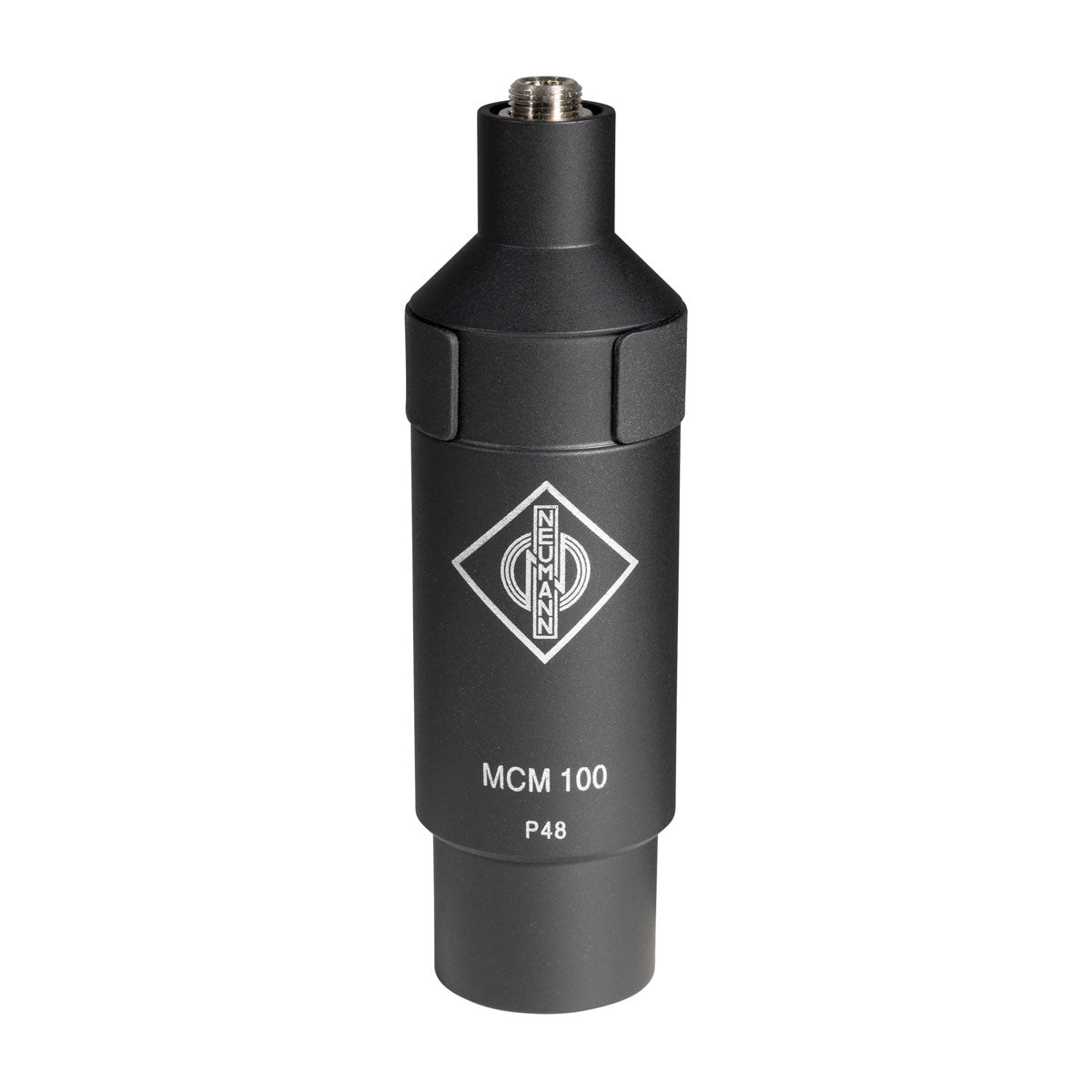

  • 2x MCM 100 Output Stage

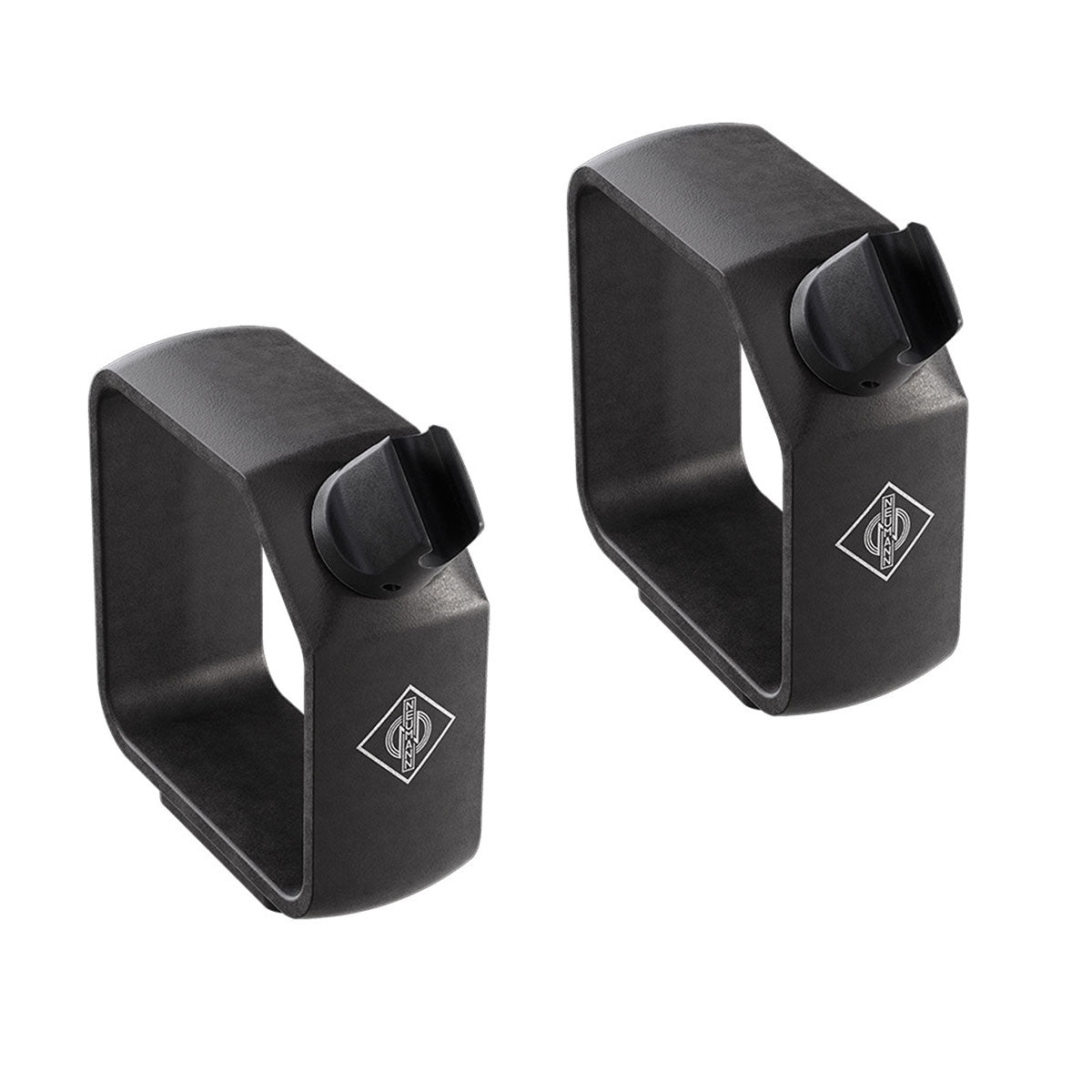

  • 2x MC 8 Clip
  • 2x KC 1 Cable Brace
  • 2x Safety Guide
  • 2x Quick Guide
  • 2x Softcase



Features at a Glance:

  • Elevates electret principle to Neumann sound standards
  • Durability increases ROI up to tenfold
  • Each capsule can be used for loud and soft instruments
  • Works with key transmitter bodypacks



 Specifications:

Acoustical operating principle

Pressure transducer / Pressure gradient transducer

Directional Pattern

Omni / Cardioid

Frequency Range

20 Hz … 20 kHz

Rated Impedance

50 Ohms (MCM 100)

Rated load impedance

1000 Ohms

Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾

62 / 63 dB

Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾

74 / 71 dB

Equivalent noise level, CCIR¹⁾

32 / 31 dB

Equivalent noise level, A-weighted¹⁾

20 / 23 dB-A

Maximum SPL for THD 0.5%²⁾

153 dB

Power supply

48 V ± 4V (P48, IEC 61938)

Current consumption

3.5 mA

Matching connector

XLR 3 F

Operating temperature range

0 °C - +40 °C

Operating Humidity range

0 %…90 % rel. hum

Storage temperature range

−20 °C - +70 °C

Storage Humidity range

0 %…95 % rel. hum
