Audac LUNA-U Unified audio matrix processor

The LUNA-U is the next-generation audio matrix processor, offering highly flexible and scalable system solutions for audio distribution from medium-sized to the largest enterprise solutions. The internal structure provides unseen flexibility and a vast number of possibilities for an audio distribution system. The powerful DSPs (dual SHARC) combined with 32-bit ADC and DAC converters allow the most extensive signal processing with superb audio quality.

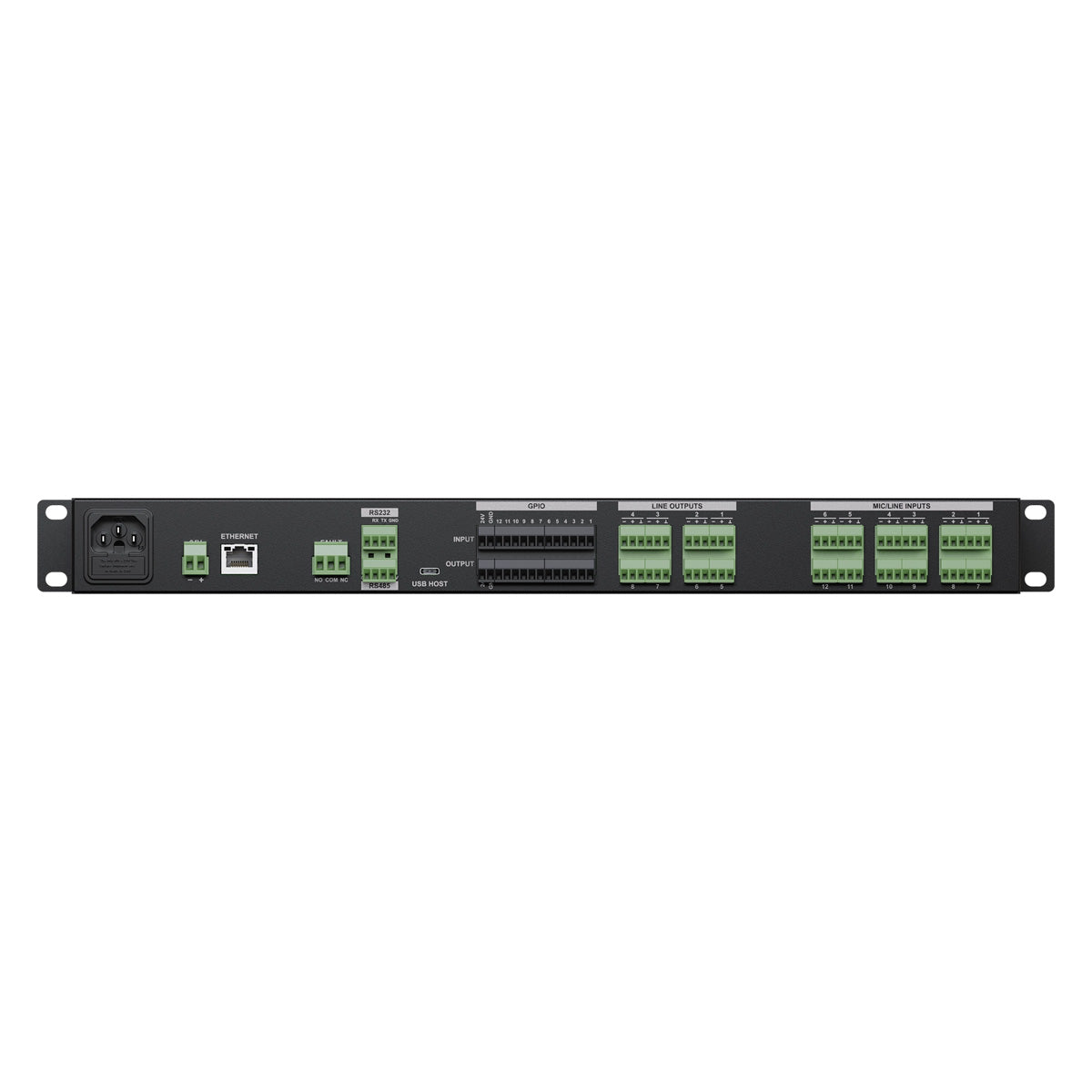

It includes 12 Mic/Line Inputs and 8 Line level outputs. Additionally, up to 32 Dante™/AES67 I/O Channels are available with a single ethernet port, allowing the integration of the system with any Dante™/AES67 compatible audio over IP I/O unit.

The flexible architecture allows fully flexible mapping of the signal path to any of the 32 mono or 16 stereo zones, while the powerful DSP resources provide unique processing features on all input channels, output channels, and zones. Dante-enabled paging microphones and smart wall panels make the complete system solution even more flexible and unique.

The internal Linux core brings the entire control of this system and family members together, while also accommodating messaging, event scheduling, and implementation possibilities for further Linux-based functions. Besides the full network control, other options like RS-232 and RS-485 (available from end of July 2024) are also implemented for third-party control. For your system solution, you can easily incorporate the control of the entire system and compatible devices into your user interface by using our simplified design and system control platform, AUDAC Touch™.

Superior sound quality & low latency

Thanks to the superior sound processing and flexibility of the Atellio family, it provides seamless adaptation for diverse applications, from commercial installations to live performances where low latency and a high sound quality is required.

AUDAC Touch™ compatible

Using the AUDAC Touch™ platform on smart devices guarantees total system control and configuration from any device at any location and at any time. The AUDAC Touch™ is available for free to download.

A world of possibilities

Fully flexible mapping of the signal path allows you to easily distribute audio to up to 16 stereo zones or up to 32 mono zones (all combinations possible).

Tailor the system around your needs

Optional premium features such as AEC* and adding extra Dante channels into your device scale up and shape your design around the installation requirements. With ever-expanding features that will be introduced in the future, you will be able to tailor your designs to another level.

Compatible with all network control devices

The complete Atellio family includes Dante/AES67-enabled amplifiers, I/O wall panels, paging units, processors, and network-enabled control panels all compatible with each other and even 3rd party devices.

Features at a Glance:

• 12 Mic/line inputs and 8 balanced outputs

• 12 GPIO inputs and 12 outputs

• Expandable up to 32 x 32 Dante™/AES67 channels (with optional extension card)

• Event Handler (trigger & timed event scheduling)

• Auto-update (OTA) feature

• WaveTune™ & WavePreset™ audio processing

• Superior sound quality & low latency

• Compatible with all Dante™/AES67 paging/in & output devices (Optional)

• 16 Stereo or up to 32 mono flexible zones (all combinations possible)
