Description

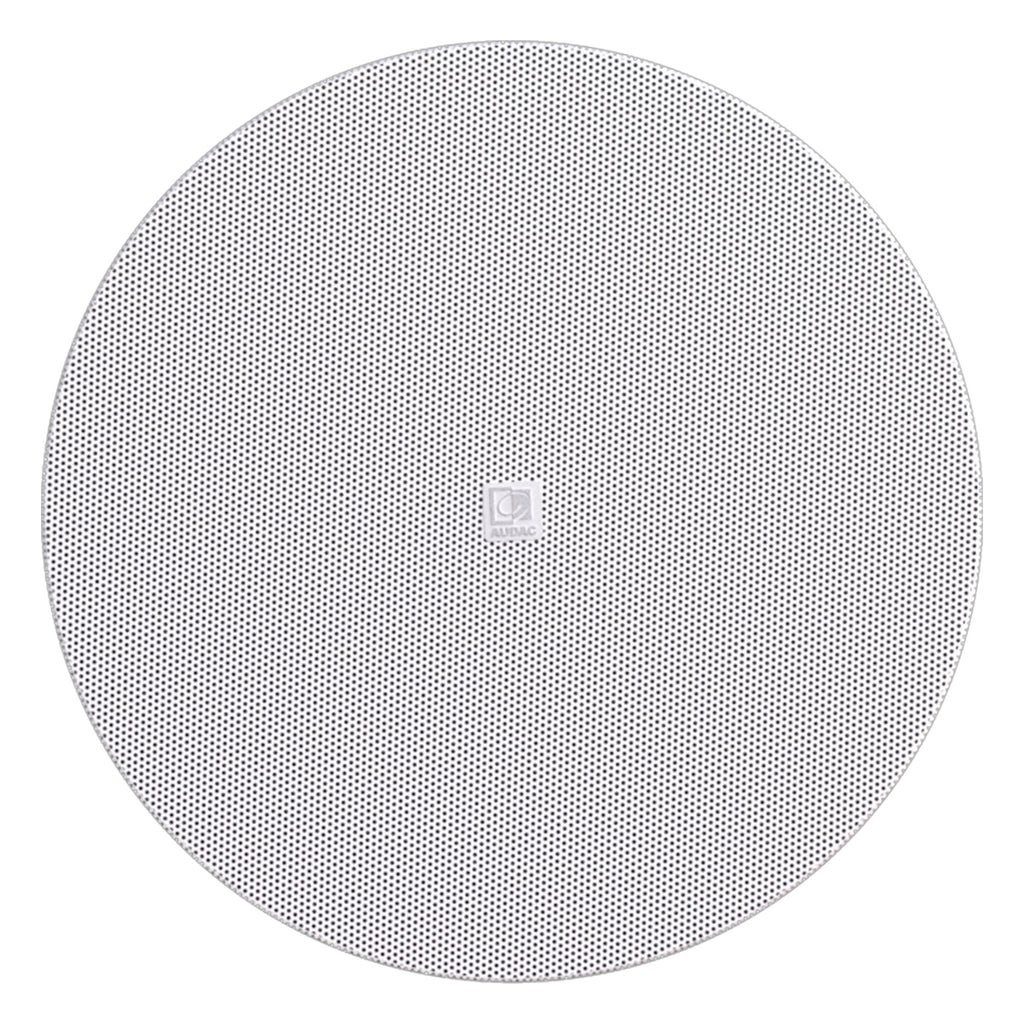

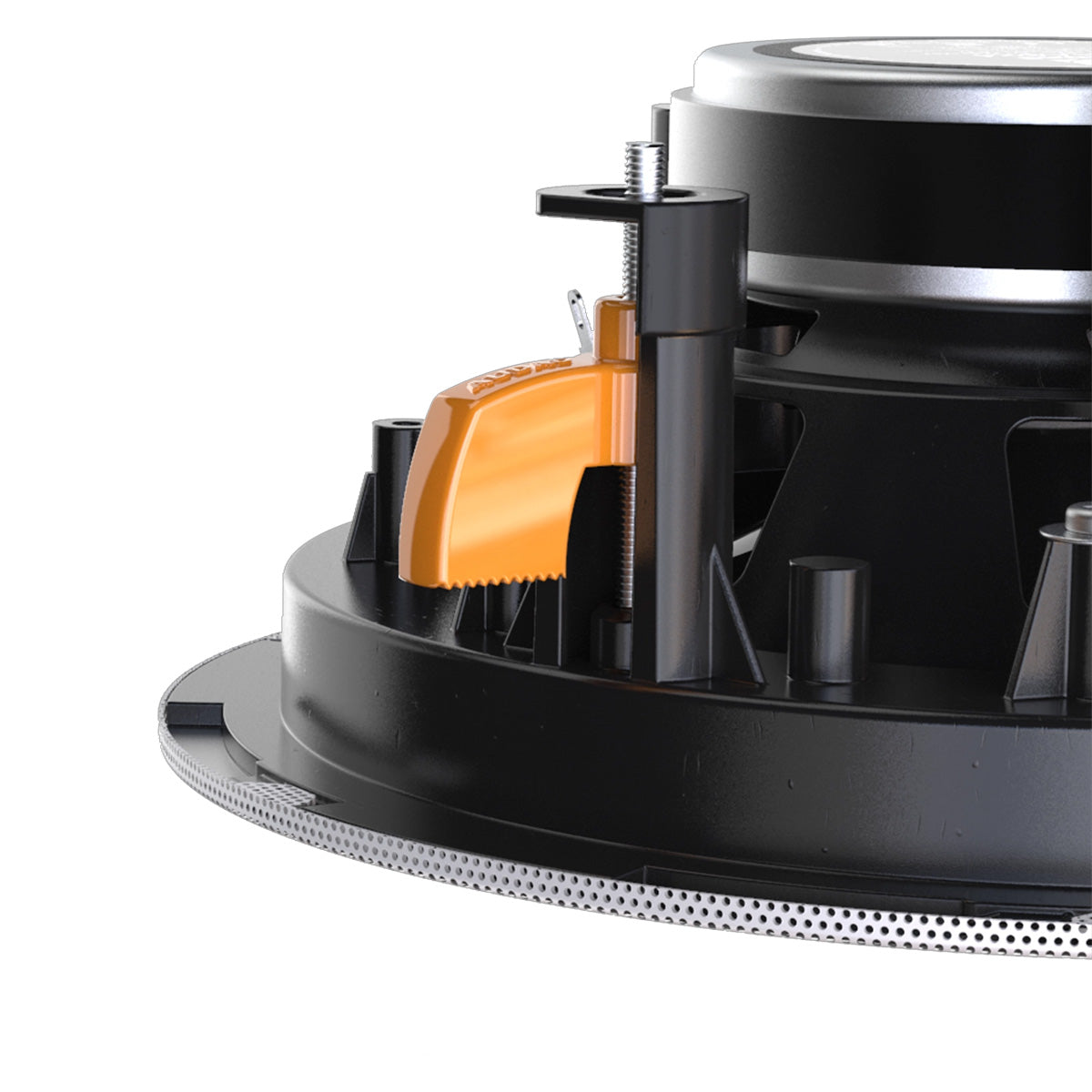

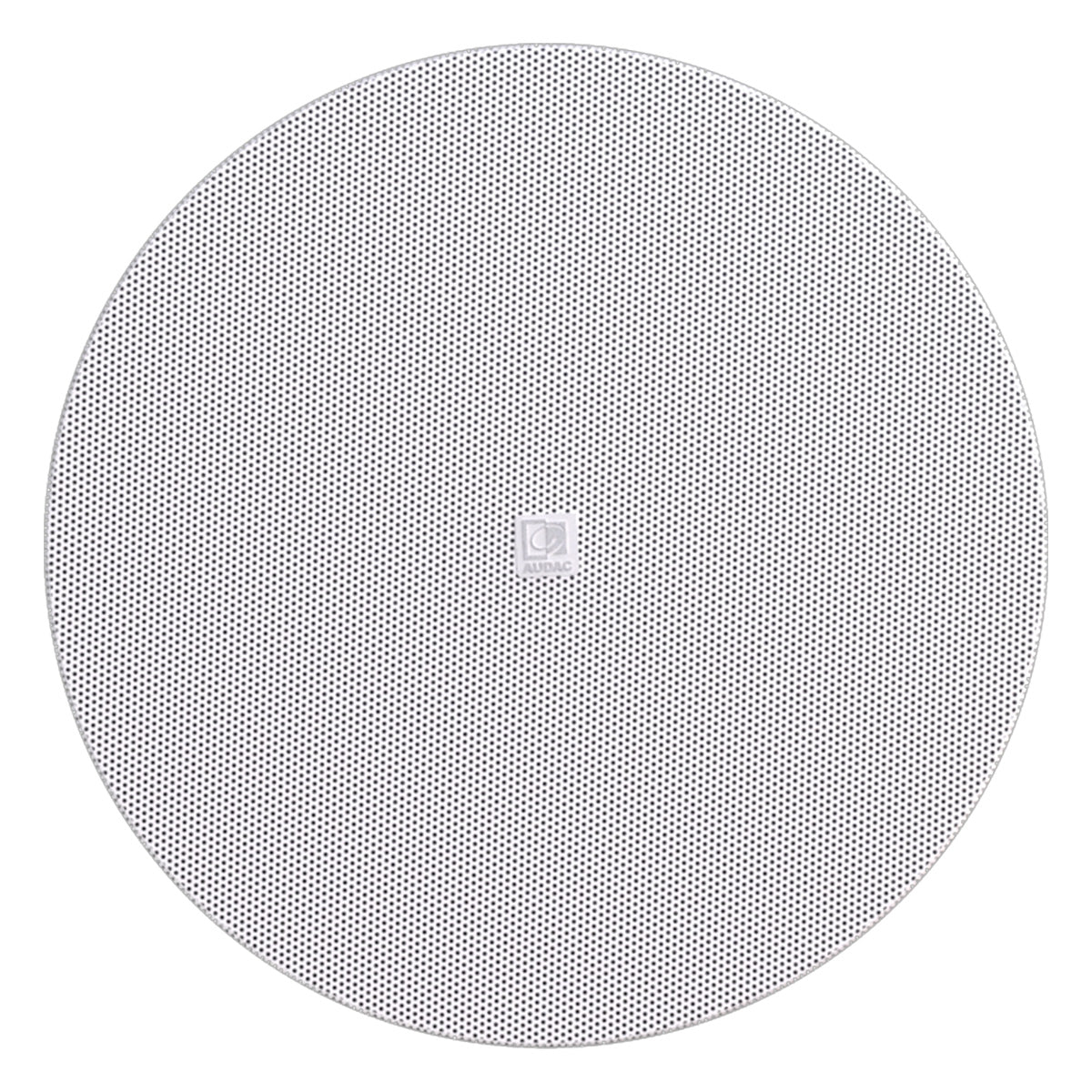

Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.

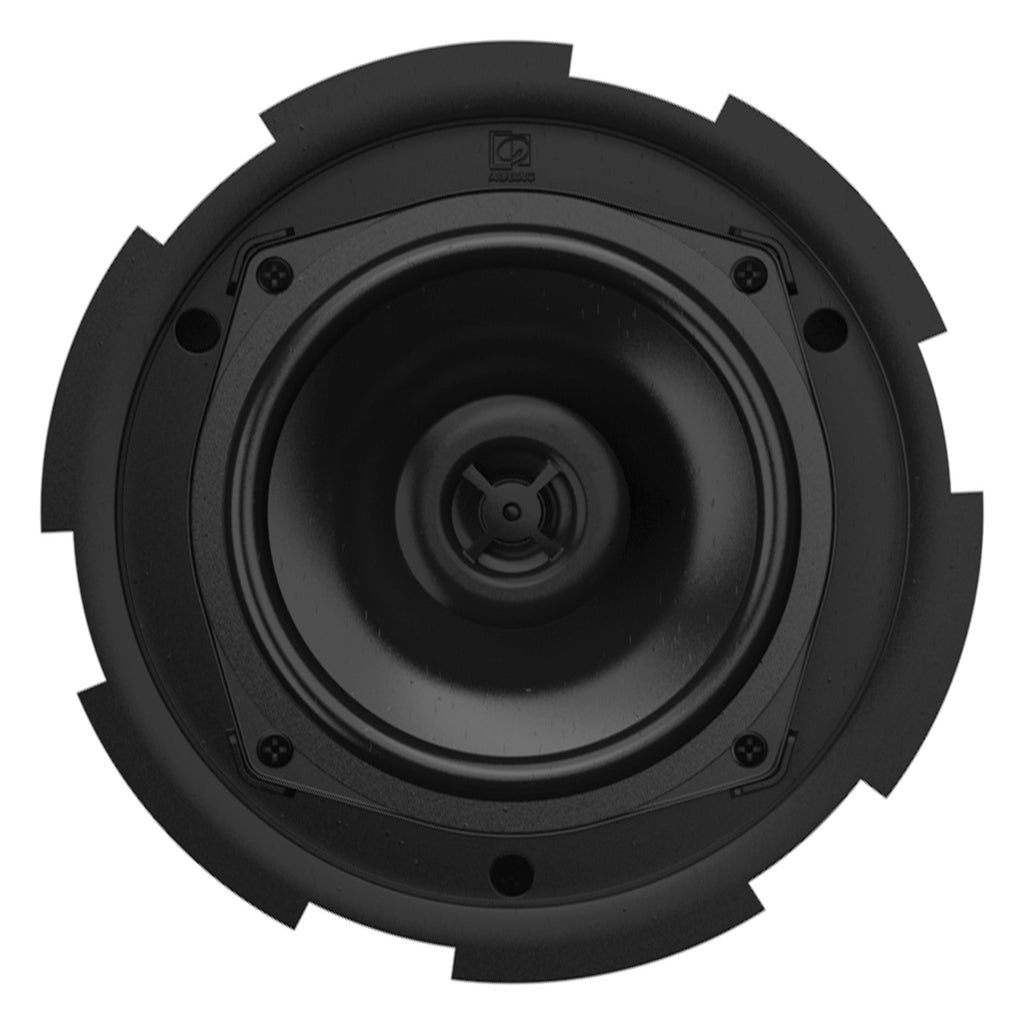

The CIRA5 features a 5 ¼” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W, 3W, 1.5W and an 8 Ohm or 16 Ohm bypass connection.
Features at a Glance:
- TwistFix™ technology
- Tool-free connection
- Installer convenience
- 2-way loudspeaker design
- Weather durable design
- Invisible grill design
Specifications:
|
Peak power handling |
120 W |
| Program power handling |
60 W |
| Continuous power (AES) |
30 W |
| Sound Pressure (Max. W/1m) |
@ 100 V 102 dB |
| Sensitivity (1W/1m) |
87 dB |
| Speaker type |
2-way coaxial |
| Impedance |
16 Ω (CIRA530D) |
| Frequency |
Range (-10 dB) 45 Hz - 20 kHz |
| Dispersion |
Conical 145° |
| Connectors |
Multi-tap Fast-con™ connections |
| Drivers |
HF 1” |
| Cut-out measurement |
170 mm (Ø) |
| Dimensions |
193 x 83 mm (Ø x D) |
| Weight |
1.10 kg |
| Operating temperature |
-20 °C ~ 60 °C |
| Construction |
ABS |
| Front finish |
TwistFix™ borderless finely perforated steel grill |
| Mounting |
QuickFit™ mounting system |
| Recommended applications |
Corporate |
