The ATEO is a series of extraordinary loudspeakers especially designed for fixed install indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.

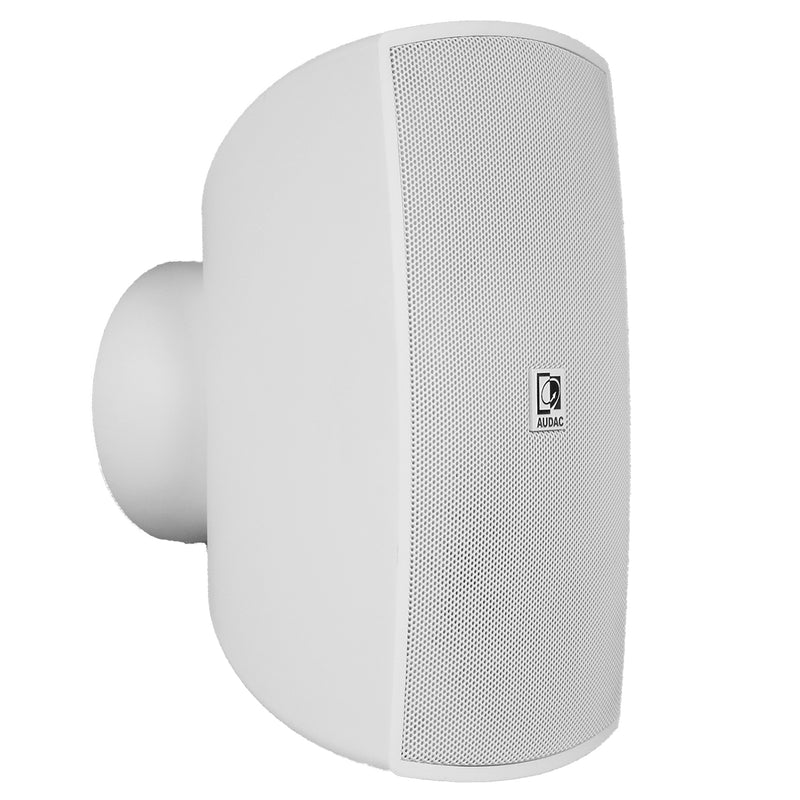

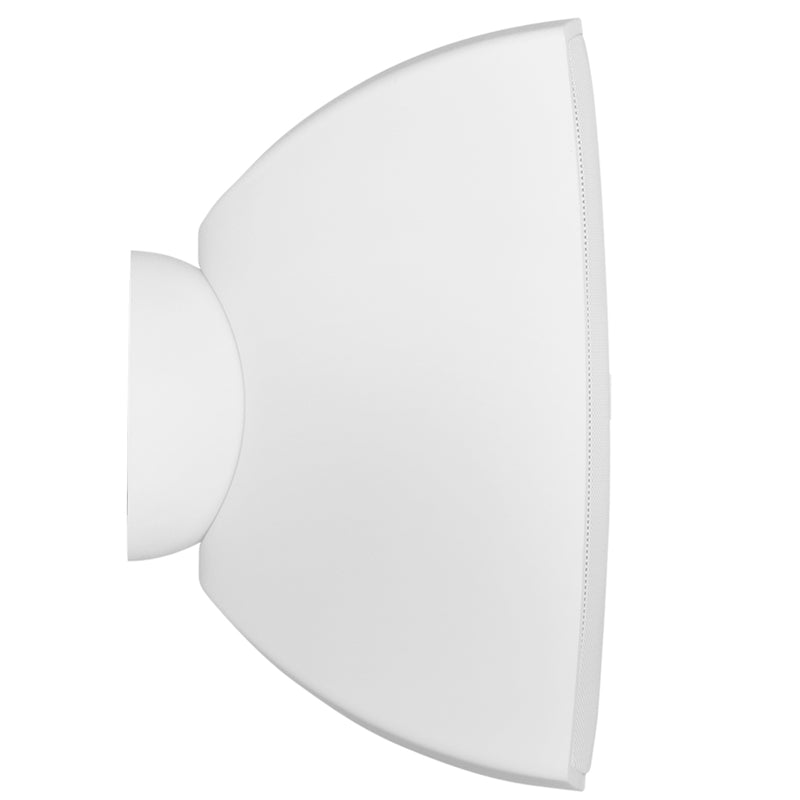

The ATEO4 is the 4” version with a 1” dome tweeter and a 4” Mid /Low-frequency driver, ensuring a true to- nature, high-fidelity reproduction of music and speech. It features a stunningly designed and elegant looking ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using the Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity. The ATEO4MK2 is an improved version of its predecessor where we have been able to improve the sound quality by implementing a new crossover. With its balanced 1” dome tweeter and 4” mid/low-frequency driver the ATEO4MK2 ensures an ultra-flat frequency response and forms the ideal solution for fixed install indoor applications.
The mounting and connection of the loudspeaker simply happens by attaching the included metal wall-plate to the desired location. When mounted, the wires must be connected to the desired terminal of the custom connection block. The desired power tap for 70V/100 Volt or 8 Ohm can be selected by picking the right terminal. After this is done, only five seconds of work is left for clipping the loudspeaker onto the wall-plate, tightening the safety screw and you’re ready to rock! This way, it’s really child’s play to install a large number of loudspeakers in no-time.
Even if you’re working all alone while people are watching your fingers or when installing the speakers up high when you’re standing on a ladder. All ATEO series speakers are available in black (/B) or white (/W).
Features at a Glance:
- Patented CleverMount™ mounting system
- 1" Dome tweeter
- 6" Mid / low frequency driver
- Vertical and horizontal mounting
- Stunning designed and elegant looking ABS enclosure
- 100V and low impedance connection possilibility
- Multi-tapping 100V line transformermer
| Speaker type | Full range | Max. Power | 120 W |
| RMS Power | 60 W | Impedance | 8 Ω (ATEO6) |
| Sensitivity (1W/1m) | 89 dB | Connectors | 6-pin Custom Terminal Block |
| Drivers | 1” Dome tweeter
6” MF / LF Woofer | Incline angle | Left 30°
Right 30°
Bottom 30°
Top 5° |
| Sound Pressure (Max. W/1m) | @ 8 Ω 106 dB
@ 100 V 105 dB | Frequency | Response (± 3 dB) 65 Hz - 20 kHz
Range (-10 dB) 55 Hz - 20 kHz |
| Dispersion | Horizontal 120°
Vertical 120 | Line Transformer Tappings | 1 100 Ω - 100 V / Not used - 70 V / 50 W
2 200 Ω - 100 V / 50 W - 70 V / 25 W
3 400 Ω - 100 V / 25 W - 70 V / 12.5 W
4 800 Ω - 100 V / 12.5 W - 70 V / 6.25 W |
