Description
The ATEO is a series of extraordinary loudspeakers especially designed for fixed install in indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.

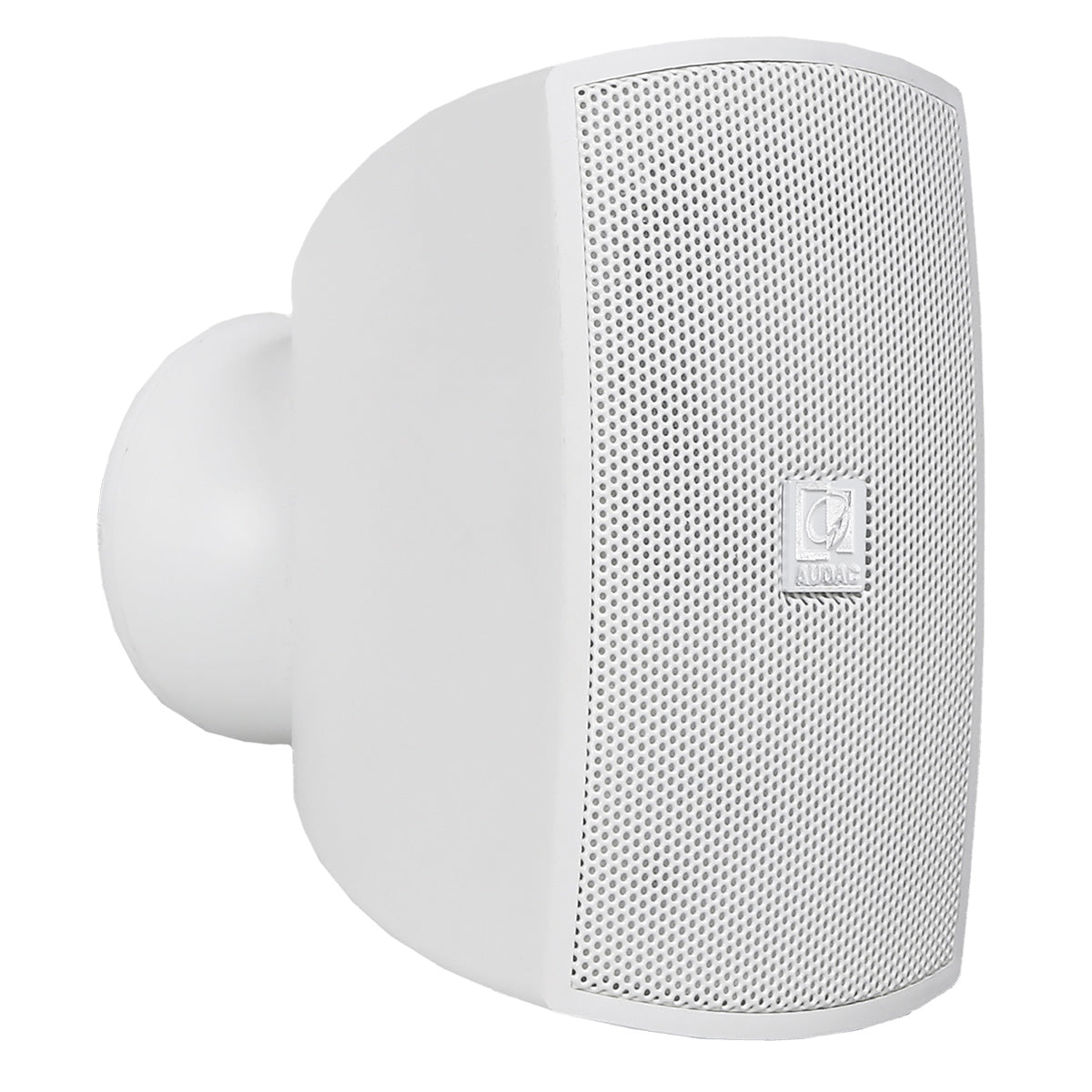

The ATEO2 is the ultra-compact model of this series which smoothly integrates into any interior like no other loudspeaker. The sound originates from a 2” aluminum cone driver which provides a full-range, warm and detailed sound, with an improved response in the low frequencies due to the ported design. This way, smooth sound reproduction with clear and crisp sound is guaranteed.
The internal self-resetting network provides optimal overload protection. It features a stunningly designed and elegant looking ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity.
The mounting and connection of the loudspeaker are done by mounting the wall-plate to the desired location. The terminal block connector should be fitted to the wires coming from the amplifier and plugged into the counterpart on the speakers’ side. The only next step is clipping the speaker onto the wall plate and tightening it by a quarter turn until it's fixed.
Features at a Glance:
- Patented Clevermount™ mounting system
- 2" full range aluminium cone speaker
- Vertical and Horizontal mounting
- Stunning designed and elegant looking ABS enclosure
Speaker type | Full range | Max. Power | 20 W |
RMS Power | 10 W | Impedance | 8 Ω (ATEO2) |
Sensitivity (1W/1m) | 83 dB | Sound Pressure (Max. W/1m) | 93 dB |
Ingress Protection rating | IP40 | Connectors | 2-pin Euro Terminal Block |
Drivers | 2” Aluminium full range | Incline angle | Left 25° |
Frequency | Response (± 3 dB) 120 Hz - 20 kHz | Dispersion | Horizontal 145° Vertical 170° |
