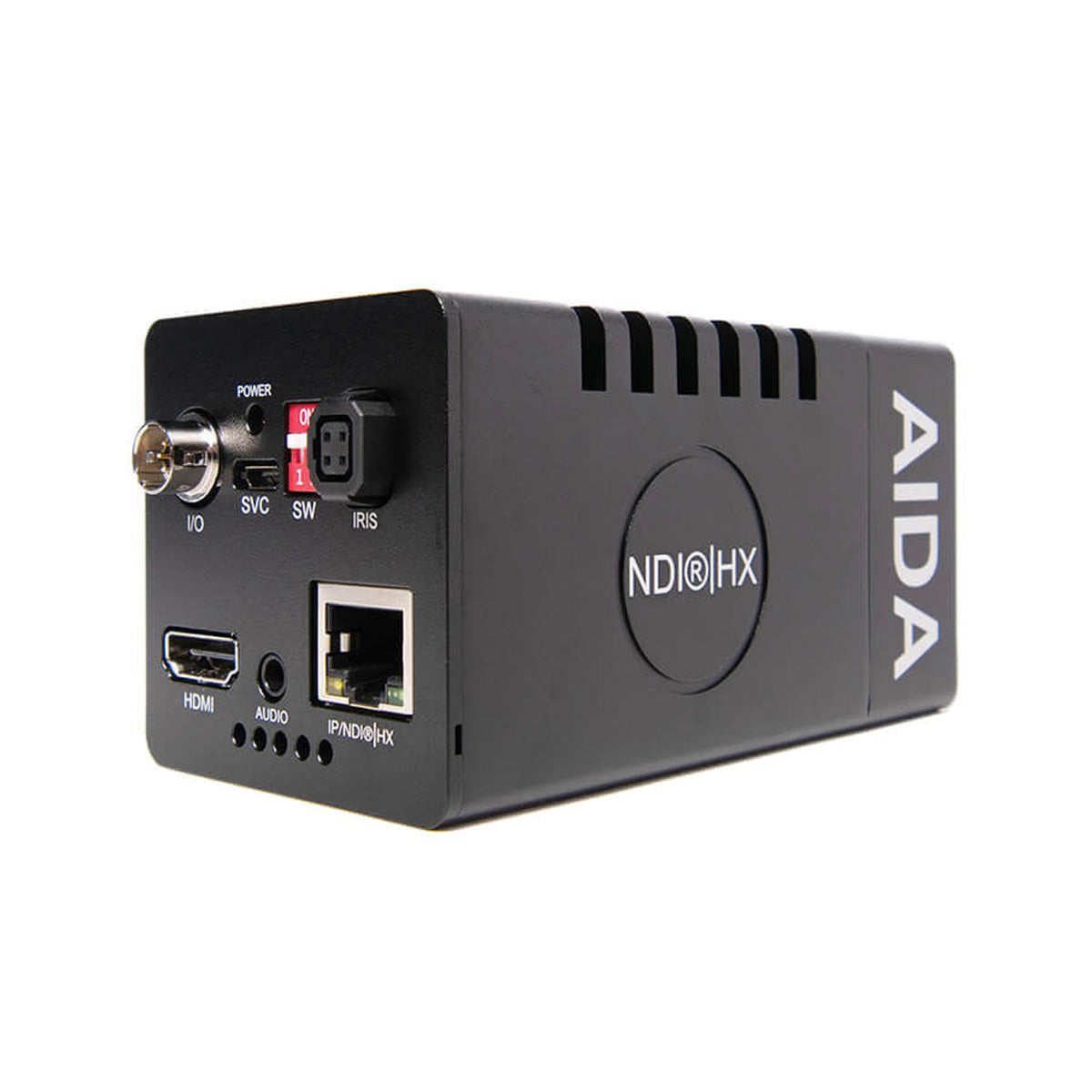

Aida Imaging HD-NDI-200 FHD NDI|HX/HDMI/IP PoE POV Camera

Save R 5,952.00
Aida ImagingSKU: AID-HD-NDI-200

Price:
Sale priceR 7,095.00 Regular priceR 13,047.00

Tax included Shipping calculated at checkout

Description

Aida Imaging HD-NDI-200 FHD NDI|HX/HDMI/IP PoE POV Camera

The AIDA HD-NDI-200 brings simultaneous IP and NDI output into an ultracompact form for POV streaming applications in broadcast, education, medical, live production, and other fields.

The miniature camera outputs variable-frame rate IP (RTSP/RTMP) and/or NDI in up to 1080p60 as well as up to a 1080p60 local video preview over HDMI. All three signals can be output at the same time. An RJ45 port carries both IP and NDI over a single Ethernet cable to an Ethernet switch. The default setting is to carry IP only, but NDI can also be switched on in a Web GUI, where all other settings, including the variable frame rates, are assignable. An NDI signal is extracted from the IP signal, and the camera will then be discoverable on your NDI network. An Ethernet cable is sold separately.

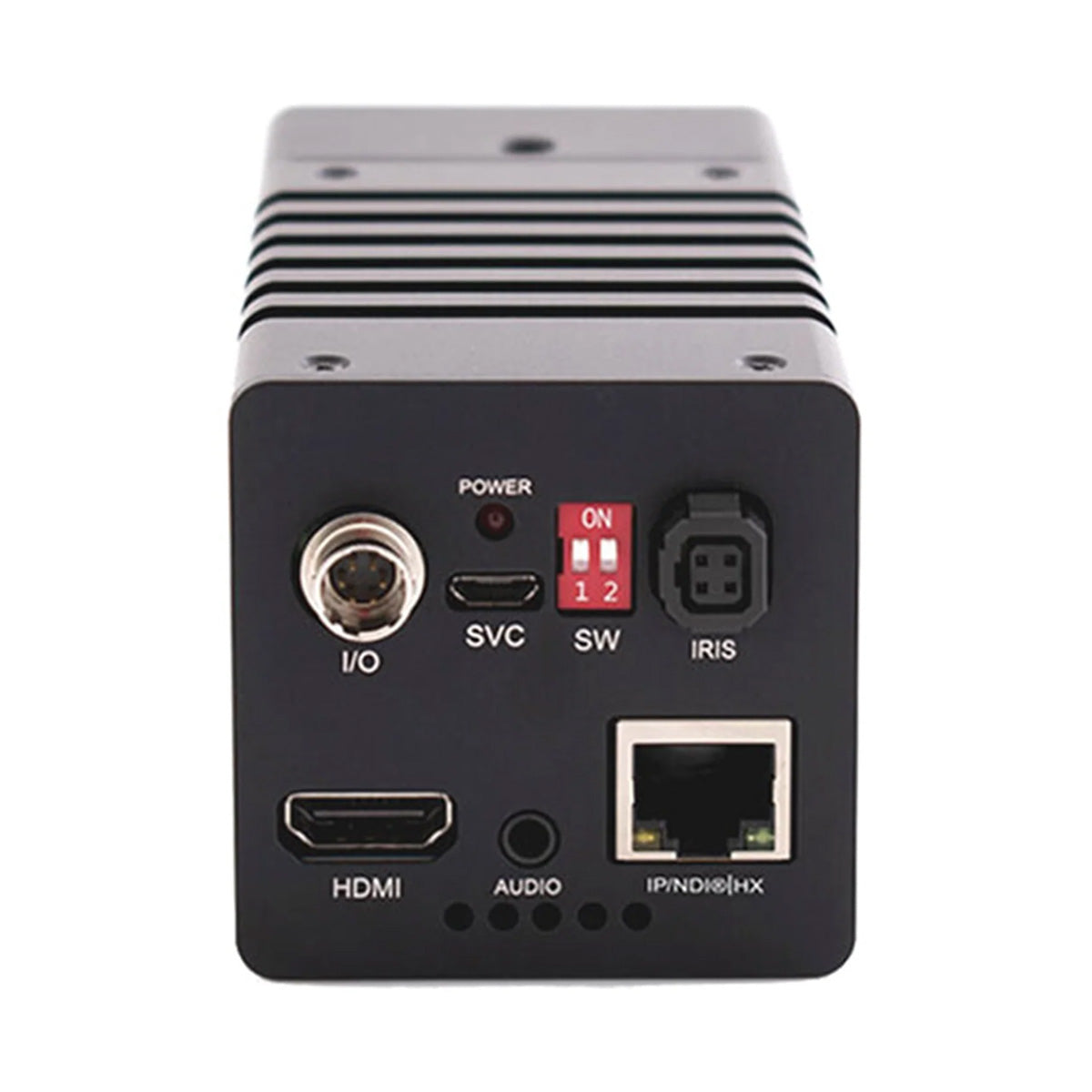

The HD-NDI-200 also features a 3.5mm audio port for embedding audio into the IP/NDI signals. Audio is not embedded into the HDMI output, so the HDMI output is for video previews only. A breakout cable is included that connects to a Hirose connector on the camera and provides power and RS-485 serial control ports. A USB cable is also included for firmware updates. The camera has a C/CS lens mount and comes with a 4mm HD lens. It also provides a 4-pin IRIS port for lenses that have a matching 4-pin connector on a control cable.

NDI|HX2 is a bi-directional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and multichannel audio in real time.

The camera provides 1/4"-20 mounting threads on the top and bottom for flexible installation.


What's in the box:

  • AIDA Imaging HD-NDI-200 Full HD IP / NDI|HX2 POV Camera with 4mm HD Lens
  • Breakout Cable
  • 12VDC Power Supply with Plug Adapter
  • USB Type-A to Micro-USB Cable
  • C-Mount Cap Adapter
  • Sensor Cap



Features at a Glance:

  • Ultracompact miniature form for POV streaming applications in broadcast, education, medical, live production, and other fields
  • Simultaneous IP (RTSP/RTMP), NDI, and HDMI preview output in up to 1080p60 on all three
  • IP and NDI over a single RJ45 output
  • 3.5mm audio port for embedding audio into the IP/NDI signals
  • Includes a breakout cable with power and RS-485 serial control ports
  • C/CS lens mount
  • 4mm HD lens
  • 4-pin IRIS control port for compatible lenses
  • Top and bottom 1/4"-20 mounting threads



 Specifications:

Image Sensor

1/2.8" Progressive CMOS

Effective Pixels

1920 x 1080

Pixel Size

2.9 x 2.9 μm (V)

Output Resolution

HDMI:
1080p60/59.94/50/30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50/30/29.97/25

IP/NDI:
1920 x 1080 at 1 to 60 fps
1280 x 720 at 1 to 60 fps
1024 x 576 at 1 to 60 fps
620 x 360 at 1 to 6 fps

Bitrate Control

Variable, Constant

Video Bitrate

1024 to 20,480 kb/s

Color Space

4:2:2 (YCbCr) 10-Bit

Lens Mount

C/CS Mount

Lens Included

4mm

Output

1 x HDMI (Preview)
1 x RJ45 (IP/NDI)

Audio

1 x 3.5 mm Input (for IP/NDI)

Audio Sample Rate

16/24/32 Bits

Other Ports

Micro-USB (Firmware)
4-Pin IRIS Port

Built-In Microphone

No

Built-In Speaker

No

Breakout Cable Connector

Hirose

Breakout Cable

1 x RS-485
1 x Power

Video Encoding

H.264/H.265

Minimum Lux

0.01 Lux

Camera Control

Protocol:
IP, RTSP, RTMP, VISCA over IP, NDI|HX2

Control:
Web UI or OSD Button on Breakout Cable

SMPTE Standards

292M, SMPTE 424M

Mount Type

Top: 1/4"-20 Female
Bottom: 1/4"-20 Female

Power

12 VDC (9 to 15 V) / POE+ (IEEE802.3at)

Operating Temperature

32 to 104°F / 0 to 40°

Dimensions

5.4 x 12.7 x 5.4 cm
