Description
Connect your laptop to a pro audio system

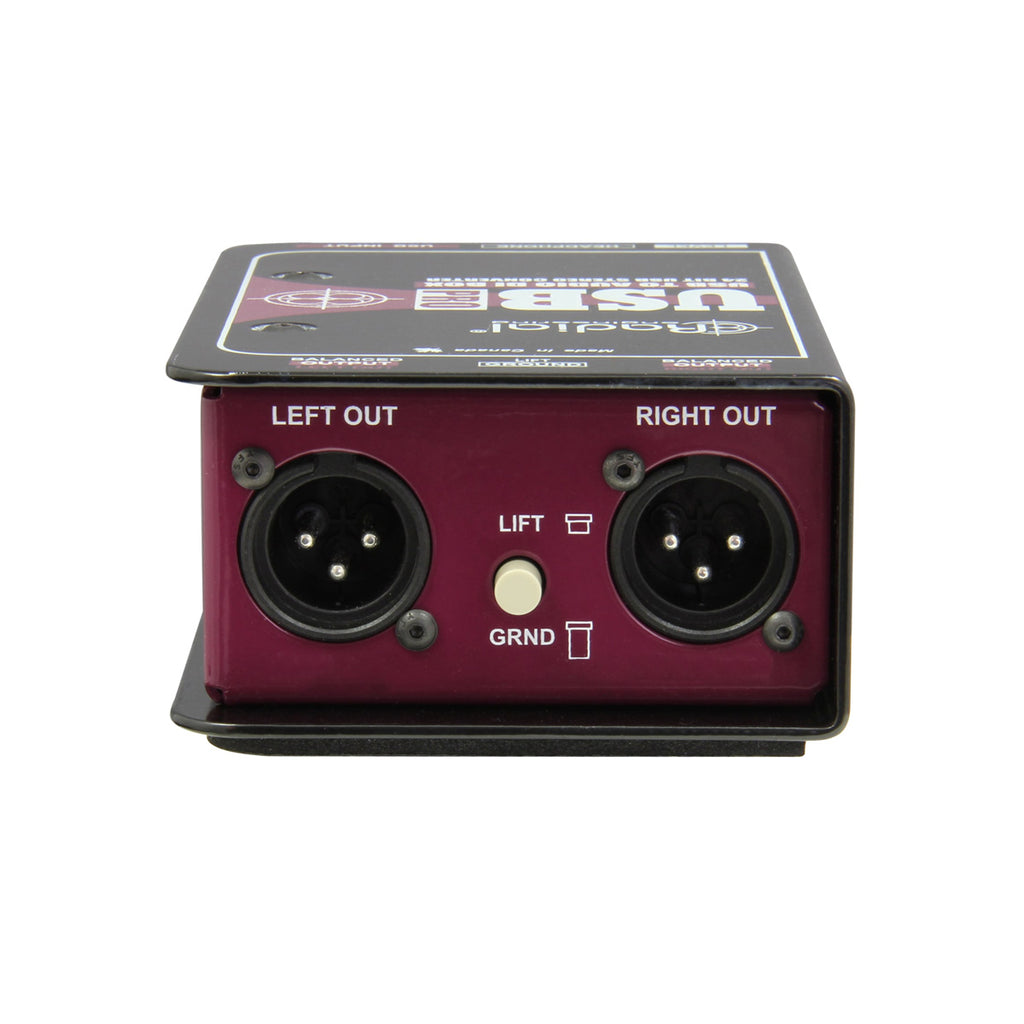

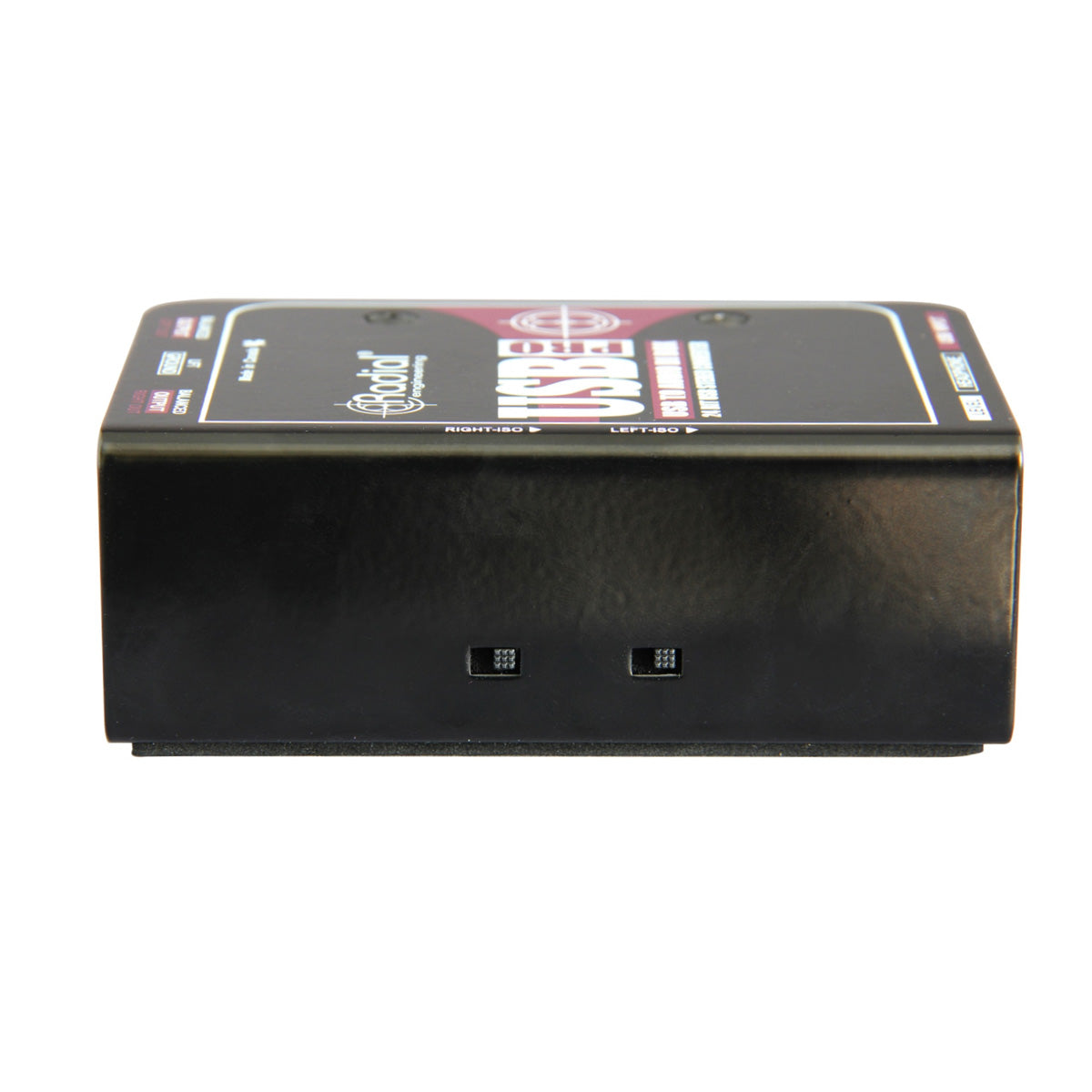

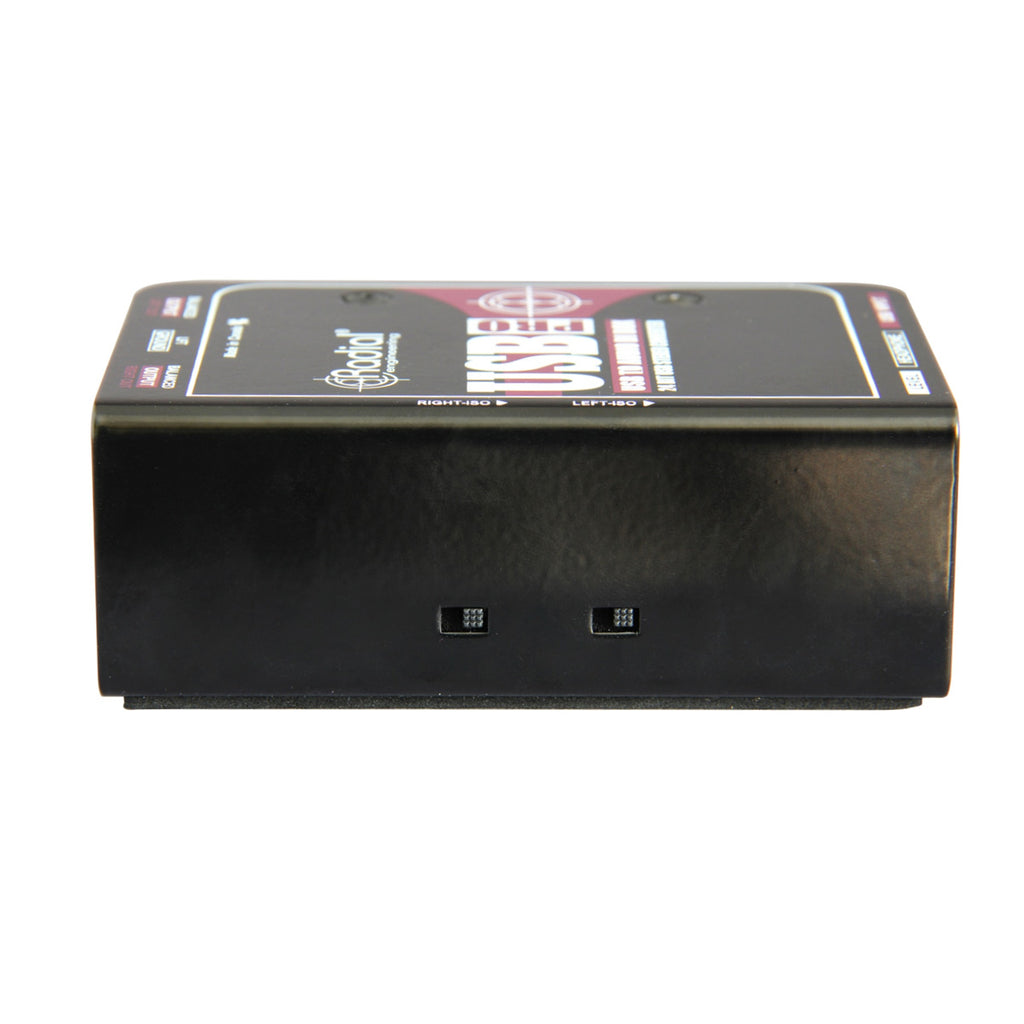

Whether you are playing backing tracks on stage, giving an audio presentation, or performing the role of DJ at an event, the USB-Pro is the easiest way to provide a high quality noise-free connection between a laptop and any sound system. Made for plug and play simplicity, the USB-Pro will automatically be listed as an available sound card in the audio settings of all popular operating systems including Windows and Mac, with 24bit/96kHz digital to analog converters that retain the quality of the audio signal. A stereo pair of balanced XLR outputs allows you to connect to a microphone preamplifier, PA system, mixing console, or even a powered speaker, with an on-board level control for quick and easy volume adjustments. Should any noise be encountered, ground lift switches are provided and isolation transformers can be inserted into the signal path to eliminate hum and buzz from ground loops, for a clean connection to the PA.
Features at a Glance:
- High Performance 24bit/96kHz digital audio converter
- Plug & Play, no drivers required

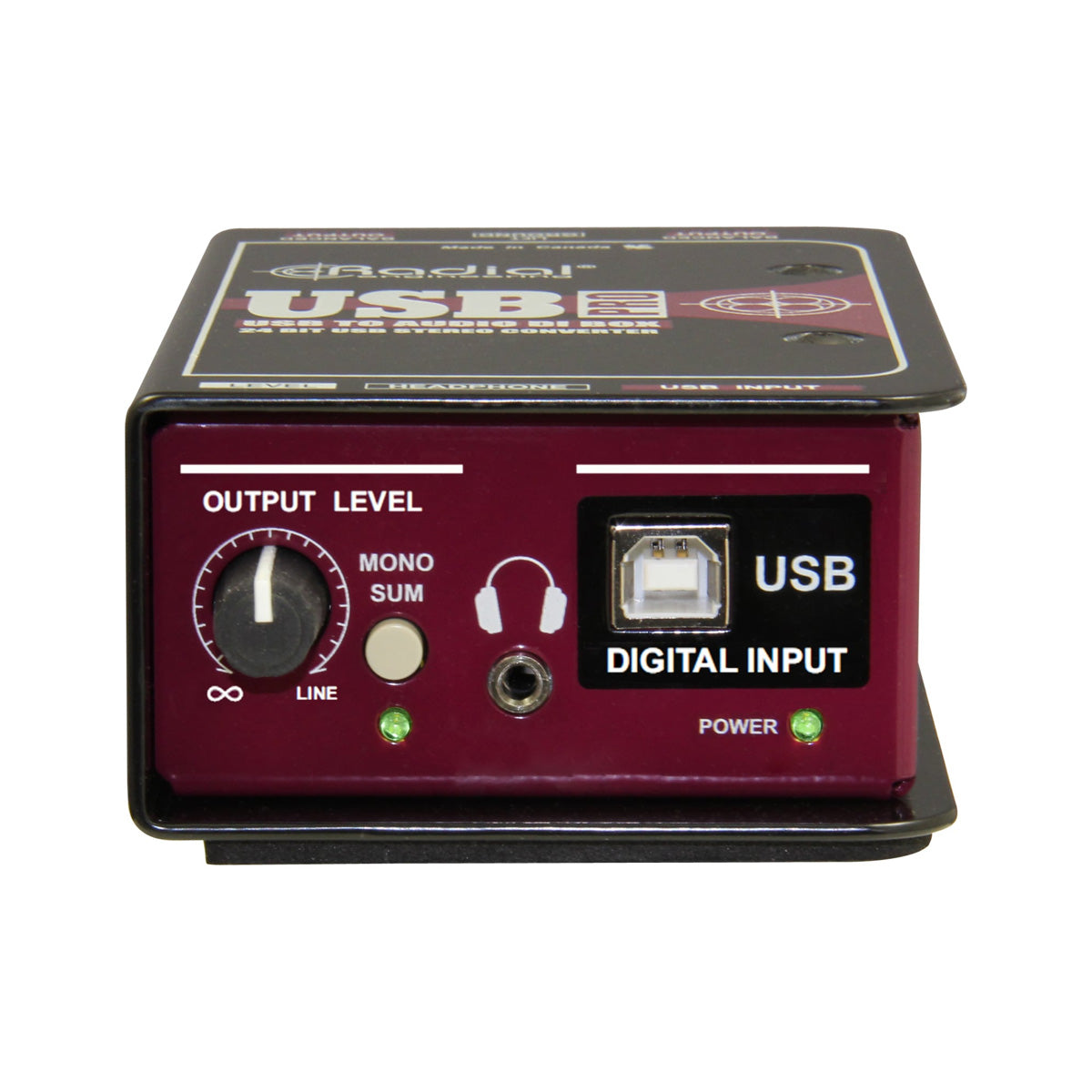

- 3.5mm headphone output to test signals
- Balanced XLR outputs to feed a mixer or PA
Specifications:
|
Audio circuit type |
Custom decoder with analog line drive |
| Frequency response |
5Hz ~ 40kHz (30Hz ~ 18kHz with isolation) |
| Dynamic range |
>90dB |
| Gain |
+8dBu |
| Total harmonic distortion |
0.01% |
| Output Impedance |
250Ω nominal |
| Noise Floor |
-90dB |
| Maximum Output |
+8dBu |
| Software compatibility |
Windows XP/Vista/Win7/Win8/Win10 and Mac OS, Sound file compatibility: WDM, MME, CoreAudio, DirectSound, WASAPI and .WAV |
| Features |
Mono Sum, Ground lift, Level Control, Headphone |
| Input Connectors |
USB connector B-type |
| Output Connectors |
2 x XLR-M, 3.5mm headphone output |
| Extras |
USB 1.1 full speed, Sampling Rate: 44.1kHz / 48kHz / 96kHz auto sensing, 75dBu stereo separation |
| Construction |
14-gauge steel |
| Size (L x W x D) |
127 x 84 x 48mm |
| Weight |
0.68kg |
| Power |
USB bus powered 500mA maximum |
| Conditions |
For use in dry locations only between 5°C and 40°C |
| Power |
48V phantom - proprietary digital switchingConditions |
| Conditions |
For use in dry locations only between 5°C and 40°C |
