Description
The easy way to connect to the PA

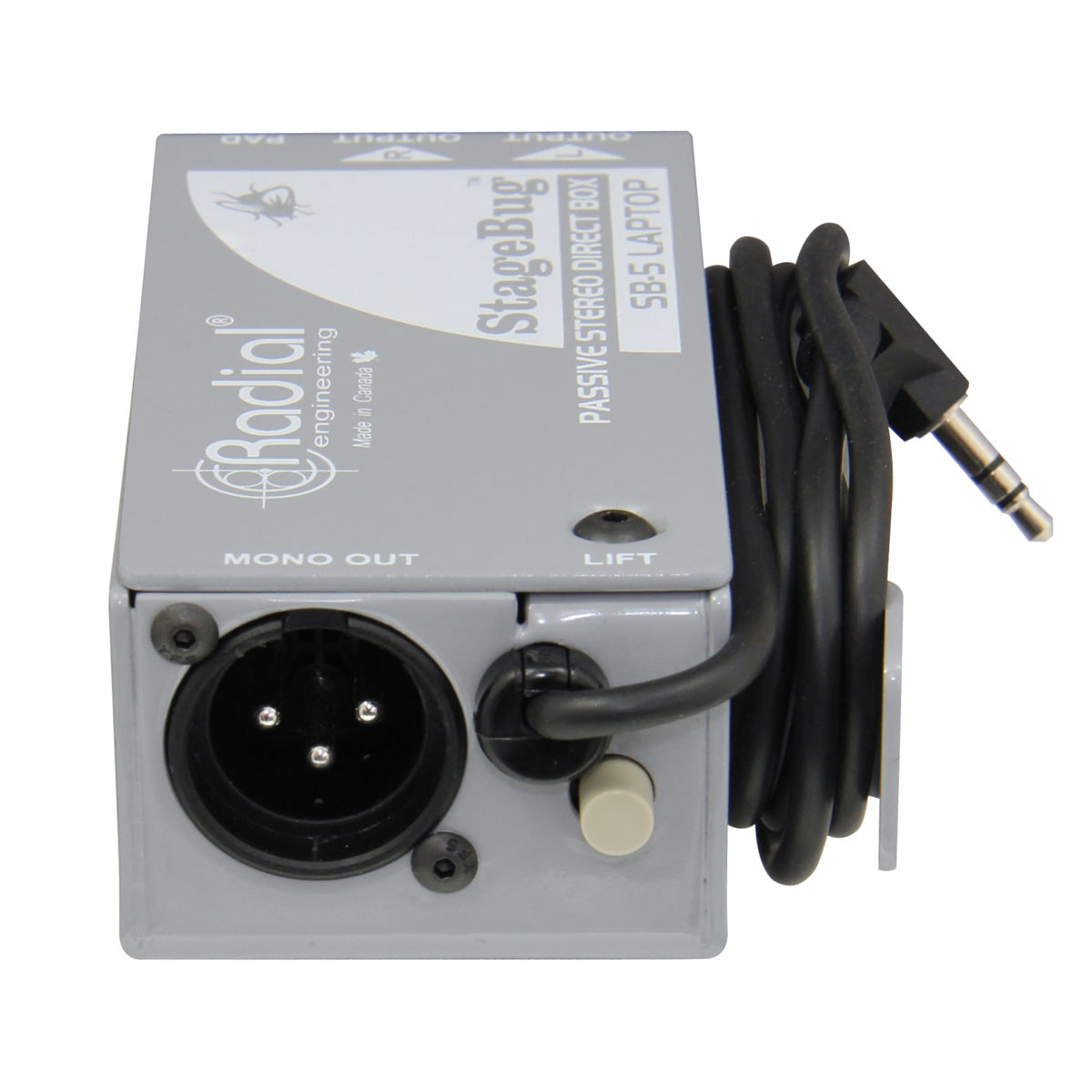

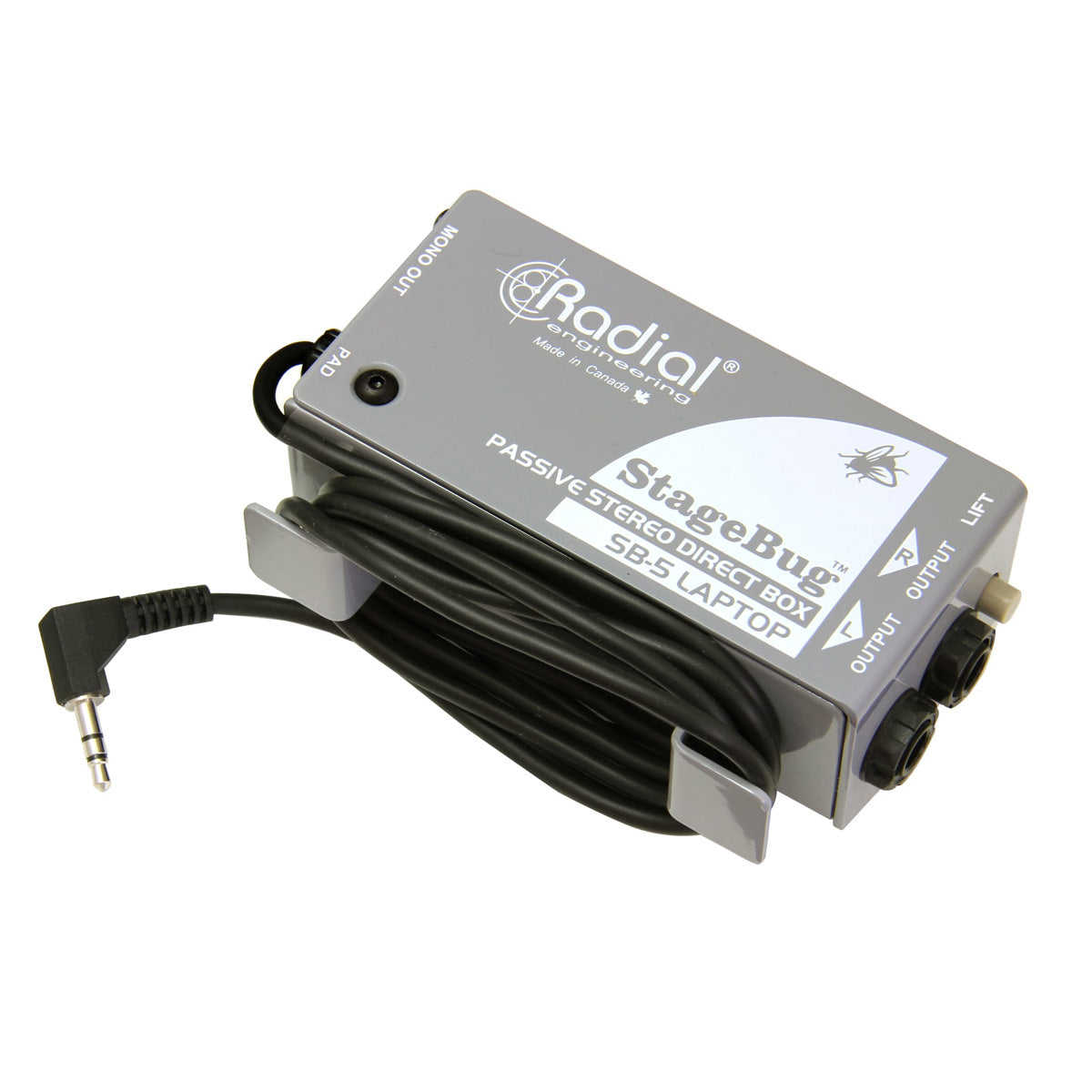

The StageBug SB-5 provides an easy to use professional interface for connecting any mobile playback device to a mixer or PA system, with a built-in cable and 3.5mm stereo plug to connect directly to your laptop, smartphone, or tablet. Inside, a pair of custom wound transformers isolate the signals to prevent hum and buzz, and balance the audio to feed long cable runs without noise. Left and right 1/4" TRS outputs are provided for stereo operation, or a mono XLR output can be used to save channels on the PA system. The SB-5 works without any power required, and features additional ground lift and pad switches to eliminate ground loop noise and prevent distortion from high output audio sources.
Features at a Glance:
- Stereo direct box for laptops, smartphones, and tablets
- Cable with 3.5mm stereo plug to connect to mobile devices
- Transformer isolation eliminates hum and buzz
- Plug & play easy to use, no power required
Compact design fits in your laptop bag
Specifications:
|
Audio circuit type |
Passive, transformer based |
| Number of channels |
Two channels |
| Frequency response |
20Hz ~ 20KHz (± 1dB) |
| Dynamic range |
100dB |
| Total harmonic distortion |
0.01% @ 1kHz |
| Phase Deviation |
2° @ 100Hz; 5° @ 50Hz |
| Input Impedance |
40k Ohms, unbalanced |
| Output Impedance |
2.8k Ohms, balanced |
| Maximum Input |
+20dB |
| Features |
Input pad, Mono Sum, Ground lift |
| Input Connectors |
3.5mm |
| Output Connectors |
1/4" TRS, XLR |
| Construction |
14 gauge steel chassis & outer shell |
| Size (L x W x D) |
114mm x 47mm x 34mm |
| Weight |
250 grams |
| Power |
Passive, no power required |
| Conditions |
For use in dry locations only between 5°C and 40°C |
