Description
Higher Rail Voltage, Higher Headroom
Most battery-powered guitars and basses will produce as much as 7 Volts when played at maximum volume, which can easily overload typical active direct boxes which have are only able to handle about 3 Volts. The J48 uses a unique switching power supply that raises the internal rail voltage so it can handle up to an incredible 9 Volts, resulting in improved signal handling and greater headroom. This additional headroom significantly reduces distortion of all types, allowing the natural tone and character of the instrument to shine through.
Features at a Glance:
- Exceptional headroom & dynamic range
- Retains the natural sound of the instrument
- Merge switch sums stereo instruments to mono
- Powered by 48V phantom, no batteries required
Specifications:
|
Audio circuit type |
Proprietary analog circuit with low-noise op-amp |
| Frequency response |
20Hz ~ 20kHz |
| Dynamic range |
109dB |
| Total harmonic distortion |
0.002% @ -5dBu |
| Intermodulation Distortion |
0.003% @ -3dBu |
| Phase Deviation |
+10º at 20Hz | 0º at 1kHz | -1º at 20kHz |
| Input Impedance |
220kΩ - ¼" input |
| Output Impedance |
200Ω - XLR output |
| Equivalent Input Noise |
-103dBu |
| Noise Floor |
-99dB below 0dBu |
| Maximum Input |
+10dBu |
| Features |
Input pad, Mono Sum, 180° polarity reverse, Ground lift, HPF |

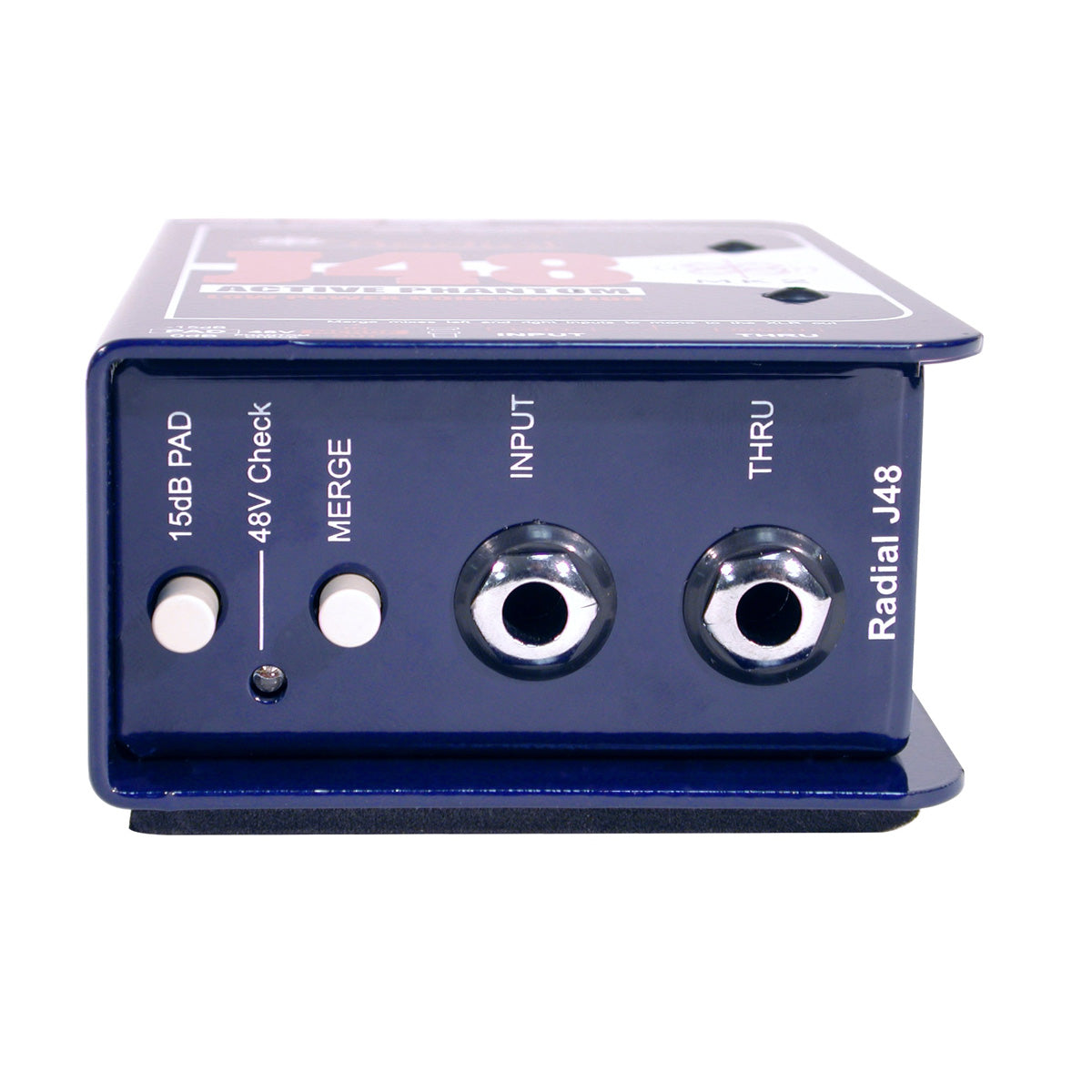

| Input Connectors |
1/4" |

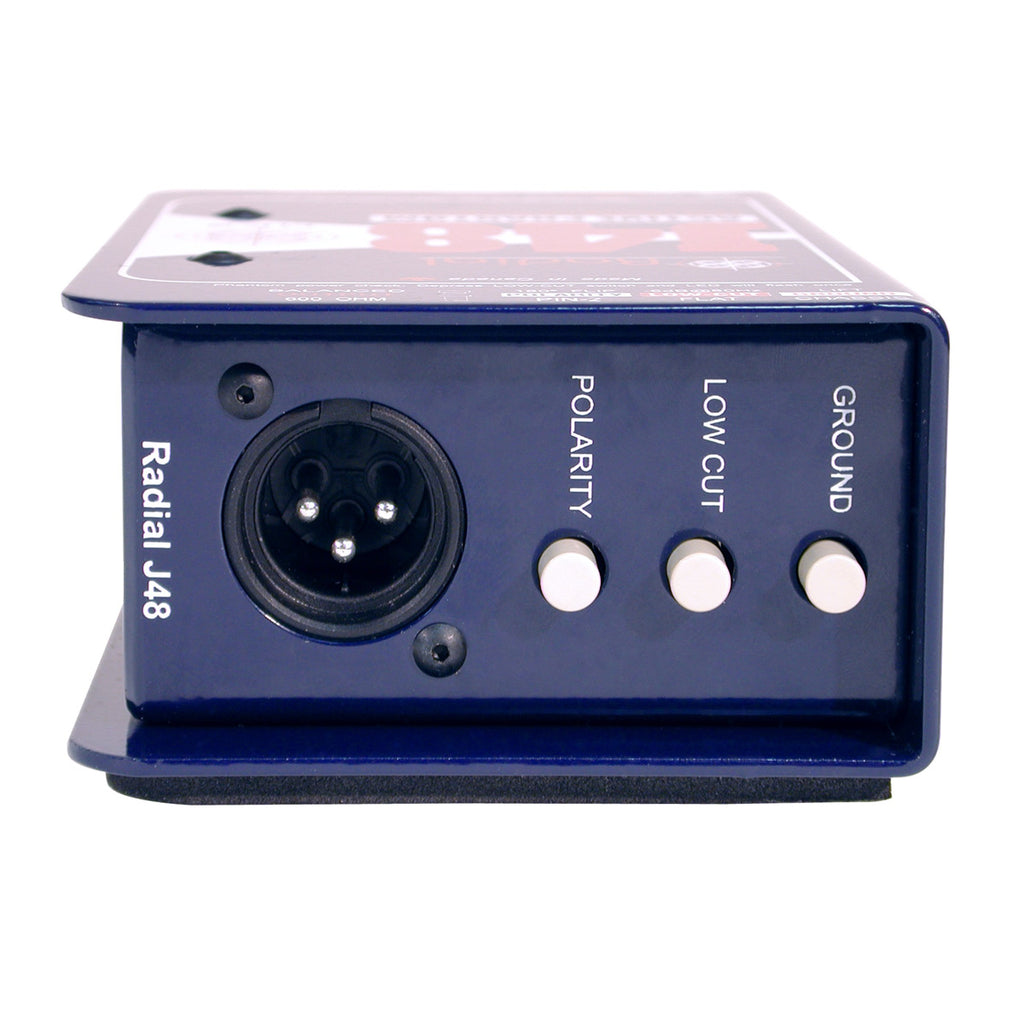

| Output Connectors |
Balanced XLR, 1/4" Thru |
| Construction |
14 gauge steel chassis and outer shell |
| Size (L x W x D) |
84 x 127 x 48mm |
| Weight |
720 g |
| Power |
48V phantom - proprietary digital switching |
| Conditions |
For use in dry locations only between 5°C and 40°C |
| Weight |
250 grams |
| Power |
48V phantom power, 5mA |
| Conditions |
For use in dry locations only between 5°C and 40°C |
