Description
A necessity for your audio toolkit

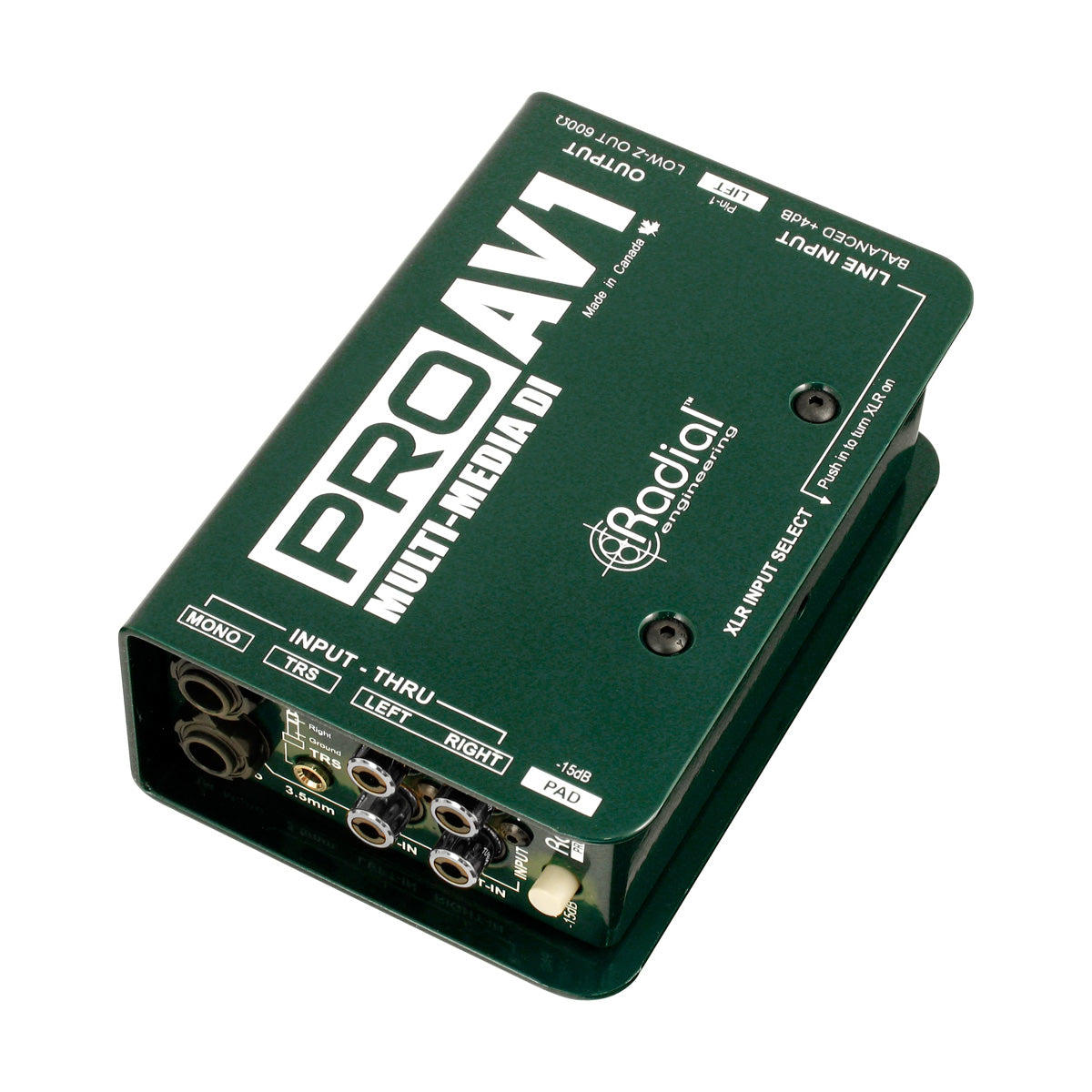

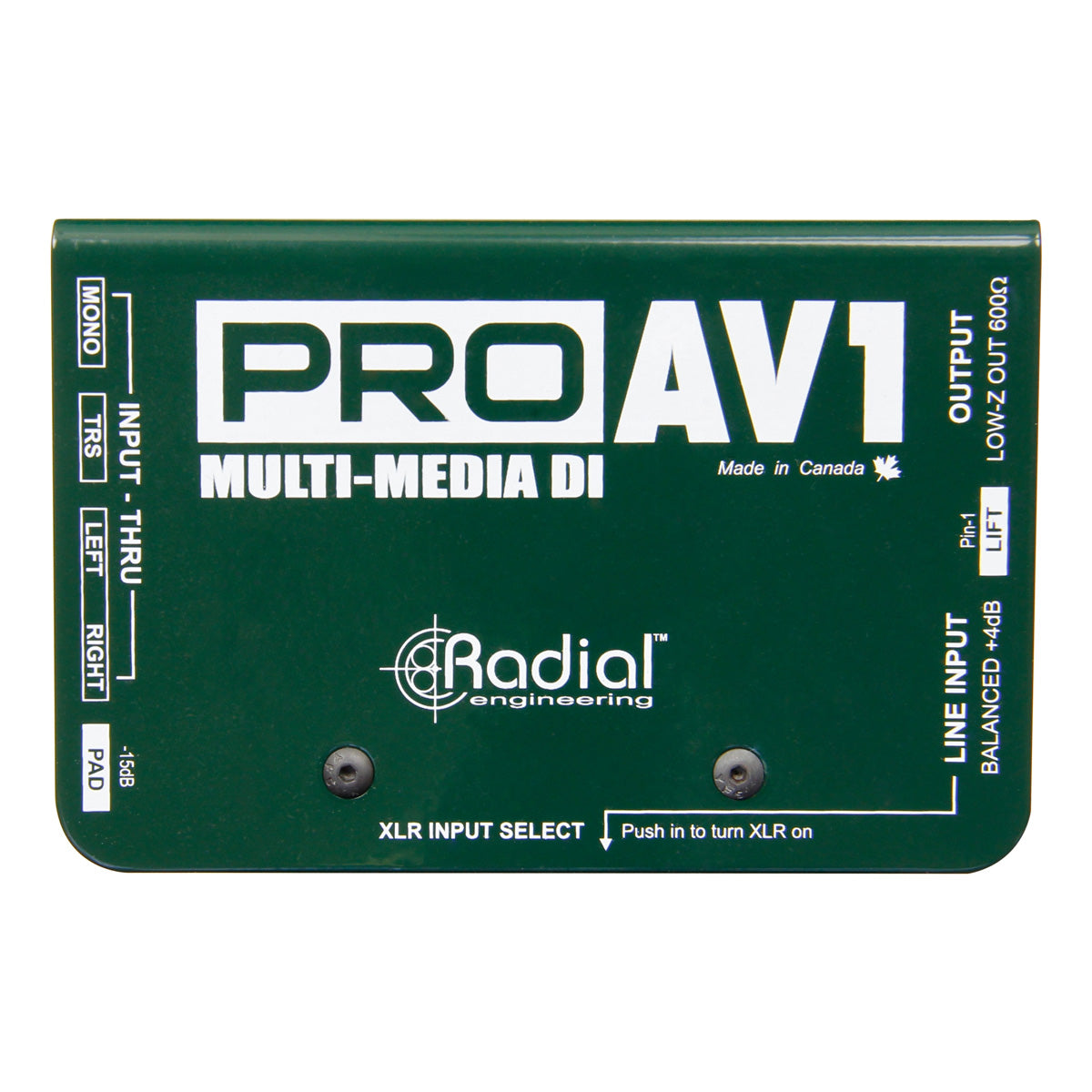

The ProAV1 provides you with the ability to connect almost any audio source to a PA system, while automatically summing stereo sources to mono to preserve channels and simplify the audio setup. Inputs are available via 1/4", RCA, 3.5mm stereo, and line-level XLR connections, giving you the ability to easily connect to smartphones, tablets, laptops, CD players, or even a +4dB line level output from a console or recording interface. Transformer isolation helps eliminate noise while maintaining a linear frequency response, and a mono balanced XLR output allows you to feed a recording interface or a PA system.
Features at a Glance:
- Versatile direct box for multimedia applications
- Easy to use, ultra-quiet passive design
- Transformer isolation eliminates hum and buzz
- Handles huge transients without distortion
Specifications:
|
Audio circuit type |
Passive, transformer based |
| Transformer |
Eclipse ET-DB2, 12:1 ratio |
| Number of channels |
Single channel (mono) |
| Frequency response |
20Hz ~ 18.5KHz (± 0.2dB) |
| Dynamic range |
128dB |
| Total harmonic distortion |
0.01% from 20Hz~20kHz @-10dB |
| Phase Deviation |
1° @ 100Hz; 8° @ 20Hz |
| Input Impedance |
140k Ohms, unbalanced |
| Output Impedance |
150 Ohms, balanced |
| Maximum Input |
+18dB @ 20Hz |
| Features |
Input pad, Mono Sum, Ground lift |
| Input Connectors |

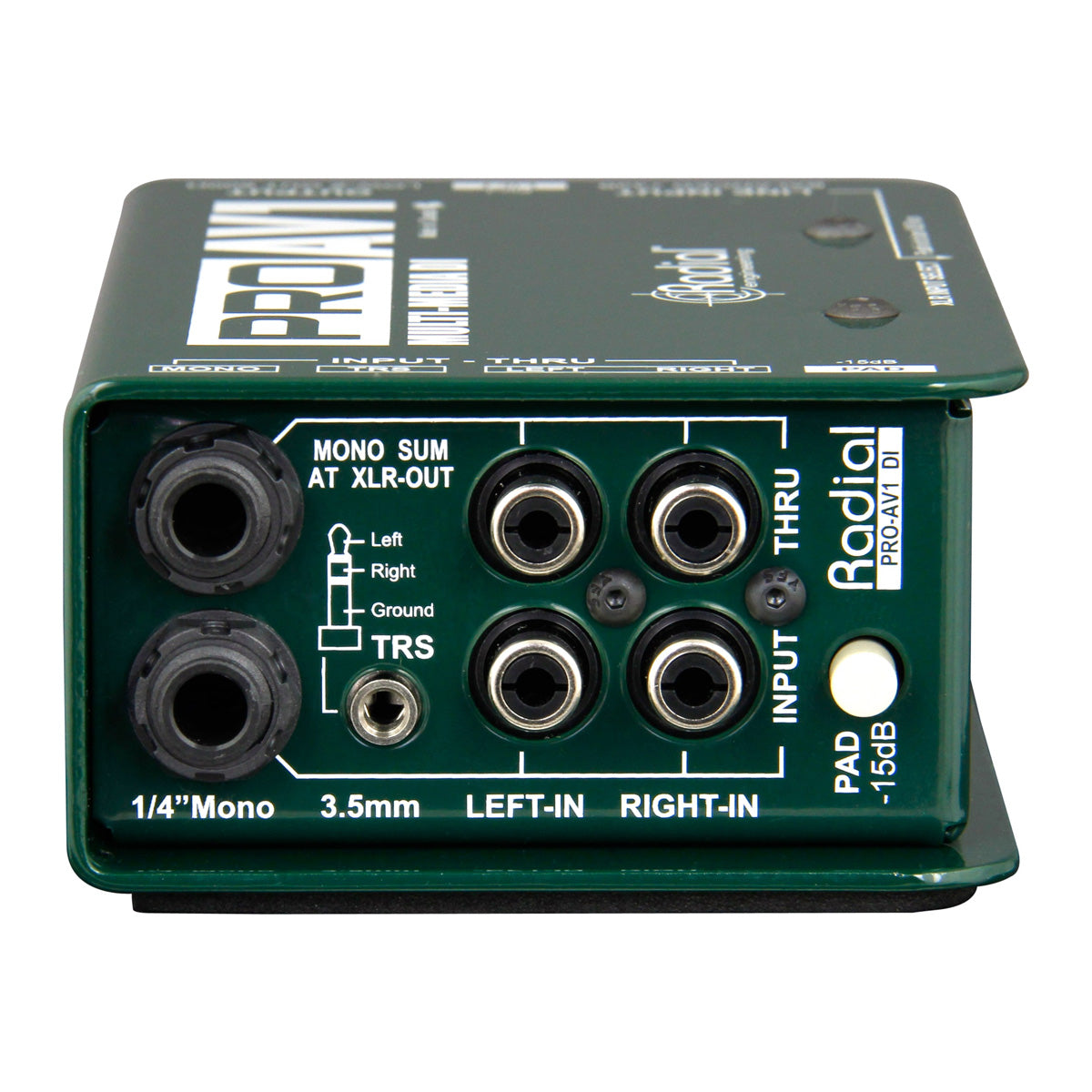

1/4", RCA, 3.5mm TRS, XLR |
| Output Connectors |

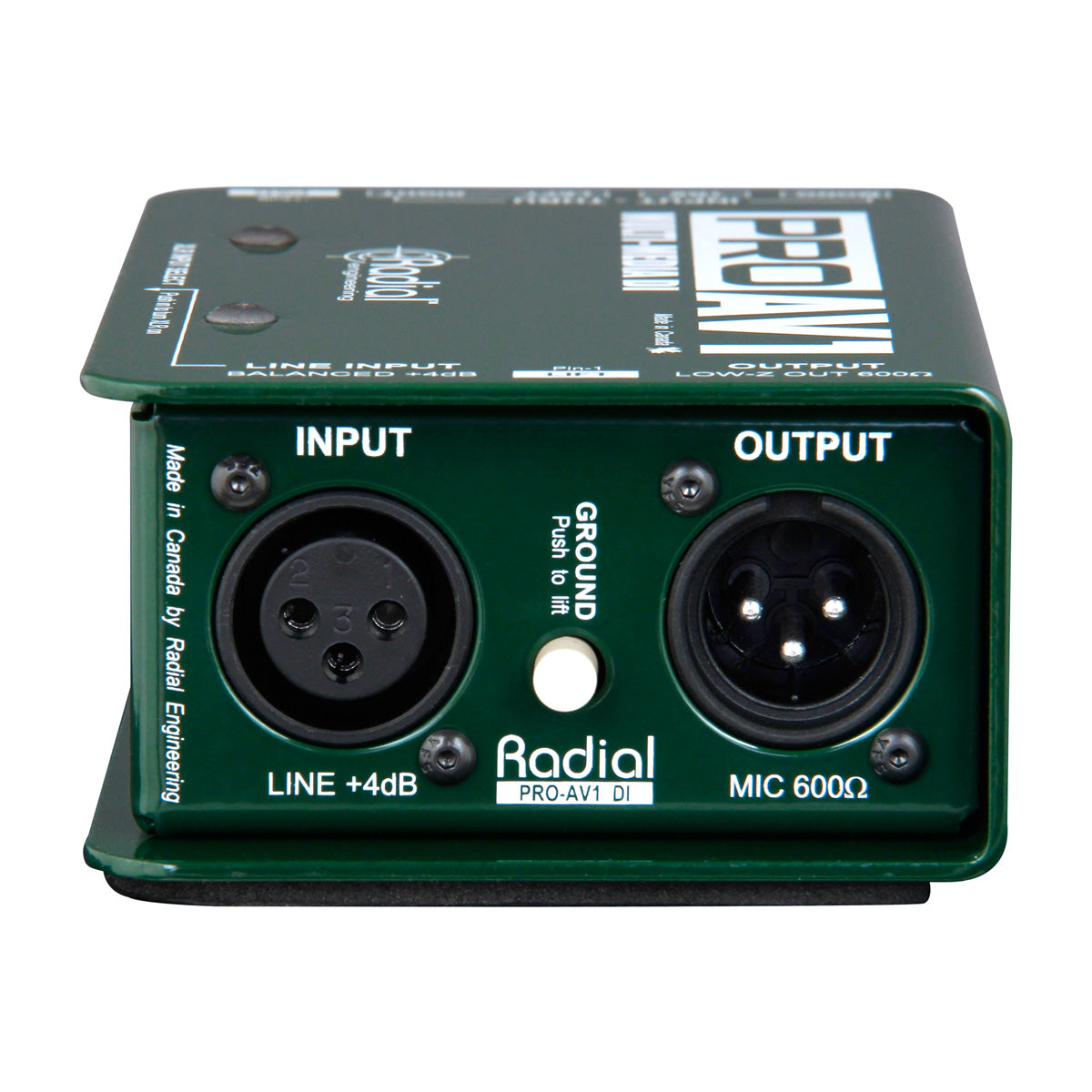

XLR |
| Extras |
1/4" thru, RCA thru |
| Construction |
14 gauge steel chassis & shell |
| Weight |
0.73kg |
| Power |
Passive, no power required |
| Conditions |
For use in dry locations only between 5°C and 40°C |
