Description
Versatile PX Series Power Amplifiers

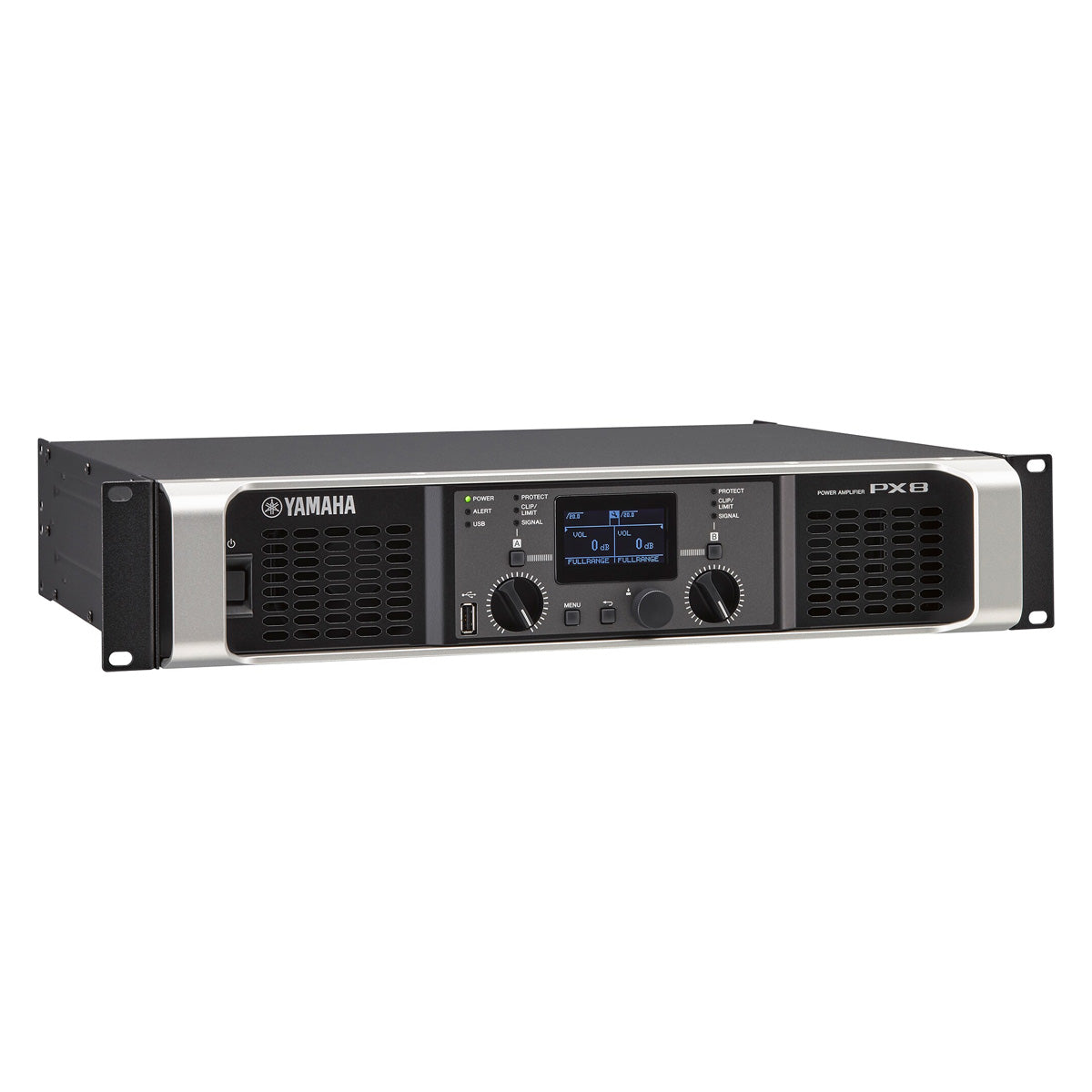

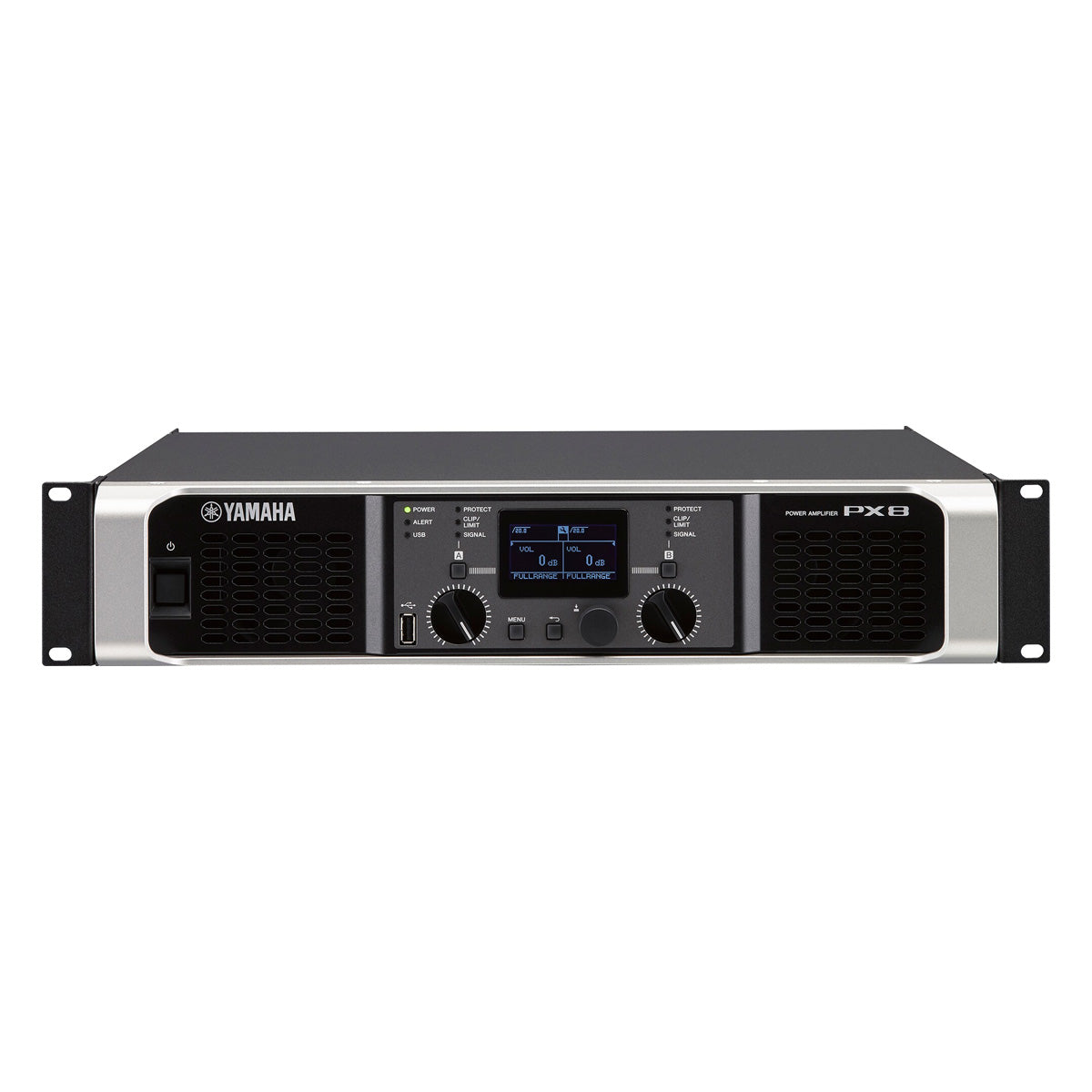

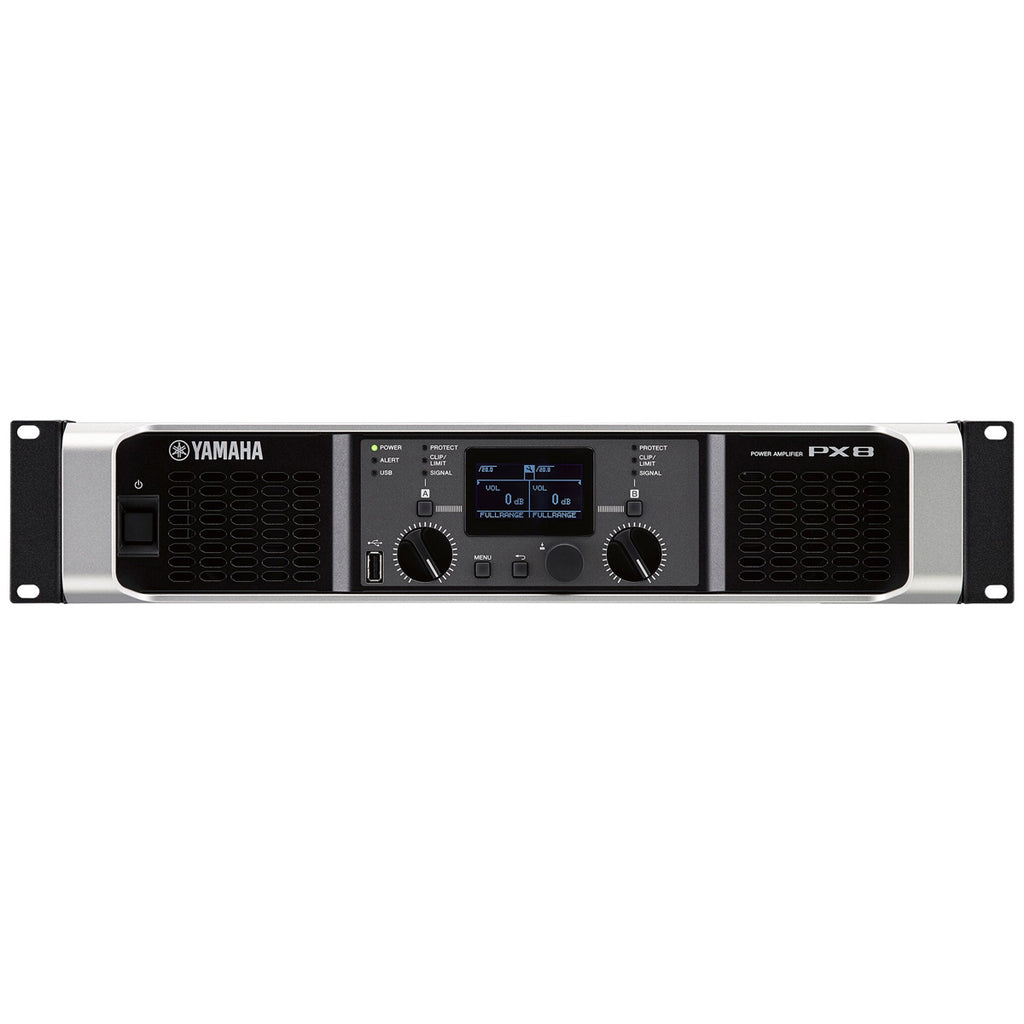

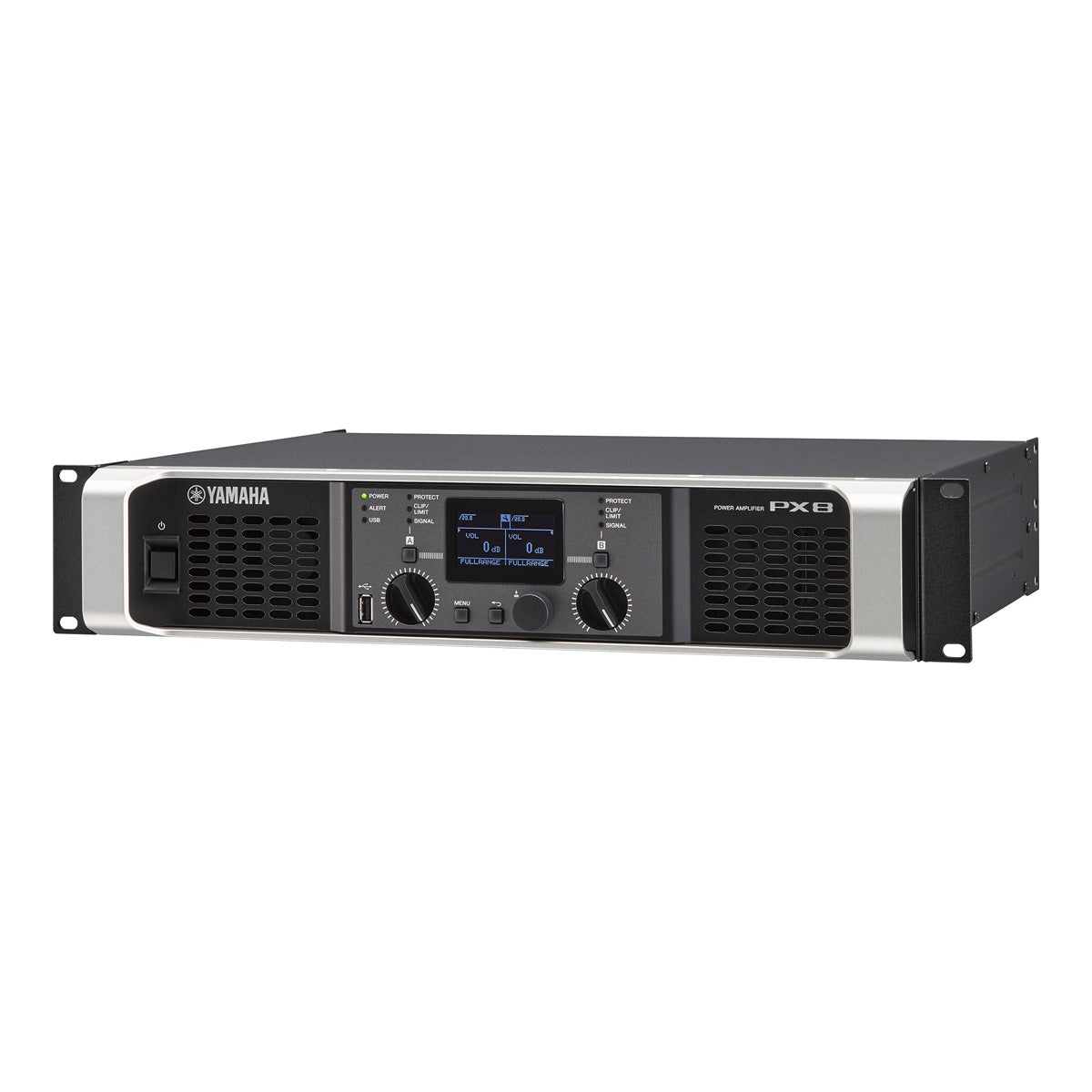

The Yamaha PX8 Stereo Power Amplifier delivers 800W at 8 Ohms in a lightweight chassis and is suitable for a wide variety of sound-reinforcement applications. Part of the company's PX Series of power amplifiers, it features a Class-D engine with a single custom LSI chip, and uses PLL technology for higher efficiency and lower noise.
The on-board DSP functions include a PEQ, a delay, a crossover, and a limiter. They allow for detailed configuration of parameters such as input & output routing, input sensitivity, amp gain, and speaker impedance. The D-Control multi-band dynamic processor delivers a clear and consistent sound at any output level by shaping the frequency response of each speaker for either front-of-house or monitor configurations.
The Configuration Wizard helps save time during setup by assigning optimized speaker settings that match your system configuration. It can be used in basic mode for quick setup or advanced mode for more precise control over DSP parameters. You can store up to eight presets, which can be saved to a USB drive for use with other amplifiers and setups.
For secure operation, the panel-locking function ensures that your settings remain safe. With its sturdy frame and carrying handle, the PX8 is built to withstand extended road use.
What's in the box:
- Yamaha PX8 Stereo Power Amplifier (800W at 8 Ohms)
- AC Power Cord
- USB Cap
Features at a Glance:
- 800W per Channel at 8 Ohms
- Efficient Class-D Amplifier
- Custom LSI Chip with PLL Technology
- Digital Routing of Inputs & Outputs
- XLR, 1/4", SpeakON & Binding Post
- PEQ, Crossover, Filters, Delay
- D-Contour Multi-Band Dynamic Processing
Specifications:
|
Form Factor/Type |
Rackmount |
| Number of Amplifier Channels |
2 |
| Load Impedance/Voltage Support |
8 Ohms |
| Power Rating per Channel |
2x 600 W at 2 Ohms |
| Amplifier Class |
Class-D |
