Versatile PX Series Power Amplifiers

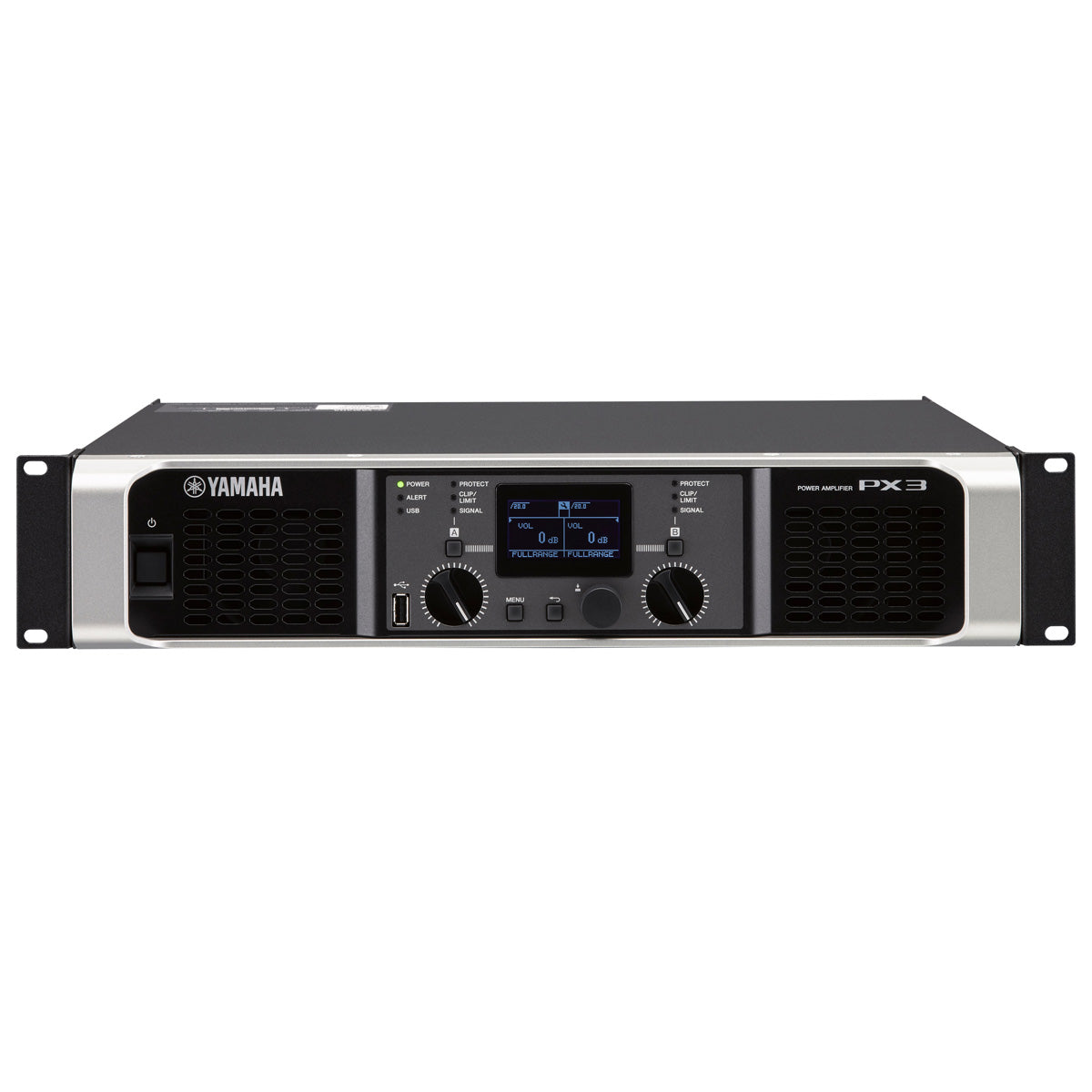

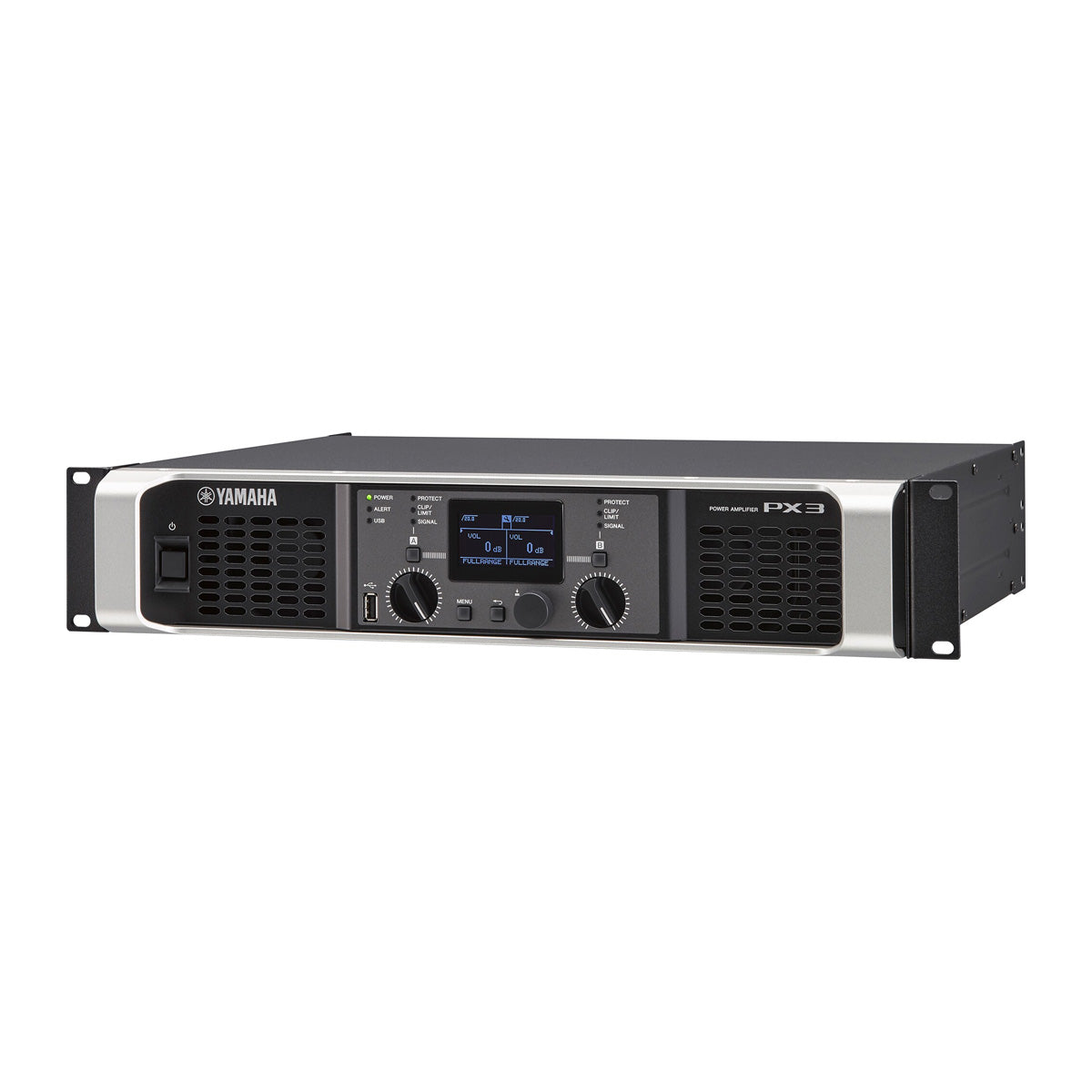

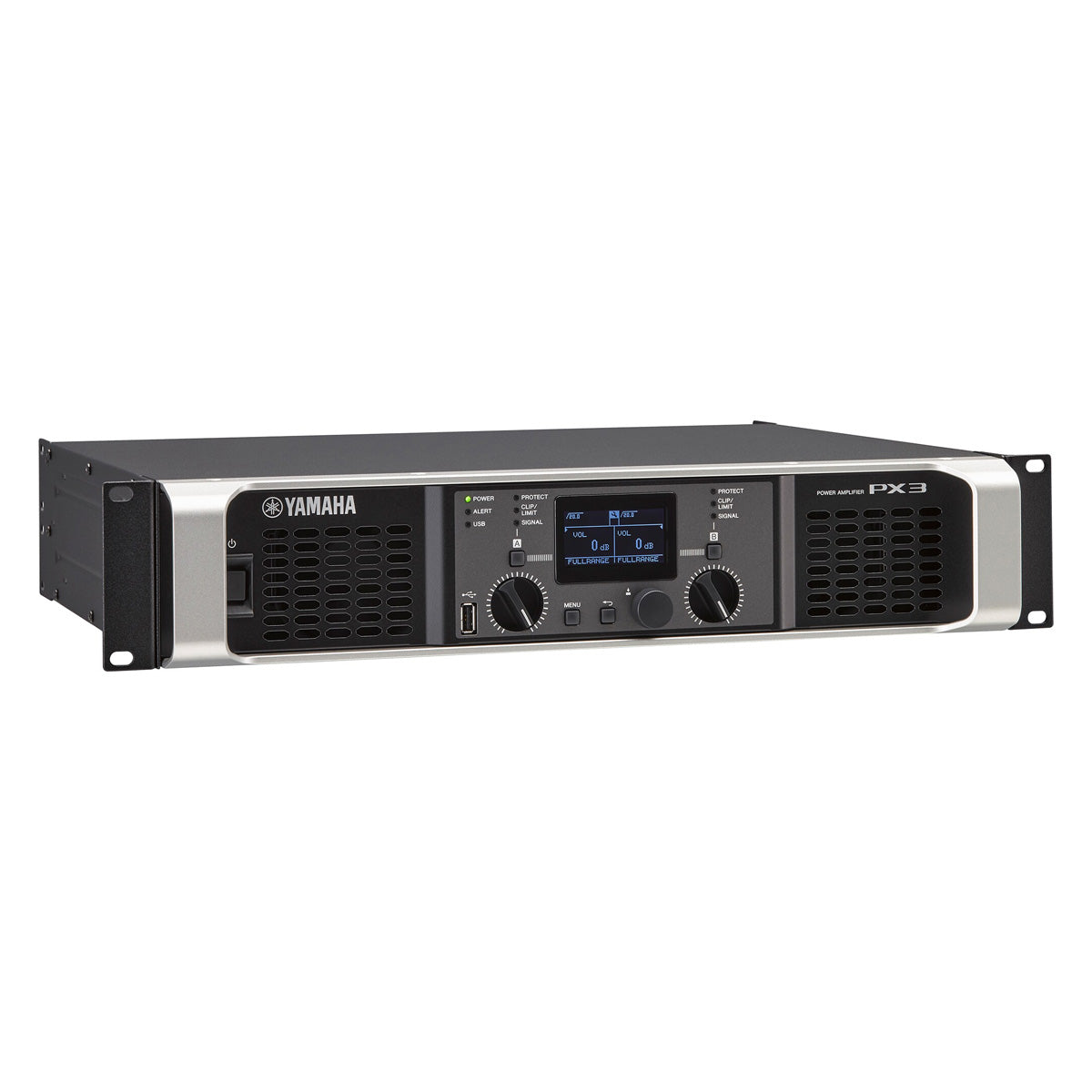

The Yamaha PX3 Stereo Power Amplifier delivers 300W at 8 Ohms in a lightweight chassis and is suitable for a wide variety of sound-reinforcement applications. Part of the company's PX Series of power amplifiers, it features a Class-D engine with a single custom LSI chip, and uses PLL technology for higher efficiency and lower noise. The Power-Boost mode combines the power output from two channels into one, achieving significantly higher single-channel power levels (the number of channels available is then halved).

The on-board DSP functions include a PEQ, a delay, a crossover, and a limiter. They also allow for detailed configuration of parameters such as input & output routing, input sensitivity, amp gain, and speaker impedance. The D-Control multi-band dynamic processor delivers a clear and consistent sound at any output level by shaping the frequency response of each speaker for either front-of-house or monitor configurations.

The Configuration Wizard helps save time during setup by assigning optimized speaker settings that match your system configuration. It can be used in basic mode for quick setup or advanced mode for more precise control over DSP parameters. You can store up to eight presets, which can be saved to a USB drive for use with other amplifiers and setups.

For secure operation, the panel-locking function ensures that your settings remain safe. With its sturdy frame and carrying handle, the PX3 is built to withstand extended road use.



What's in the box:

• Yamaha PX3 Stereo Power Amplifier (300W at 8 Ohms)

• AC Power Cord

• USB Cap



Features at a Glance:

• 300W per Channel at 8 Ohms

• Efficient Class-D Amplifier

• Custom LSI Chip with PLL Technology

• Power Boost Mode

• Digital Routing of Inputs & Outputs

• XLR, 1/4", SpeakON & Binding Post

• PEQ, Crossover, Filters, Delay

• D-Contour Multi-Band Dynamic Processing



Specifications:

Form Factor/Type	Rackmount
Number of Amplifier Channels	2
Load Impedance/Voltage Support	8 Ohms
Power Rating per Channel	2x 300 W at 2/8 Ohms 2x 500 W at 4 Ohms
Channel Bridging & Power Sharing	1x 1000 W Bridged at 4 Ohms 1x 600 W Bridged at 8 Ohms
Amplifier Class	Class-D
