Description

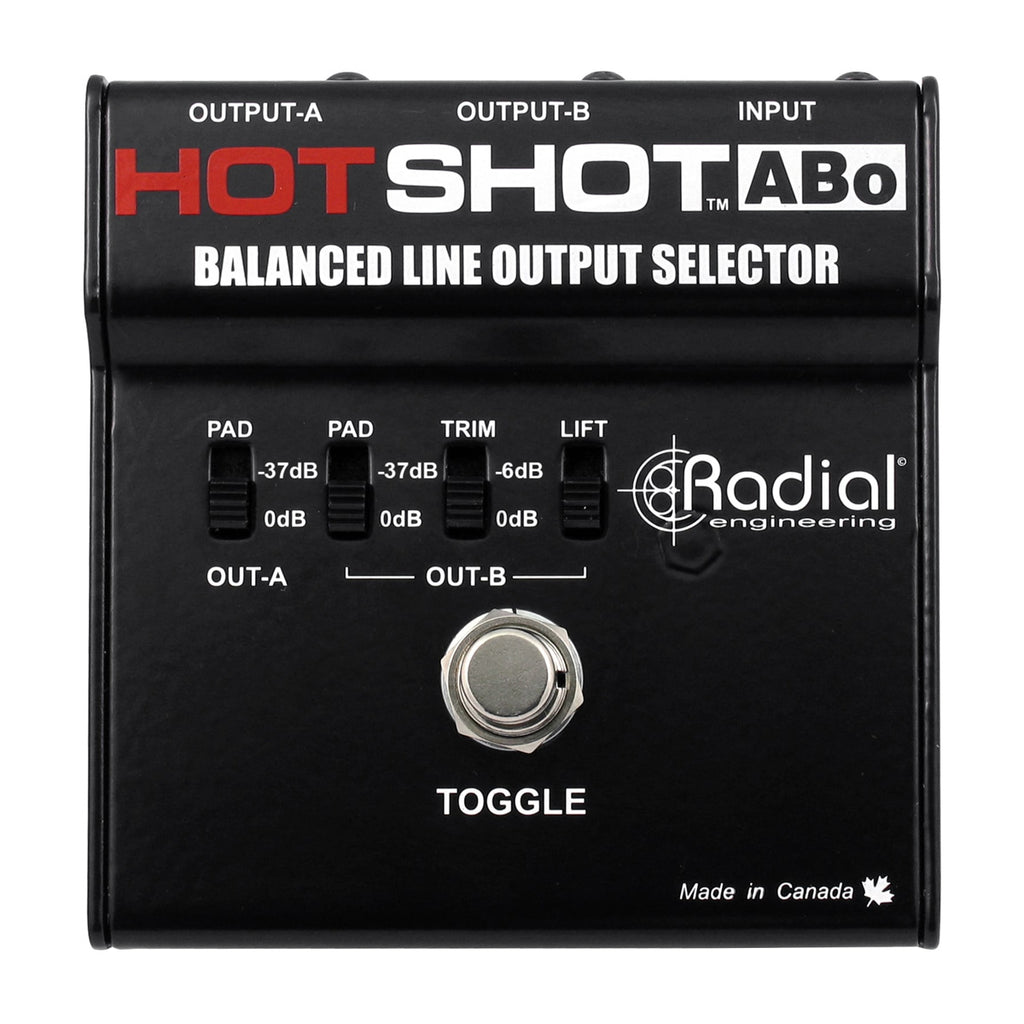

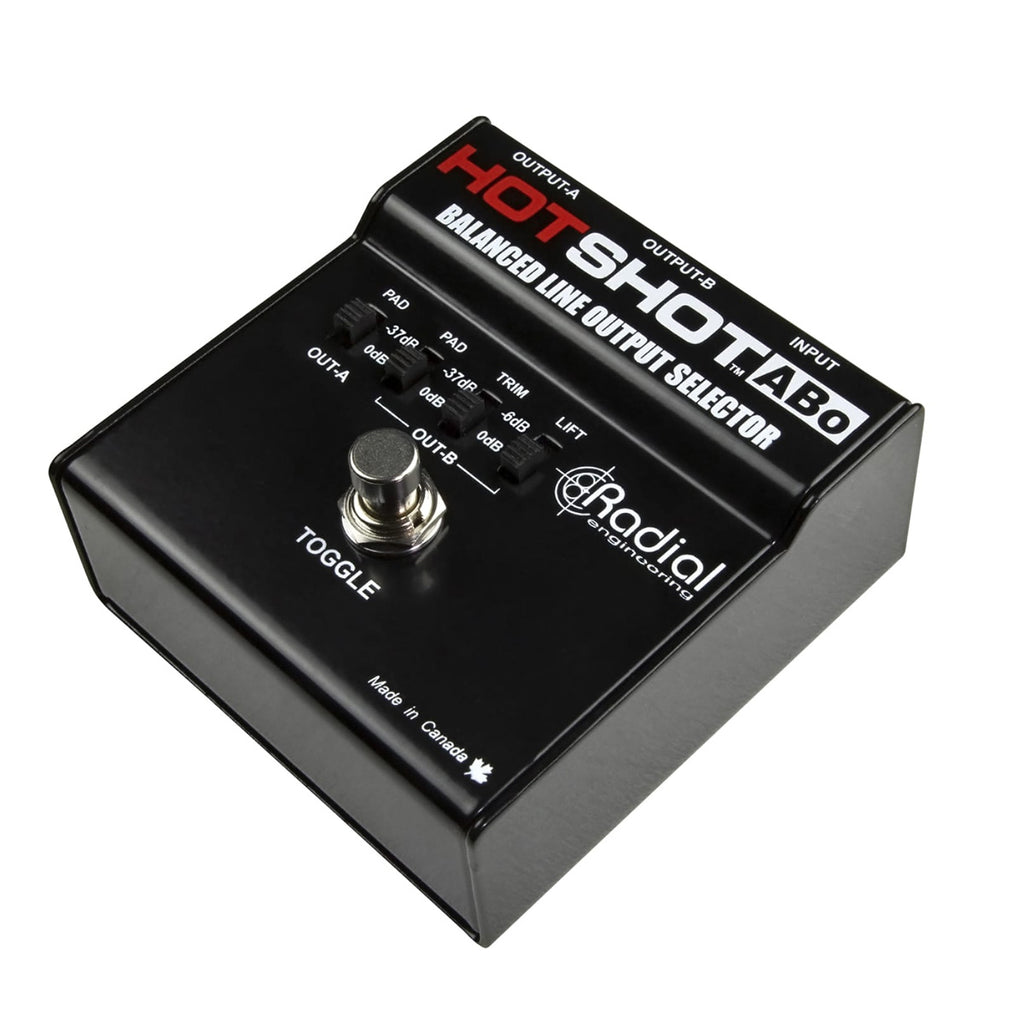

Footswitch Selector for Balanced Outputs
The HotShot ABo is a latching footswitch that will take a balanced input on stage and switch it between two different destinations, without requiring any power to operate.
Reroute signals on stage
The Hotshot ABo takes a balanced XLR input and provides the ability to switch the signal between two destinations using a passive footswitch on stage. This makes it ideal for a variety of applications, including driving two channels on a mixing console for dry and wet effects routing, diverting a dynamic mic from the PA system to the monitors or an intercom system, or for temporarily muting the signal when coughing. The ABo uses a latching footswitch, so it will stay on the last output selected until you hit the footswitch again.
What's in the box:
- Radial Engineering Hotshot ABo Line Output Selector
Features at a Glance:
- Redirect a balanced signal to two different destinations
- Toggle outputs or mute with a latching footswitch
- Selectable output pads to match signal levels
- Completely passive operation, no power required
Specifications:
|
Audio circuit type |
Passive, true-bypass |
| Frequency response |
20Hz ~ 20kHz |
| Dynamic range |
Unlimited |
| Input pad, Ground lift |

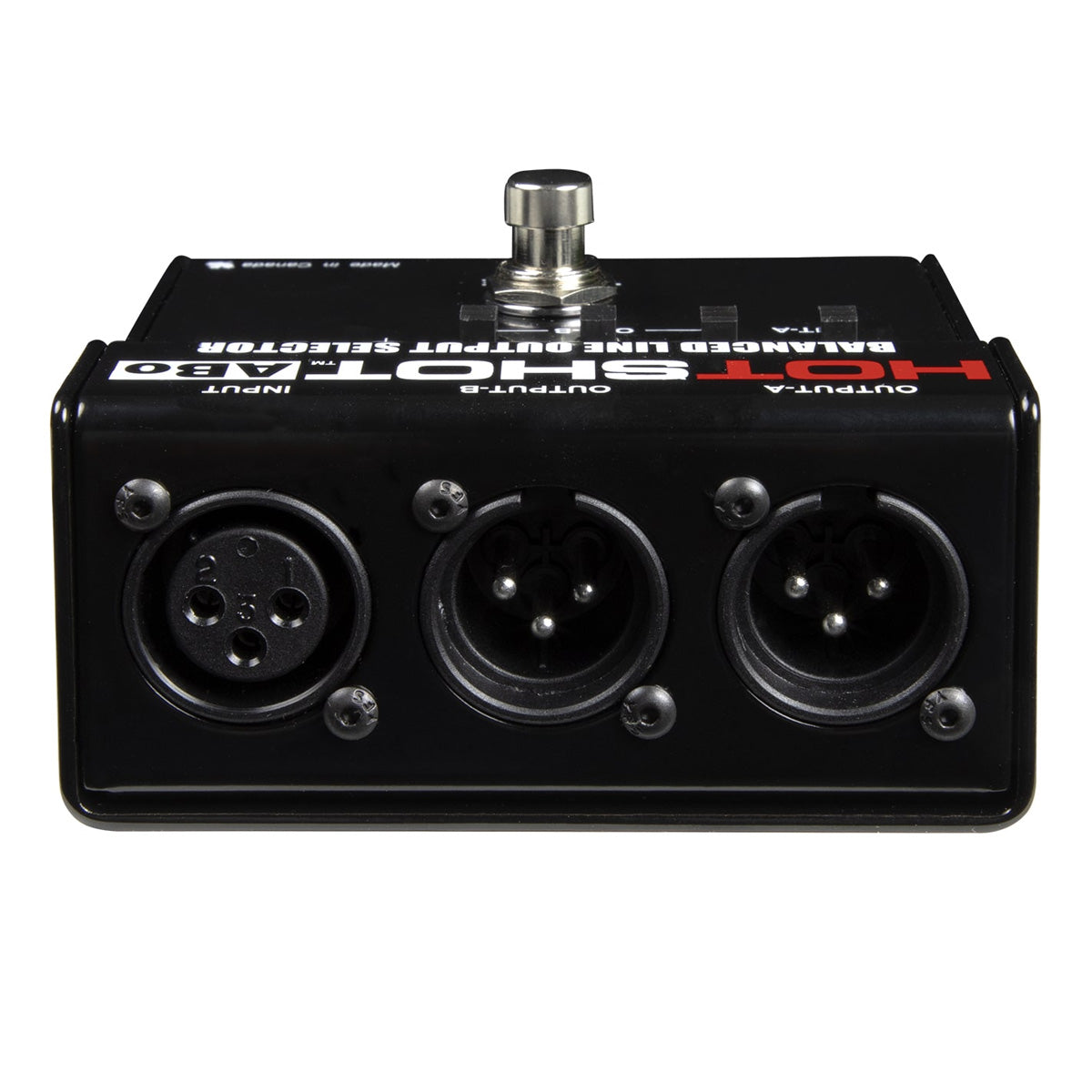

Input Connectors: One XLR input |
| Construction |
14-Gauge Steel |
| Size (L x W x D) |
99 x 92 x 51mm |
| Weight |
0.56 kg |
| Conditions |
For use in dry locations only between 5°C and 40°C |
