Description
Footswitch Selector for Balanced Inputs

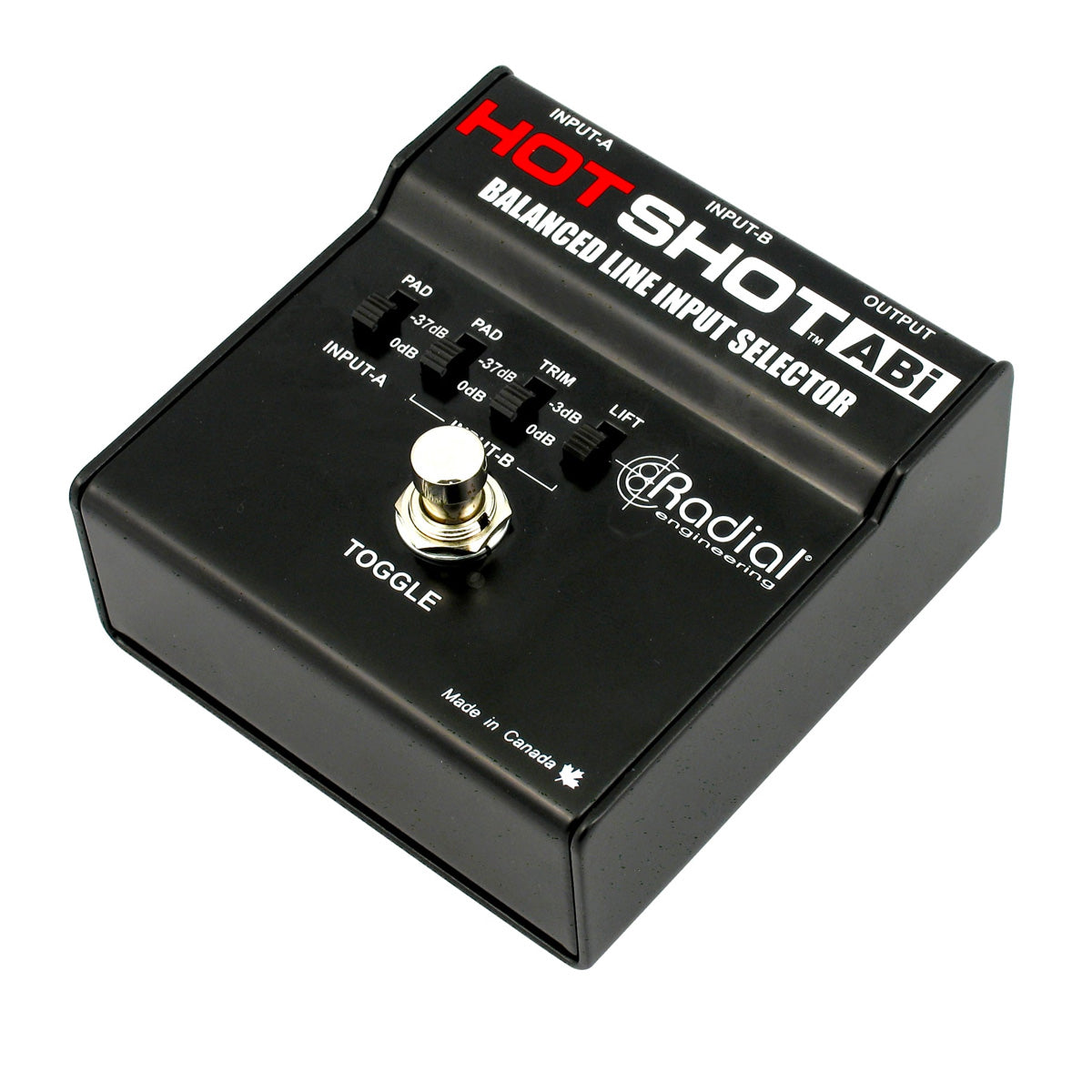

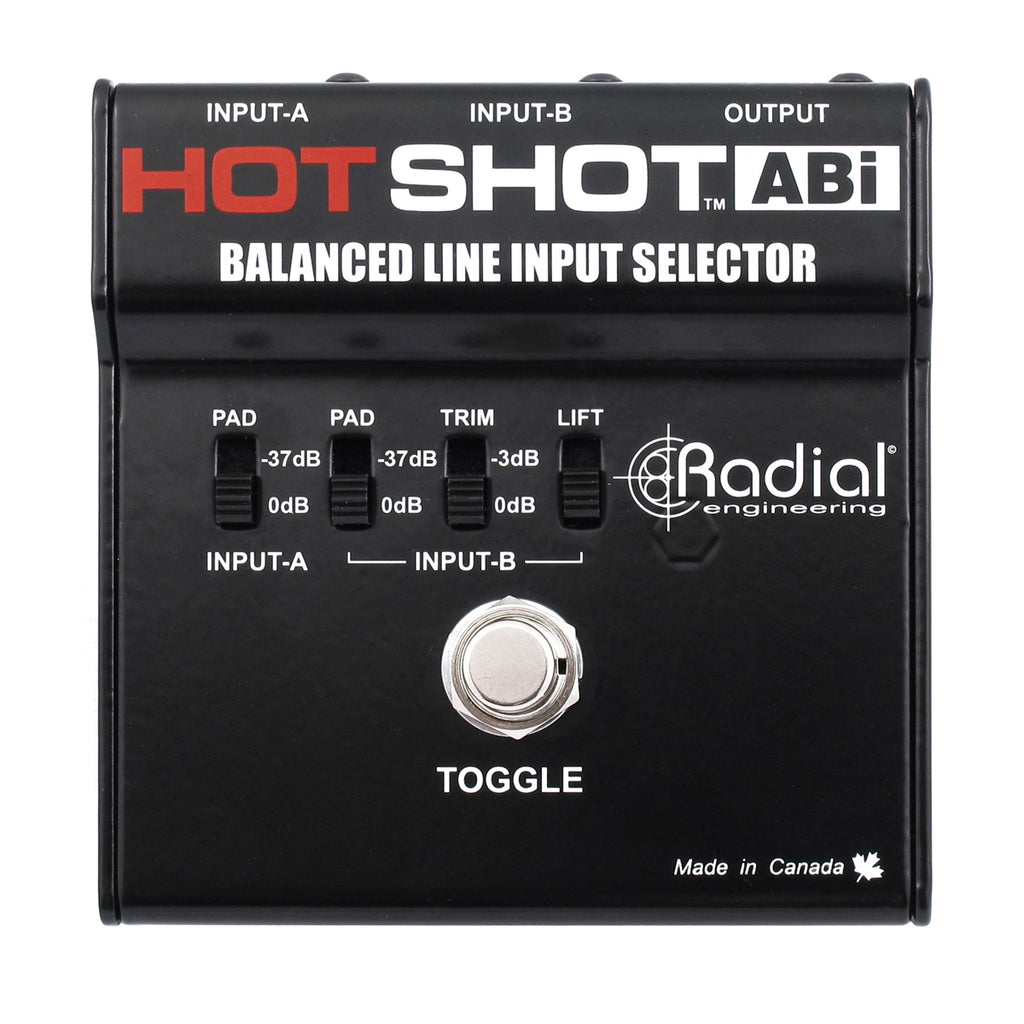

The HotShot ABi is a balanced signal selector that allows you to instantly select between two sources by depressing a latching footswitch.
On-stage input switching
The HotShot ABi makes it easy to select between two balanced inputs on stage, with a single latching footswitch to toggle from one source to the other. This allows an artist to switch between two dynamic microphones during a performance, freeing up input channels on your mixer. The latching footswitch also opens the door for other useful applications, including using the ABi as a mute to turn off a microphone, select between two wireless receivers, or switch between two mono playback devices.
What's in the box:
- Radial Engineering Hotshot ABi Balanced Input Selector
Features at a Glance:
- Quickly select between two balanced XLR sources
- Toggle or mute the source with a latching footswitch
- Selectable input pad to match input signal levels
- Completely passive operation, no power required
Specifications:
|
Audio circuit type |
Passive, true-bypass |
| Frequency response |
20Hz ~ 20kHz |
| Dynamic range |
Unlimited |
| Input pad, Ground lift |

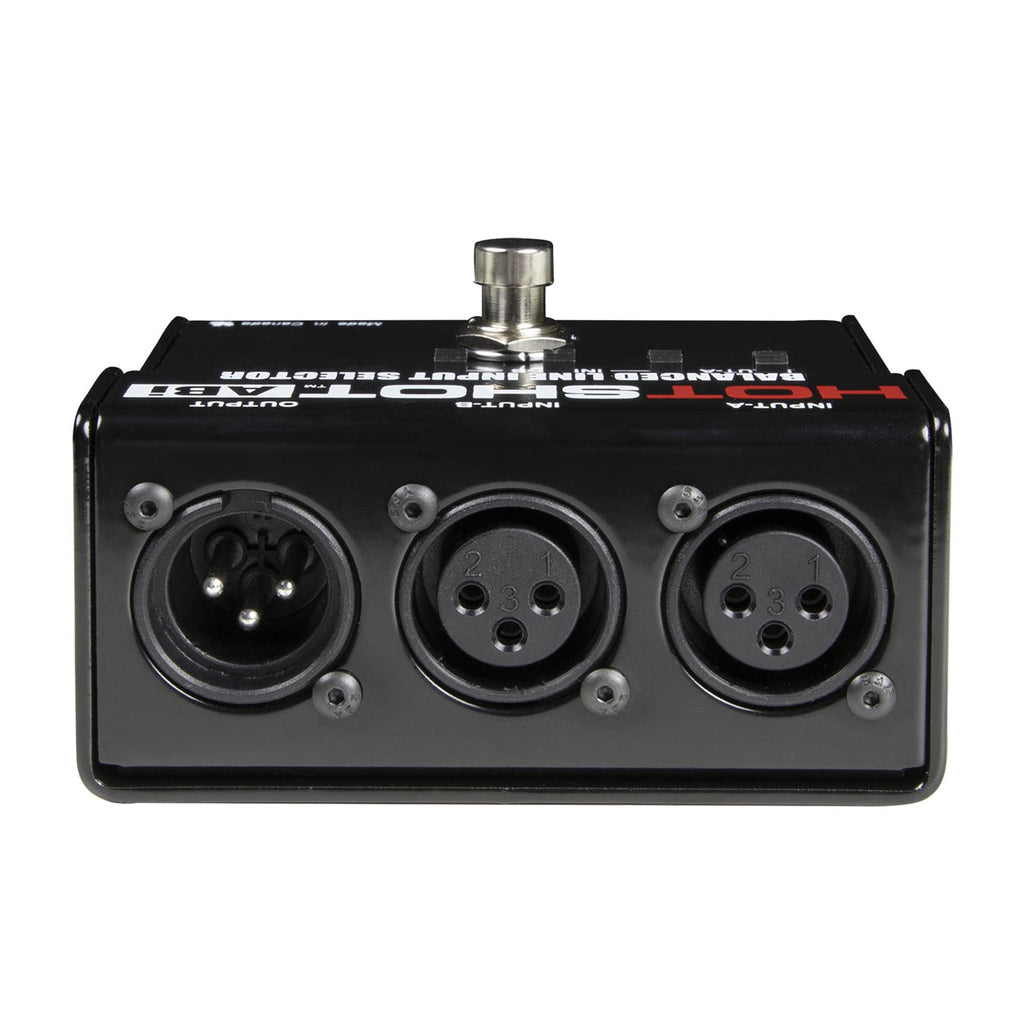

Input Connectors: Two XLR inputs |
| Construction |
14-Gauge Steel |
| Size (L x W x D) |
99 x 92 x 51mm |
| Weight |
0.56 kg |
| Conditions |
For use in dry locations only between 5°C and 40°C |
