Description
Featuring a broad frequency response from 80Hz to 20kHz (-10dB) and a maximum sound pressure level of 138dB, the ET110L delivers exceptional clarity and power. Its driver configuration, which includes a 10-inch low-frequency driver and a 3-inch high-frequency driver, both with 75mm neodymium voice coils, ensures a balanced and dynamic audio output.
The cabinet’s construction utilizes 15mm and 18mm multilayer birch plywood, finished with a resilient black polyurea paint for durability. The ET110L’s sleek design is complemented by a black steel grille with acoustic foam, providing both protection and aesthetic appeal.

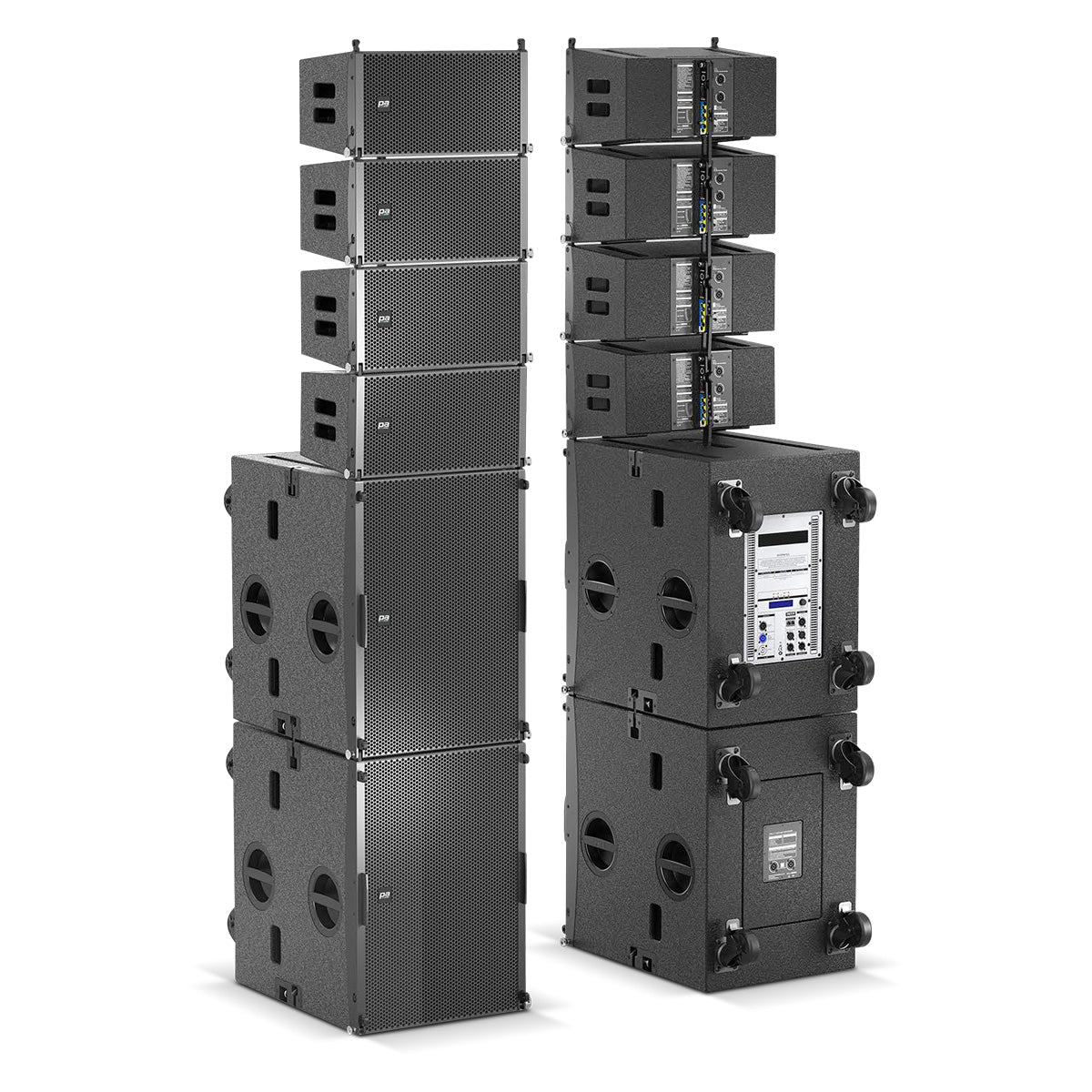

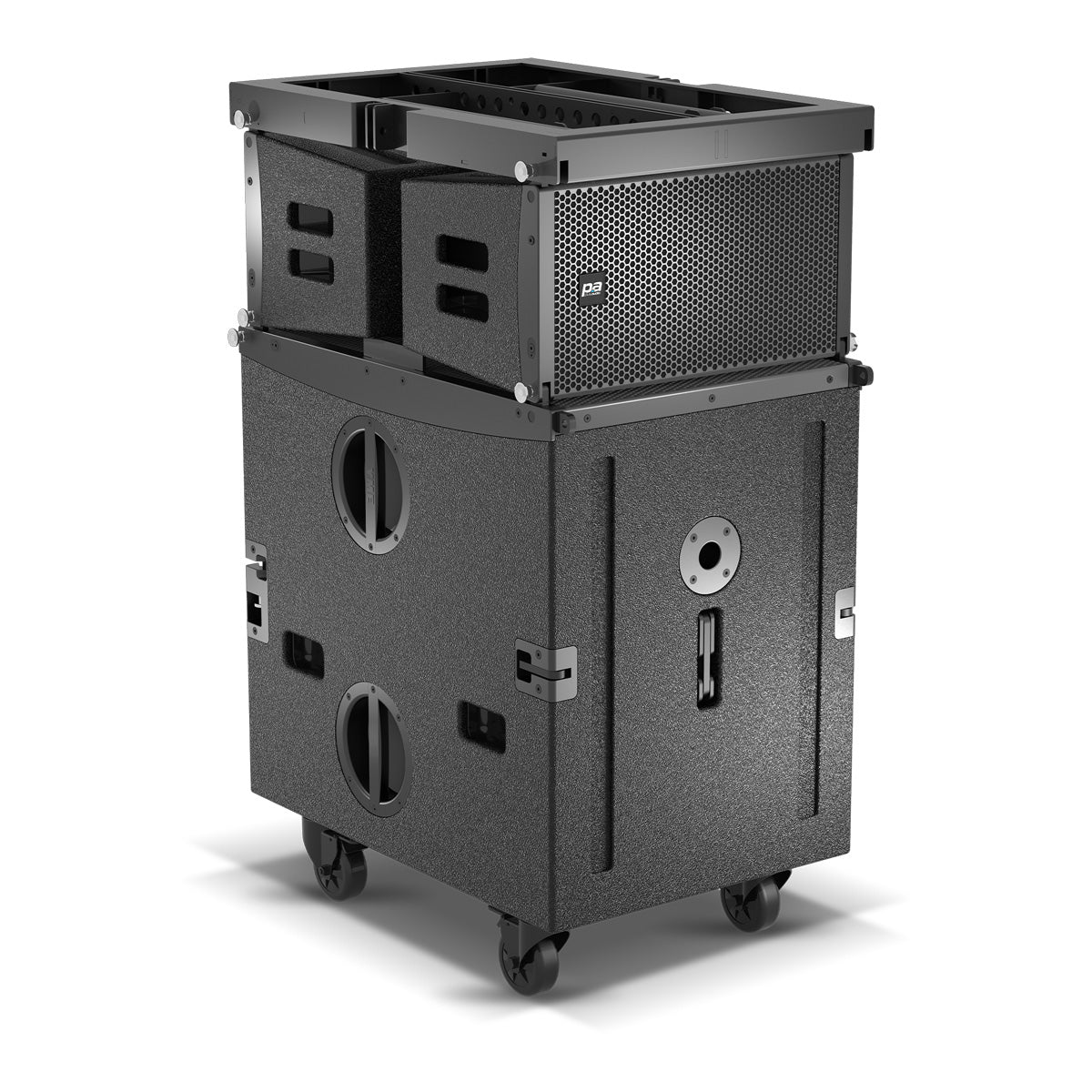

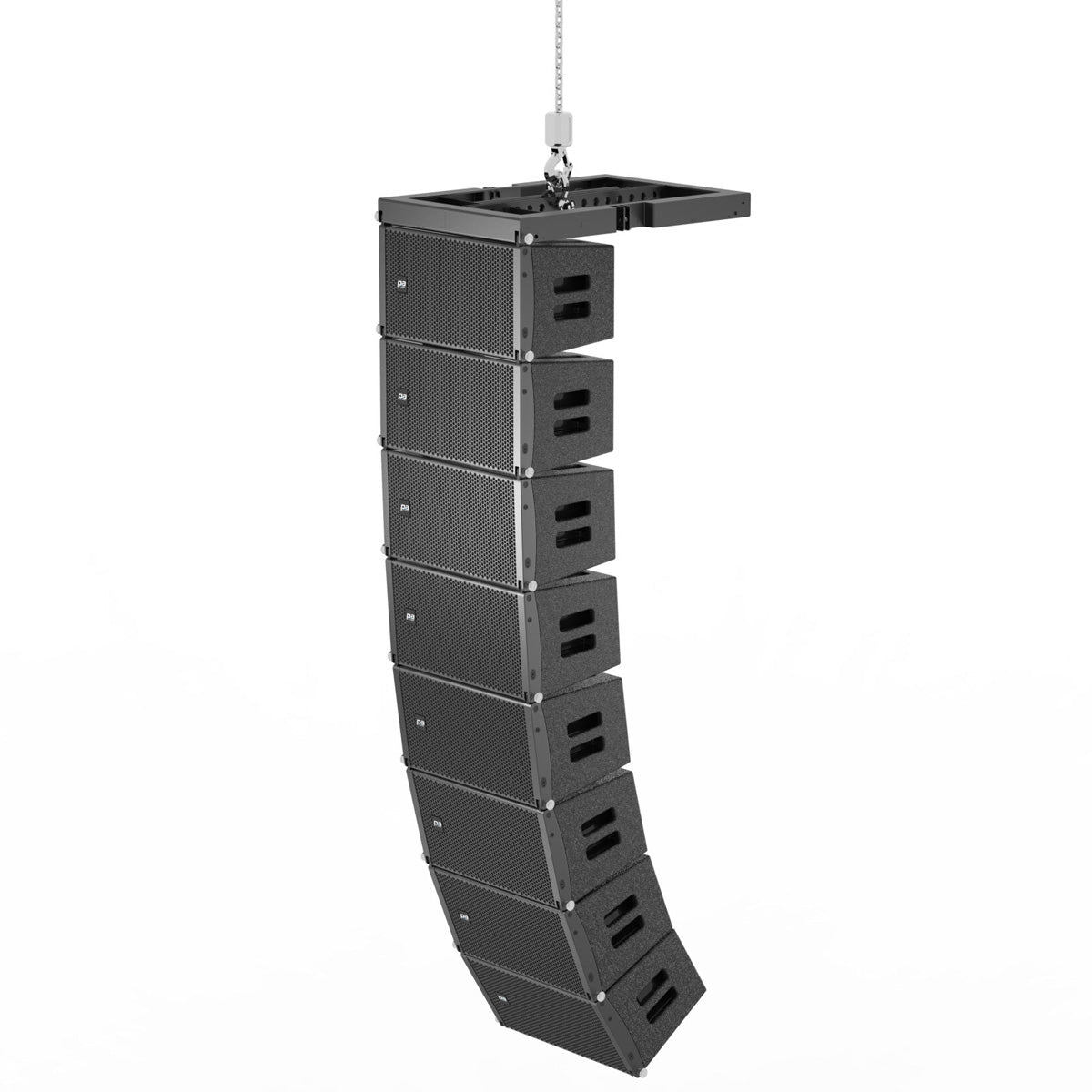

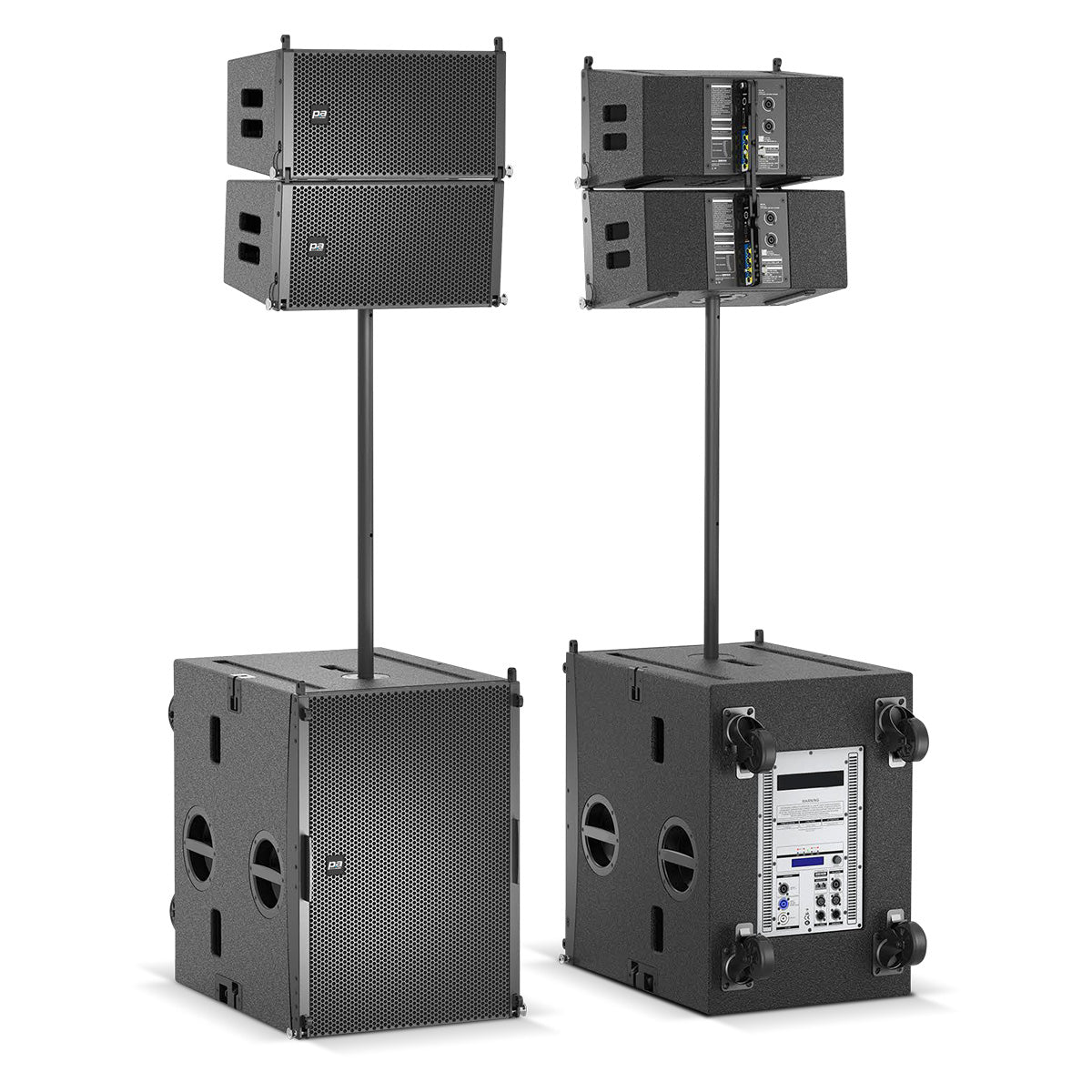

With a coverage pattern of 90° horizontal by 10° vertical, the ET110L is designed for versatile deployment, whether in pole-mounted, ground-stacked, or flown configurations. It features two Neutrik NL4MP connectors, allowing for easy integration into a wide range of audio systems. The ET110L’s compact dimensions and 18kg weight make it a practical choice. When combined with the ET118BA and ET118B subwoofers, it provides and easy to transport and versatile system. The Top Cabinet is designed to be powered either by the inbuilt amplifier module of the ET118BA, ET218BA or the AC8 amplifier
Features at a Glance:
- Components 10″ / 1 x 3″
- Dispersion 90°
- SPLmax 138dB
- Weight 18kg
Specifications:
|
Frequency Response |
80Hz ~ 20kHz (-10dB) |
| Sensitivity (@1w / 1m) |
HF: 112dB, LF: 103dB |
| Nominal Impedance |
HF: 16Ω, LF: 16Ω |
| Power Rating(AES) |
HF: 90W, LF: 400W |
| LF Driver |
1 x 10″ (75mm Voice Coil, Neodymium |
| HF Driver |
1 x 3″ (75mm Voice Coil, Neodymium) |
| Maximum SPL |
138dB |
| Nominal Dispersion (-6dB) |
H: 90° × V: 10° |
| Connector |
2 x Neutrik NL4MP |
| Connection Method |
LF: 1+1-, HF: 2+2- |
| Enclosure |
15mm 18mm Multilayer Birch Plywood |
| Finish |
Black polyurea paint |
| Grille |
Black steel grille with acoustic foam |
| Dimensions (H x W x D) |
308 x 527 x 342 mm |
| Weight |
18kg |
