Description

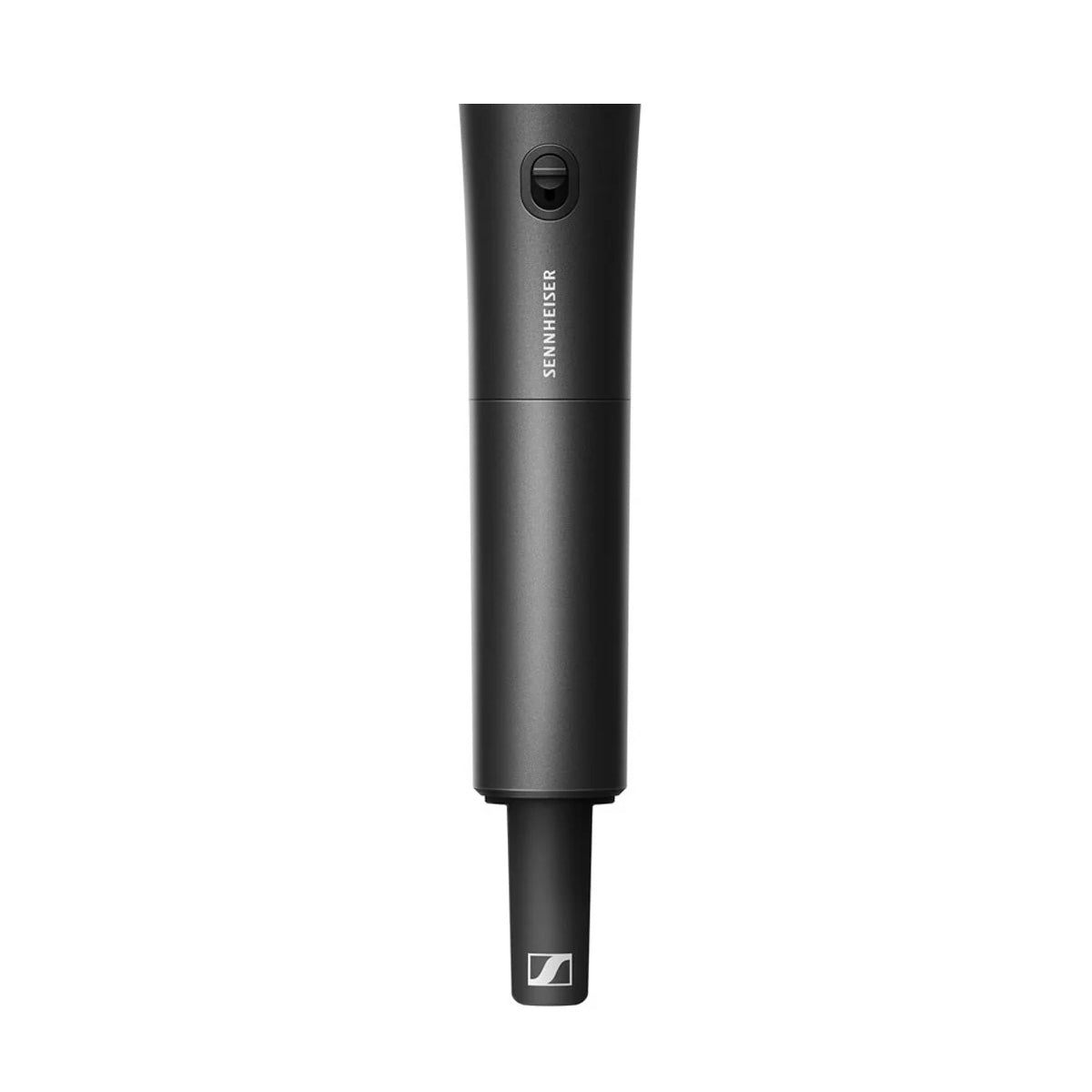

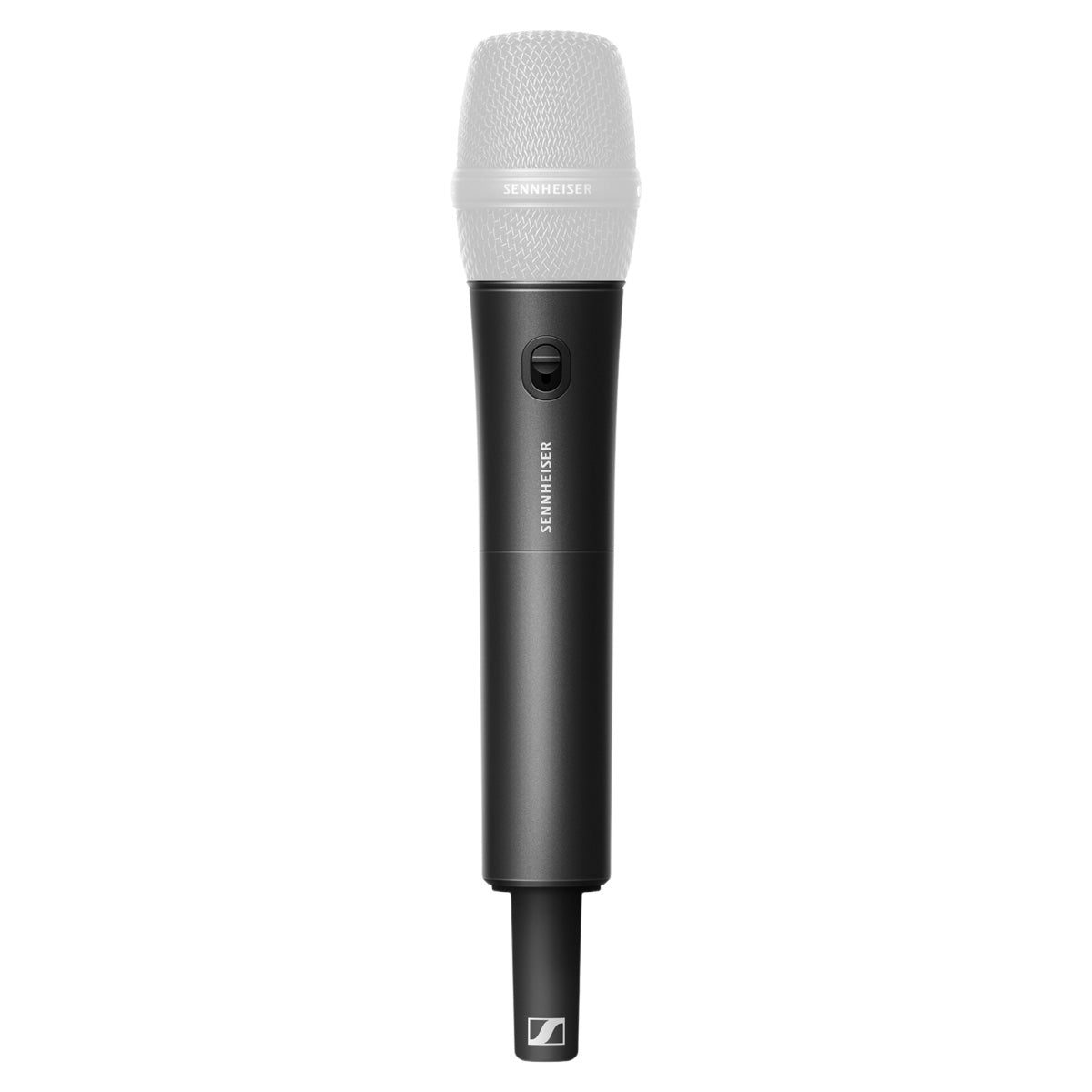

Digital UHF handheld transmitter with mute switch for use with Evolution Wireless Digital. (Microphone Module available separately.)
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This handheld transmitter is compatible with a wide range of Sennheiser and Neumann microphone capsules.
Features at a Glance:
- Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
- Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
- Auto scan creates reliable connections with minimal time and effort
- 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
- Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
- 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- 2,240 selectable frequencies allow for fine tuning
- Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Specifications:
| Frequency range |
606.2 - 662 MHz |
|
THD |
≤ -60 dB for 1 kHz @ -3 dBfs input level |
|
Weight |
approx. 304 g (incl. MMD 835 microphone module) |
|
approx. 195 g (without microphone module) |
|
|
Operating temperature |
-10 °C - +55 °C (14 °F - 131 °F) |
|
Operating relative humidity |
5 - 95 % (non-condensing) |
|
Audio frequency response |
20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
|
Input voltage range |
2.0 - 4.35 V |
|
Current consumption |
< 300 mA |
|
Power supply |
2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack |
|
Transmission power |
Audio link- 10 mW |
|
ERP (Range Y1-3): 12 mW ERP |
|
|
BLE: max. 10 mW EIRP |
|
|
Dimensions |
50 x 268 mm (incl. MMD 835 microphone module) |
|
|
40 x 200 mm (without microphone module) |
