Description
Sennheiser EW-D 835-S SET Digital Wireless Handheld Microphone System with MMD 835 Capsule (S1-7), 606.2-662MHz
All-in-one digital wireless handheld set for those who sing or speak featuring Sennheiser's renowned e 835 capsule.
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with an integrated mute switch.
What's in the box:
- Sennheiser EW-D 835-S SET Digital Wireless Handheld Microphone System with MMD 835 Capsule (Q1-6: 470 to 526 MHz)

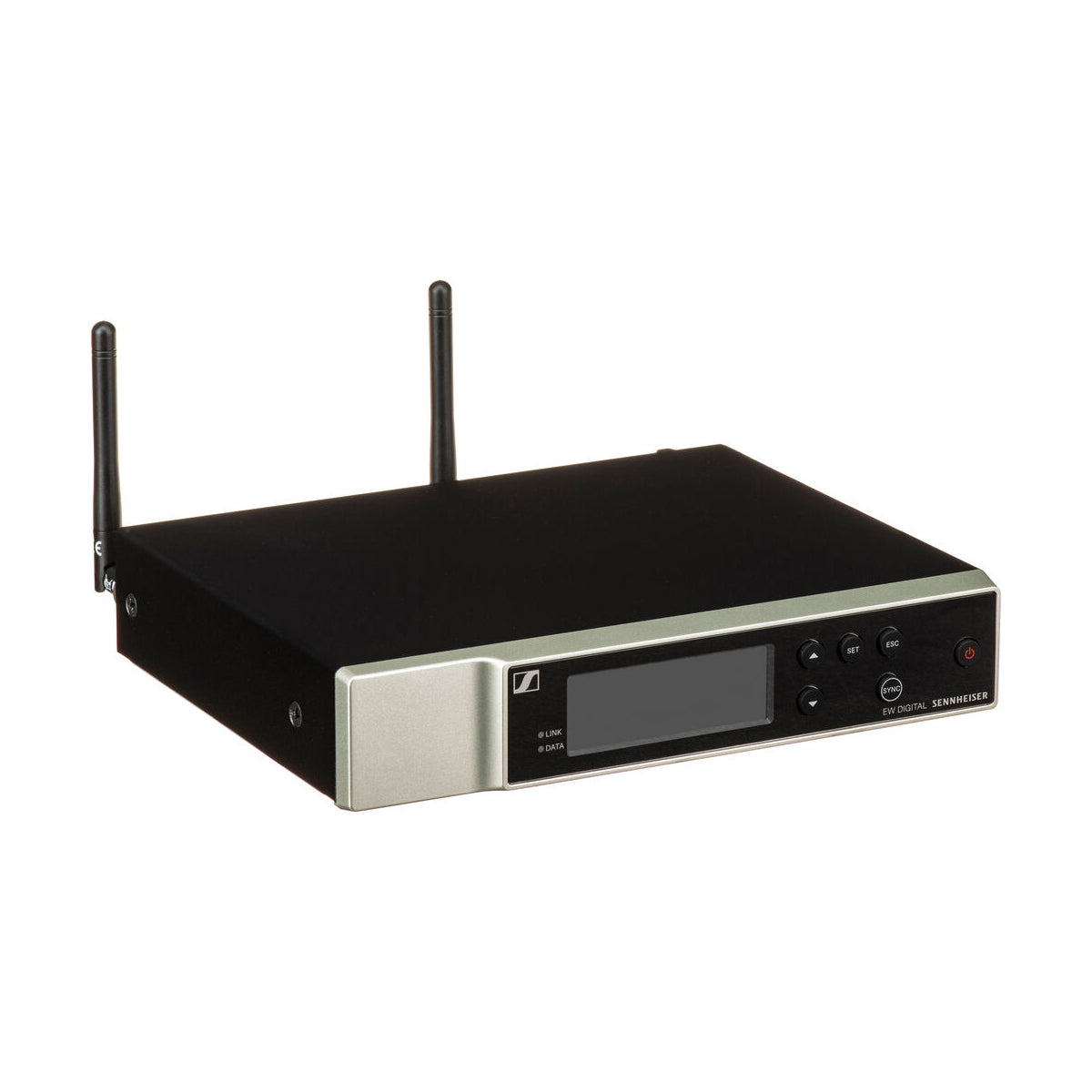

- Sennheiser EW-D EM Digital Wireless Receiver (Q1-6: 470 to 526 MHz)

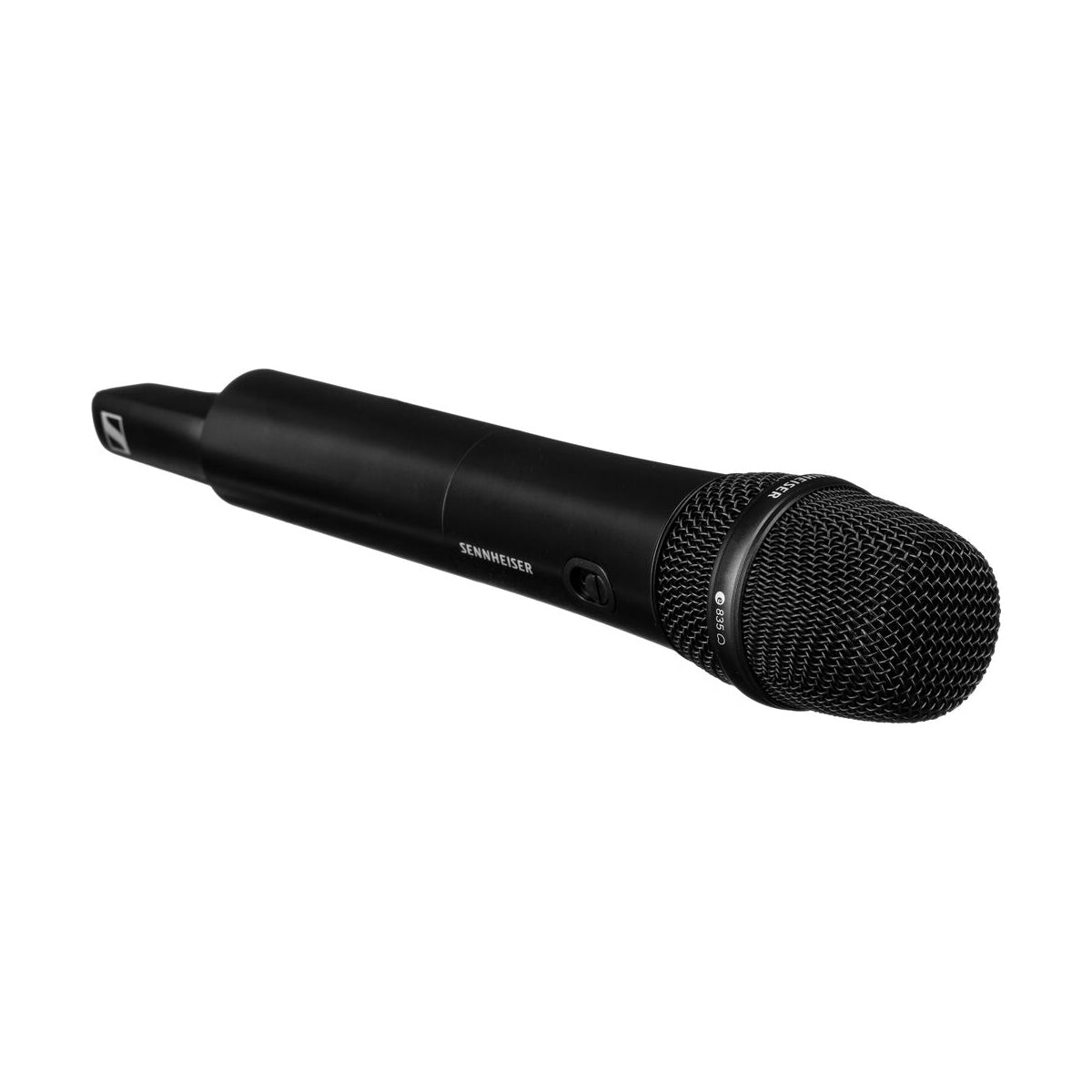

- Sennheiser EW-D SKM-S Digital Wireless Handheld Transmitter with Mute Switch, No Mic Capsule (Q1-6: 470 to 526 MHz)

- Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)

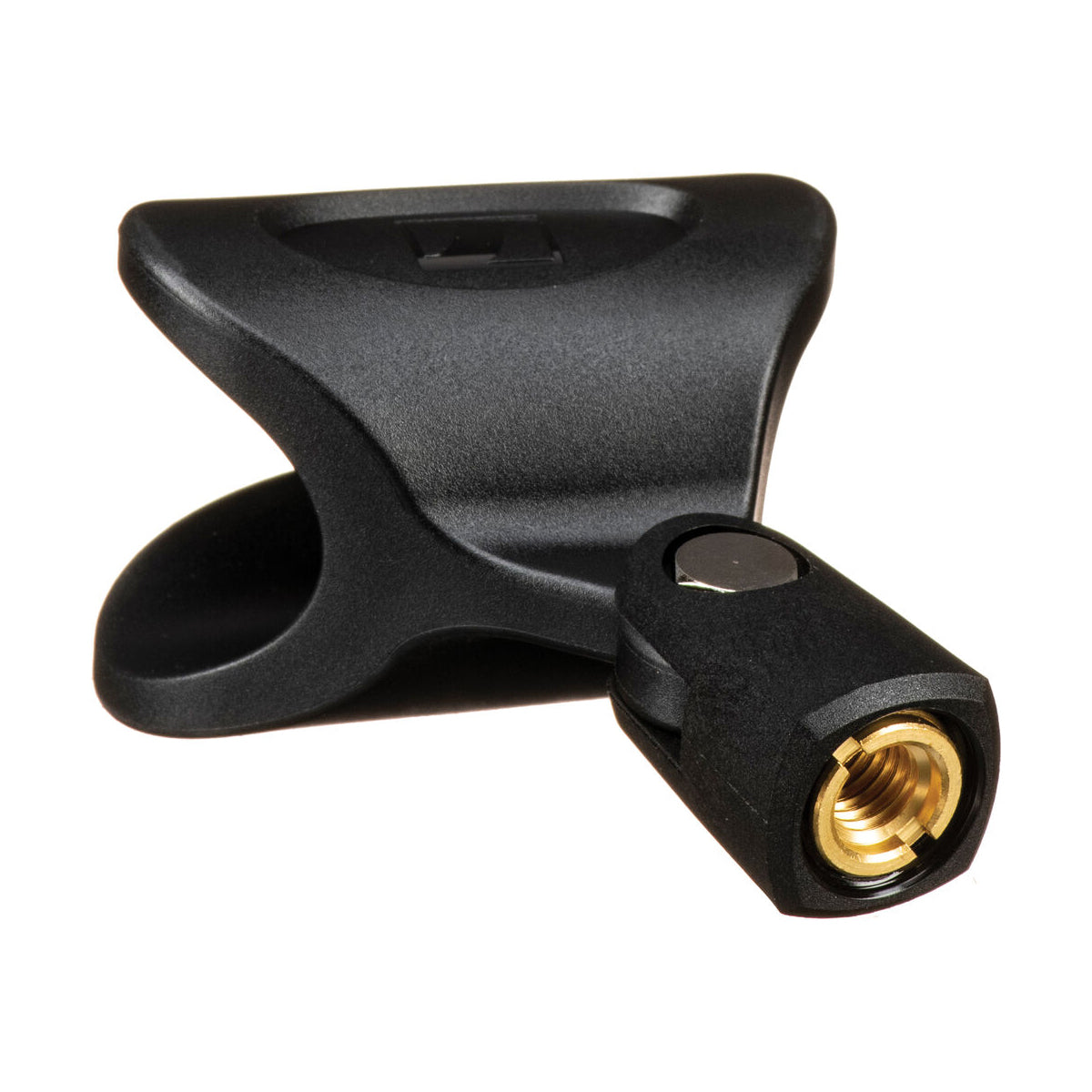

- Sennheiser MZQ 1 Clip for SKM Wireless Handheld Microphones

- 2 x Antenna Rods

- Rackmount Set

- 4 x Rubber Feet

- Sennheiser NT 12-5 CW+ Universal Power Supply for EW-D EM Wireless Receiver

- 2 x AA Batteries
Features:
- Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
- Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
- Auto-scan creates reliable connections with minimal time and effort
- 134 dB audio input dynamic range eliminates the need for sensitivity adjustments and preserves every detail
- Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
- 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- 2,240 selectable frequencies allow for fine-tuning
- Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Specifications:
| Latency (ms) | 1.9 ms |
| Polar pattern | Cardioid |
| Sensitivity | 2.1 mV/Pa |
| Transducer principle | dynamic |
| Transducer type | Dynamic |
| Connection | Wireless |
| Dimensions | 212 x 44 x 189 mm |
| Weight (g) | approx. 304 g (incl. MMD 835 microphone module) |
