Description
World class DI
At the heart of the design are two high performance Eclipse ET-DB2 transformers. These deliver 20Hz to 20kHz performance with less than 1.5dB deviation above 18kHz and are able to withstand tremendous signal levels without distortion. Unlike active circuits that overload when the signal exceeds the rail voltage, transformers saturate. This creates a pleasing effect that naturally rounds out the tone, acting like a subtle limiter which is particularly advantageous when interfacing the ProD2 with digital pianos, samplers and drum machines that can produce excessive dynamics. Transformers are particularly adept at eliminating hum and buzz caused by ground loops
Features at a Glance:

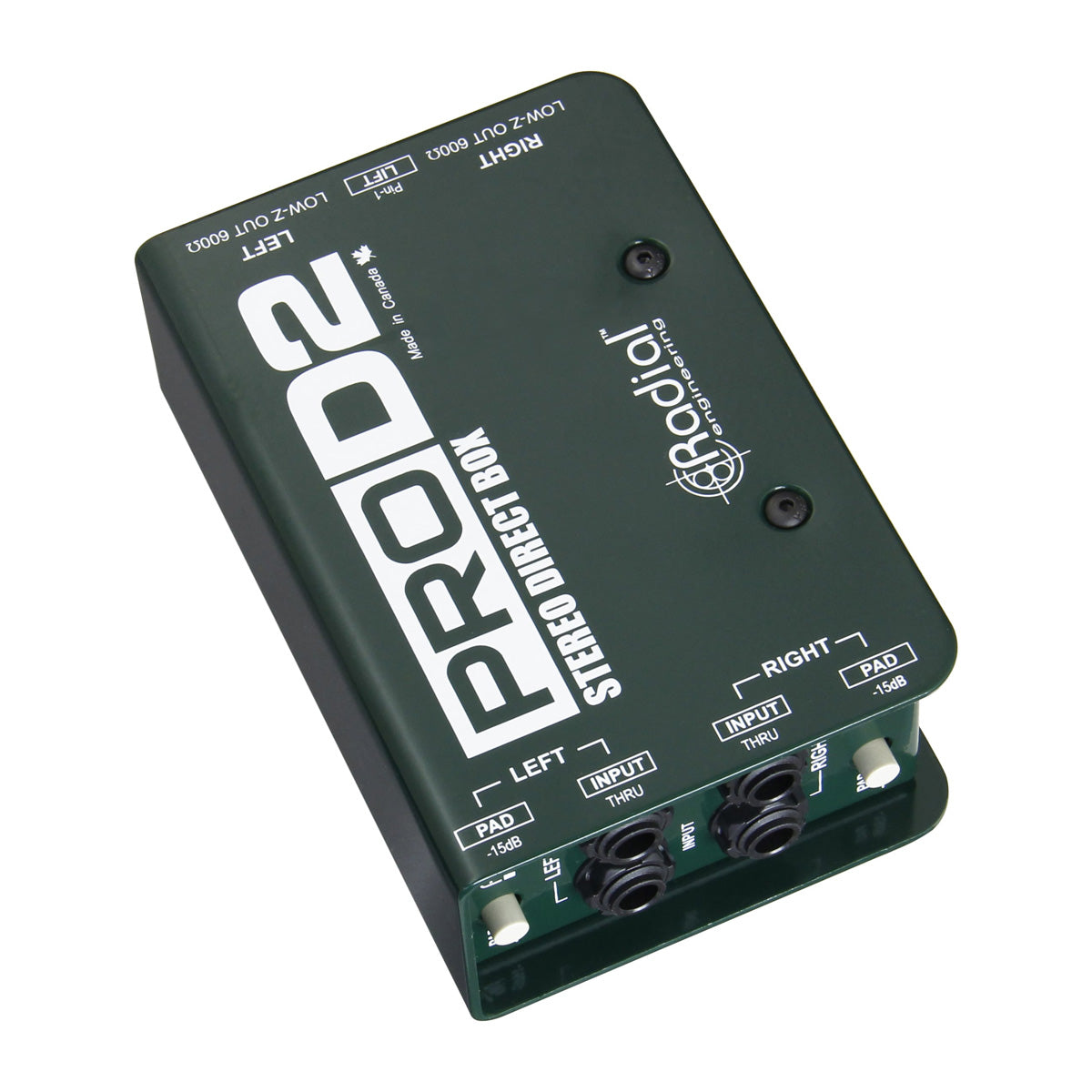

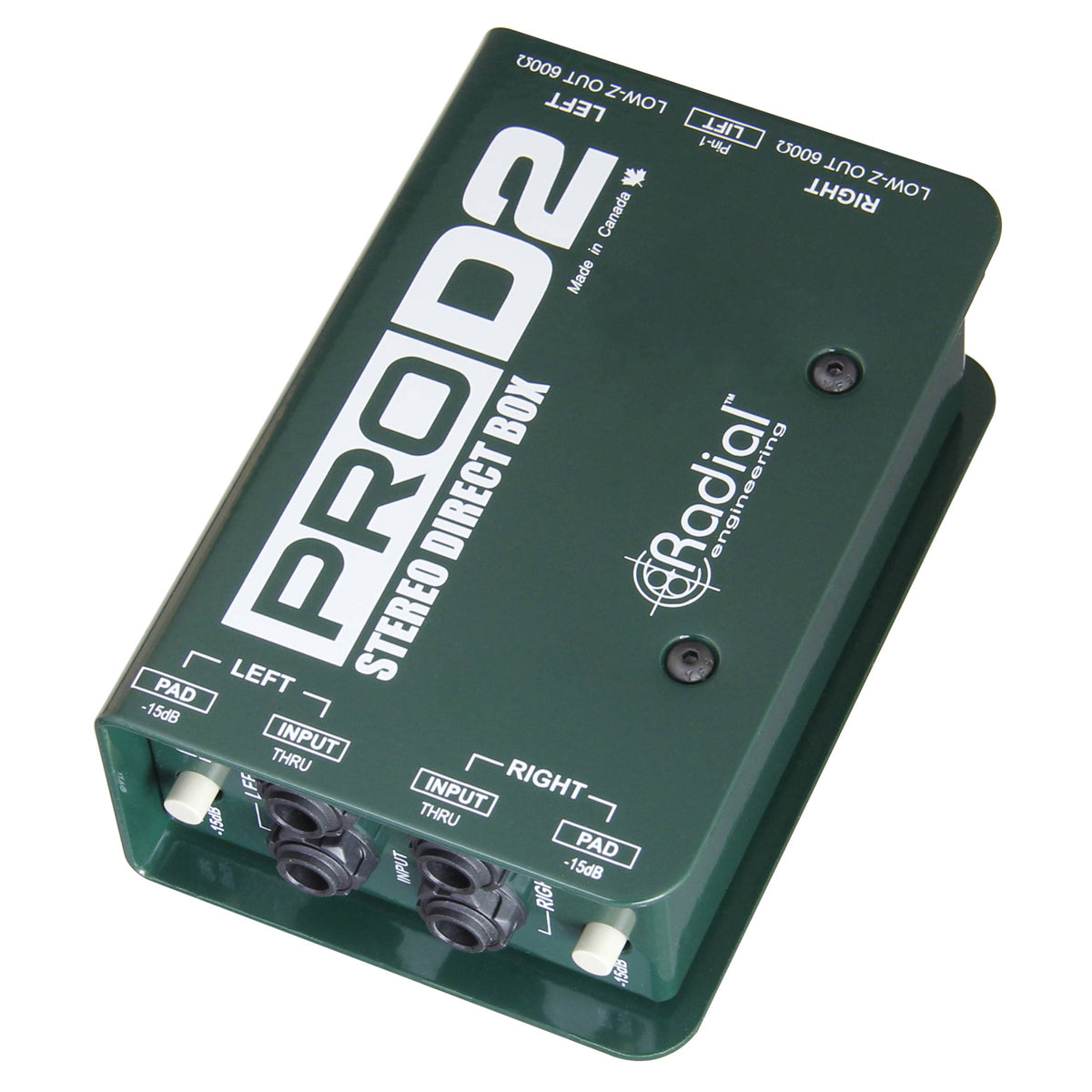

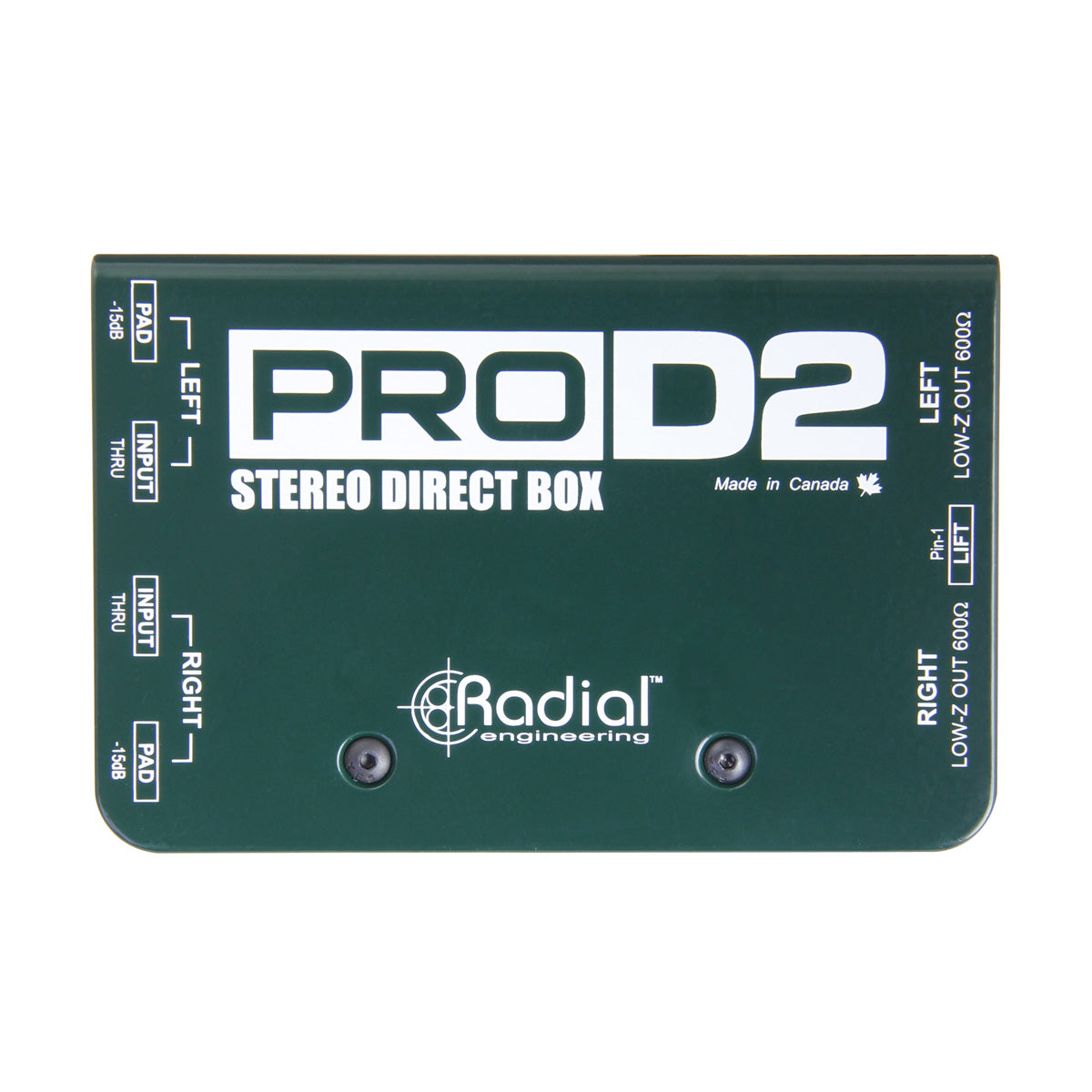

- Stereo direct box designed for keyboards
- Smooth, warm sound rounds out digital edge
- Able to handle huge transients without choking
- May be rack mounted for touring rigs
Specifications:
|
Audio circuit type |
Passive, transformer based |
| Transformer |
Eclipse ET-DB2, 12:1 ratio |
| Number of channels |
2 |
| Frequency response |
20Hz ~ 18.5KHz (± 0.2dB) |
| Dynamic range |
128dB |
| Total harmonic distortion |
0.01% from 20Hz~20kHz @-10dB |
| Phase Deviation |
1° @ 100Hz; 8° @ 20Hz |
| Input Impedance |
140k Ohms, unbalanced |
| Output Impedance |
150 Ohms, balanced |
| Maximum Input |
+18dB @ 20Hz |
| Features |
Input pad, Ground lift |
| Input Connectors |

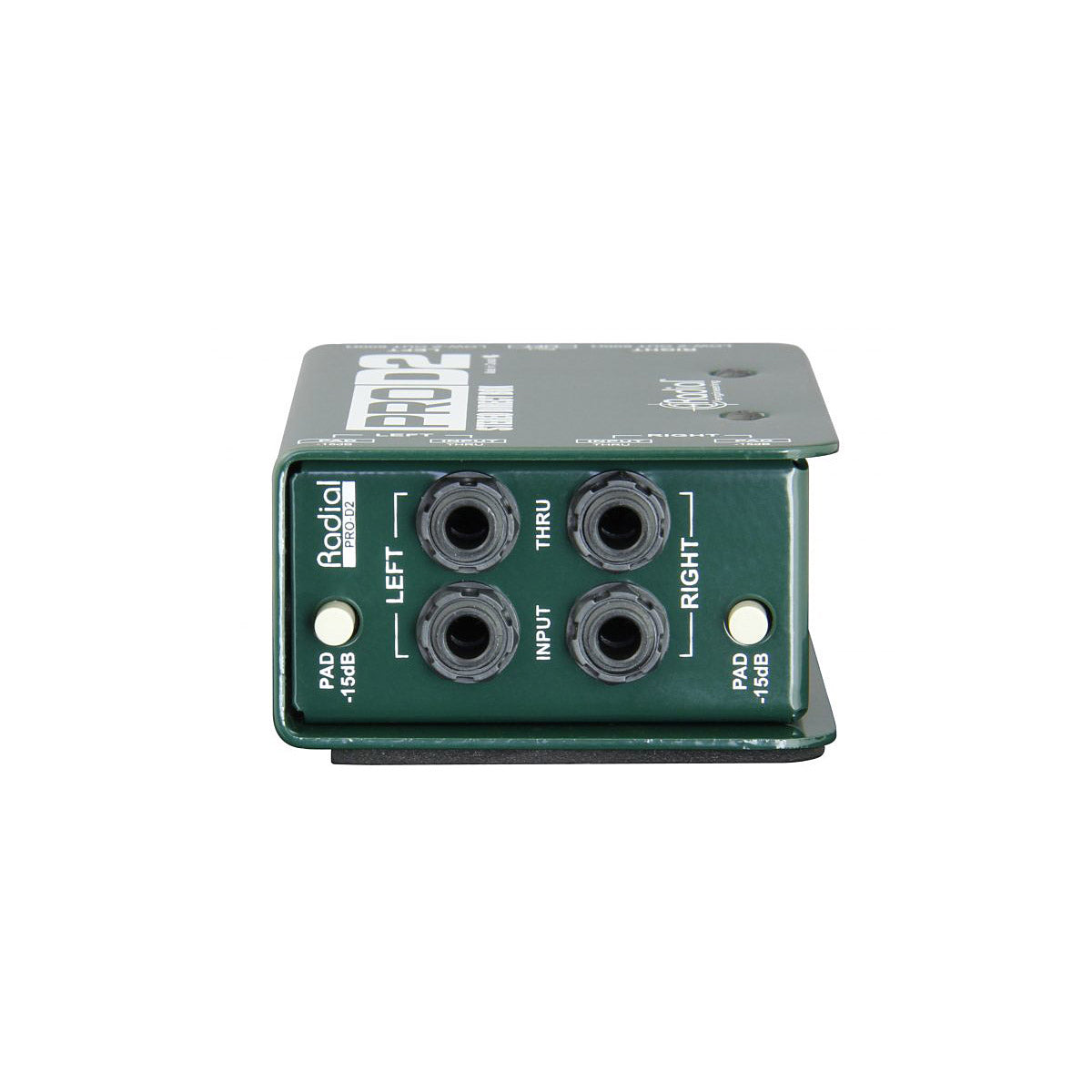

1/4" |
| Output Connectors |

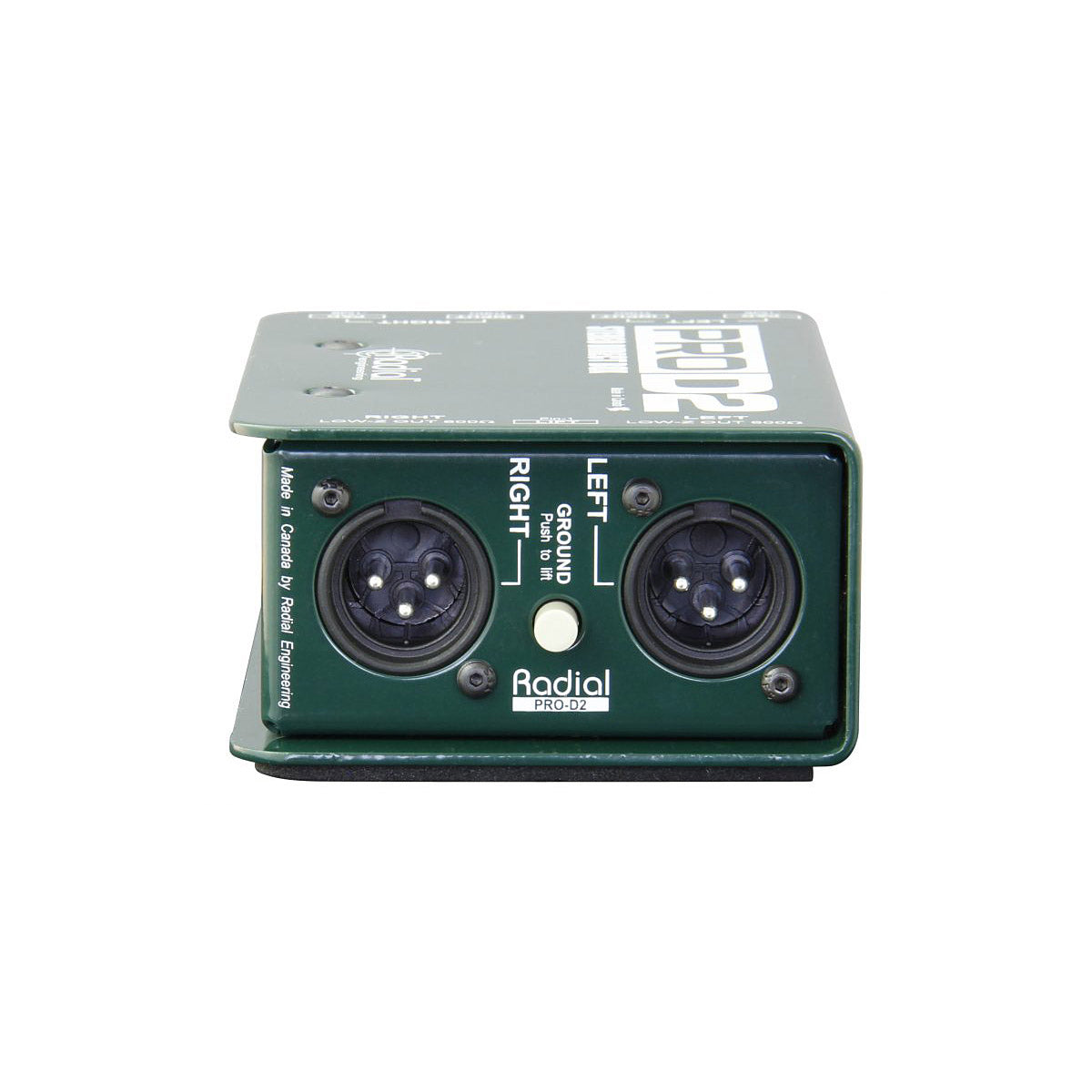

XLR, 1/4" thru |
| Construction |
14 gauge steel chassis & outer shell |
| Size (L x W x D) |
127mm x 84.1mm x 45.5mm |
| Weight |
.54kg |
| Power |
Passive, no power required |
| Conditions |
For use in dry locations only between 5°C and 40°C |
